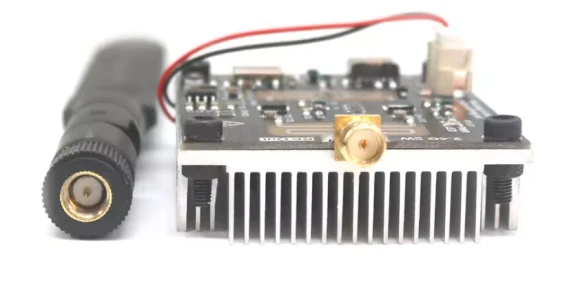

Application of RF Connectors
In today's world where modern electronic devices are ubiquitous-from the smartphones in our hands to the artificial satellites orbiting the Earth-wireless information transmission has become a cornerstone of societal operation. At the heart of ensuring these high-frequency signals are transmitted efficiently and reliably within and between devices lies the seemingly small yet critically important PCB RF connector. These connectors are not merely physical interfaces on circuit boards; they are versatile bridges to a wide array of wireless application scenarios.
Ⅰ. Consumer Electronics: The "Invisible Hero" of Smart Living
Consumer electronics represent the most extensive and closest-to-daily-life application field for PCB RF connectors. With the proliferation of high-speed wireless standards such as 5G, Wi-Fi 6/7, and Bluetooth 5.0, the demands for internal RF connections in devices have become extremely strin
Smartphones and Tablets:
A modern smartphone integrates multiple RF connectors, serving functions such as the main antenna, GPS antenna, Wi-Fi/Bluetooth module, and NFC antenna. These connectors require miniaturization (e.g., IPEX series), high-frequency performance, and excellent anti-interference capabilities to ensure signal strength and stability.
Laptops and Routers:
Whether it's the Wi-Fi antenna connection in laptops or the signal interaction between the internal motherboard and external antennas in routers, PCB RF connectors are indispensable. They provide a stable and reliable channel for high-speed wireless networks.
Ⅱ. Communication Infrastructure: Building the "Backbone Nodes" of the Digital Society
Communication base stations, optical transmission equipment, and data centers form the core infrastructure of the digital society. Here, PCB RF connectors play the role of "load-bearing walls."

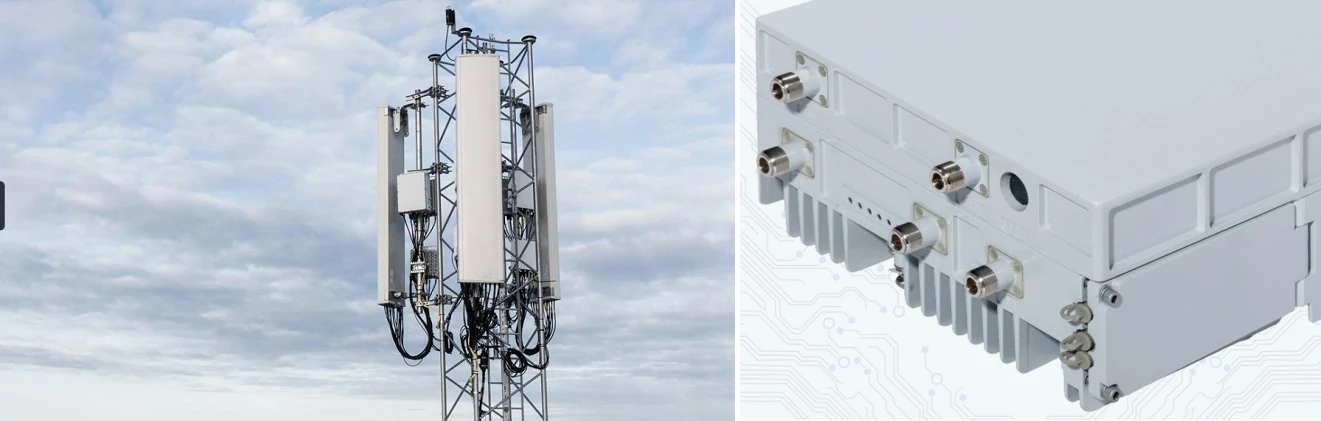

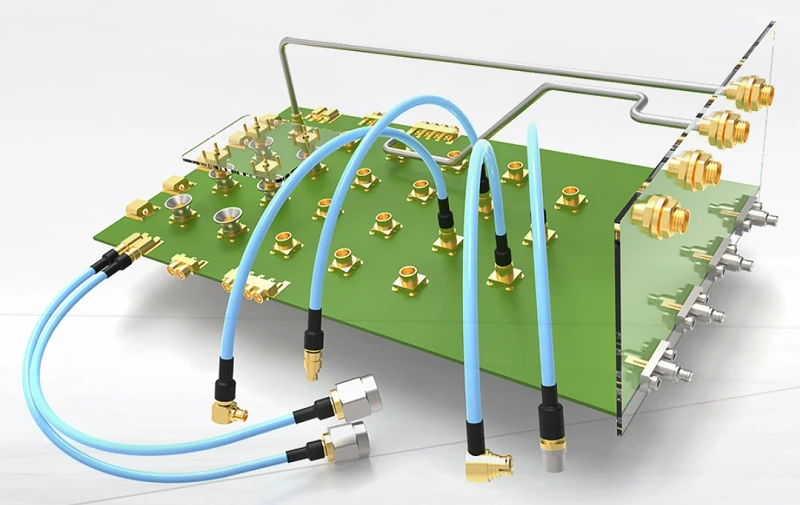

5G Macro and Small Cell Base Stations: Massive MIMO (Multiple Input Multiple Output) technology is at the heart of 5G, requiring extensive interconnections between antenna units and radio frequency units (RRU/AAU) via high-performance board-to-board RF connectors. These connectors must endure harsh outdoor environments while delivering low loss, high shielding effectiveness, and exceptional phase stability.

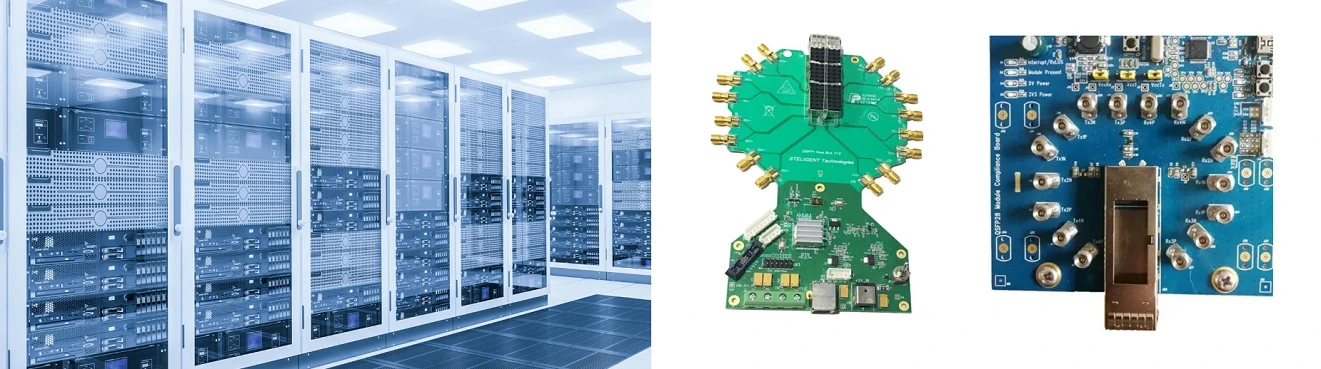

Data Centers and High-Speed Interconnects: Within data centers, data transfer rates between servers and switches are advancing toward 400G and even 800G. On-board RF coaxial connectors (such as MCX, MMCX) and high-speed differential connectors are used for high-speed signal transmission between chips and boards. Their quality directly impacts data throughput efficiency and bit error rates.
Ⅲ. Aerospace and Defense: The "Reliable Messenger" in Extreme Environments
This field presents the most demanding performance requirements for PCB RF connectors, which must maintain 100% reliability under high vibration, shock, extreme temperatures, and vacuum conditions.
Satellite Communication Systems:

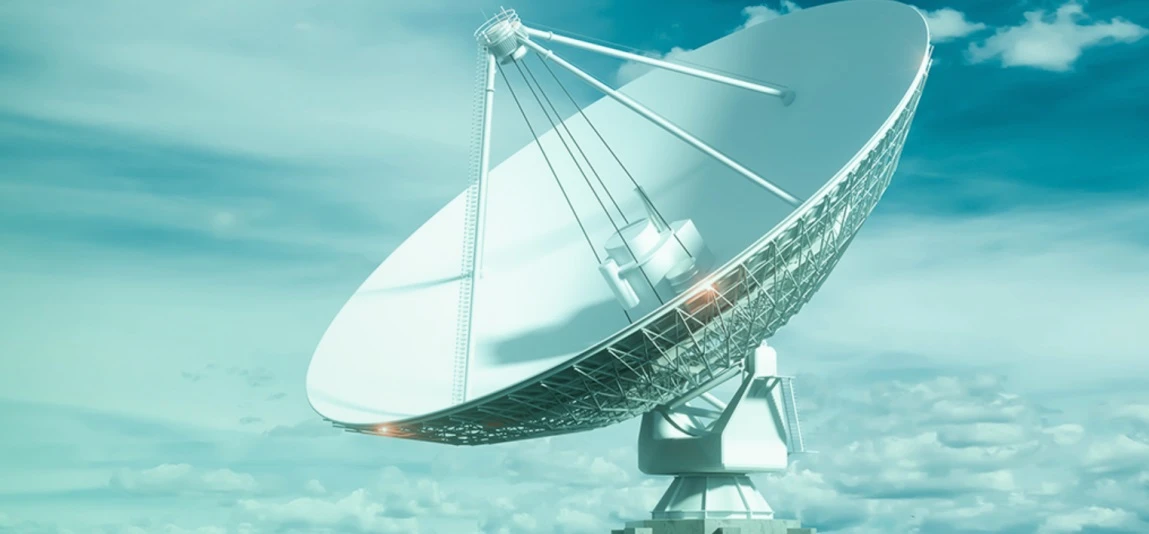

In satellite payloads, RF connectors are used to link signal amplification, filtering, and frequency conversion modules, transmitting microwave signals. Their lightweight design, low passive intermodulation (PIM), and ultra-high stability are critical to ensuring decades of normal operation in orbit.
Radar and Electronic Warfare (EW) Systems:
Airborne and shipborne radar systems require the transmission of high-power microwave signals. The RF connectors used in these systems must possess high power capacity, excellent shielding effectiveness, and environmental resistance to ensure the successful execution of critical missions.
Ⅳ. Industrial and Medical: The "Specialized Expert" in Unique Scenarios
RF connectors are equally indispensable in industrial automation and modern medical equipment.
Industrial Internet of Things (IIoT) and Automation:
Industrial wireless sensors, remote control modules, and AGVs (Automated Guided Vehicles) all rely on reliable wireless connections. The RF connectors used in these applications often require more robust housings and higher protection ratings (IP ratings) to withstand dusty, oily, and humid environments.
Medical Equipment: In devices such as magnetic resonance imaging (MRI) systems:

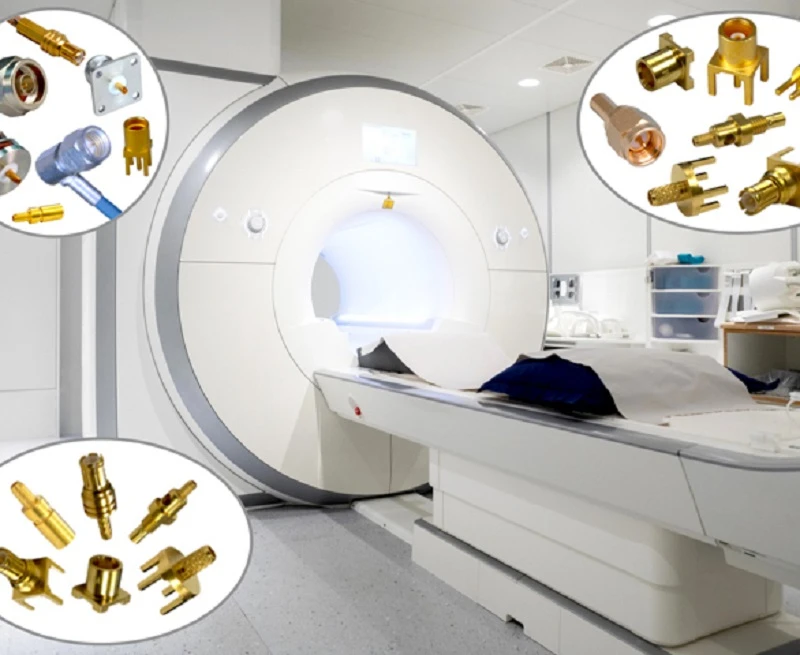

wireless patient monitors, and medical robots, RF connectors are used to transmit critical diagnostic data or control signals. They must offer high shielding effectiveness to prevent signal interference from compromising device accuracy, and may even require biocompatible materials to meet specific contact requirements.
