Your Professional Power Dividers Supplier
Flexi RF Inc. was founded in 2023 in Santa Clara, California - at the heart of Silicon Valley, by a team of experienced RF engineers. We specialize in the design, manufacture, and supply of passive and active RF components. Our product line includes passive components such as antennas, connectors, adapters, cable assemblies, attenuators, and loads; and active components such as amplifiers, switches, and select custom modules.
Why Choose Us
OEM and ODM
We offer both OEM and ODM services with no minimum order quantity. Whether you are developing a next-generation system or require a mature RF module solution, we provide products and technical support that scale with your innovation.
Our Services
Flexi RF offers a one-year warranty on standard products, ensuring that our service remains reliable and efficient.
Real-Time Response
Our cross-border team, spanning China and the United States, can respond to customer needs around the clock, ensuring seamless and efficient service across time zones.
Professional Team
With decades of industry experience and professional R&D as well as manufacturing facilities, our team of experienced engineers possesses strong independent innovation capabilities, enabling us to provide customers with high-quality customized RF solutions.
Specification
|
Sku |
Connector Series |
Frequency |
VSWR Input |
Isolation Min.(dB) |
|
GPD-8-008030-E |
SMA Female |
800MHz~3GHz |
1.25 |
20 |
|
Phase Balance (°) |
Power,Max Input (Watts) |
Amplitude Balance(dB) |
Body Material |
Body Plating |
|
±3° |
20 |
±0.3 |
Aluminum Alloy |
Black Paint |
Power Dividers Functionalities
Addition and subtraction of signals
1
>>
Multi-in-phase output signal production
2
>>
Multiple outputs from a single input
3
>>
Combining signals from multi-ports and obtaining a single output
4
>>
Obtaining RF logic arrangements
5
Input Port: This is the port where the input signal is fed into the power splitter.
Output Ports: These are the ports where the split output signals are obtained. The number of output ports can vary depending on the design of the power splitter.
Power Divider Circuit: This is the core component of the power splitter that divides the input signal power into multiple output signals. It is usually implemented using passive components such as resistors, inductors, and capacitors, or through more complex designs using transmission lines or microstrip circuits.
Matching Networks: These are additional components used to match the input and output impedance of the power splitter to the desired values. This ensures efficient power transfer between the input and output ports.
Enclosure: Power splitters are often enclosed in a housing or case to protect the internal components and provide mechanical stability.
Types of Power Dividers
Wilkinson power dividers are widely used in RF and microwave systems due to their excellent performance characteristics. They provide low insertion loss, good isolation between output ports, and maintain phase coherence between output signals. Wilkinson splitters are typically available in 2-way, 3-way, and 4-way configurations, with the number of ports determining the signal splitting capability.
Resistive power dividers, also known as resistive dividers, are a basic type of power divider that use resistors to divide the input signal into two or more output signals. They are simple in design and provide equal amplitude splitting, with each output signal being attenuated by a certain amount compared to the input signal. Resistive splitters are commonly available in 2-way and 3-way configurations, with each configuration offering different levels of insertion loss and isolation between output ports.
Hybrid couplers, also known as quadrature hybrids, are another type of RF power dividers commonly used in balanced signal distribution applications. They provide equal power splitting and maintain a 90-degree phase difference between output signals.
Directional couplers are passive devices that split an input signal into two output signals while maintaining a defined coupling ratio between the input and output ports. They are commonly used in RF systems for signal monitoring, signal sampling, and power measurement applications.
Rat-race couplers, also known as 180-degree hybrids, are specialized RF power dividers designed to split an input signal into two output signals with a 180-degree phase difference. They are often used in applications such as phase shifters, balanced amplifiers, and image reject mixers. Rat-race couplers typically have 4 ports, with each port serving a specific phase-shifting function in the signal distribution process.
Power Dividers Application Areas
Wireless communications: In base stations and antenna systems, used for signal distribution and synthesis.
Radar Systems
Used to distribute signals to multiple antennas or receivers.
Test Measurement
In the laboratory, used to distribute signal sources to multiple test equipment.
Satellite communications
Used for distribution and routing of signals.
Customization Services
To better meet the diverse needs of different industries and customers, we can tailor RF adapter professional solutions to your specific application scenarios and special requirements. For further information or support, please feel free to contact us.
Order Process
Contact Customer Service
1
>>
Submit Order
2
>>
Obtain a Quote
3
>>
Confirm Order
4
>>
Arrange Payment
5
>>
Track Order
6
>>
Receive and Inspect Goods
7
Packaging and Shipping
|
Packaging |
Plastic bags, paper boxes |
|
Transportation methods |
Road transport, rail transport, sea transport, air transport |
FAQ
We're professional power dividers manufacturers and suppliers in USA, specialized in providing high quality customized service. We warmly welcome you to buy high-grade power dividers in stock here from our factory.

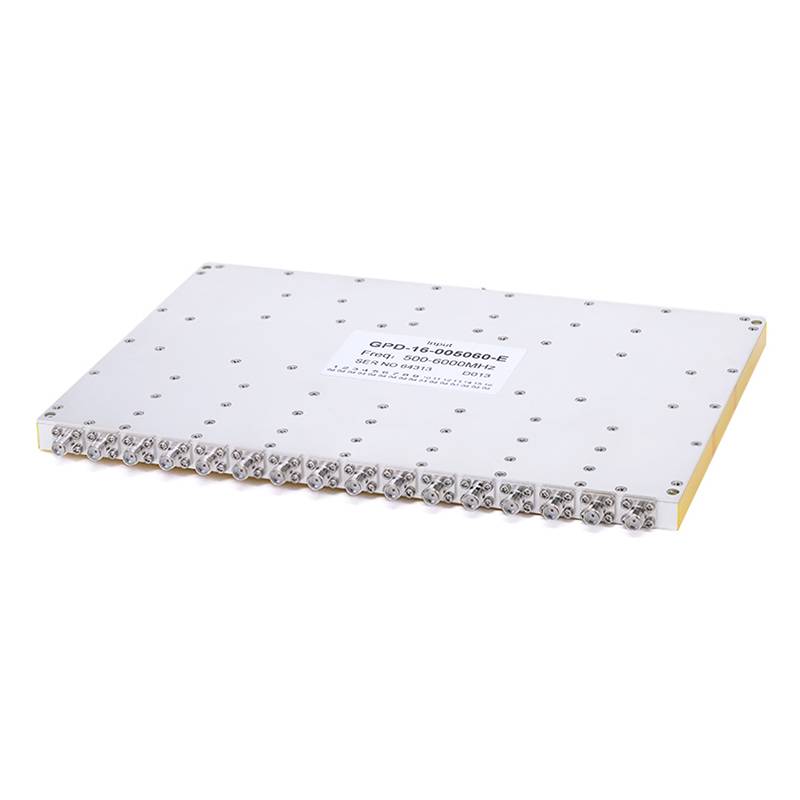

16 Way SMA RF Coaxial Power Splitter Divider, 6 Way Power Dividers, power dividers
