110GHz Waveguide To Coax Adapter

Flexi RF WR10/1.0-K-T: 1.0mm 110GHz Waveguide-to-Coaxial Adapter. This product is a precision adapter component designed for ultra-high-frequency scenarios, tailored for signal interconnection in millimeter-wave systems. Its core parameters and features are as follows:

• Interface Configuration: 1.0mm female coaxial interface (50Ω impedance, standard polarity), compatible with WR10 waveguide, featuring a flange connection

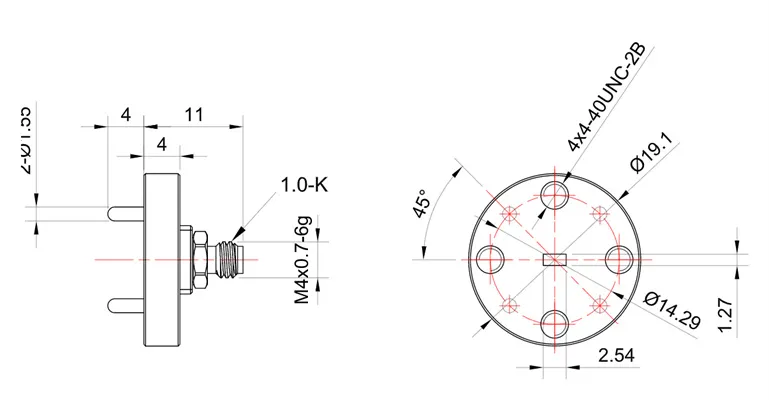

• Structural Design: Straight-body shape, paired with a standardized flange (dimensions include positioning parameters such as Φ19.1 and Φ14.29, equipped with 4×4-40UNC-2B mounting holes)
• Operating Frequency Band: Covers 75~110GHz ultra-high-frequency range, suitable for signal transmission needs in this band

• Transmission Performance: Insertion loss ≤1.0dB, VSWR ≤1.35, ensuring low-loss and high-matching transmission in ultra-high-frequency bands
• Environmental Adaptability: Operating temperature range of -40℃~+105℃, meeting temperature variation requirements in various industrial/test scenarios
• Compliance: Conforms to the 2011/65/EU (RoHS) environmental protection standard

• Body/Flange: Typically made of Brass, which offers excellent electrical conductivity and machinability;
• Connector Components: Mostly use Stainless Steel to ensure structural strength and wear resistance of the interface.
• Brass Body/Flange: Generally processed with Gold Plating (usually 1μm thick), which improves conductivity, corrosion resistance, and signal transmission stability;
• Stainless Steel Connector: Often undergoes Passivation treatment to enhance surface oxidation resistance and extend the interface's service life.
