18GHz Waveguide To Coax Adapter
Flexi RF's meticulously crafted 18GHz series waveguide-to-coax adapters, with outstanding performance parameters, precision structural design, and reliable quality assurance, have become the ideal choice for connecting waveguide systems and coaxial systems, providing strong support for various high-frequency application scenarios.
Description
Product introduction
Flexi RF's meticulously crafted 18GHz series waveguide-to-coax adapters, with outstanding performance parameters, precision structural design, and reliable quality assurance, have become the ideal choice for connecting waveguide systems and coaxial systems, providing strong support for various high-frequency application scenarios.
Product Structure Features
The 18GHz series launched this time covers a variety of mainstream models. While maintaining consistent core advantages, each model optimizes key configurations for different application needs:

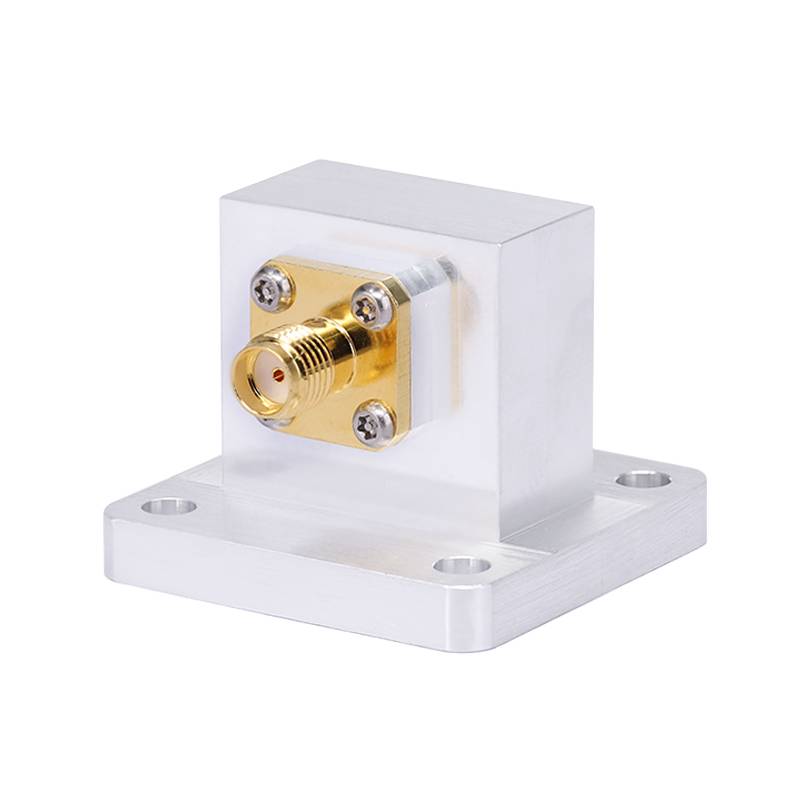

- WR-90 to SMA Female Straight (Model: WR90/SMA-UBR100-K-T)
- WR-90 to SMA Female Right Angle (Model: WR90/SMA-UBR100-K-V)

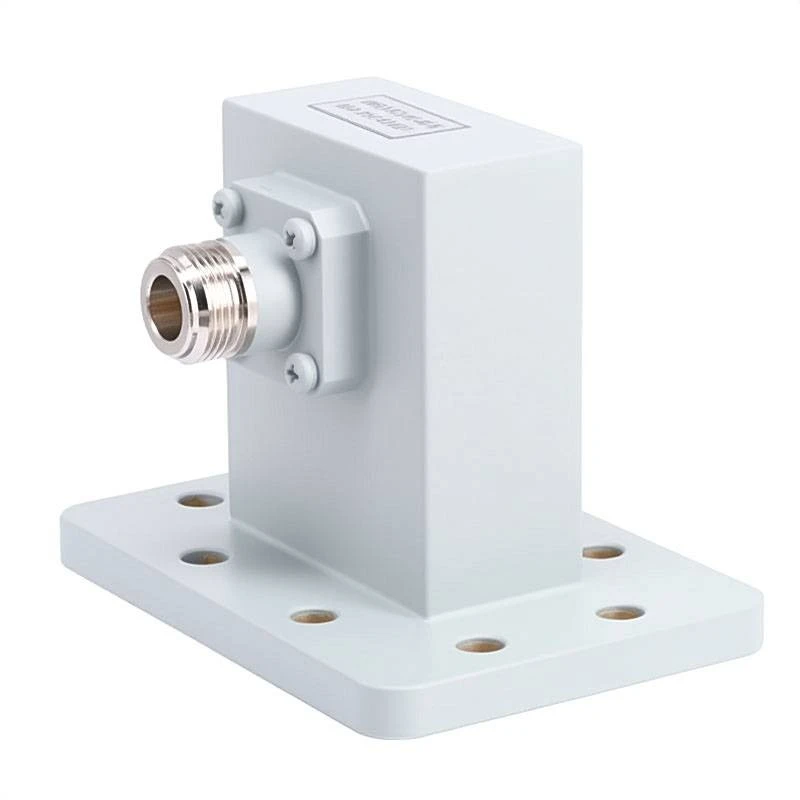

- WR-90 to N Female Right Angle(Model: WR90/N-K-V)

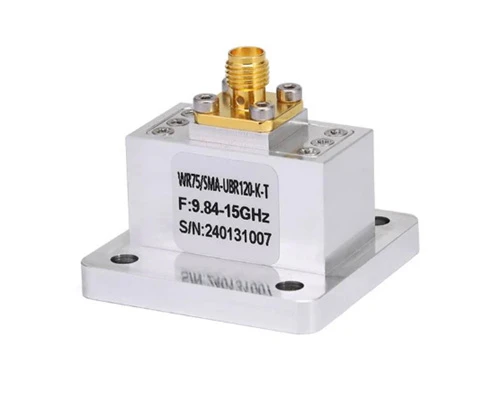

- WR-75 to SMA Female Straight (Model: WR75/SMA-UBR120-K-T)
- WR-75 to SMA Female Right Angle (Model: WR75/SMA-UBR120-K-V)

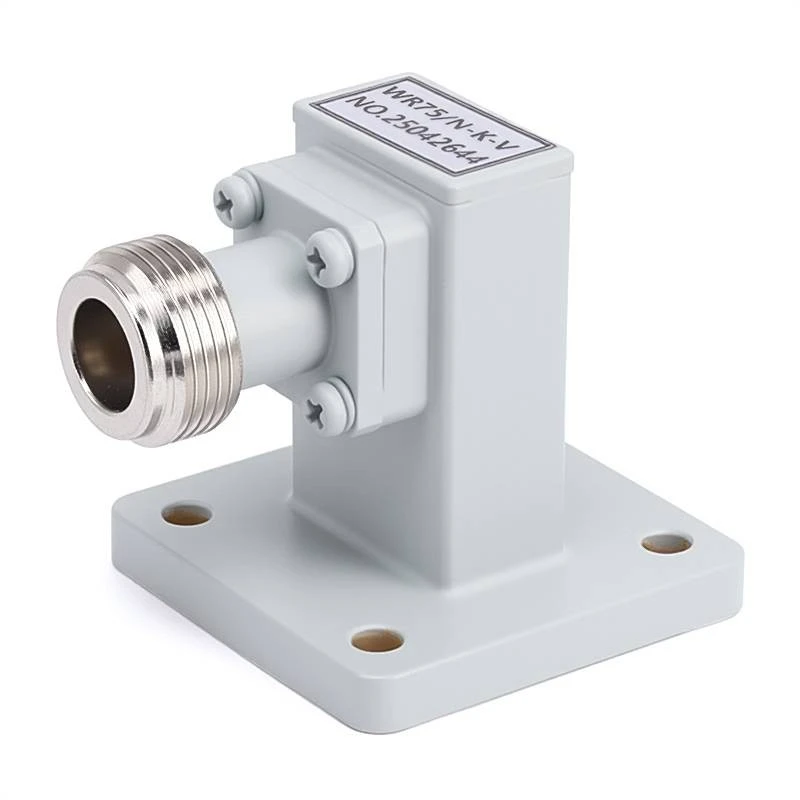

- WR-75 to N Female Right Angle (Model: WR75/N-K-V)
- WR-62 to SMA Female Right Angle(Model: WR62/SMA-UBR140-K-V)
Product Electrical Data
Frequency Coverage: 8.2-12.4GHz, 11.9 - 18GHz, 9.84 - 15GHz, 6.57 - 9.99GHz
Electrical Performance: VSWR as low as 1.25, with excellent return loss performance to effectively reduce signal reflection; insertion loss ≤0.25dB, ensuring minimal energy loss during signal transmission;
Structural Parameters: Adopting UBR100 ,UBR120,UBR140,FBP100,FBP120,UBR84,flange design, waveguide size: WR-112, WR-90,WR-75,WR-62,connector series SMA and N standard polarity, female gender, characteristic impedance 50 ohms, complying with industry universal interface specifications;
Mechanical Specifications: The main body is made of high-quality aluminum alloy, featuring both lightweight and high-strength properties
Procurement FAQ
Product Type
|
SMA Waveguide to Coax Adapter |
||||
|
|
|
|||
|
Sku |
Frequency |
Connector Series |
Waveguide Size |
Flange Designation |
|

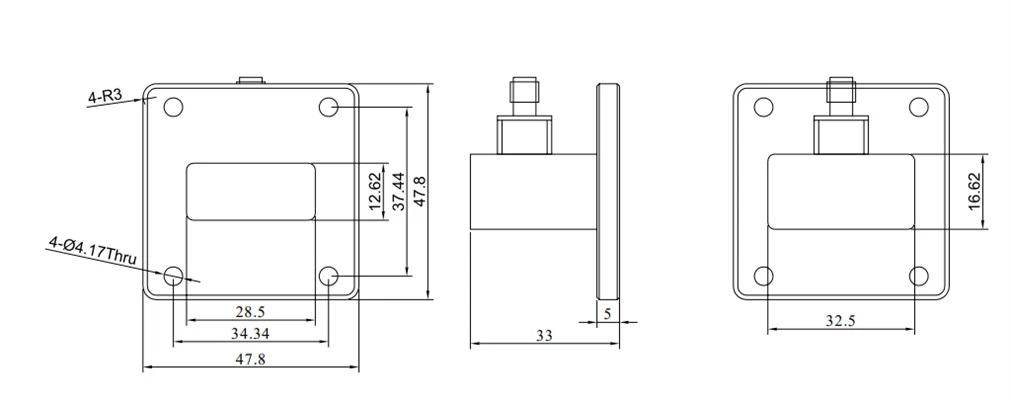

WR112/SMA-UBR84-K-V |
6.57 - 9.99GHz |
SMA Female |
WR-112 |
UBR84 |
|
Body Style |
VSWR |
Insertion Loss |
Connector Material&Plating |
Body Material&Plating |
|
Right Angle |
1.25 |
≤0.25 |
Brass Gold Plating |
Aluminum Grey Paint |
|
|
|
|||
|
Sku |
Frequency |
Connector Series |
Waveguide Size |
Flange Designation |
|

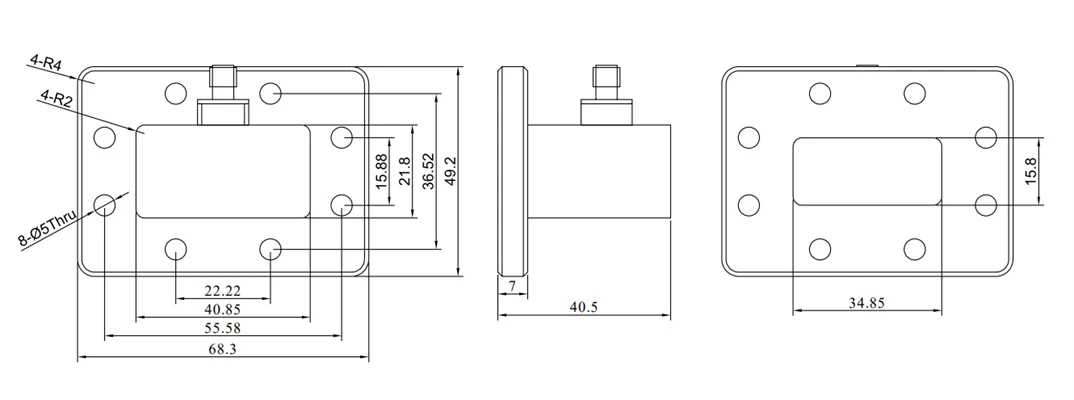

WR137/SMA-UDR70-K-V |
5.38 - 8.17GHz |
SMA Female |
WR-137 |
UDR70 |
|
Body Style |
VSWR |
Insertion Loss |
Connector Material&Plating |
Body Material&Plating |
|
Right Angle |
1.25 |
≤0.25 |
Brass Gold Plating |
Aluminum Grey Paint |
|
|
|
|||
|
Sku |
Frequency |
Connector Series |
Waveguide Size |
Flange Designation |
|

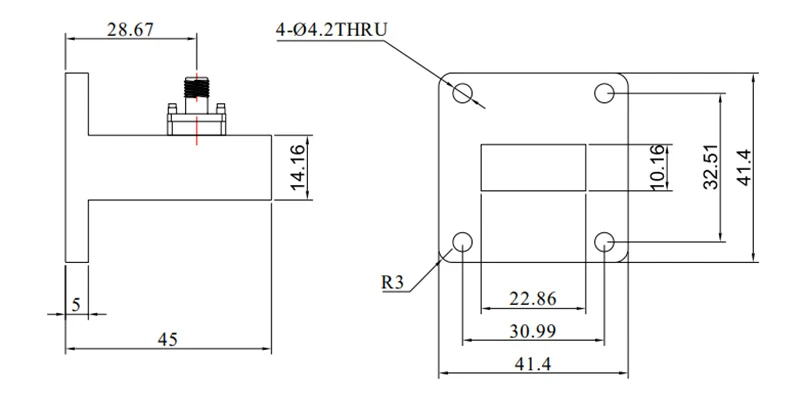

WR90/SMA-UBR100-K-V |
8.2-12.4GHz |
SMA Female |
WR-90 |
UDR100 |
|
Body Style |
VSWR |
Insertion Loss |
Connector Material&Plating |
Body Material&Plating |
|
Right Angle |
1.25 |
≤0.25 |
Brass Gold Plating |
Aluminum Oxidation |
 |
 |
|||
|
Sku |
Frequency |
Connector Series |
Waveguide Size |
Flange Designation |
|
WR90/SMA-UBR100-K-T |
8.2-12.4GHz |
SMA Female |
WR-90 |
UDR100 |
|
Body Style |
VSWR |
Insertion Loss |
Connector Material&Plating |
Body Material&Plating |
|
Straight |
1.20 |
≤0.25 |
Stainless steel passivation |
Aluminum Oxidation |
 |
 |
|||
|
Sku |
Frequency |
Connector Series |
Waveguide Size |
Flange Designation |
|
WR75/SMA-UBR120-K-V |
9.84-15GHz |
SMA Female |
WR-75 |
UDR120 |
|
Body Style |
VSWR |
Insertion Loss |
Connector Material&Plating |
Body Material&Plating |
|
Right Angle |
1.20 |
≤0.25 |
Brass Gold Plating |
Aluminum Oxidation |
 |
 |
|||
|
Sku |
Frequency |
Connector Series |
Waveguide Size |
Flange Designation |
|
WR75/SMA-UBR120-K-T |
9.84 - 15GHz |
SMA Female |
WR-75 |
UDR120 |
|
Body Style |
VSWR |
Insertion Loss |
Connector Material&Plating |
Body Material&Plating |
|
Straight |
1.25 |
≤0.25 |
Brass Gold Plating |
Aluminum Oxidation |
 |
 |
|||
|
Sku |
Frequency |
Connector Series |
Waveguide Size |
Flange Designation |
|
WR62/SMA-UBR140-K-V |
11.9 - 18GHz |
SMA Female |
WR-62 |
UDR140 |
|
Body Style |
VSWR |
Insertion Loss |
Connector Material&Plating |
Body Material&Plating |
|
Right Angle |
1.25 |
≤0.25 |
Brass Gold Plating |
Aluminum Oxidation |
|

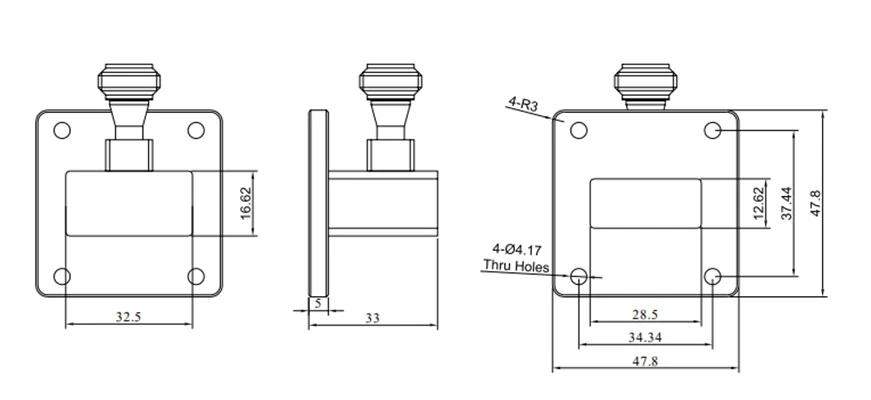

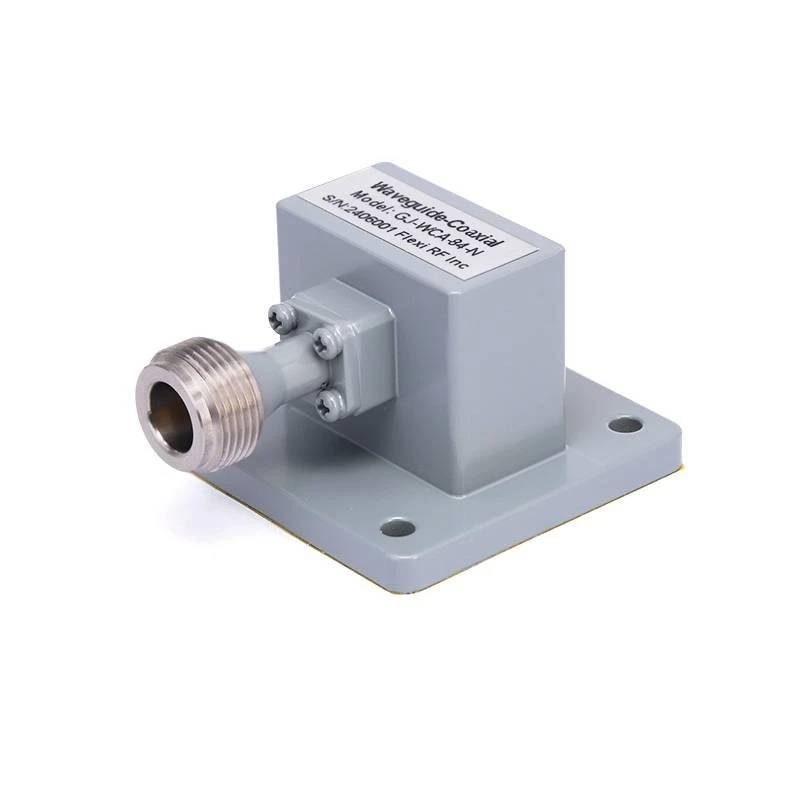

N Waveguide |
||||
 |
 |
|||
|
Sku |
Frequency |
Connector Series |
Waveguide Size |
Flange Designation |
|
WR112/N-UBR84-K-V |
6.57 - 9.99GHz |
N Female |
WR-112 |
UBR84 |
|
Body Style |
VSWR |
Insertion Loss |
Connector Material&Plating |
Body Material&Plating |
|
Right Angle |
1.15 |
≤0.25 |
Brass Nickel Plating |
Aluminum Grey Paint |
