Low Loss Phase Stable Series
In today's cutting - edge fields such as communication, electronic testing, and measurement, the stability of signal transmission and low - loss characteristics have become core factors determining the peRFormance of systems, and the relevant requirements are becoming increasingly stringent.
Description
Product introduction
In today's cutting - edge fields such as communication, electronic testing, and measurement, the stability of signal transmission and low - loss characteristics have become core factors determining the performance of systems, and the relevant requirements are becoming increasingly stringent. The low - loss amplitude - and - phase - stable cable assemblies stand out with their extraordinary performance, playing a crucial role in numerous application scenarios and laying a solid foundation for achieving precise and efficient signal transmission.
Product Structure Features
Excellent Low - Loss Characteristics:
They exhibit extremely outstanding low - loss performance under different frequency conditions. Taking the FRU1/GT147A model (40GHz) as an example, even in a high - frequency environment of up to 40GHz, its attenuation is only 2.85 dB per meter.
Superb Phase Stability:
They possess highly stable phase characteristics. For instance, when the FRU1/GT147A operates at a frequency of 10GHz, its mechanical phase stability can reach 10GHz/3°; when the frequency is 18GHz, it can reach 18GHz/5°. Such stable phase can effectively suppress phase fluctuations during signal transmission, largely avoiding signal distortion and interference caused by unstable phases. For communication systems and testing equipment with extremely high requirements for phase accuracy, this characteristic is the key to ensuring the stable operation and high - performance of the systems.
Wide Frequency Coverage:
The products have a wide frequency coverage range, spanning from direct current (DC) to 110GHz. Different models of cable assemblies can be accurately adapted to different frequency ranges to meet diverse application requirements.
Product application
In microwave anechoic chamber testing, they connect test equipment and devices under test, and their stable signal transmission characteristics ensure the accuracy and reliability of test results. As key connecting components in instruments such as network analyzers and spectrum analyzers, they guarantee the precise measurement of weak signals by the instruments, providing strong support for the research and development of electronic products and quality inspection.
Important Notes
1. For custom length cable assemblies, please don't forget to leave your length info on the checkout page;
2. All the cable assemblies can be provided with phase-matched pairs or groups; If you need the cables to be phase matched,please send email to us: sales@flexirf.com
Product Specification Data
|
Configuration |
|
|

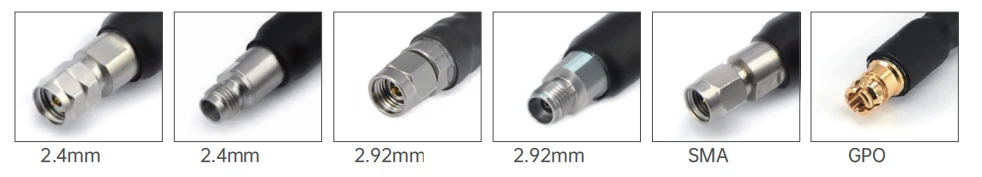

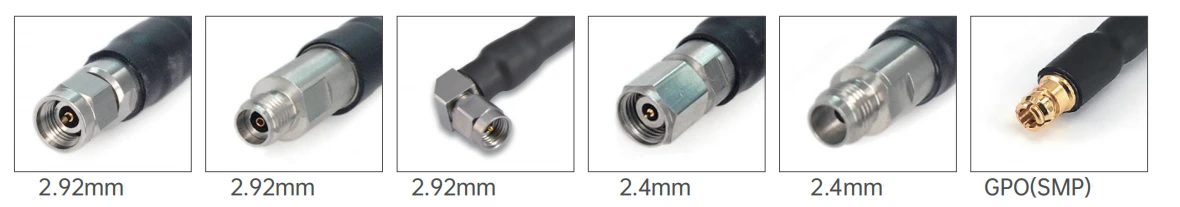

Connector 1 Type |

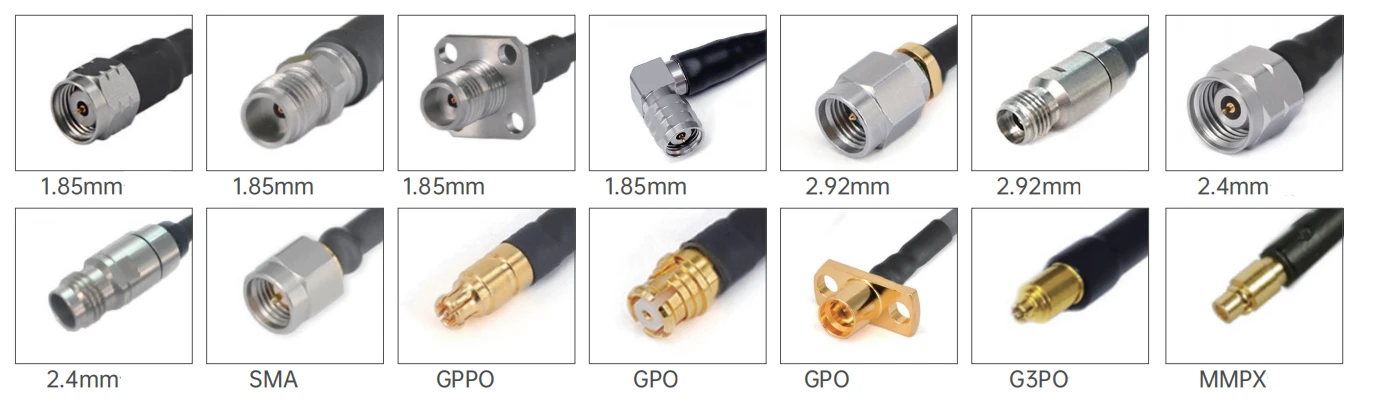

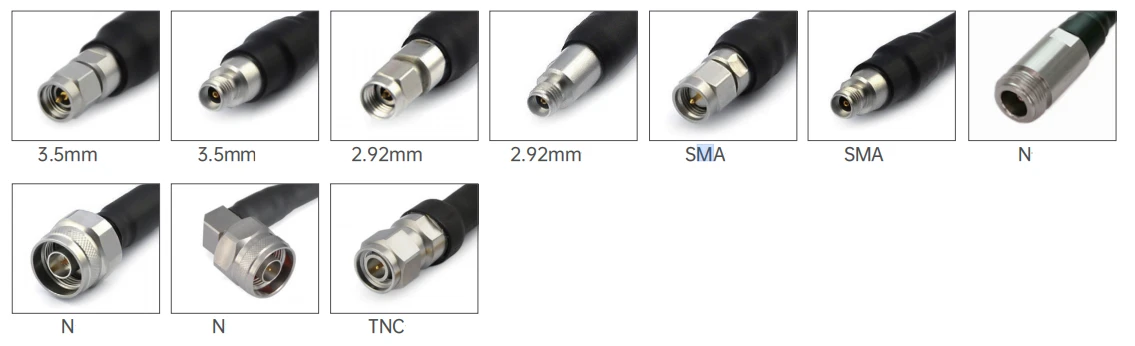

1.85mm/2.4mm/2.92mm/SMA /G3PO/GPPO/N/TNC |
|
Connector 1 Impedance |
50 Ohms |
|
Connector 1 Polarity |
Standard |
|
Connector 2 Type |
1.85mm/2.4mm/2.92mm/SMA /G3PO/GPPO/N/TNC |
|
Connector 2 Impedance |
50 Ohms |
|
Connector 2 Polarity |
Standard |
|
Connector Mount Method |
None |
|
Connector Body Style |
Straight and Right Angle |
|
Materials Information |
|
|
Center Contact |
Brass Gold Plated, Beryllium Copper Gold Plated |
|
Outer Contact |
Brass Gold Plated, Beryllium Copper Gold Plated, Stainless Steel Passivated |
|
Body |
Brass Gold Plated, Beryllium Copper Gold, Stainless Steel Passivated |
|
Dielectric |
PEI/PTFE |
|
Environmental Data |
|
|
Temperature Range |
-40℃ to +165℃ |
|
2011/65/EU(RoHS) |
Compliant |
Product Type
| FRU1/GT147A Low Loss Stable Phase Cable Assembly (40GHz) | ||||
 |
Structure Material Diameter(mm) |
|||
|
1 |
Inner conductor |
Silver-plated copper-clad steel |
0.91±0.05 |
|
|
2 |
Insulator |
Solid PTFE |
2.69±0.05 |
|
|
3 |
Inner shielding |
Silver-plated copper band |
2.86±0.05 |
|
|
4 |
Outer shielding |
Silver-plated copper wire braiding |
3.28±0.05 |
|
|
5 |
jacket |
FEP |
3.73±0.13 |
|
| Attenuation, power (test condition at 20℃ sea level) | |||||
|
Frequency (GHz) |
1 |
10 |
18 |
26.5 |
40 |
|
Attenuation(dB/m) |
0.39 |
1.31 |
1.81 |
2.23 |
2.85 |
|
Power(w) |
380 |
120 |
90 |
75 |
65 |
| Electrical and mechanical properties | |||||||
|
Frequency (GHz) |
Impedance (Ω) |
Transmission rate |
Capacitance |
Shielding |
Operating temperature range |
Minimum bending radius |
Mechanical stability of phase |
|
40 |
50 |
77% |
86pF/m |
>100dB |
-65℃~+165℃ |
6.35mm |
10GHz/3° 18GHz/5° |
|
Common models and technical indicators
|
|||||||
|
Picture |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Return Loss/VSWR |
|
|

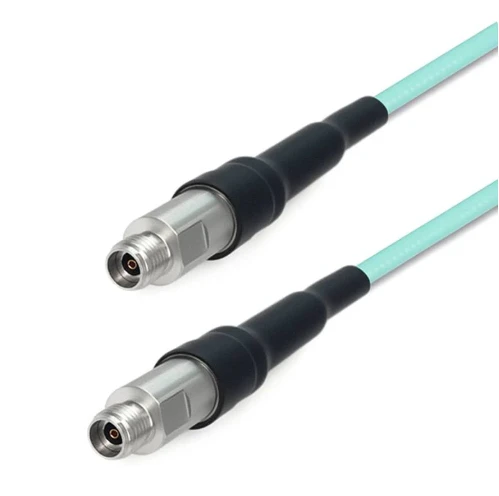

FRU1-292F292F-XXX |
2.92mm Female |
2.92mm Female |
DC-40GHz |
1.44 |
|
|

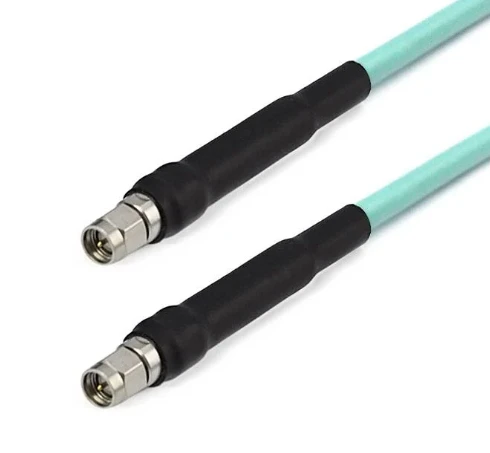

FRU1-292M292M-XXX |
2.92mm Male |
2.92mm Male |
DC-40GHz |
1.44 |
|
|

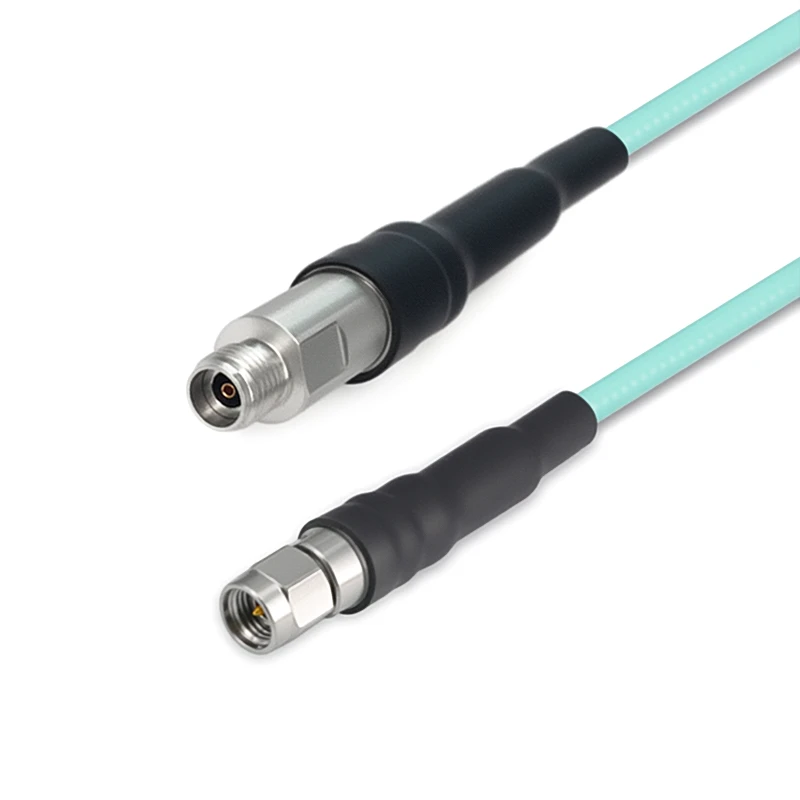

FRU1-292M292F-XXX |
2.92mm Male |
2.92mm Female |
DC-40GHz |
1.44 |
| FRU2/GT3506 Low Loss Stable Phase Cable Assembly (65GHz) | ||||
|
|
Structure Material Diameter(mm) |
|||
|
1 |
Inner conductor |
Silver-plated copper-clad steel |
0.51±0.05 |
|
|
2 |
Insulator |
Solid PTFE |
1.38±0.05 |
|
|
3 |
Inner shielding |
Silver-plated copper band |
1.58±0.05 |
|
|
4 |
Outer shielding |
Silver-plated copper wire braiding |
1.90±0.05 |
|
|
5 |
jacket |
FEP |
2.20±0.13 |
|
| Attenuation, power (test condition at 20℃ sea level) | ||||||||||
|
Frequency (GHz) |
1 |
3 |
6 |
10 |
12 |
16 |
18 |
26.5 |
40 |
67 |
|
Attenuation(dB/m) |
63.7 |
111.9 |
160.4 |
209.87 |
231.1 |
269.5 |
287.1 |
354 |
444 |
593.2 |
|
Power(w) |
55 |
32 |
22 |
17 |
15 |
13 |
12 |
10 |
8 |
6 |
| Electrical and mechanical properties | |||||||
|
Frequency (GHz |
Impedance(Ω) |
Transmission rate |
Capacitance |
Shielding |
Operating temperature range |
Minimum bending radius |
Dielectric withstand voltage |
|
67GHz |
50Ω |
82% |
94pF/m |
>90dB |
-55℃~+125℃ |
11mm |
800V@DC |
|
Common models and technical indicators
|
|||||||
|
Picture |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Return Loss/VSWR |
|
|
FRU2-SMMSMM-XXX |
SMA Male |
SMA Male |
DC-26.5GHz |
1.30 |
|
|
FRU2-SMMGPF-XXX |
SMA Male |
GPO (SMP) Female |
DC-26.5GHz |
1.35 |
|
|
FRU2-SMMGPWF-XXX |
SMA Male |
GPO (SMP) Female With Right Angle |
DC-26.5GHz |
12dB |
|
|
FRU2-SMMGPPF-XXX |
SMA Male |
GPPO (Mini-SMP) Female |
DC-26.5GHz |
13dB |
|
|
FRU2-SMMGPPWF-XXX |
SMA Male |
GPPO (Mini-SMP) Female With Right Angle |
DC-26.5GHz |
12dB |
|
|
FRU2-SMFFGPF-XXX |
SMA Female with 4 Hole Flange |
GPO (SMP) Female |
DC-18GHz |
1.30 |
|
|
FRU2-SMFFGPPF-XXX |
SMA Female With 4 Hole Flange |
GPPO (Mini-SMP) Female |
DC-18GHz |
16dB |
|
|
FRU2-292M292M-XXX |
2.92mm Male |
2.92mm Male |
DC-40GHz |
1.35 |
|
|
FRU2-292MGPF-XXX |
2.92mm Male |
GPO (SMP) Female |
DC-40GHz |
14dB |
|
|

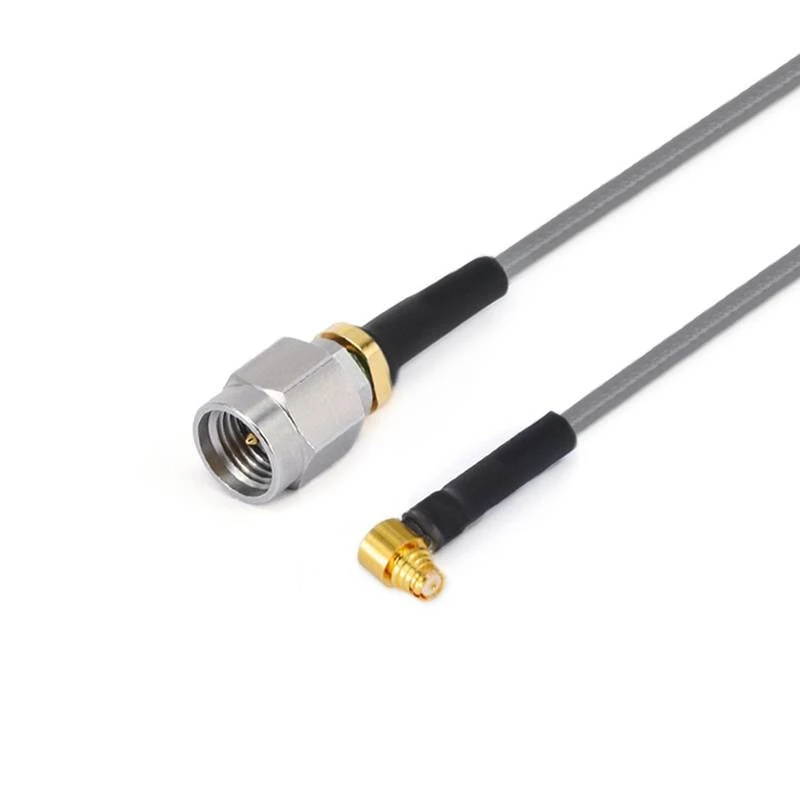

FRU2-292MGPWF-XXX |
2.92mm Male |
GPO(SMP) Female With Right Angle |
DC-40GHz |
12dB |
|
|
FRU2-292MMMPXM-XXX |
2.92mm Male |
MMPX Male |
DC-40GHz |
14dB |
|
|
FRU2-292MMMPXF-XXX |
2.92mm Male |
MMPX Female |
DC-40GHz |
14dB |
|
|
FRU2-292MG3PF-XXX |
2.92mm Male |
G3PO (SMPS) Female |
DC-40GHz |
14dB |
|
|
FRU2-292MGPPWF-XXX |
2.92mm Male |
GPPO (Mini-SMP) Female With Right Angle |
DC-40GHz |
12dB |
|
|
FRU2-292M24M-XXX |
2.92mm Male |
2.4mm Male |
DC-40GHz |
1.35 |
|
|
FRU2-292MGPPF-XXX |
2.92mm Male |
GPPO (Mini-SMP) Female |
DC-40GHz |
14dB |
|
|
FRU2-292FG3PF-XXX |
2.92mm Female |
G3PO (SMPS) Female |
DC-40GHz |
14dB |
|
|
FRU2-292FFG3PF-XXX |
2.92mm Female With 4 Hole Flange |
G3PO (SMPS) Female |
DC-40GHz |
14dB |
|
|
FRU2-292FMMPXM-XXX |
2.92mm Female |
MMPX Male |
DC-40GHz |
14dB |
|
|
FRU2-292FFMMPXM-XXX |
2.92mm Female With 4 Hole Flange |
MMPX Male |
DC-40GHz |
14dB |
|
|
FRU2-292FFGPF-XXX |
2.92mm Female With 4 Hole Flange |
GPO (SMP) Female |
DC-40GHz |
14dB |
|
|
FRU2-24M24M-XXX |
2.4mm Male |
2.4mm Male |
DC-50GHz |
1.44 |
|
|
FRU2-24MGPF-XXX |
2.4mm Male |
GPO (SMP) Female |
DC-40GHz |
14dB |
|
|
FRU2-24MGPWF-XXX |
2.4mm Male |
GPO (SMP) Female With Right Angle |
DC-40GHz |
12dB |
|
|
FRU2-24MMMPXM-XXX |
2.4mm Male |
MMPX Male |
DC-50GHz |
10dB |
|
|
FRU2-24MMMPXM-XXX |
2.4mm Male |
MMPX Male |
DC-50GHz |
10dB |
|
|
FRU2-24MGPPF-XXX |
2.4mm Male |
GPPO (Mini-SMP) Female |
DC-50GHz |
10dB |
|
|
FRU2-24MGPPWF-XXX |
2.4mm Male |
GPPO (Mini-SMP) Female With Right Angle |
DC-50GHz |
10dB |
|
|
FRU2-24FFGPF-XXX |
2.4mm Female With 4 Hole Flange |
GPO (SMP) Female |
DC-50GHz |
10dB |
|
|
FRU2-24FFGPPF-XXX |
2.4mm Female With 4 Hole Flange |
GPPO (Mini-SMP) Female |
DC-50GHz |
10dB |
|
|

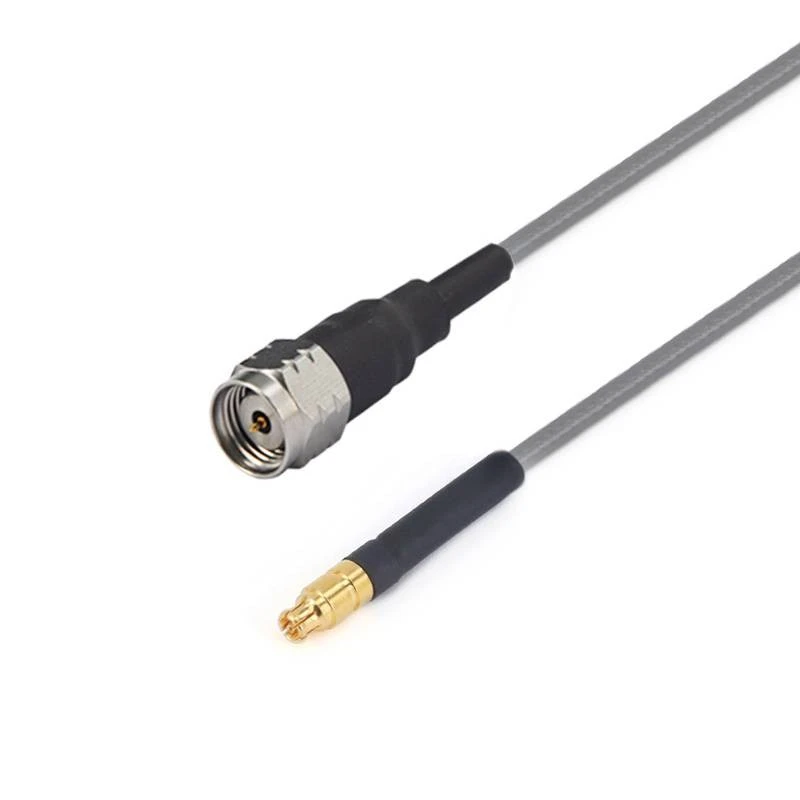

FRU2-185MGPPF-XXX |
1.85mm Male |
GPPO (Mini-SMP) Female |
DC-67GHz |
10dB |
|
|
FRU2-185WMGPPF-XXX |
1.85mm Male With Right Angle |
GPPO (Mini-SMP) Female |
DC-67GHz |
10dB |
|
|
FRU2-185MG3PF-XXX |
1.85mm Male |
G3PO (SMPS) Female |
DC-67GHz |
10dB |
|
|
FRU2-185MMMPXM-XXX |
1.85mm Male |
MMPX Male |
DC-67GHz |
10dB |
|
|
FRU2-185MMMPXF-XXX |
1.85mm Male |
MMPX Female |
DC-67GHz |
10dB |
|
|
FRU2-185FGPPF-XXX |
1.85mm Female |
GPPO (Mini-SMP) Female |
DC-67GHz |
10dB |
|
|
FRU2-185FFGPPF-XXX |
1.85mm Female With 4 Hole Flange |
GPPO (Mini-SMP) Female |
DC-67GHz |
10dB |
|
|
FRU2-185FG3PF-XXX |
1.85mm Female |
G3PO(SMPS) Female |
DC-67GHz |
10dB |
|
|
FRU2-185FFG3PF-XXX |
1.85mm Female With 4 Hole Flange |
GPPO (Mini-SMP) Female |
DC-67GHz |
10dB |
|
|
FRU2-185FMMPXM-XXX |
1.85mm Female |
MMPX Male |
DC-67GHz |
10dB |
|
|
FRU2-185FMMPXF-XXX |
1.85mm Female |
MMPX Female |
DC-67GHz |
10dB |
| FRU3/GT3507 Low Loss Stable Phase Cable Assembly (40GHz) | ||||
|
|
Structure Material Diameter(mm) |
|||
|
1 |
Inner conductor |
Silver-plated copper-clad steel |
0.91±0.05 |
|
|
2 |
Insulator |
Solid PTFE |
2.69±0.05 |
|
|
3 |
Inner shielding |
Silver-plated copper band |
2.86±0.05 |
|
|
4 |
Outer shielding |
Silver-plated copper wire braiding |
3.28±0.05 |
|
|
5 |
jacket |
FEP |
3.73±0.13 |
|
| Attenuation, power (test condition at 20℃ sea level) | |||||
|
Frequency (GHz) |
1 |
10 |
18 |
26.5 |
40 |
|
Attenuation(dB/m) |
0.39 |
1.31 |
1.81 |
2.23 |
2.85 |
|
Power(w) |
380 |
120 |
90 |
75 |
65 |
|
Electrical and mechanical properties |
|||||||
|
Frequency (GHz) |
Impedance(Ω) |
Transmission rate |
Capacitance |
Shielding |
Operating temperature range |
Minimum bending radius |
Mechanical stability of phase |
|
40 |
50 |
85% |
86pF/m |
>90dB |
-65℃~+165℃ |
11mm |
10GHz/3° 18GHz/5° |
|
Common models and technical indicators
|
|||||||
|
Picture |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Return Loss/VSWR |
|
|
FRU3-292M292M-XXX |
2.92mm Male |
2.92mm Male |
DC-40GHz |
1.44 |
|
|
FRU3-292M24M-XXX |
2.92mm Male |
2.4mm Male |
DC-40GHz |
1.35 |
|
|
FRU3-24M24M-XXX |
2.4mm Male |
2.4mm Male |
DC-40GHz |
1.35 |
| FRA3/GT2501 Low Loss Stable Phase Cable Assembly (26.5GHz) | ||||
|
|
Structure Material Diameter(mm) |
|||
|
1 |
Inner conductor |
Silver-plated copper-clad steel |
1.45±0.05 |
|
|
2 |
Insulator |
Solid PTFE |
3.99±0.05 |
|
|
3 |
Inner shielding |
Silver-plated copper band |
4.19±0.05 |
|
|
4 |
Outer shielding |
Silver-plated copper wire braiding |
4.42±0.05 |
|
|
5 |
jacket |
FEP |
5.21±0.13 |
|
| Attenuation, power (test condition at 20℃ sea level) | |||||
|
Frequency (GHz) |
1 |
5 |
10 |
18 |
26.5 |
|
Attenuation(dB/m) |
0.26 |
0.52 |
0.76 |
1.05 |
1.28 |
|
Power(w) |
800 |
350 |
--- |
100 |
--- |
|
Electrical and mechanical properties |
|||||||
|
Frequency (GHz) |
Impedance(Ω) |
Transmission rate |
Capacitance |
Shielding |
Operating temperature range |
Minimum bending radius |
Mechanical stability of phase |
|
26.5 |
50 |
80.4% |
86pF/m |
>100dB |
-65℃~+165℃ |
6.35mm |
10GHz/3° 18GHz/5° |
|
Common models and technical indicators
|
|||||||
|
Picture |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Return Loss/VSWR |
|
|

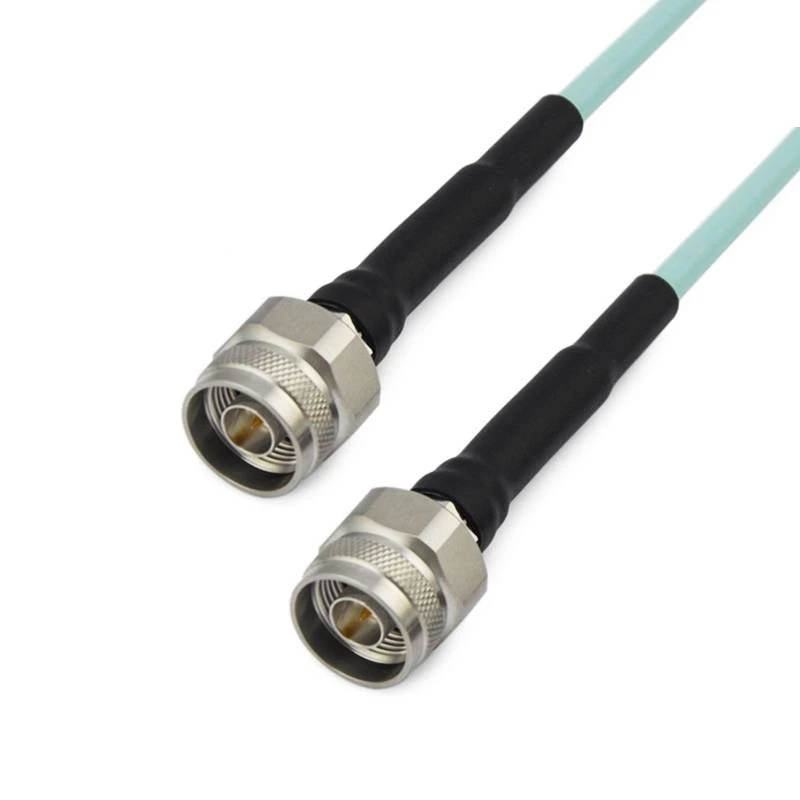

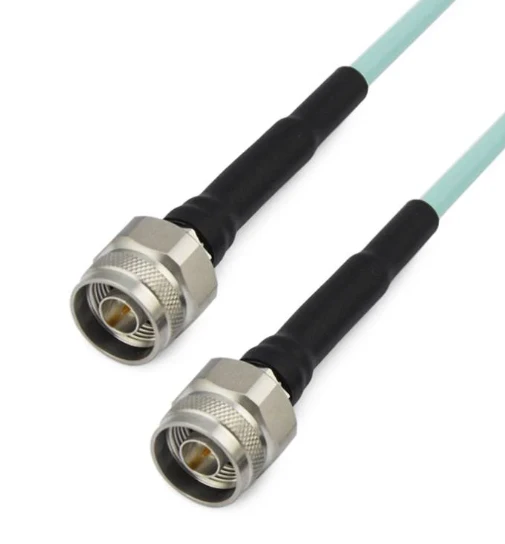

FRA3-NMNM-XXX |
N Male |
N Male |
DC-18GHz |
1.25 |
|
|

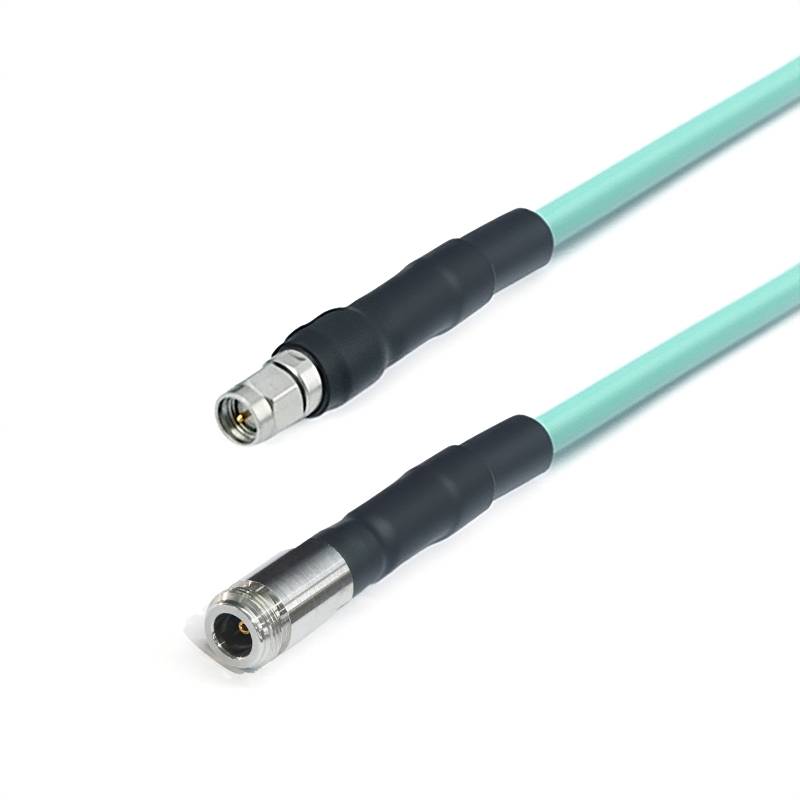

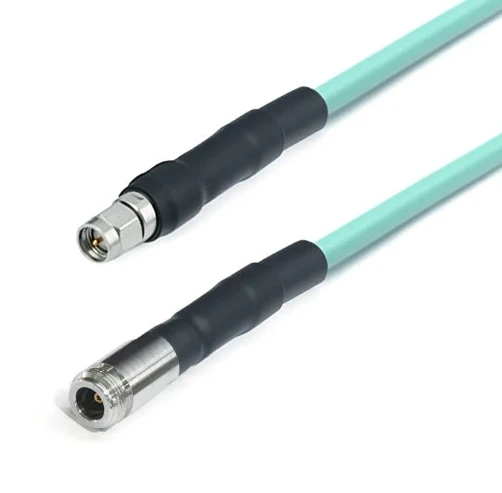

FRA3-NFSMM-XXX |
N Female |
SMA Male |
DC-18GHz |
1.25 |
|
|

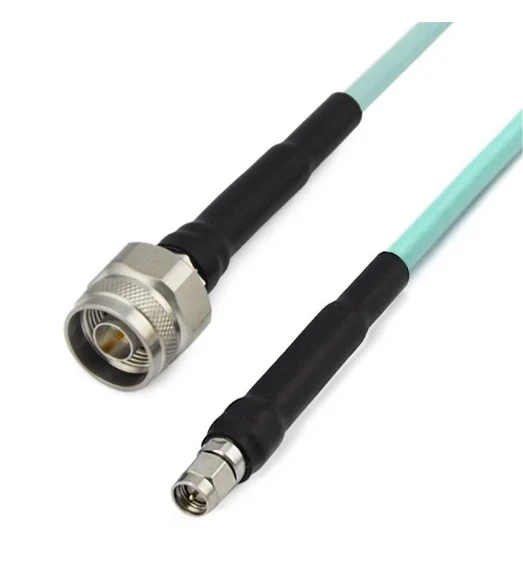

FRA3-NMSMM-XXX |
N Male |
SMA Male |
DC-18GHz |
1.25 |
|
|
FRA3-SMMSMM-XXX |
SMA Male |
SMA Male |
DC-18GHz |
1.25 |
|
|

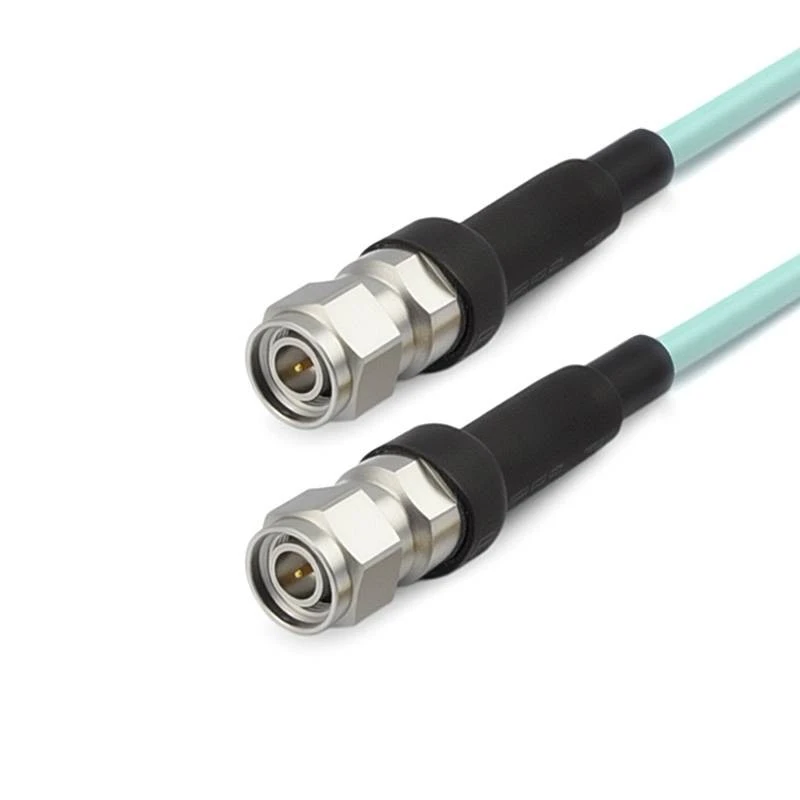

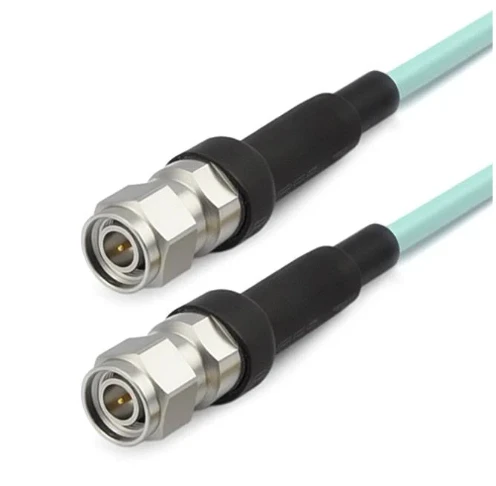

FRA3-TNCMTNCM-XXX |
TNC Male |
TNC Male |
DC-18GHz |
1.30 |
