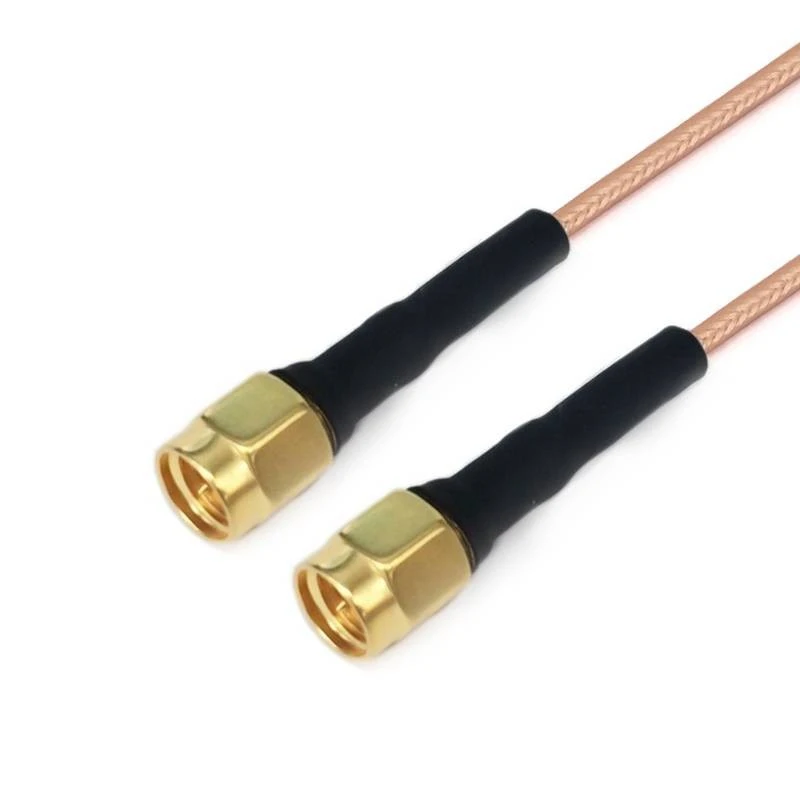

gar3-smmsmm-xxx-1

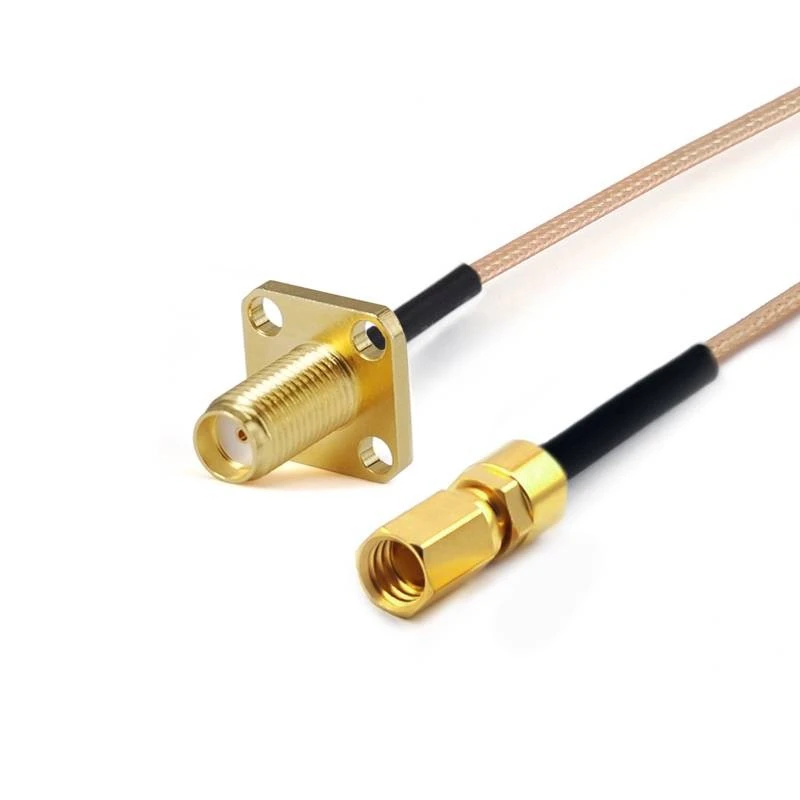

gar8-smffssmcf-xxx-1

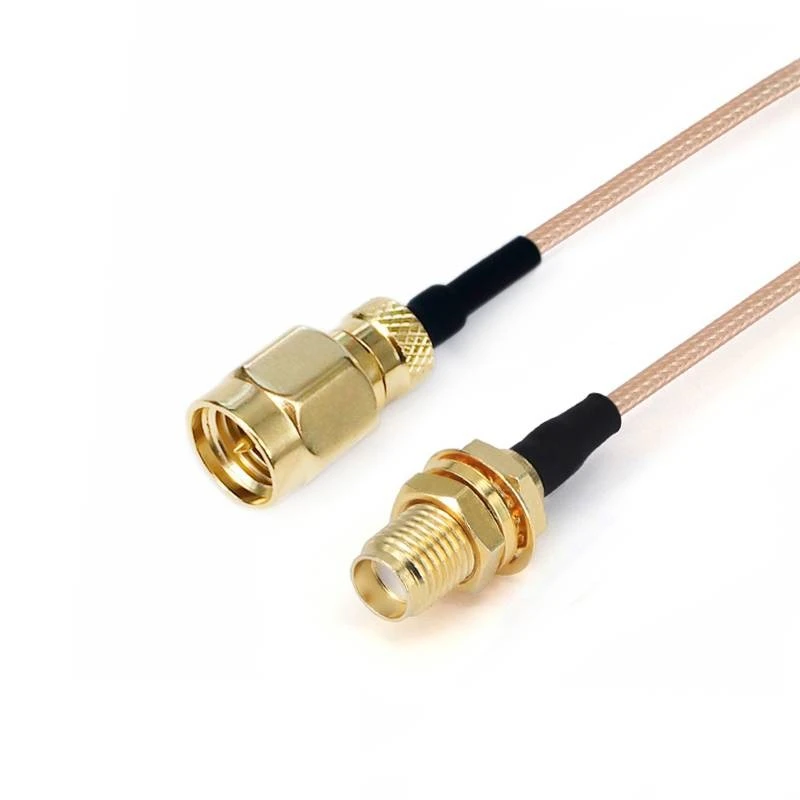

gar8-smmsmyf-xxx-1

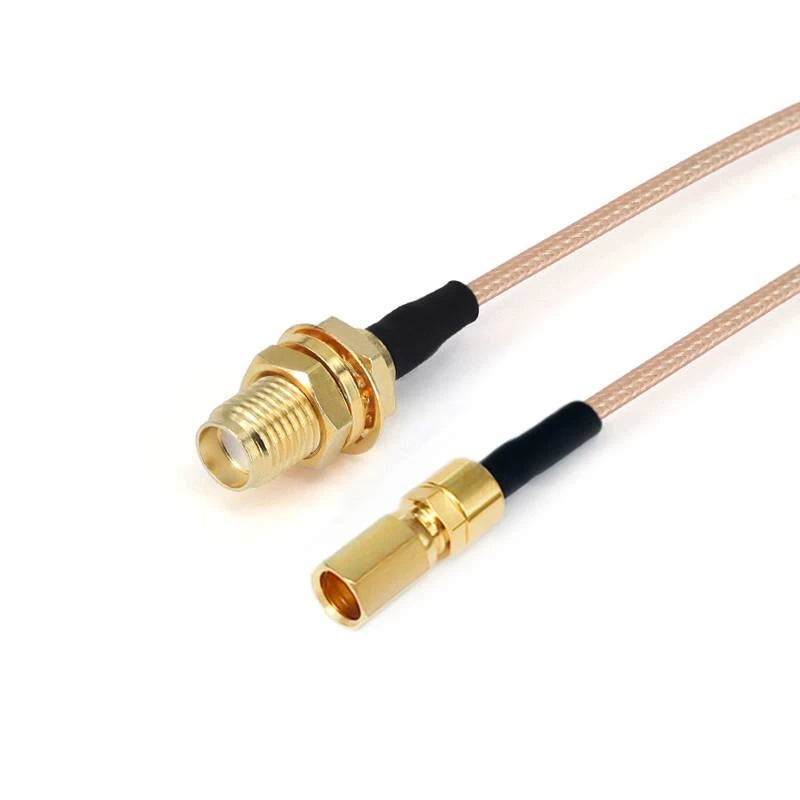

gar8-smyfssmcf-xxx-1

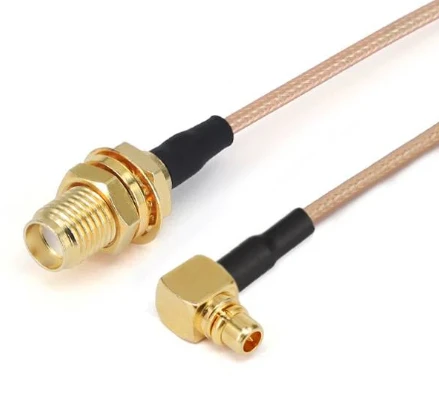

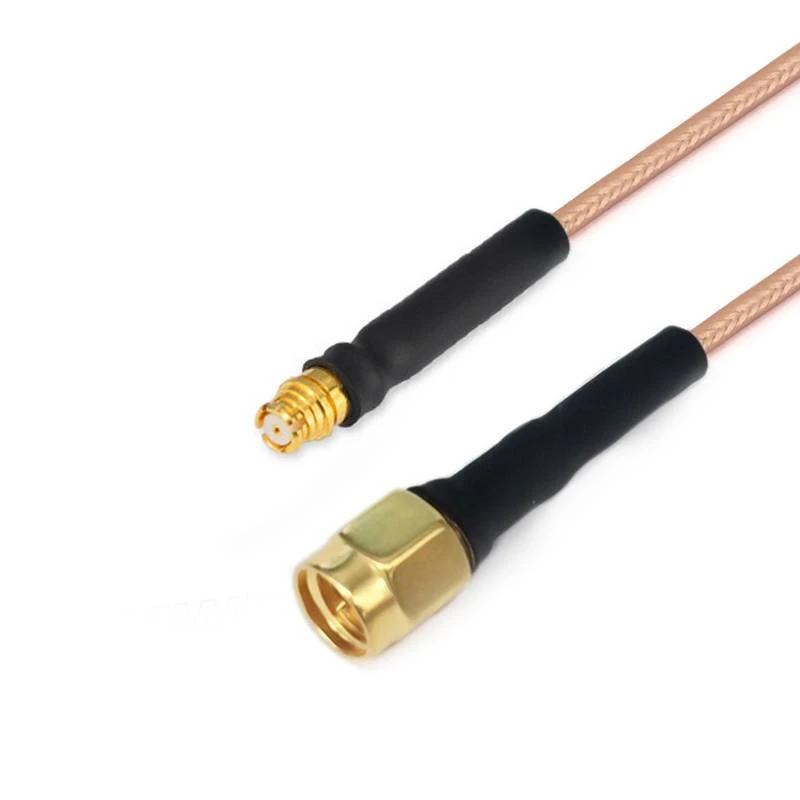

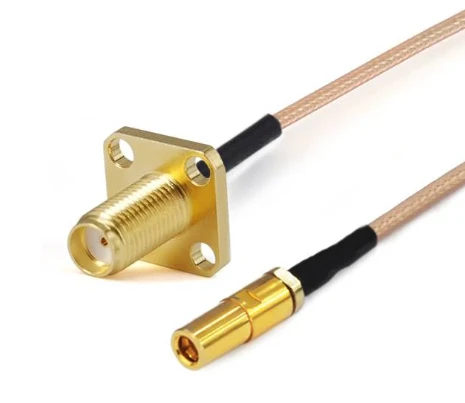

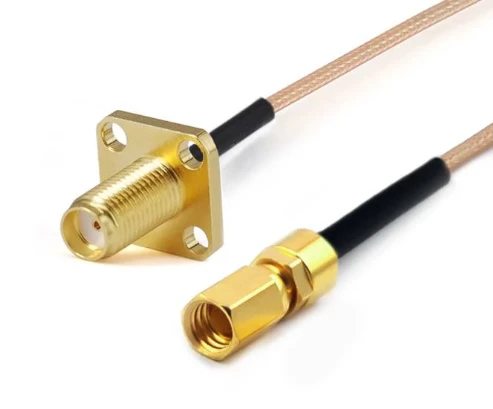

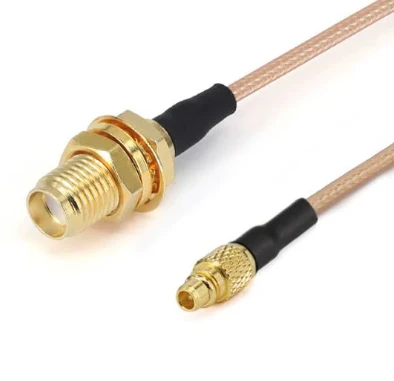

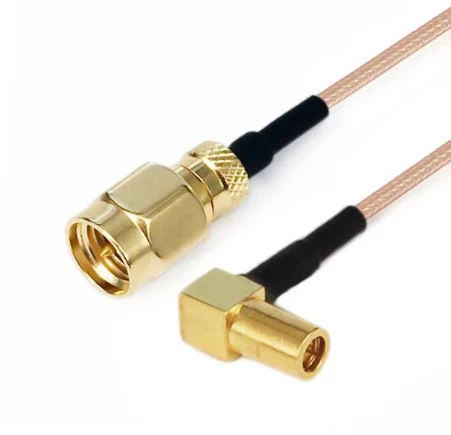

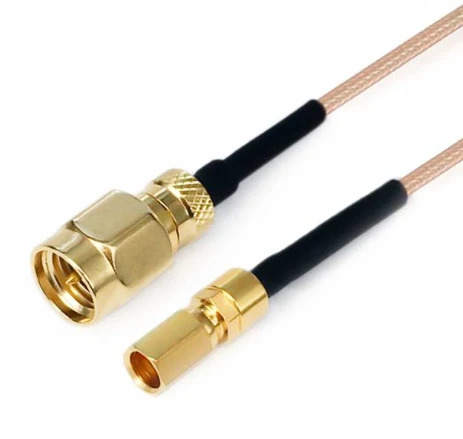

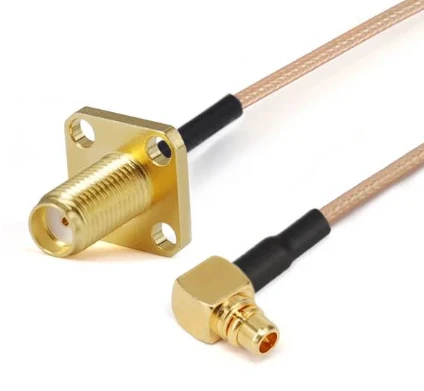

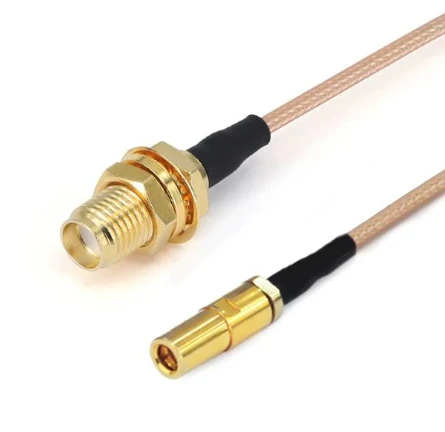

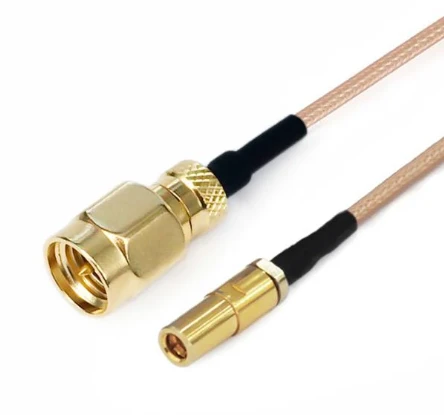

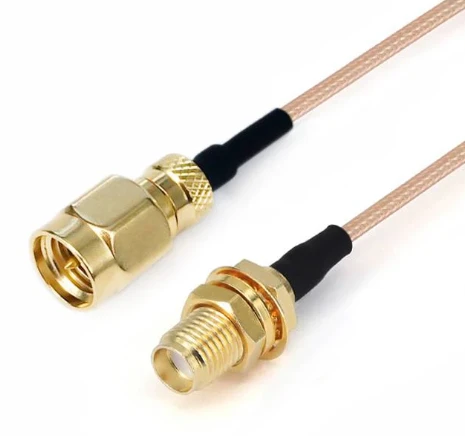

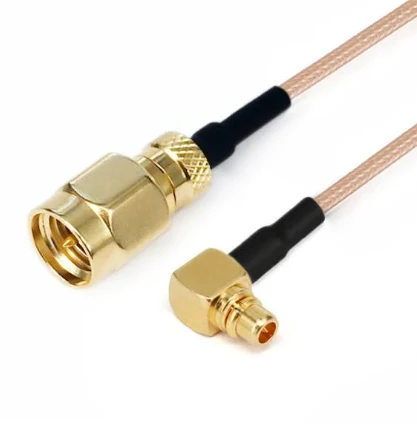

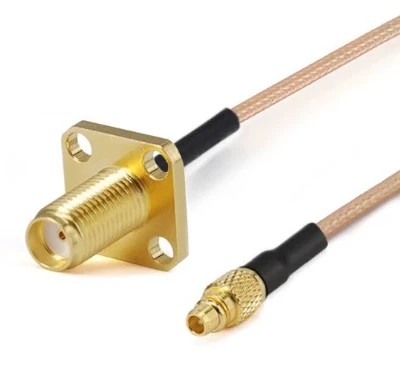

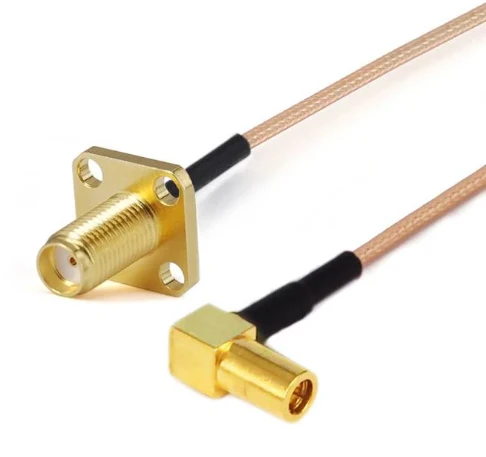

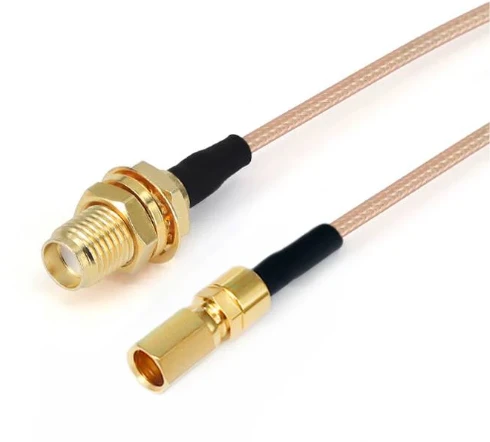

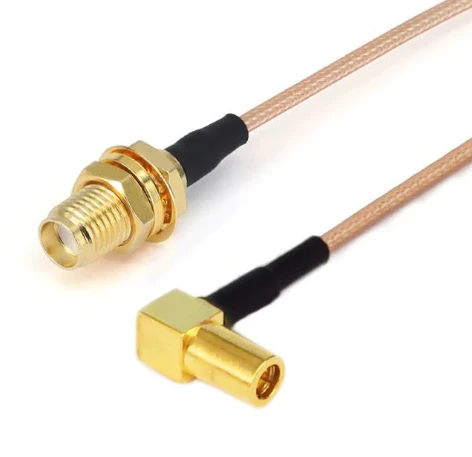

RG Series Cable Assemblies

Name: USA RG Series Cable Assemblies Manufacturers, Suppliers and Factory - Customized Service - Flexi RF
Brand: Flexi
SKU: 270180476

The RG series low-frequency cable assemblies (DC-3GHz) are a type of cable components with specific peRFormance and application scenarios. Their frequency coverage clearly includes the DC to 3GHz band, meeting the diverse signal transmission requirements within this frequency range.

Send Inquiry

Description

Product introduction

The RG series low-frequency cable assemblies (DC-3GHz) are a type of cable components with specific performance and application scenarios. Their frequency coverage clearly includes the DC to 3GHz band, meeting the diverse signal transmission requirements within this frequency range. Common RG series cables include models such as RG178, RG174, RG316, and RG223.

The FlexiRF'S RG low - frequency cables exhibit excellent electromagnetic interference immunity and good flexibility. They are lightweight and possess properties such as high - temperature resistance, moisture resistance, and corrosion resistance.

Product Structure Features

The inner conductors of RG series low - frequency cables are made of multi - strand Silver - coated Copper Clad Steel (SCCS). This material not only ensures excellent electrical conductivity and flexibility but also enhances signal transmission performance and corrosion resistance through the silver - plating process.

Dielectric: Extruded Solid Polytetrafluoroethylene (PTFE). PTFE possesses excellent electrical insulation properties, chemical stability, and high-temperature resistance, which can effectively isolate the conductor from the external environment and reduce signal leakage and interference.

Shield: Constructed with Silver Plated Copper (SPC) braiding. This shielding layer effectively blocks external electromagnetic interference from penetrating the cable interior while preventing internal signal leakage, ensuring stable and intact signal transmission.

Product application

Industrial Electronics Field:

Applied to industrial automation equipment, such as high-frequency signal transmission in sensors, industrial control systems, and monitoring devices, meeting the needs of high-precision control and data acquisition in industrial environments.

Communication Field:

Used for production testing of communication devices (such as mobile phones, WiFi modules, GPS modules, as well as signal connection between antennas and modules. It ensures stable signal transmission in the DC-3GHz frequency band for wireless communication equipment.

Important Notes

1. For custom length cable assemblies, please don't forget to leave your length info on the checkout page;
2. All the cable assemblies can be provided with phase-matched pairs or groups; If you need the cables to be phase matched,please send email to us: sales@flexirf.com

Product Specification Data

Configuration

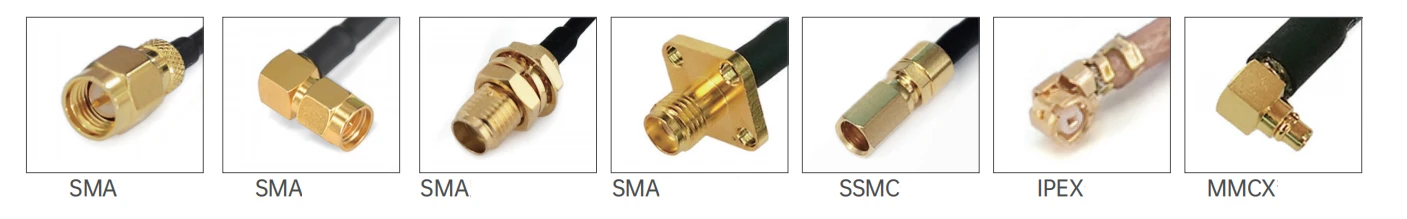

Connector 1 Type	SMA/SSMA/SMB/SSMB/SSMC/MCX/MMCX/BNC/N/GPO
Connector 1 Impedance	50 Ohms
Connector 1 Polarity	Standard
Connector 2 Type	SMA/SSMA/SMB/SSMB/SSMC/MCX/MMCX/BNC/N/GPO
Connector 2 Impedance	50 Ohms
Connector 2 Polarity	Standard
Connector Mount Method	None
Connector Body Style	Straight and Right Angle
Materials Information
Center Contact	Brass Gold Plated, Beryllium Copper Gold Plated
Outer Contact	Brass Gold Plated, Beryllium Copper Gold Plated, Stainless Steel Passivated
Body	Brass Gold Plated, Beryllium Copper Gold, Stainless Steel Passivated
Dielectric	PTFE
Environmental Data
Temperature Range	-40℃ to +165℃
2011/65/EU(RoHS)	Compliant

Product Type

FRR3/RG316 RG Series Cable Assemblies (3GHz)
	Structure Material Diameter(mm)
	1	Inner conductor	Silver-plated copper-clad steel	7x0.17±0.05
	2	Insulator	PTFE	1.56±0.05
	3	Inner shielding	Silver-plated copper wire	1.95±0.05
	4	jacket	FEP	2.56±0.13

Attenuation, power (test condition at 20℃ sea level)
Frequency (GHz)	0.1	0.4	0.9	1.5	2.5
Attenuation(dB/m)	0.27	0.54	0.82	1.06	1.39
Power(w)	340	170	113	88	68

Electrical and mechanical properties

Frequency (GHz)

Impedance(Ω)

Transmission rate

Capacitance

Shielding

Operating temperature

range

Minimum bending radius

Operating voltage

70%

94pF/m

>70dB

-65℃~+200℃

15mm

1200V

Picture	Sku	Connector 1	Connector 2	Freqency	Return Loss/VSWR
	FRR3-SMMGPF-XXX	SMA Male	GPO Female	DC-3GHz	1.25

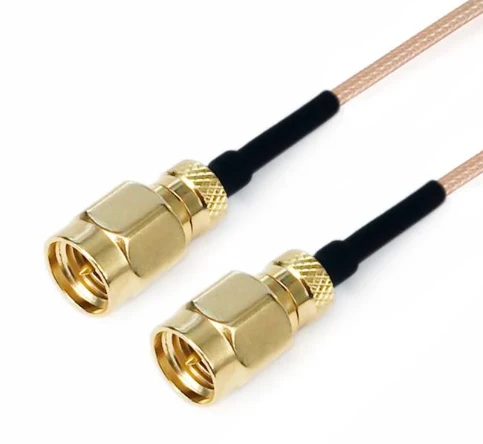

	FRR3-SMMSMM-XXX	SMA Male	SMA Male	DC-3GHz	1.25

FRR8/RG178 RG Series Cable Assemblies (3GHz)
	Structure Material Diameter(mm)
	1	Inner conductor	Silver-plated copper-clad steel	7x0.102±0.05
	2	Insulator	PTFE	0.86±0.05
	3	Inner shielding	Silver-plated copper wire	1.30±0.05
	4	jacket	FEP	1.86±0.13

Attenuation, power (test condition at 20℃ sea level)
Frequency (GHz)	0.1	0.4	1	2	3
Attenuation(dB/m)	0.45	0.92	1.45	2.0	2.6
Power(w)	340	170	113	88	68
