General Purpose Test Cables

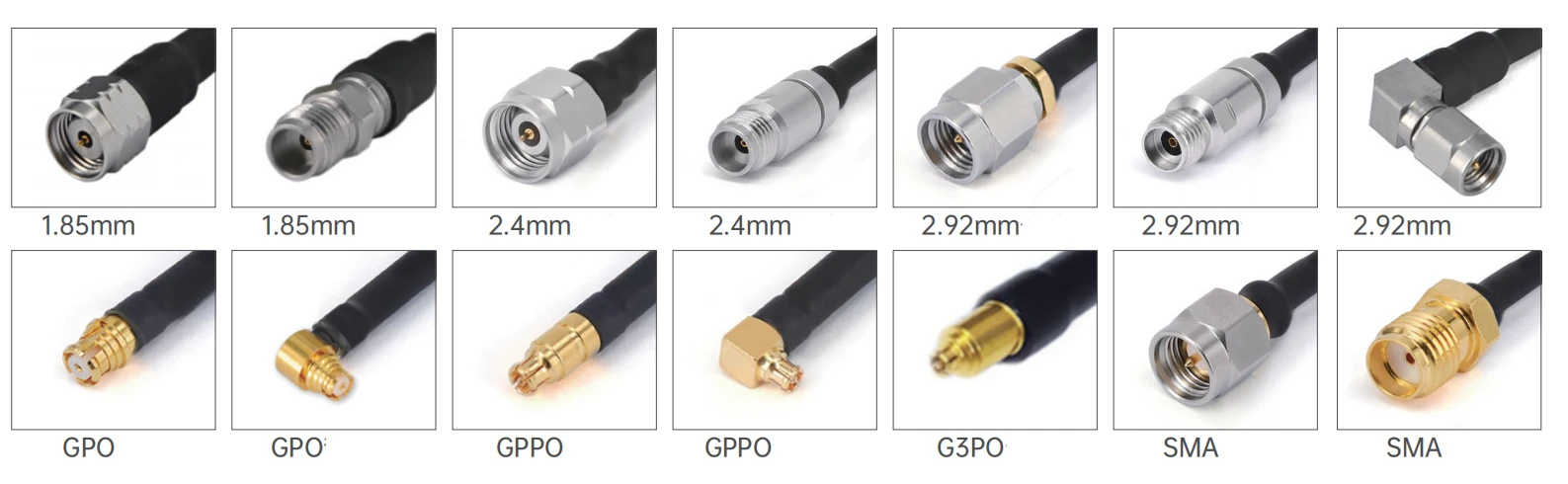

General purpose test cables are widely used cable products in fields such as electronic testing, with multiple characteristics to meet diverse usage requirements. In terms of connectors, this cable offers various types of connectors, including 1.85mm, 2.4mm, 2.92mm, SMA, G3PO, and GPPO. All connectors have an impedance of 50 ohms and a standard polarity.
Description
General purpose test cables
General purpose test cables are widely used cable products in fields such as electronic testing, with multiple characteristics to meet diverse usage requirements. In terms of connectors, this cable offers various types of connectors, including 1.85mm, 2.4mm, 2.92mm, SMA, G3PO, and GPPO. All connectors have an impedance of 50 ohms and a standard polarity. Moreover, the connectors have multiple installation methods, including straight and right - angle types, which can be flexibly adapted to different device interfaces.
Product introduction
In terms of material selection, the central contact, external contact, and main body are made of materials such as brass plated with gold, beryllium copper plated with gold, or passivated stainless steel, which have good electrical conductivity and corrosion resistance. The dielectric is made of PEI or PTFE materials to ensure signal transmission performance. The central conductor of the cable is silver - plated copper - clad steel, the insulation layer is solid PTFE, the shielding layer is composed of silver - plated copper tape and copper wire, and the sheath is made of FEP material. This not only effectively shields interfering signals but also has certain mechanical strength and environmental resistance.
Product application
During the research, development, production, and testing of communication base stations, mobile phones, satellite communication equipment, etc., general - purpose test cables are required to connect various testing instruments to communication devices to ensure stable signal transmission, so as to accurately test various performance indicators of the equipment, such as signal strength, frequency characteristics, transmission rate, etc. For example, in the construction of 5G base stations, this kind of cable is used to connect signal generators, spectrum analyzers, and other equipment to precisely test the radio - frequency performance of the base stations, ensuring that the base stations can provide stable and efficient communication services.
Important Notes
1. For custom length cable assemblies, please don't forget to leave your length info on the checkout page;
2. All the cable assemblies can be provided with phase-matched pairs or groups; If you need the cables to be phase matched,please send email to us: sales@flexirf.com

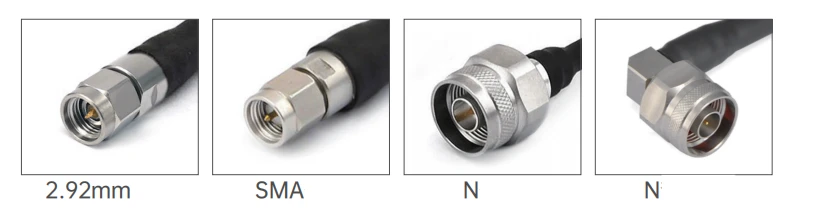

Product Specification Data
|
Configuration |
|
|
Connector 1 Type |
1.85mm/2.4mm/2.92mm/SMA /G3PO/GPPO/N |
|
Connector 1 Impedance |
50 Ohms |
|
Connector 1 Polarity |
Standard |
|
Connector 2 Type |
1.85mm/2.4mm/2.92mm/SMA /G3PO/GPPO/N |
|
Connector 2 Impedance |
50 Ohms |
|
Connector 2 Polarity |
Standard |
|
Connector Mount Method |
None |
|
Connector Body Style |
Straight and Right Angle |
|
Materials Information |
|
|
Center Contact |
Brass Gold Plated, Beryllium Copper Gold Plated |
|
Outer Contact |
Brass Gold Plated, Beryllium Copper Gold Plated, Stainless Steel Passivated |
|
Body |
Brass Gold Plated, Beryllium Copper Gold, Stainless Steel Passivated |
|
Dielectric |
PEI/PTFE |
|
Environmental Data |
|
|
Temperature Range |
-40℃ to +165℃ |
|
2011/65/EU(RoHS) |
Compliant |
|
Cable Specifications |
|
|
Center Conductor |
Silver plated copperweld |
|
Dielectric |
Solid PTFE |
|
Two Shielding |
Silver-plated copper Band and Wire |
|
Jacket |
FEP |
|
Capacitance(pF/m) |
95.1 |
|
Velocity of propagation(%) |
70 |
|
Shielding Effectiveness |
<-100dB @ 1GHz |
|
Power Handling |
10watt @ 18GHz at sea level, VSWR1.0 |
Product Type
| GAF71/RG405SS 405 Series Flexible Cable Assembly | ||||
 |
Structure Material Diameter(mm) |
|||
|
1 |
Inner conductor |
Silver-plated copper-clad steel |
0.51±0.05 |
|
|
2 |
Insulator |
Solid PTFE |
1.63±0.05 |
|
|
3 |
Inner shielding |
Silver-plated copper band |
1.80±0.05 |
|
|
4 |
Outer shielding |
Silver-plated copper wire braiding |
2.18±0.05 |
|
|
5 |
jacket |
FEP |
2.54±0.1 |
|
| Attenuation, power (test condition at 20℃ sea level) | |||||||
|
Frequency (GHz) |
1 |
3 |
5 |
10 |
15 |
18 |
20 |
|
Attenuation (dB/m) |
0.75 |
1.29 |
1.71 |
2.56 |
3.22 |
3.57 |
3.80 |
|
Attenuation (dB/ft) |
0.229 |
0.393 |
0.521 |
0.780 |
0.981 |
1.008 |
1.115 |
|
Common models and technical indicators
|
|||||
|
Picture |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Return Loss/VSWR |
 |

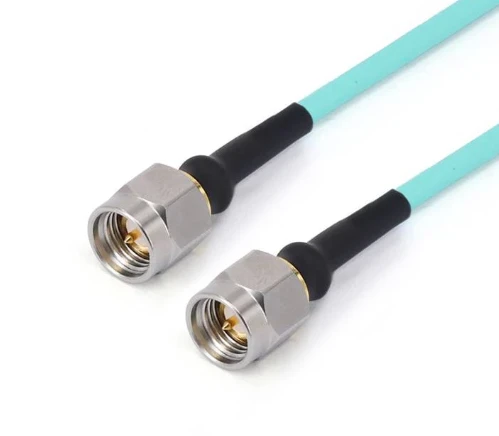

FRF71-SMMSMM-XXX |
SMA Male |
SMA Male |
DC-26.5GHz |
1.30 |
 |

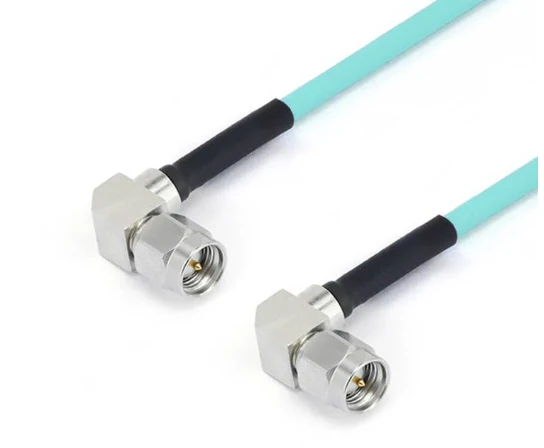

FRF71-SMWMSMWM-XXX-18G |
SMA Male With Right Angle |
SMA Male With Right Angle |
DC-18GHz |
1.30 |
 |

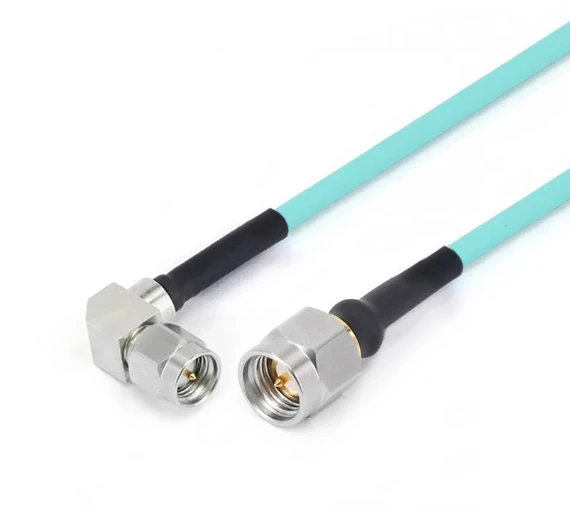

FRF71-SMMSMWM-XXX-18G |
SMA Male |
SMA Male With Right Angle |
DC-18GHz |
1.30 |
 |
FRF71-SMMGPF-XXX |
SMA Male |
GPO (SMP) Female |
DC-26.5GHz |
1.35 |
 |
FRF71-SMMGPWF-XXX |
SMA Male |
GPO (SMP) Female With Right Angle |
DC-26.5GHz |
1.35 |
 |
FRF71-SMFGPF-XXX |
SMA Female |
GPO (SMP) Female |
DC-26.5GHz |
1.35 |
 |
FRF71-SMFFGPF-XXX |
SMA Female With 4 Hole Flange |
GPO (SMP) Female |
DC-26.5GHz |
1.35 |
 |
FRF71-SMMGPPF-XXX |
SMA Male |
GPPO(Mini-SMP) Female |
DC-26.5GHz |
14dB |
 |
FRF71-SMMGPPWF-XXX |
SMA Male |
GPPO Female With Right Angle |
DC-26.5GHz |
14dB |
 |
FRF71-SMWMGPPF-XXX-18G |
SMA Male With Right Angle |
GPPO(Mini-SMP) Female |
DC-18GHz |
15dB |
 |
FRF71-SMWMGPPWF-XXX-18G |
SMA Male With Right Angle |
GPPO Female With Right Angle |
DC-18GHz |
15dB |
 |
FRF71-SMFGPPF-XXX |
SMA Female |
GPPO(Mini-SMP) Female |
DC-26.5GHz |
14dB |
 |
FRF71-SMFFGPPF-XXX |
SMA Female With 4 Hole Flange |
GPPO(Mini-SMP) Female |
DC-26.5GHz |
14dB |
 |
FRF71-292M292M-XXX |
2.92mm Male |
2.92mm Male |
DC-40GHz |
1.35 |
 |
FRF71-292MGPF-XXX |
2.92mm Male |
GPO (SMP) Female |
DC-40GHz |
14dB |
 |
FRF71-292MGPWF-XXX |
2.92mm Male |
GPO (SMP) Female With Right Angle |
DC-40GHz |
12dB |
 |
FRF71-292FGPF-XXX |
2.92mm Female |
GPO (SMP) Female |
DC-40GHz |
14dB |
 |
FRF71-292FFGPF-XXX |
2.92mm Female With 4 Hole Flange |
GPO (SMP) Female |
DC-40GHz |
14dB |
 |
FRF71-292MGPPF-XXX |
2.92mm Male |
GPPO (Mini-SMP) Female |
DC-40GHz |
14dB |
 |
FRF71-292FGPPF-XXX |
2.92mm Female |
GPPO (Mini-SMP) Female |
DC-40GHz |
14dB |
 |
FRF71-292FFGPPF-XXX |
2.92mm Female With 4 Hole Flange |
GPPO (Mini-SMP) Female |
DC-40GHz |
14dB |
 |
FRF71-292MGPPWF-XXX |
2.92mm Male |
GPPO (Mini-SMP) Female With Right Angle |
DC-40GHz |
12dB |
 |
FRF71-292MG3PF-XXX |
2.92mm Male |
G3PO (SMPS) Female |
DC-40GHz |
14dB |
 |
FRF71-292FG3PF-XXX |
2.92mm Female |
G3PO (SMPS) Female |
DC-40GHz |
14dB |
 |
FRF71-292FFG3PF-XXX |
2.92mm Female With 4 Hole Flange |
G3PO (SMPS) Female |
DC-40GHz |
14dB |
 |
FRF71-24M24M-XXX |
2.4mm Male |
2.4mm Male |
DC-50GHz |
14dB |
 |
FRF71-24FGPF-XXX |
2.4mm Female |
GPO (SMP) Female |
DC-40GHz |
12dB |
 |
FRF71-24FFGPF-100 |
2.4mm Female With 4 Hole Flange |
GPO (SMP) Female |
DC-40GHz |
12dB |
 |
FRF71-24MGPWF-XXX |
2.4mm Male |
GPO (SMP) Female With Right Angle |
DC-40GHz |
10dB |
 |
FRF71-24MGPPF-XXX |
2.4mm Male |
GPPO (Mini-SMP) Female |
DC-40GHz |
12dB |
 |
FRF71-24MGPPWF-XXX |
2.4mm Male |
GPPO (Mini-SMP) Female With Right Angle |
DC-40GHz |
10dB |
 |
FRF71-24FGPPF-XXX |
2.4mm Female |
GPPO (Mini-SMP) Female |
DC-40GHz |
12dB |
 |
FRF71-24FFGPPF-XXX |
2.4mm Female With 4 Hole Flange |
GPPO (Mini-SMP) Female |
DC-40GHz |
12dB |
 |
FRF71-185MG3PF-XXX |
1.85mm Male |
G3PO (SMPS) Female |
DC - 67GHz |
10dB |
 |
FRF71-185FG3PF-XXX |
1.85mm Female |
G3PO (SMPS) Female |
DC - 67GHz |
10dB |
 |
FRF71-185FFG3PF-XXX |
1.85mm With 4 Hole Flange |
G3PO (SMPS) Female |
DC - 67GHz |
10dB |
|
GAF72/RG402SS 402 Series Flexible Cable Assembly |
||||||
|
Structure Material Diameter(mm) |
||||||
 |
1 |
Inner conductor |
Silver-plated copper-clad steel |
0.92±0.05 |
||
|
2 |
Insulator |
Solid PTFE |
2.97±0.05 |
|||
|
3 |
Inner shielding |
Silver-plated copper band |
3.25±0.05 |
|||
|
4 |
Outer shielding |
Silver-plated copper wire braiding |
3.58±0.1 |
|||
|
5 |
jacket |
FEP |
4.12±0.13 |
|||
| Attenuation, power (test condition at 20℃ sea level) | |||||||
|
Frequency (GHz) |
1 |
3 |
5 |
10 |
15 |
18 |
20 |
|
Attenuation(dB/m) |
0.41 |
0.74 |
0.98 |
1.47 |
1.87 |
2.10 |
2.24 |
|
Attenuation(dB/ft) |
0.125 |
0.226 |
0.299 |
0.448 |
0.570 |
0.640 |
0.683 |
|
Common models and technical indicators
|
|||||
|
Picture |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Return Loss/VSWR |
|
|
FRF72-SMMSMM-XXX |
SMA Male |
SMA Male |
DC-26.5GHz |
1.30 |
|
|

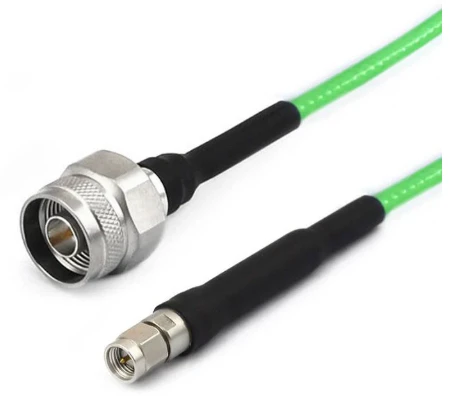

FRF72-NMSMM-XXX |
N Male |
SMA Male |
DC-18GHz |
1.25 |
|
|

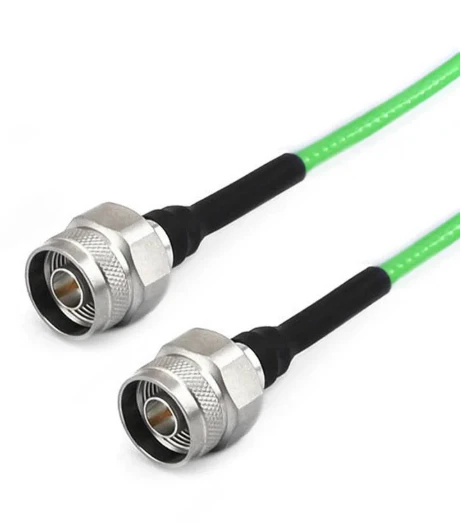

FRF72-NMNM-XXX |
N Male |
N Male |
DC-18GHz |
1.25 |
