Hand Formable Cable Assemblies
Hand Formable Cable Assemblies Semi-flexible Coax is a high-peRFormance semi-flexible coaxial cable assembly that plays a crucial role in multiple fields. This product is crafted by a professional team. With its excellent design and reliable peRFormance, it meets the needs of numerous industries. There are various cable specifications available, such as 047", 086", and 141".
Description
Hand Formable Cable Assemblies Semi-flexible Coax is a high-performance semi-flexible coaxial cable assembly that plays a crucial role in multiple fields. This product is crafted by a professional team. With its excellent design and reliable performance, it meets the needs of numerous industries. There are various cable specifications available, such as 047", 086", and 141".

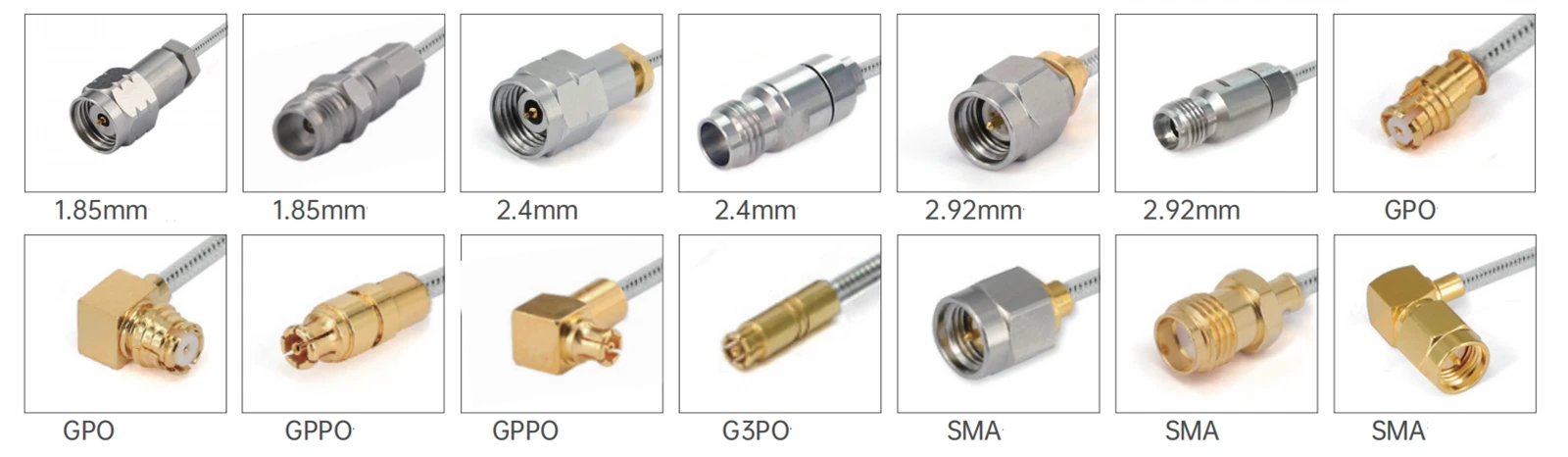

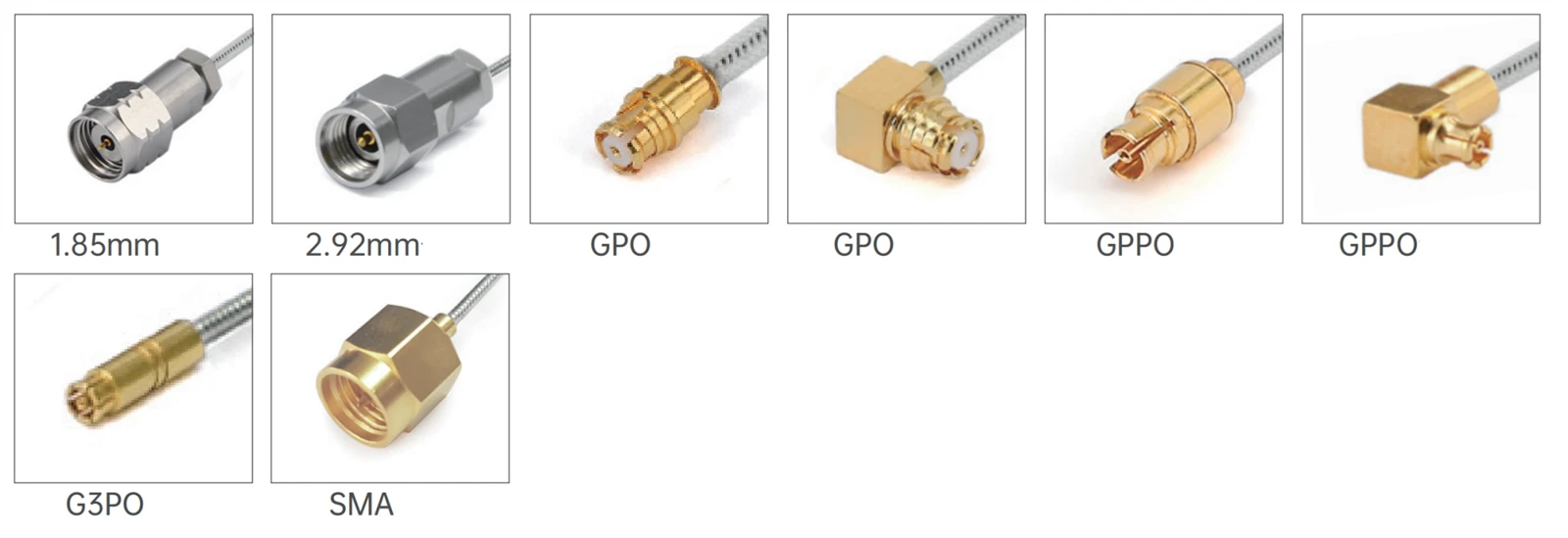

In addition, the product offers multiple options in terms of connector types, impedance, polarity, mounting methods, contact and housing materials. The connector types include 1.85mm, 2.4mm, 2.92mm, SMA, G3PO, GPPO, MMXP, etc.; the impedance is 50 ohms, and the polarity is standard. There are diverse mounting methods, and the contacts and housings are made of materials such as brass plated with gold, beryllium copper plated with gold, and passivated stainless steel to ensure good electrical conductivity and corrosion resistance.
Product introduction
There are series such as the FR701 & FR702/GUT-047-Form 047" series and the FR711&FR712/GUT-085-Form 086" series. Products from different series vary in structural dimensions and electrical performance. For example, the inner conductor diameter of the FR701 & FR702/GUT-047-Form 047" series is 0.29±0.0127mm, while that of the FR711&FR712/GUT-085-Form 086" series is 0.51±0.0127mm. Corresponding attenuation and power data are provided for different frequencies. There are also multiple common models and technical indicators available to meet the requirements of different application scenarios.
In terms of electrical performance, the center conductor is silver-plated copper-clad steel, combined with a solid PTFE insulator and a tinned copper wire outer conductor. It features low capacitance (95.1pF/m), high propagation speed (70%), and excellent shielding effectiveness (< -100dB @ 1GHz). It has a strong power handling capacity. For example, it can reach 10 watts under the conditions of 18GHz, sea level, and VSWR1.0. The operating temperature range is from -40°C to +165°C, and it complies with the 2011/65/EU (RoHS) standard, being environmentally friendly and adaptable to various environments.
Product application
Due to its characteristics of being bendable and having excellent electrical performance, it is widely used in fields such as communication, electronic devices, and test and measurement. In scenarios like on - site detection of communication networks and troubleshooting of industrial equipment, semi - flexible cables are used as temporary connection cables. They are easy to carry and operate. They can quickly establish test links between different devices, enabling efficient completion of detection work.
Important Notes
1. For custom length cable assemblies, please don't forget to leave your length info on the checkout page;
2. All the cable assemblies can be provided with phase-matched pairs or groups; If you need the cables to be phase matched,please send email to us: sales@flexirf.com
Product Specification Data
|
Configuration |
|
|
Connector 1 Type |
1.85mm/2.4mm/2.92mm/SMA /G3PO/GPPO |
|
Connector 1 Impedance |
50 Ohms |
|
Connector 1 Polarity |
Standard |
|
Connector 2 Type |
1.85mm/2.4mm/2.92mm/SMA /G3PO/GPPO/ |
|
Connector 2 Impedance |
50 Ohms |
|
Connector 2 Polarity |
Standard |
|
Connector Mount Method |
None |
|
Connector Body Style |
Straight and Right Angle |
|
Materials Information |
|
|
Center Contact |
Brass Gold Plated, Beryllium Copper Gold Plated |
|
Outer Contact |
Brass Gold Plated, Beryllium Copper Gold Plated, Stainless Steel Passivated |
|
Body |
Brass Gold Plated, Beryllium Copper Gold, Stainless Steel Passivated |
|
Dielectric |
PEI/PTFE |
|
Environmental Data |
|
|
Temperature Range |
-40℃ to +165℃ |
|
2011/65/EU(RoHS) |
Compliant |
|
Cable Specifications |
|
|
Center Conductor |
Silver plated copperweld |
|
Dielectric |
Solid PTFE |
|
Jacket |
None Or FEP |
|
Capacitance(pF/m) |
95.1 |
|
Velocity of propagation(%) |
70 |
|
Shielding Effectiveness |
<-100dB @ 1GHz |
|
Power Handling |
10watt @ 18GHz at sea level,VSWR1.0 |
Product Type
| FR701 & FR702/GUT-047-Form 047" Series cable assembly | ||||
 |
Structure Material Diameter(mm) |
|||
|
1 |
Inner conductor |
Silver-plated copper-clad steel |
0.29±0.0127 |
|
|
2 |
Insulator |
Solid PTFE |
0.94±0.0254 |
|
|
3 |
Outer conductor |
Tinned copper wire |
1.19±0.05 |
|
|
4 |
Jacket |
FEP |
1.6±0.13 |
|
| Attenuation, power (test condition at 20℃ sea level) | |||||
|
Frequency (GHz) |
0.5 |
1 |
5 |
10 |
20 |
|
Attenuation(dB/m) |
0.787 |
1.112 |
2.585 |
3.734 |
5.443 |
|
Power(W) |
67.4 |
47.4 |
20.7 |
14.4 |
9.9 |
|
Common models and technical indicators
|
|||||
|
Picture |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Return Loss/VSWR |
|
|
FR701-292FF1G3PF-XXX |
2.92mm Female With 2 Hole Flange |
G3PO (SMPS) Female |
DC-40GHz |
12dB |
|
|
FR701-292MG3PF-XXX |
2.92mm Male |
G3PO (SMPS) Female |
DC-40GHz |
12dB |
|
|
FR701-292FG3PF-XXX |
2.92mm Female |
G3PO (SMPS) Female |
DC-40GHz |
12dB |
|
|
FR701-185MG3PF-XXX |
1.85mm Male |
G3PO (SMPS) Female |
DC-67GHz |
10dB |
|
|
FR701-185FG3PF-XXX |
1.85mm Female |
G3PO (SMPS) Female |
DC-67GHz |
10dB |
| FR711&FR712/GUT-085-Form 086" Series cable assembly | ||||
 |
Structure Material Diameter (mm) |
|||
|
1 |
Inner conductor |
Silver-plated copper-clad stee |
0.51±0.0127 |
|
|
2 |
Insulator |
Solid PTFE |
1.69±0.0254 |
|
|
3 |
Outer conductor |
Tinned copper wire |
2.2±0.05 |
|
|
4 |
Jacket |
FEP |
2.54 |
|
| Attenuation, power (test condition at 20℃ sea level) | |||||
|
Frequency (GHz) |
0.4 |
1 |
5 |
10 |
18 |
|
Attenuation(dB/m) |
0.43 |
0.70 |
1.72 |
2.49 |
3.46 |
|
Power(W) |
253 |
157 |
69 |
47 |
33 |
| Common models and technical indicators |
 |
|
FR712/GUT-085-Form-FEP (With FEP Jacket) |
|||||
|
Picture |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Return Loss/VSWR |
|
|
FR712-SMMSMM-XXX |
SMA Male |
SMA Male |
DC-26.5GHz |
1.35 |
|
|

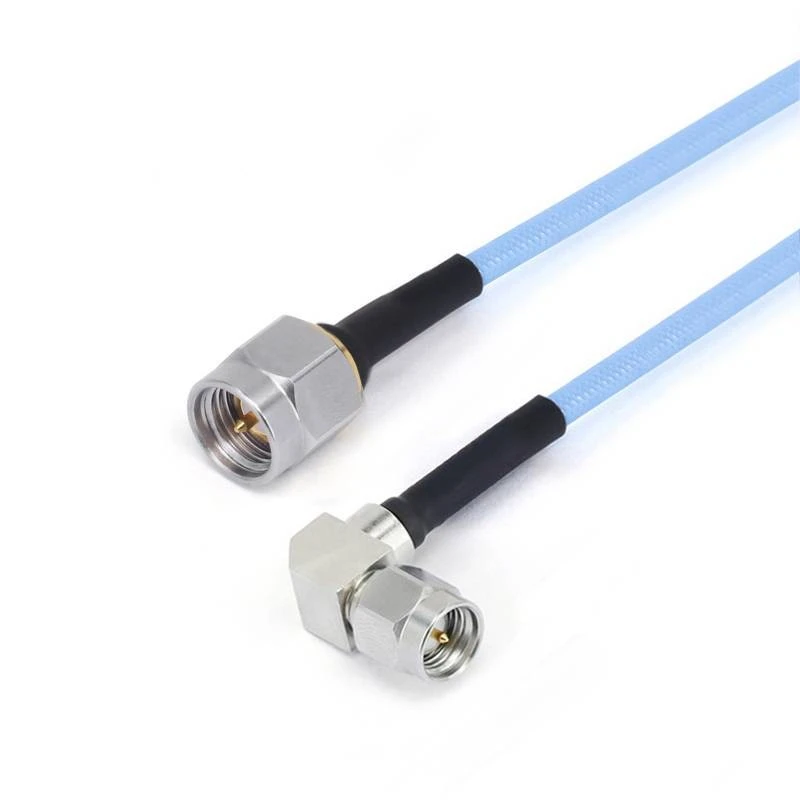

FR12-SMMSMWM-XXX-18G |
SMA Male |
SMA Male With Right Angle |
DC-18GHz |
1.35 |
|
|
FR712-SMWMSMWM-XXX-18G |
SMA Male With Right Angle |
SMA Male With Right Angle |
DC-18GHz |
1.40 |
|
|
FR712-SMMGPF-XXX |
SMA Male |
GPO (SMP) Female |
DC-26.5GHz |
1.35 |
|
|
FR712-SMMGPWF-XXX |
SMA Male |
GPO (SMP) Female With Right Angle |
DC-26.5GHz |
1.40 |
|
|
FR712-SMMGPPF-XXX |
SMA Male |
GPPO (Mini-SMP) Female |
DC-26.5GHz |
1.35 |
|
|
FR712-SMMGPPWF-XXX |
SMA Male |
GPPO (Mini-SMP) Female With Right Angle |
DC-26.5GHz |
1.40 |
|
|

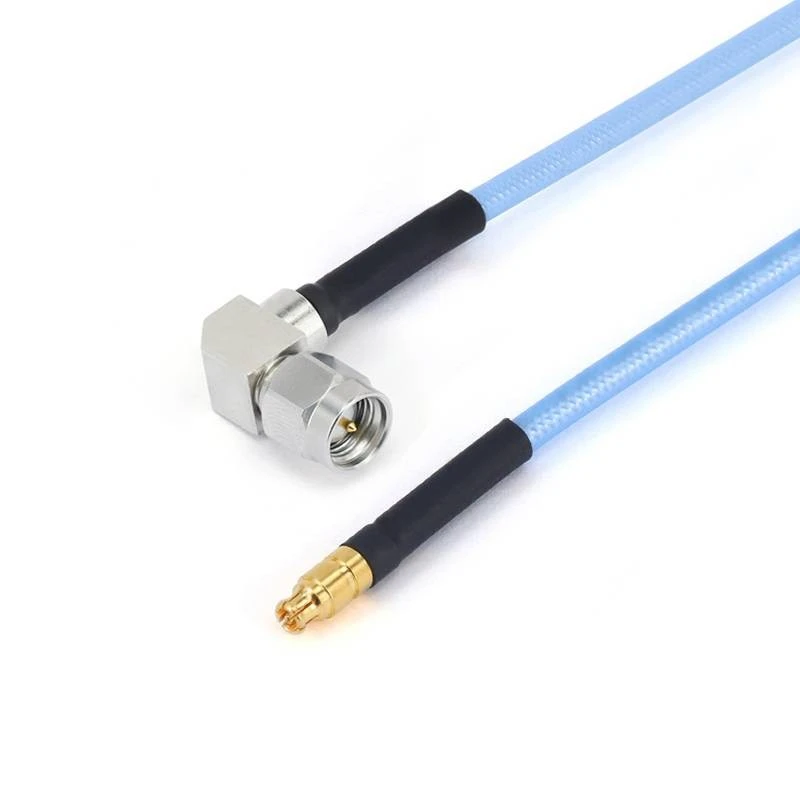

FR712-SMWMGPPF-XXX-18G |
SMA Male With Right Angle |
GPPO (Mini-SMP) Female |
DC-18GHz |
15dB |
|
|

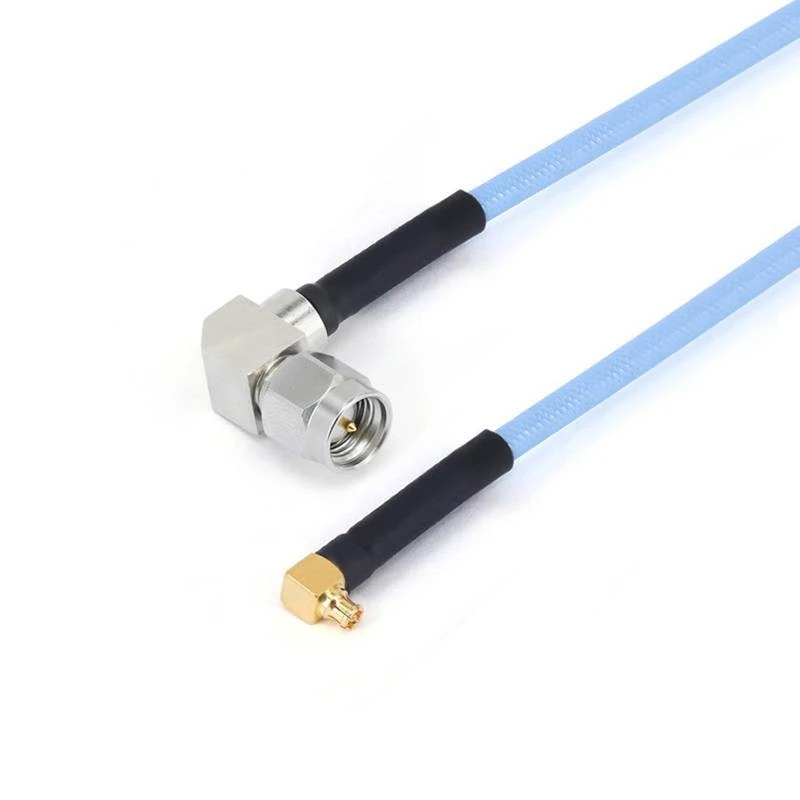

FR712-SMWMGPPWF-XXX-18G |
SMA Male With Right Angle |
GPPO (Mini-SMP) Female With Right Angle |
DC-18GHz |
15dB |
|
|
FR712-SMFGPF-XXX |
SMA Female |
GPO (SMP) Female |
DC-18GHz |
1.35 |
|
|
FR712-SMFFGPF-XXX |
SMA Female with 4 Hole Flange |
GPO (SMP) Female |
DC-18GHz |
1.35 |
|
|
FR712-SMFGPPF-XXX |
SMA Female |
GPPO (Mini-SMP) Female |
DC-26.5GHz |
1.40 |
|
|
FR712-SMFFGPPF-XXX |
SMA Female with 4 Hole Flange |
GPPO (Mini-SMP) Female |
DC-26.5GHz |
1.40 |
|
|
FR712-292M292M-XXX |
2.92mm Male |
2.92mm Male |
DC - 40GHz |
1.44 |
|
|
FR712-292MGPF-XXX |
2.92mm Male |
GPO (SMP) Female |
DC - 40GHz |
10dB |
|
|
FR712-292MGPWF-XXX |
2.92mm Male |
GPO (SMP) Female With Right Angle |
DC - 40GHz |
10dB |
|
|
FR712-292FGPF-XXX |
2.92mm Female |
GPO (SMP) Female |
DC - 40GHz |
10dB |
|
|
FR712-292FFGPF-XXX |
2.92mm Female with 4 Hole Flange |
GPO (SMP) Female |
DC - 40GHz |
10dB |
|
|
FR712-292MGPPF-XXX |
2.92mm Male |
GPPO (Mini-SMP) Female |
DC - 40GHz |
14dB |
|
|
FR712-292MGPPWF-XXX |
2.92mm Male |
GPPO (Mini-SMP) Female With Right Angle |
DC - 40GHz |
14dB |
|
|
FR712-292FGPPF-XXX |
2.92mm Female |
GPPO (Mini-SMP) Female |
DC - 40GHz |
14dB |
|
|
FR712-292FFGPPF-XXX |
2.92mm Female with 4 Hole Flange |
GPPO (Mini-SMP) Female |
DC - 40GHz |
14dB |
|
|
FR712-292MG3PF-XXX |
2.92mm Male |
G3PO (SMPS) Female |
DC - 40GHz |
12dB |
|
|
FR712-292FG3PF-XXX |
2.92mm Female |
G3PO (SMPS) Female |
DC - 40GHz |
12dB |
|
|
FR712-292FFG3PF-XXX |
2.92mm Female with 4 Hole Flange |
G3PO (SMPS) Female |
DC - 40GHz |
12dB |
|
|
FR712-185MG3PF-XXX |
1.85mm Male |
G3PO (SMPS) Female |
DC - 67GHz |
10dB |
|
|
FR712-185FG3PF-XXX |
1.85mm Female |
G3PO (SMPS) Female |
DC - 67GHz |
10dB |
|
|
FR712-185FFG3PF-XXX |
1.85mm Female with 4 Hole Flange |
G3PO (SMPS) Female |
DC - 67GHz |
10dB |
|
FR711/GUT-085-Form (Without FEP Jacket) |
|||||
|
Picture |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Return Loss/VSWR |
|
|
FR711-SMMSMM-XXX |
SMA Male |
SMA Male |
DC-26.5GHz |
1.35 |
 |
FR11-SMMSMWM-XXX-18G |
SMA Male |
SMA Male With Right Angle |
DC-18GHz |
1.35 |
|
|
FR711-SMWMSMWM-XXX-18G |
SMA Male With Right Angle |
SMA Male With Right Angle |
DC-18GHz |
1.40 |
|
|

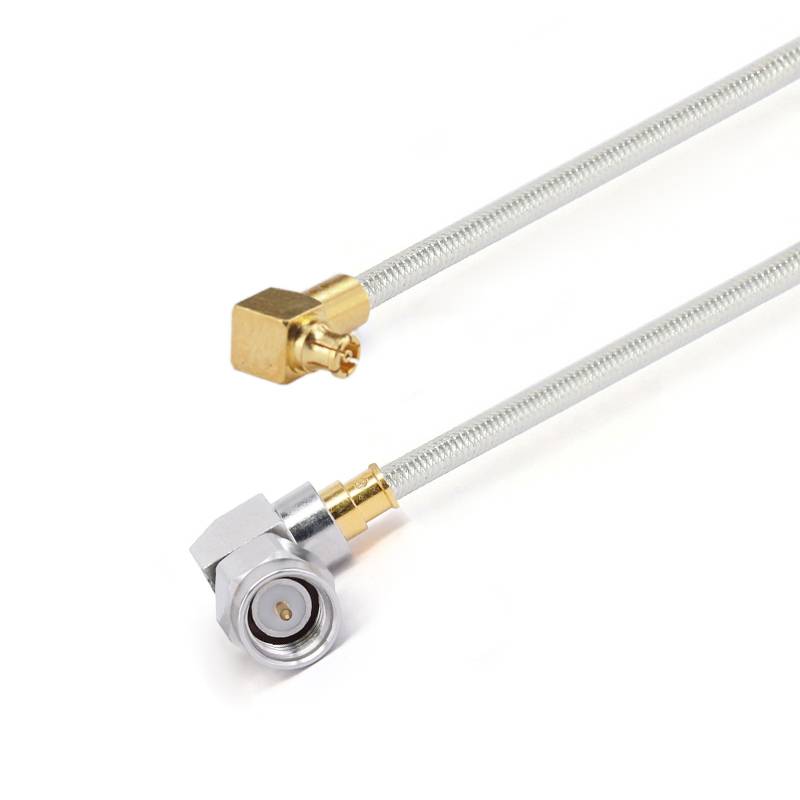

FR711-SMWMGPPWF-XXX-18G |
SMA Male With Right Angle |
GPPO (Mini-SMP) Female With Right Angle |
DC-18GHz |
1.40 |
|
|
FR711-292MMMPXM-XXX |
2.92mm Male |
MMPX Male |
DC-40GHz |
14dB |
|
|
R711-292MMMPXF-XXX |
2.92mm Male |
MMPX Female |
DC-40GHz |
14dB |
|
|
FR711-24MMMPXM-XXX |
2.4mm Male |
MMPX Male |
DC-50GHz |
12dB |
|
|
FR711-24MMMPXF-XXX |
2.4mm Male |
MMPX Female |
DC-50GHz |
12dB |
|
|
FR711-185MMMPXM-XXX |
1.85mm Male |
MMPX Male |
DC-67GHz |
10dB |
|
|
FR711-185MMMPXF-XXX |
1.85mm Male |
MMPX Female |
DC-67GHz |
10dB |
|
|
FR711-185MG3PF-XXX |
1.85mm Male |
G3PO (SMPS) Female |
DC-67GHz |
10dB |
|
|
FR711-185FG3PF-XXX |
1.85mm Female |
G3PO (SMPS) Female |
DC-67GHz |
10dB |
|
|
FR711-185FFG3PF-XXX |
1.85mm Female with 4 Hole Flange |
G3PO (SMPS) Female |
DC-67GHz |
10dB |
