8-Way Power Dividers

Our 8-way power divider series all adopt SMA female connectors, which possess excellent electrical performance and mechanical stability, ensuring efficient and reliable signal transmission. This series of products covers an ultra-wide frequency range from 5MHz to 18GHz, capable of meeting the application requirements of different frequency bands. Whether it is basic communication in low-frequency bands or advanced radar systems in high-frequency bands, they can handle it with ease.

The minimum isolation can reach 18dB ~ 20dB. The high isolation effectively reduces the signal crosstalk between each output port, making the signals at each output port purer and more independent. This ensures that different channels in the system do not interfere with each other, enhancing the overall performance of the system.

The product is made of aluminum alloy. Aluminum alloy has the advantages of low weight, high strength, and good heat dissipation performance, which ensures the stability and reliability of the product in different environments. At the same time, for different models, the product surface is treated with processes such as oxidation, black painting, and blue painting respectively. These processes not only enhance the aesthetics of the product but also effectively prevent corrosion and extend the service life of the product.

Testing and Measuring Equipment: In various radio frequency (RF) testing equipment, it is used for power distribution of signal sources. It can meet the requirements of multi-channel testing, improving testing efficiency and accuracy.

SMA 8-Way Power Dividers
Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-8-5M010-E	SMA Female	5MHz~1GHz	1.30	18
Phase Balance (°)	Power, Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±5°	1	±0.5	Aluminum Alloy	Oxidation

Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)

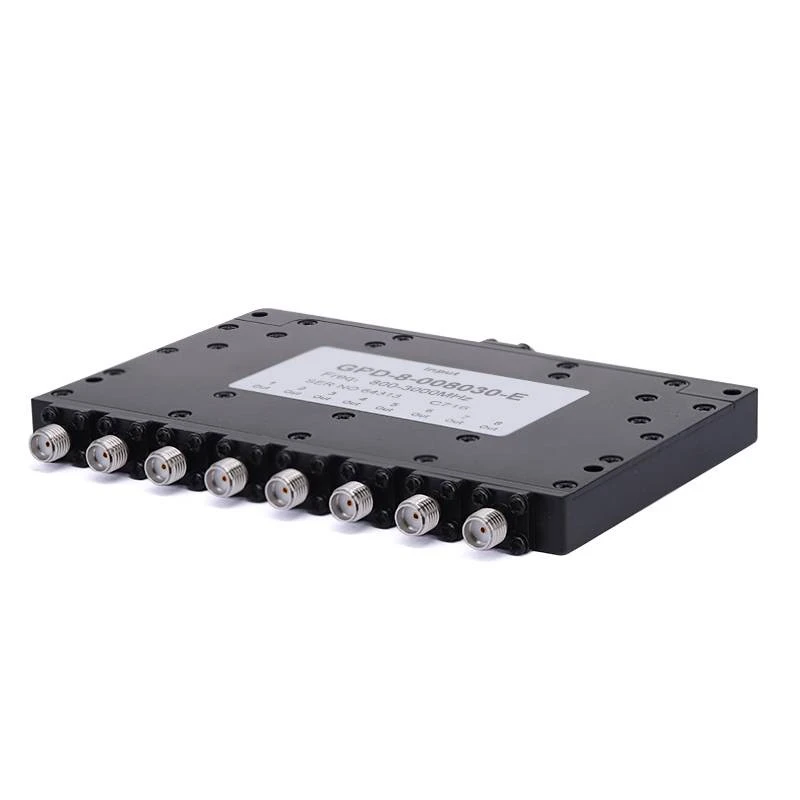

GPD-8-008030-E	SMA Female	800MHz~3GHz	1.25	20
Phase Balance (°)	Power,Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±3°	20	±0.3	Aluminum Alloy	Black Paint

Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)

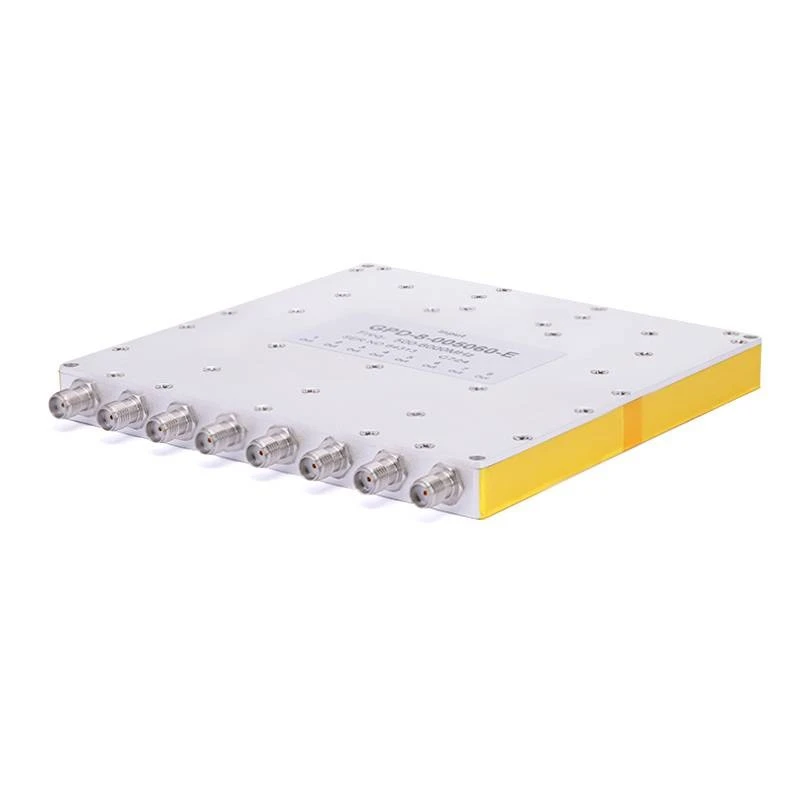

GPD-8-005060-E	SMA Female	500MHz~6GHz	1.40	18
Phase Balance (°)	Power, Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±5°	30	±0.4	Aluminum Alloy	Oxidation

Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)

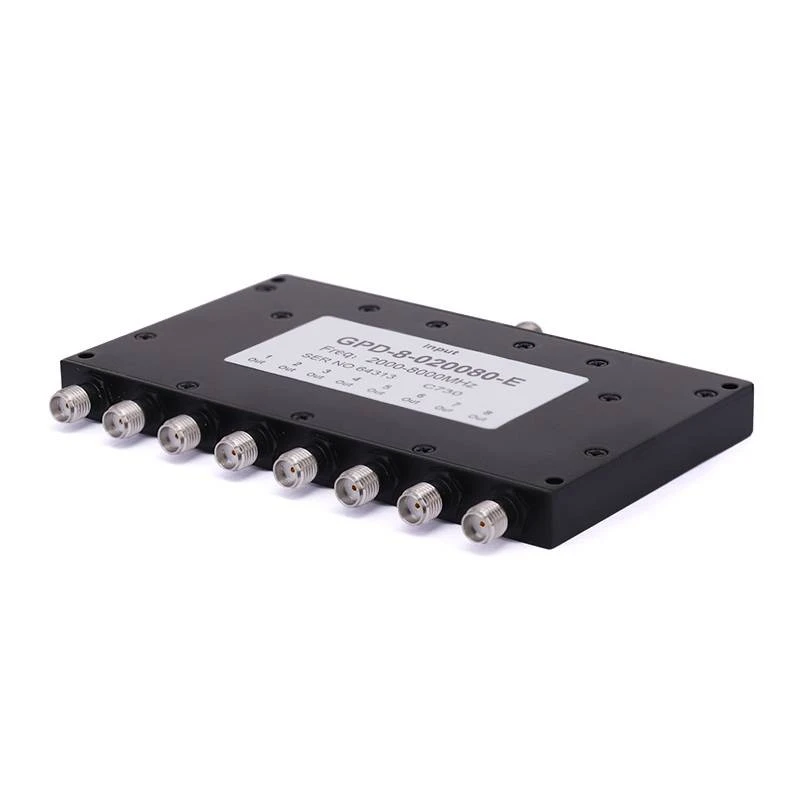

GPD-8-020080-E	SMA Female	2GHz~8GHz	1.50	18
Phase Balance (°)	Power, Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±5°	30	±0.4	Aluminum Alloy	Black Paint

Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)

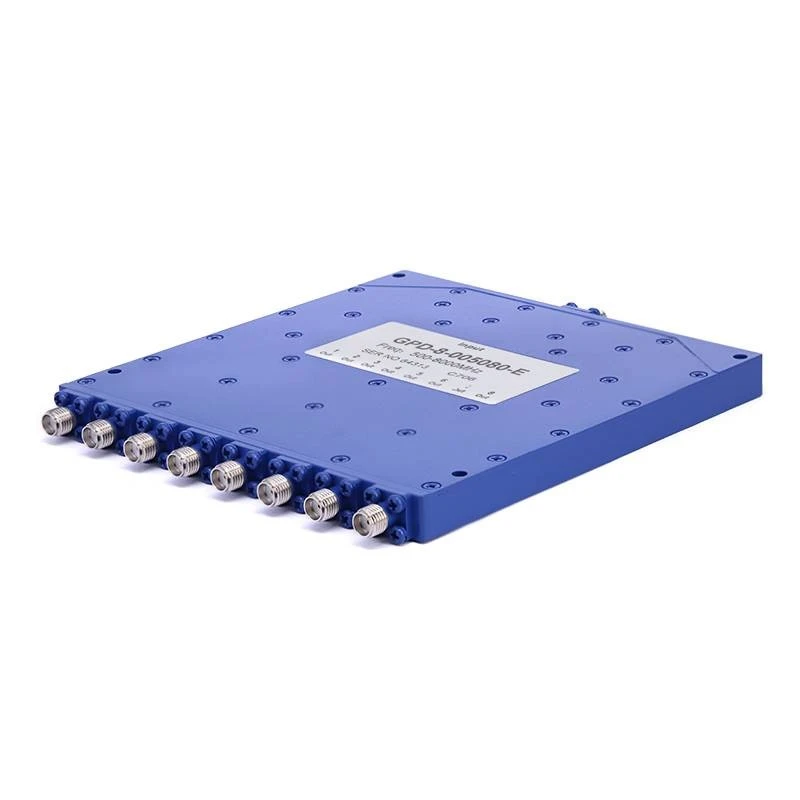

GPD-8-005080-E	SMA Female	500MHz~8GHz	1.50	18
Phase Balance (°)	Power, Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±5°	20	±0.4	Aluminum Alloy	Blue Paint
