N Adapter

Name: USA N Adapter Manufacturers Suppliers Factory - Customized N Adapter Made in USA - Flexi RF
Brand: Flexi
SKU: 264217262

The N adapter is a crucial component in radio - frequency systems. The N adapter uses is a threaded coaxial connector known for its robust mechanical structure and good electrical peRFormance, allowing for reliable signal transmission over a wide frequency range.

Send Inquiry

Description

Product introduction

N Adapter is a crucial component in radio - frequency systems. The N Adapter it uses is a threaded coaxial connector known for its robust mechanical structure and good electrical performance, allowing for reliable signal transmission over a wide frequency range.

The maximum operating frequency of the N Precise Adaptor can reach up to 18 GHz. However, what differentiates it from other RF adapters is that the N Precise Adaptor can withstand relatively high operating power. It is often used in the input and output ports of high - power equipment, as well as in high - power signal transmission systems.

Product Body Style

N Adapter offers flexible configuration options, with Connector 1 being N-type (50 Ohms, standard polarity) and Connector 2 available in N, SMA, 3.5mm, or 2.92mm types (all 50 Ohms, standard polarity).

The N Adapter is offered in multiple body styles, including Straight, 4-Hole Flange, Bulkhead Mount, and Right Angle, allowing for seamless integration into various setups-from instrument panels to complex RF systems.

Popular models include N Male to N Male (FR1-N-JJS), N Female to SMA Female with 4-Hole Flange (FR1-N/SMA-KFKS), N Male to 3.5mm Female (FR1-N/3.5-JKS), and N Female to 2.92mm Male (FR1-N/2.92-KJS), among others

Procurement FAQ

1. Do you have the test and audit service?

Yes, we can assist to get the designated test report for product and the designated factory audit report.

2. What's your after-sale service?

Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.

Product Specification Data

Configuration
Connector 1 Type	N
Connector 1 Impedance	50 Ohms
Connector 1 Polarity	Standard
Connector 2 Type	N / SMA / 3.5mm / 2.92mm
Connector 2 Impedance	50 Ohms
Connector 2 Polarity	Standard
Connector Mount Method	None
Adapter Body Style	Straight/4 Hole Flange/Bulkhead Mount/Right Angle
Materials Information
Center Contact	CuBe Gold Plated
Outer Contact	Stainless Steel
Body	Stainless Steel
Dielectric	PEI
Environmental Data
Temperature Range	-55℃ to +165℃
2011/65/EU(RoHS)	Compliant

Product Type

N RF Adapter

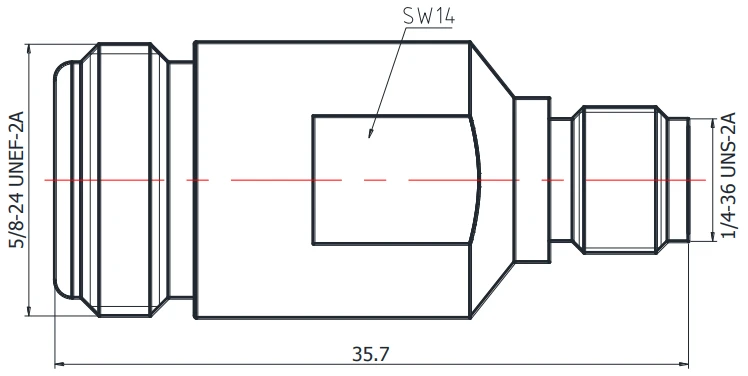

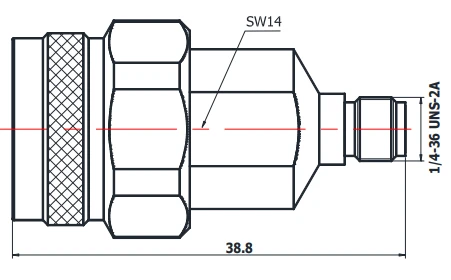

Sku	Drawing	Frequency	VSWR	Description Type

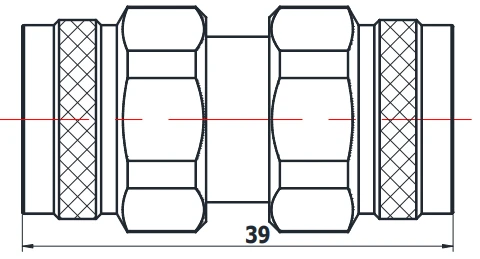

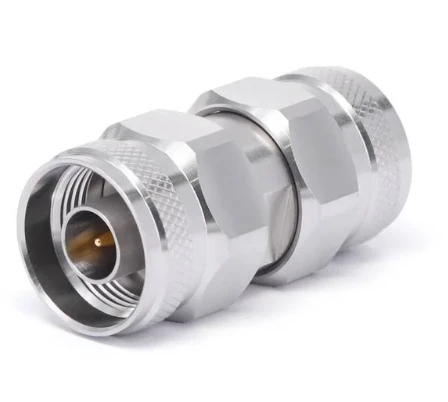

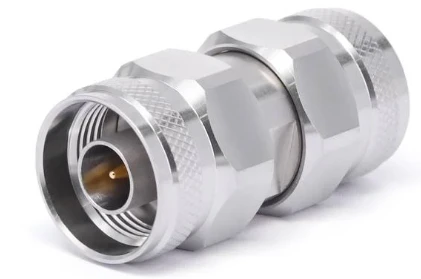

FR1-N-JJS		DC-18GHz	1.15	N Male to N Male
FR1-N-KKS		DC-18GHz	1.15	N Female to N Female

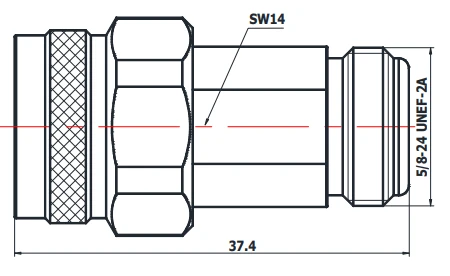

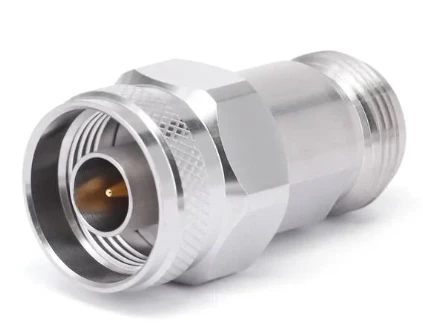

FR1-N-JKS		DC-18GHz	1.15	N Male to N Female

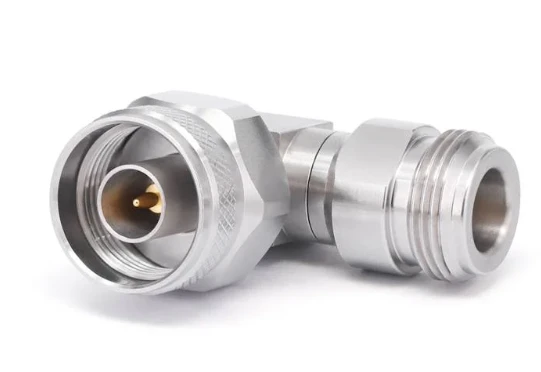

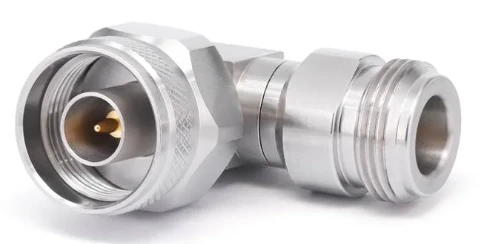

FR1-N-JWKS		DC-18GHz	1.15	N Male to N Female With Right Angle

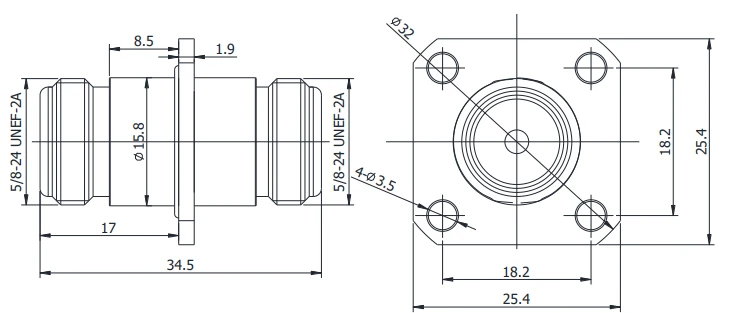

FR1-N-KFKS		DC-18GHz	1.15	N Female to N Female With 4 Hole Flange
FR1-N/SMA-KYKS		DC-18GHz	1.15	N Female to N Female With Bulkhead Mount

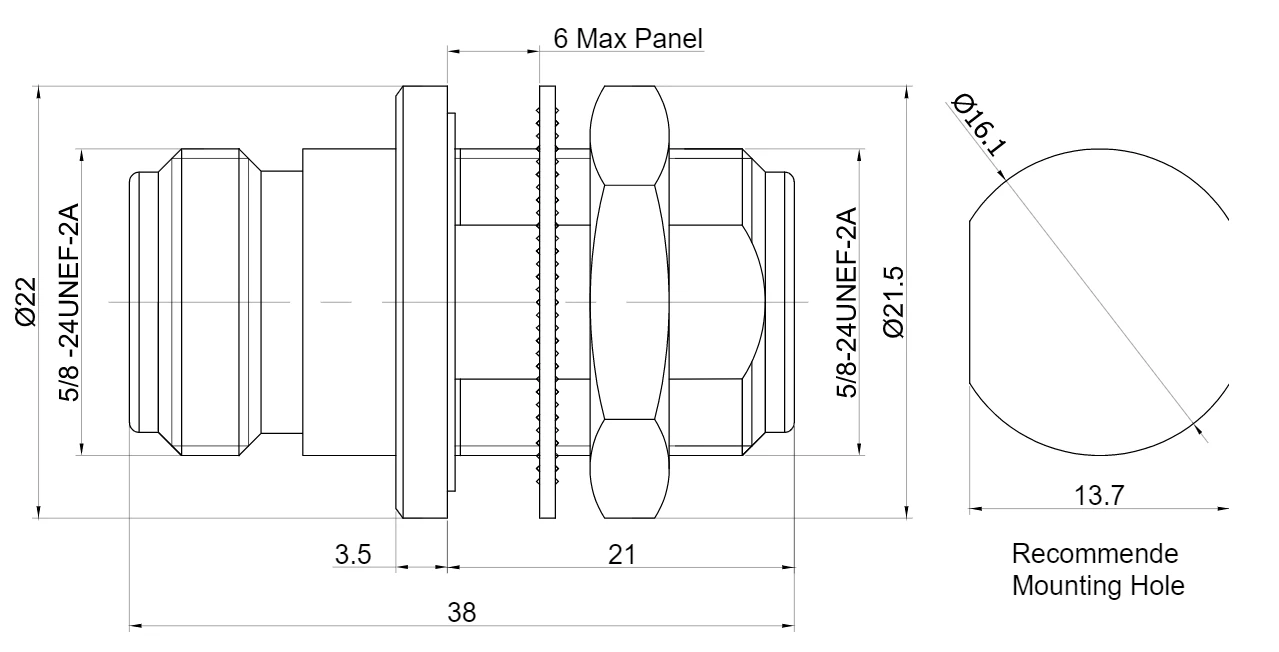

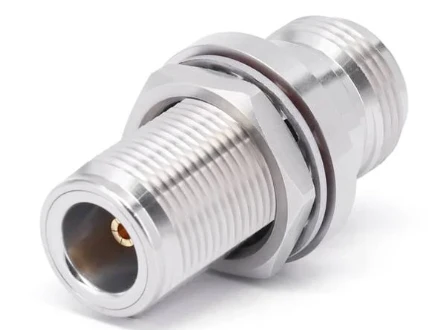

FR1-N-KYKS-1		DC-18GHz	1.15	N Female to N Female With Bulkhead Mount
N to SMA RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type

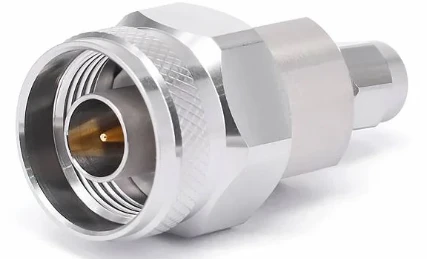

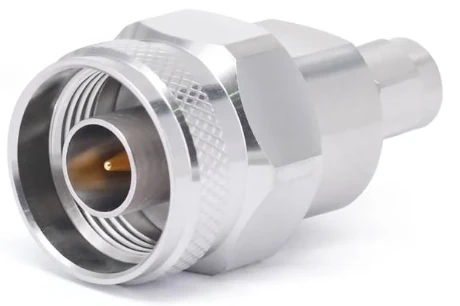

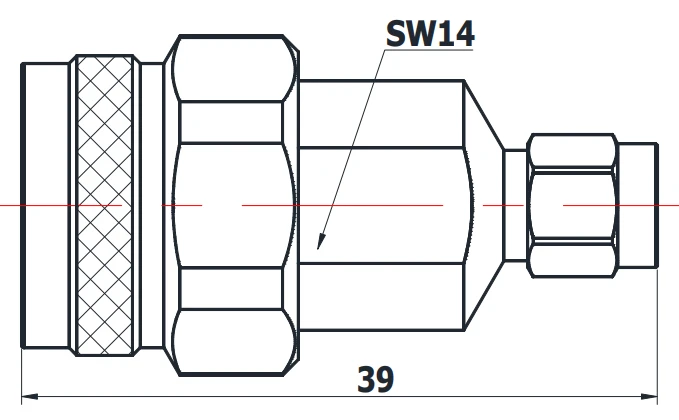

FR1-N/SMA-JJS		DC-18GHz	1.15	N Male to SMA Male

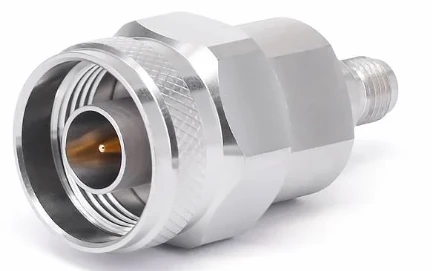

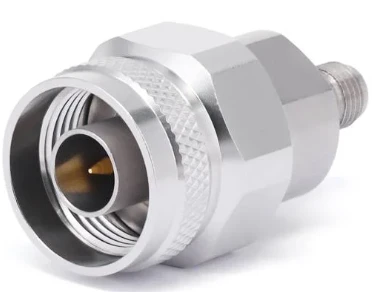

FR1-N/SMA-JKS		DC-18GHz	1.15	N Male to SMA Female
FR1-N/SMA-KKS		DC-18GHz	1.15	N Female to SMA Female
FR1-N/SMA-KJS		DC-18GHz	1.15	N Female to SMA Male

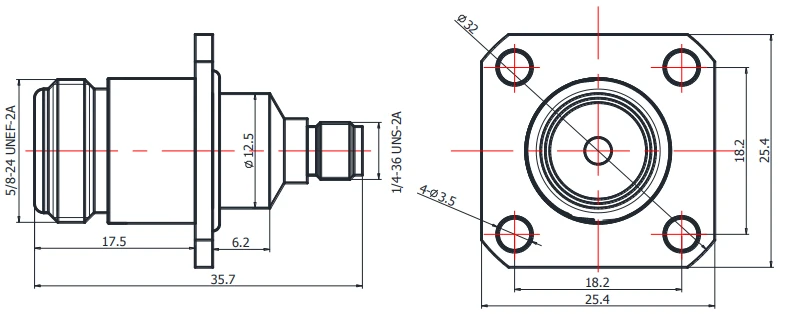

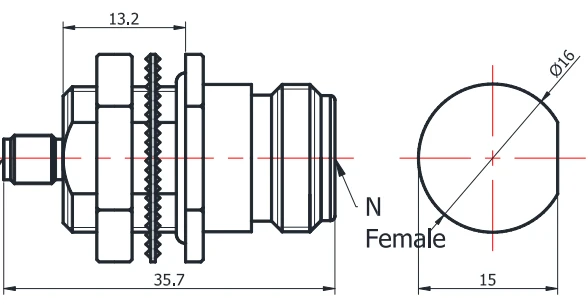

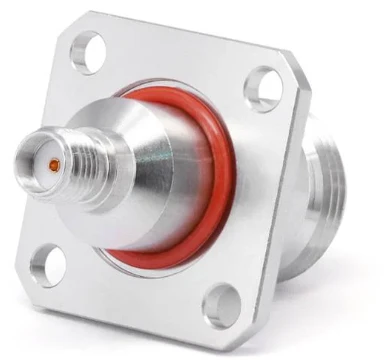

FR1-N/SMA-KFKS		DC-18GHz	1.15	N Female to SMA Female With 4 Hole Flange

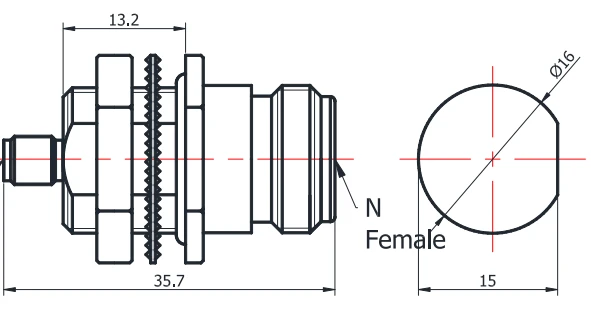

FR1-N/SMA-KYKS		DC-18GHz	1.15	N Female to SMA Female Adapter with Bulkhead Mount
N to 3.5mm RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type
FR1-N/3.5-JJS		DC-18GHz	1.15	N Male to 3.5mm Male
FR1-N/3.5-KKS		DC-18GHz	1.15	N Female to 3.5mm Female
FR1-N/3.5-JKS		DC-18GHz	1.15	N Male to 3.5mm Female
FR1-N/3.5-KJS		DC-18GHz	1.15	N Female to 3.5mm Male
N to 2.92mm RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type
FR1-N/2.92-JJS		DC-18GHz	1.15	N Male to 2.92mm Male
FR1-N/2.92-KKS		DC-18GHz	1.15	N Female to 2.92mm Female
FR1-N/2.92-JKS		DC-18GHz	1.15	N Male to 2.92mm Female
FR1-N/2.92-KJS		DC-18GHz	1.15	N Female to 2.92mm Male
