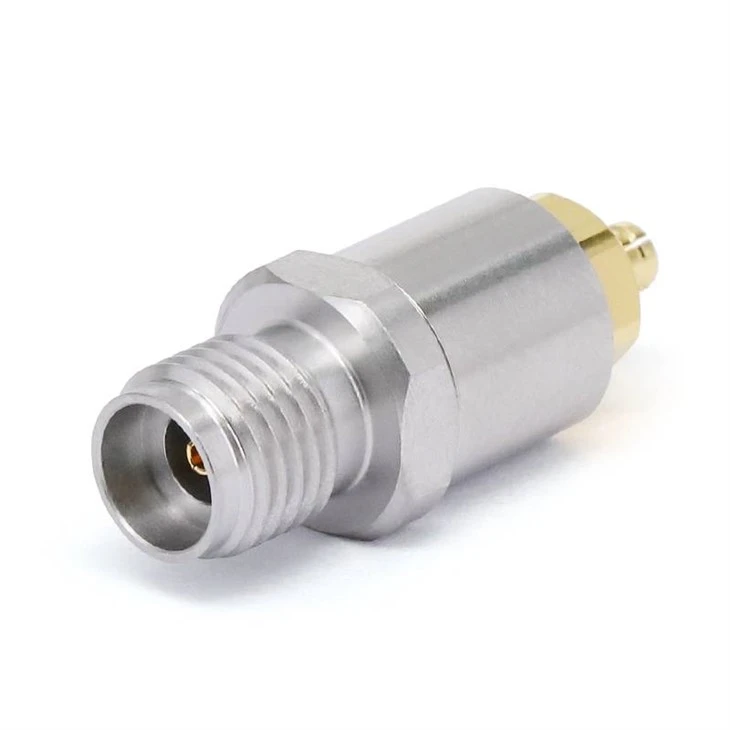

2.92-gppo-kk-1
2
sma-gppo-jk-1
sma-gppo-kj-3

GPPO Mini SMP Adapter

Mini-SMP or GPPO adapters are known for their compact size and low weight, making them ideal for applications where space and weight are critical factors, such as in portable electronic devices, satellite communication systems and some miniature RF modules.

Send Inquiry

Description

Product introduction

The Mini-SMP features a maximum operating frequency of up to 67 GHz and an impedance of 50 ohms. It is available in a wide variety of adapter configurations that interface with 2.92mm, 3.5mm, 2.4mm, and 1.85mm connectors. This extensive range offers users abundant options to meet diverse connection requirements.

Product application

Due to their small size and high performance, Mini-SMP adapters are widely used in satellite communication systems, aerospace electronics, and radar systems. They help to establish reliable RF connections in the limited space and harsh conditions of spacecraft and aircraft.

Procurement FAQ

1. How can we get a quote?

2. Can you help with the design?

Simply design free, special design need to pay.

3. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.

Product Specification Data

Configuration
Connector 1 Type	GPPO(Mini-SMP)
Connector 1 Impedance	50 Ohms
Connector 1 Polarity	Standard
Connector 2 Type	GPPO(Mini-SMP) /SMA / 3.5mm / 2.92mm
Connector 2 Impedance	50 Ohms
Connector 2 Polarity	Standard
Connector Mount Method	None
Adapter Body Style	Straight
Materials Information
Center Contact	CuBe Gold Plated
Outer Contact	CuBe & Stainless Steel
Body	Stainless Steel
Dielectric	PEI/PTFE
Environmental Data
Temperature Range	-55℃ to +165℃
2011/65/EU(RoHS)	Compliant

Product Type

GPPO(Mini-SMP) RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type
FR1-GPPO-KK		DC-65GHz	1.44@50GHz	GPPO(Mini-SMP) Female to GPPO(Mini-SMP) Female
1.85mm to GPPO(Mini-SMP) RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type
FR1-1.85/GPPO-JJ		DC-67GHz	1.30	1.85mm Male to GPPO(Mini-SMP) Male
FR1-1.85/GPPO-KK		DC-67GHz	1.30	1.85mm Female to GPPO(Mini-SMP) Female
FR1-1.85/GPPO-JK		DC-67GHz	1.30	1.85mm Male to GPPO(Mini-SMP) Female
FR1-1.85/GPPO-KJ		DC-67GHz	1.30	1.85mm Female to GPPO(Mini-SMP) Male
2.4mm to GPPO(Mini-SMP) RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type
FR1-2.4/GPPO-JJ		DC-40GHz	1.25	2.4mm Male to GPPO(Mini-SMP) Male
FR1-2.4/GPPO-KK		DC-40GHz	1.25	2.4mm Female to GPPO(Mini-SMP) Female
FR1-2.4/GPPO-JK		DC-40GHz	1.25	2.4mm Male to GPPO(Mini-SMP) Female
FR1-2.4/GPPO-KJ		DC-40GHz	1.25	2.4mm Female to GPPO(Mini-SMP) Male
2.92mm to GPPO(Mini-SMP) RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type
FR1-2.92/GPPO-JJ		DC-40GHz	1.25	2.92mm Male to GPPO(Mini-SMP) Male
FR1-2.92/GPPO-KK		DC-40GHz	1.25	2.92mm Female to GPPO(Mini-SMP) Female
FR1-2.92/GPPO-JK		DC-40GHz	1.25	2.92mm Male to GPPO(Mini-SMP) Female
FR1-2.92/GPPO-KJ		DC-40GHz	1.25	2.92mm Female to GPPO(Mini-SMP) Male
SMA to GPPO(Mini-SMP) RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type
FR1-SMA/GPPO-JJ		DC-18GHz	1.20	SMA Male to GPPO Male
FR1-SMA/GPPO-KK		DC-18GHz	1.20	SMA Female to GPPO Female
FR1-SMA/GPPO-JK		DC-18GHz	1.20	SMA Male to GPPO Female
FR1-SMA/GPPO-KJ		DC-18GHz	1.20	SMA Female to GPPO Male
