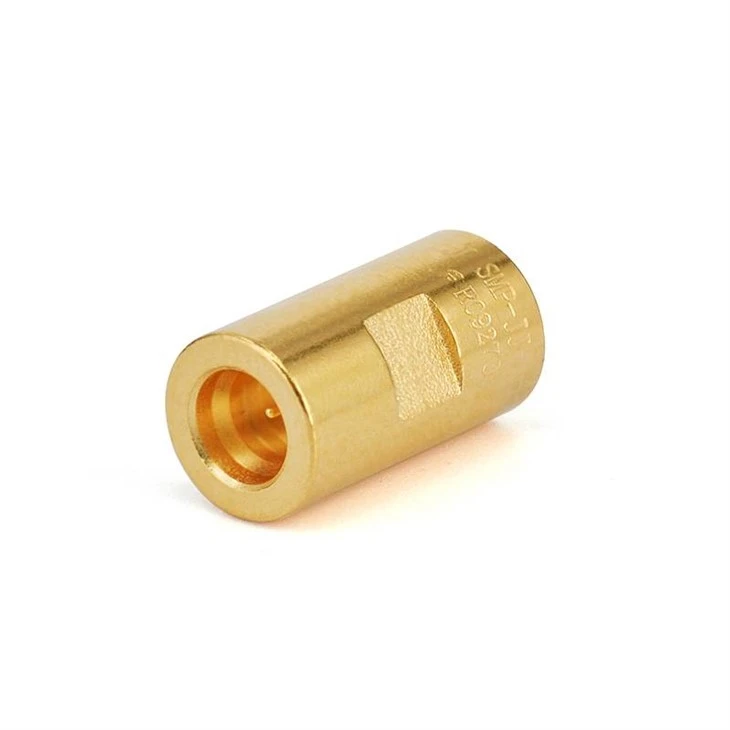

gpo-jj-1

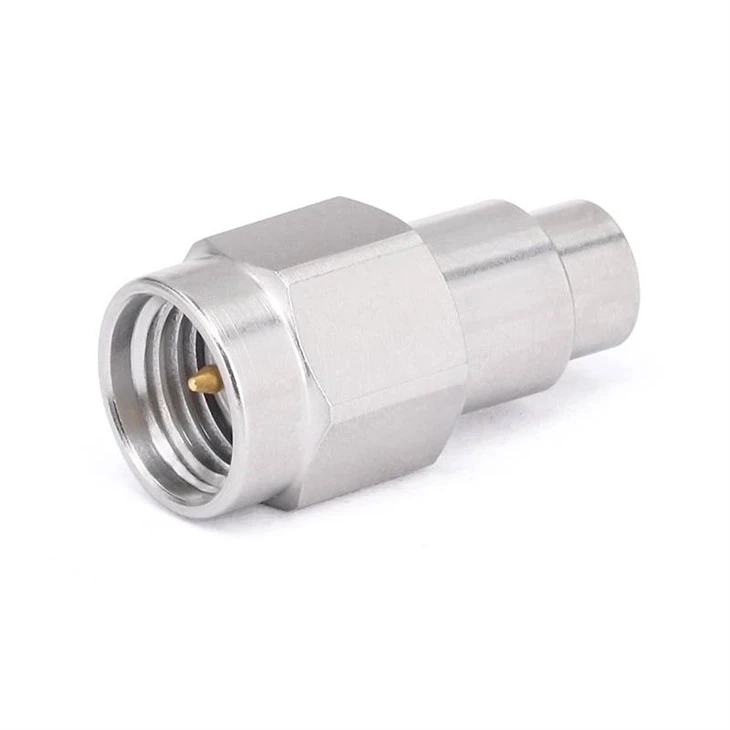

sma-gpo-jjs-4

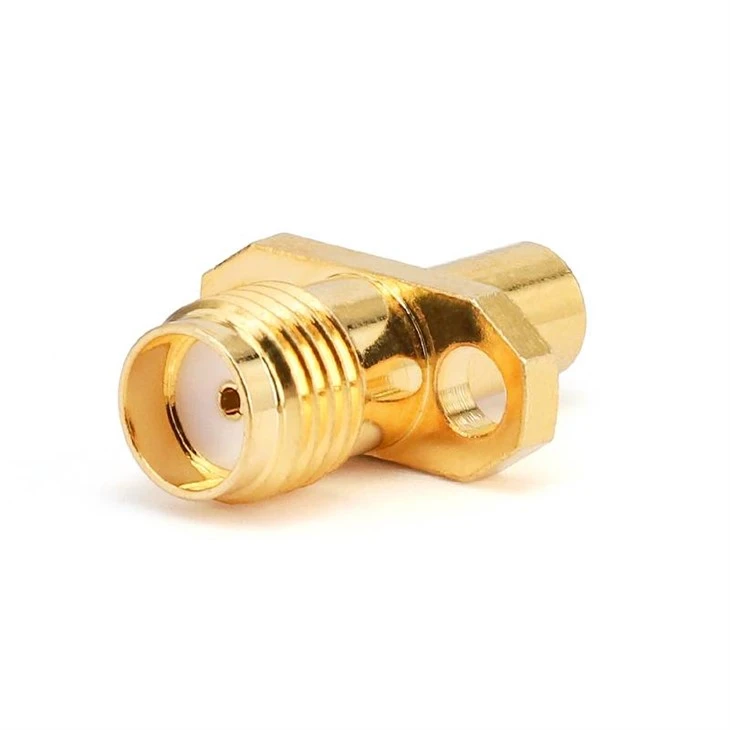

sma-gpo-kfj-f-11

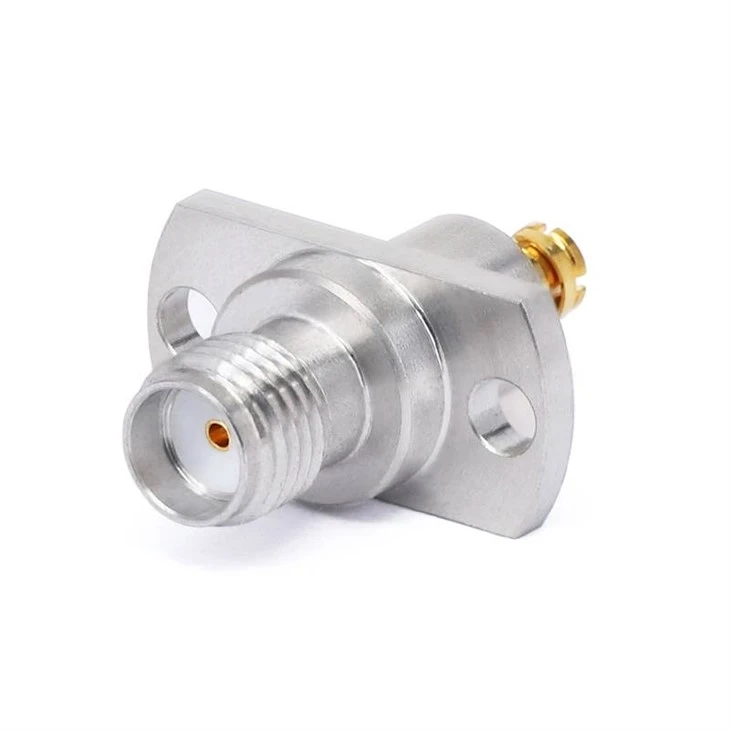

sma-gpo-kfkg-7

GPO SMP Adapter

Name: USA Customized GPO SMP Adapter Manufacturers Suppliers Factory - GPO SMP Adapter for Sale - Flexi RF
Brand: Flexi
SKU: 264218411

SMP or GPO adapters are known for their compact size and low weight, making them ideal for applications where space and weight are critical factors, such as in portable electronic devices, satellite communication systems and some miniature RF modules.

Send Inquiry

Description

Product introduction

In terms of electrical performance, SMP adapters are highly impressive. They can support a wide frequency range, typically up to 40 GHz or even higher in some advanced models. This wide - band capability makes them suitable for a variety of high - frequency applications, including 5G wireless networks, radar systems, and satellite communications. SMP adapters also offer low insertion loss, which means that the signal strength loss during transmission is minimized.

Product application

Due to their small size and high performance, GPO adapters are widely used in satellite communication systems, aerospace electronics, and radar systems, Board to Board connector.

They help to establish reliable RF connections in the limited space and harsh conditions of spacecraft and aircraft.

Procurement FAQ

1. How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality.
If you need the samples, we would like to send sample from our Chinese factory or u can get the sample directly from our european agent storage.

2. How can I place an order?

You can contact any of our sales person for an order. Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

You can also place an order on our official website: www.flexirf.com

Product Specification Data

Configuration
Connector 1 Type	GPO(SMP)
Connector 1 Impedance	50 Ohms
Connector 1 Polarity	Standard
Connector 2 Type	GPO(SMP)/SMA / 3.5mm / 2.92mm
Connector 2 Impedance	50 Ohms
Connector 2 Polarity	Standard
Connector Mount Method	None
Adapter Body Style	Straight
Materials Information
Center Contact	CuBe Gold Plated
Outer Contact	CuBe & Stainless Steel
Body	Stainless Steel
Dielectric	PEI/PTFE
Environmental Data
Temperature Range	-55℃ to +165℃
2011/65/EU (RoHS)	Compliant

Product Type

GPO(SMP) RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type
FR1-GPO-KK7		DC-18GHz	1.25	GPO(SMP) Female to GPO(SMP) Female
FR1-GPO-JJ		DC-18GHz	1.25	GPO(SMP) Male to GPO(SMP) Male
2.4mm to GPO(SMP) RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type
FR1-2.4/GPO-JJ		DC-40GHz	1.25	2.4mm Male to GPO(SMP) Male
FR1-2.4/GPO-KK		DC-40GHz	1.25	2.4mm Female to GPO(SMP) Female
FR1-2.4/GPO-JK		DC-40GHz	1.25	2.4mm Male to GPO(SMP) Female
FR1-2.4/GPO-KJ		DC-40GHz	1.25	2.4mm Female to GPO(SMP) Male
2.92mm to GPO(SMP) RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type

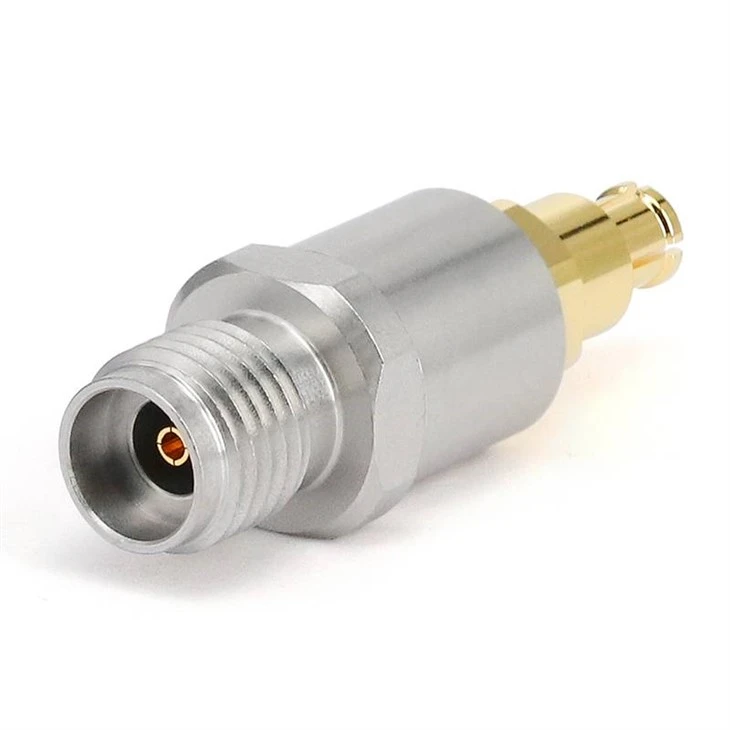

FR1-2.92/GPO-JJ		DC-40GHz	1.25	2.92mm Male to GPO(SMP) Male
FR1-2.92/GPO-KK		DC-40GHz	1.25	2.92mm Female to GPO(SMP) Female
FR1-2.92/GPO-JK		DC-40GHz	1.25	2.92mm Male to GPO(SMP) Female
FR1-2.92/GPO-KJ		DC-40GHz	1.25	2.92mm Female to GPO(SMP) Male

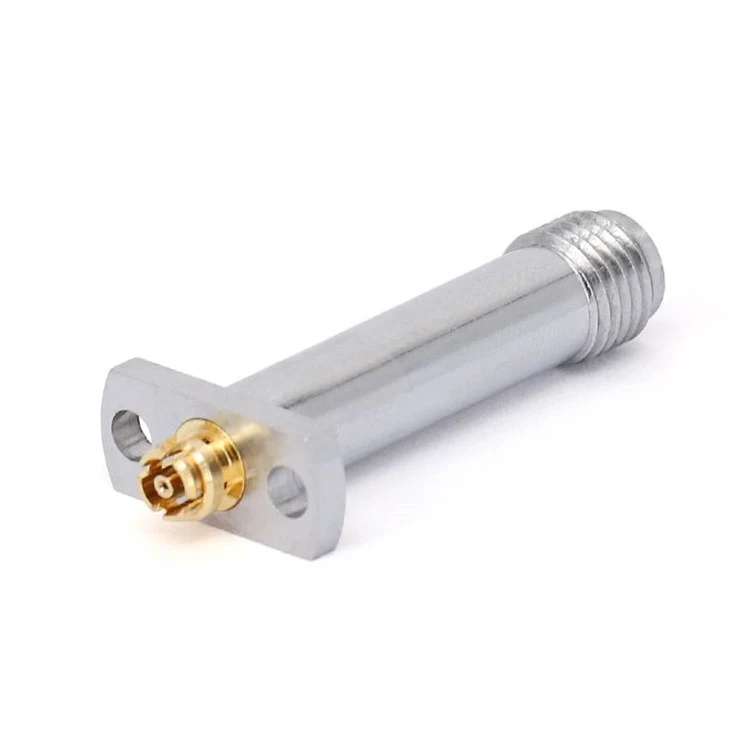

FR1-2.92/GPO-KFKS-A		DC-40GHz	1.35	2.92mm Female to GPO (SMP) Female Adapter with 2 Hole Flange
SMA to GPO(SMP) RF Adapter
Sku	Drawing	Frequency	VSWR	Description Type
FR1-SMA/GPO-JJ		DC-18GHz	1.20	SMA Male to GPO Male
FR1-SMA/GPO-KK		DC-18GHz	1.20	SMA Female to GPO Female
FR1-SMA/GPO-JK		DC-18GHz	1.20	SMA Male to GPO Female
FR1-SMA/GPO-KJ		DC-18GHz	1.20	SMA Female to GPO Male

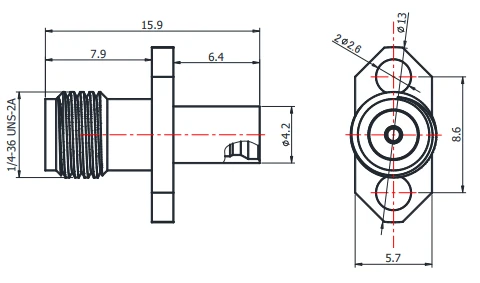

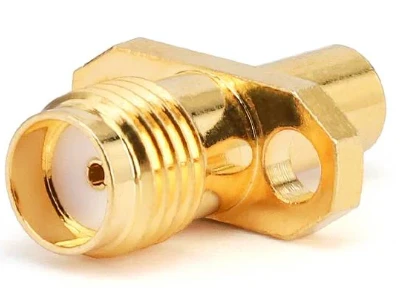

FR1-SMA/GPO-KFJ-F		DC-18GHz	1.20	SMA Female to GPO (SMP) Male Adapter with 2 Hole Flange

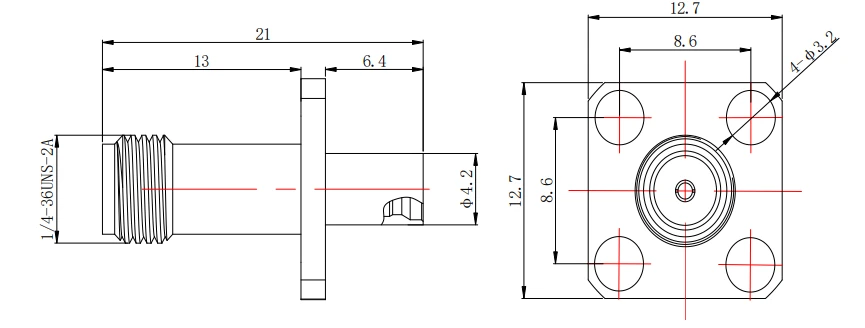

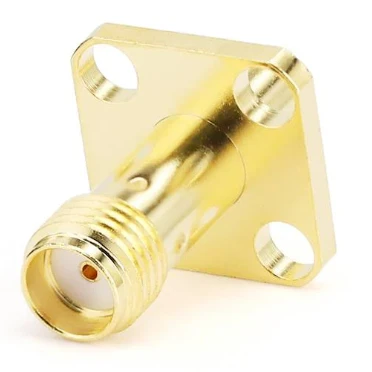

FR1-SMA/GPO-KFJ1		DC-18GHz	1.20	SMA Female to GPO (SMP) Male Adapter with 4 Hole Flange
