Application of RF Fixed Attenuators
Radio frequency attenuators are essential components in radio frequency and microwave circuits and systems, playing a crucial role in receivers, transmitters, testing and measurement systems, among others. Fixed attenuators are the most common type of radio frequency attenuators, and they come in different types based on the connector types. Today, let's take a look at the applications and characteristics of fixed attenuators.
Application Fields
Fixed attenuators are mainly used in radio frequency circuits to reduce signal amplitude by absorbing a fixed amount of radio frequency energy. They can be applied for signal level adjustment, typically when the range of input signal energy is known and greater than the amplitude of the desired signal energy at the port connected to the attenuator. Fixed radio frequency attenuators are widely used in fields such as testing and measurement, sensing, and communications.

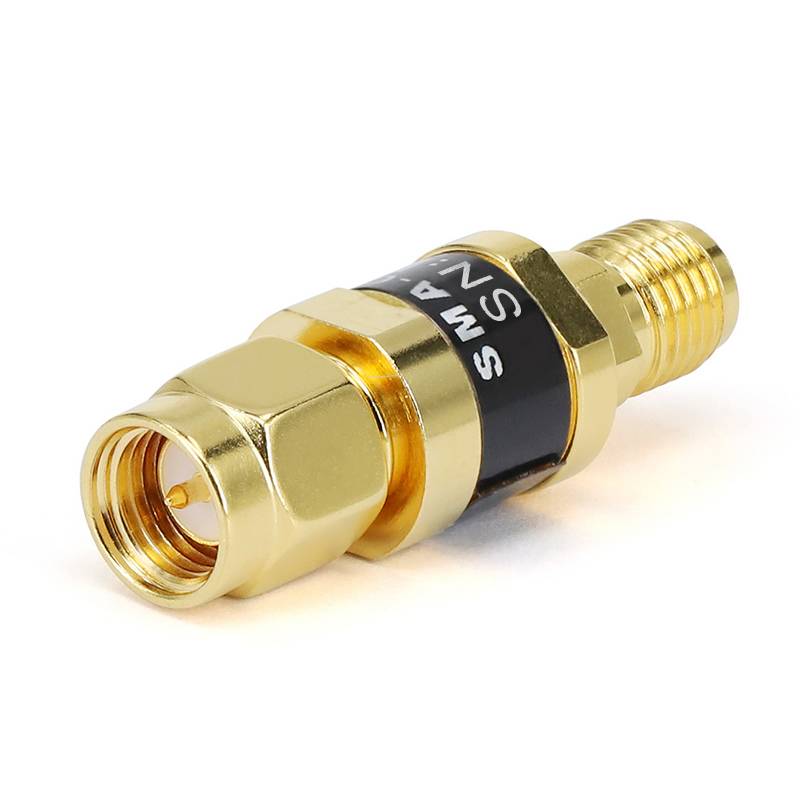

Fixed attenuators commonly come with various RF interfaces such as N, SMA, 3.5mm, 2.92mm, and 1.85mm.Typically available in standard values such as 1dB, 2dB, 3dB, 5dB, 10dB, 20dB, 30dB, etc..Fixed attenuators also offer different power options, including 2W, 5W, 10W, 30W, 50W, 100W, etc.
RF fixed attenuators are specified with a signal attenuation value within a frequency range. These attenuators are simple resistive circuits, designed to present a nominal impedance at both input and output. They can be either balanced or unbalanced, depending on whether the attenuator is used for balanced transmission lines or unbalanced ones. Attenuators are suitable for various interconnection types, such as coaxial, twisted-pair, waveguide, surface mount technology (SMT), and so on.
Common specifications of 2.92mm fixed attenuators
Coaxial attenuators are generally divided into fixed, programmable or variable attenuators, with each type corresponding to different applications. Fixed attenuators tend to have a more compact structure, can also serve as coaxial adapters, and come with different coaxial types and male/female options.

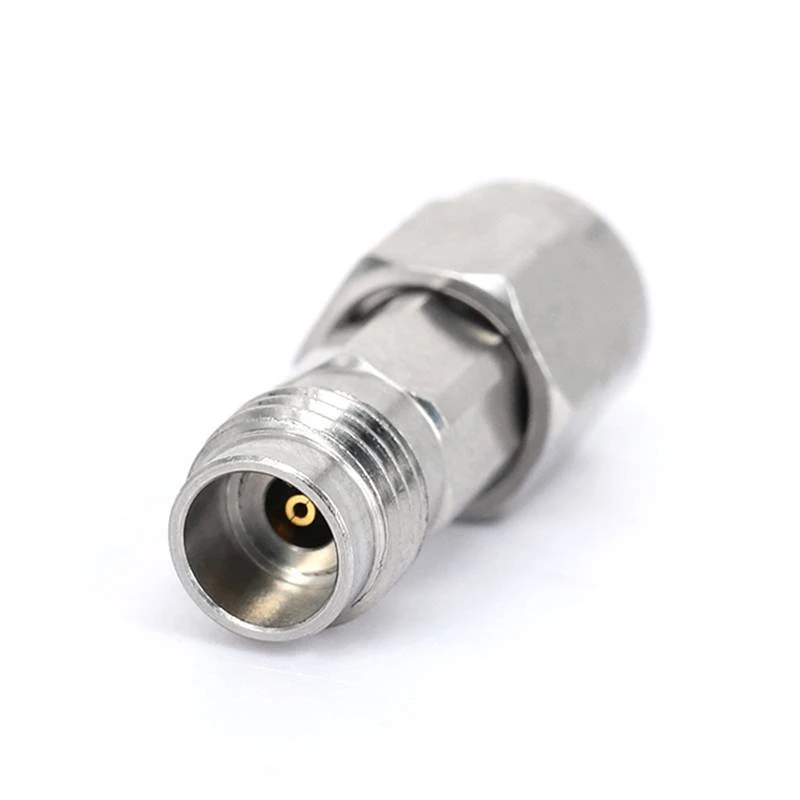

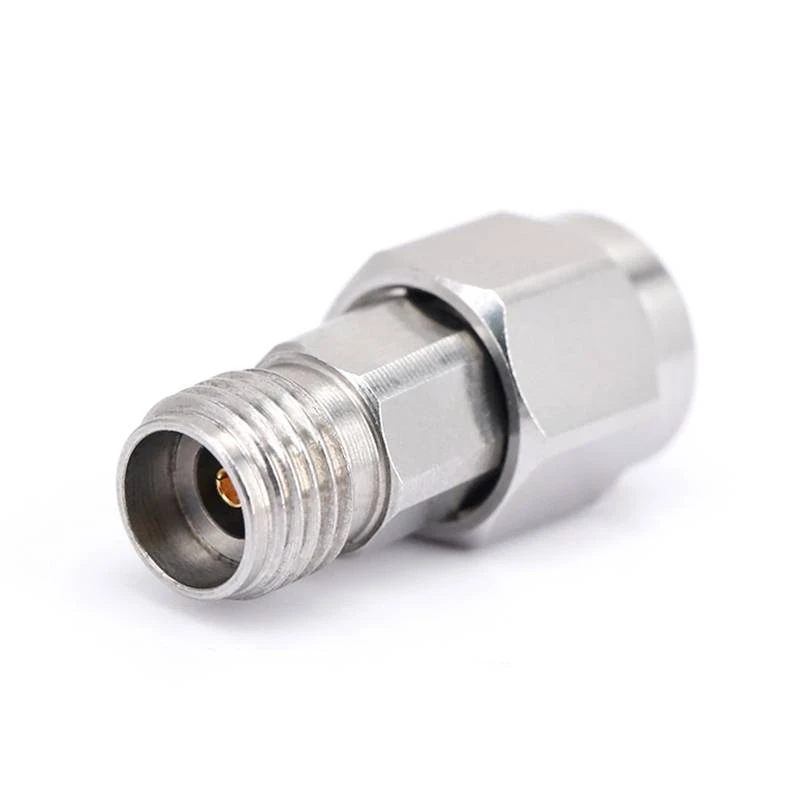

The 2.92mm 50-ohm fixed attenuator is a type of fixed attenuator that uses 2.92mm connectors as its ports, and it is used for attenuation applications in the range of 0 to 40GHz
- Attenuation value: Typically available in standard values such as 1dB, 2dB, 3dB, 5dB, 10dB, 20dB, 30dB, etc., with a tolerance usually within ±0.3dB or ±1dB (varies by frequency range).
- Frequency range: Designed to operate from DC up to 40GHz, ensuring stable performance across the entire band.
- Impedance: Standard 50 ohms, matching most RF/microwave systems to minimize reflection.
- VSWR (Voltage Standing Wave Ratio): Generall ≤1.3:1 at low frequencies to ensure efficient signal transmission.
- Power handling: Common power ratings include 1W, 2W, 5W, etc. (average power), with peak power handling specified for pulsed applications.
- Connector type: 2.92mm connectors (compatible with SMA connectors in some cases), available in male-to-female (M/F)
- Operating temperature range: Typically -55°C to +165°C for industrial and military applications, ensuring reliability in harsh environments.
2.92mm fixed attenuators are typically used in wireless test systems for the latest 5G and future 6G cellular technologies, as well as in aerospace, space and radar applications. The frequency range of 2.92mm coaxial attenuators covers IEEE HF, VHF, UHF, L, S, C, X, Ku, K and Ka bands. However, considering the relative cost, power handling and availability of 2.92mm attenuators, these connectors may be most viable in applications from 18GHz to 40GHz or in broadband applications requiring the full operating range of the attenuator.
