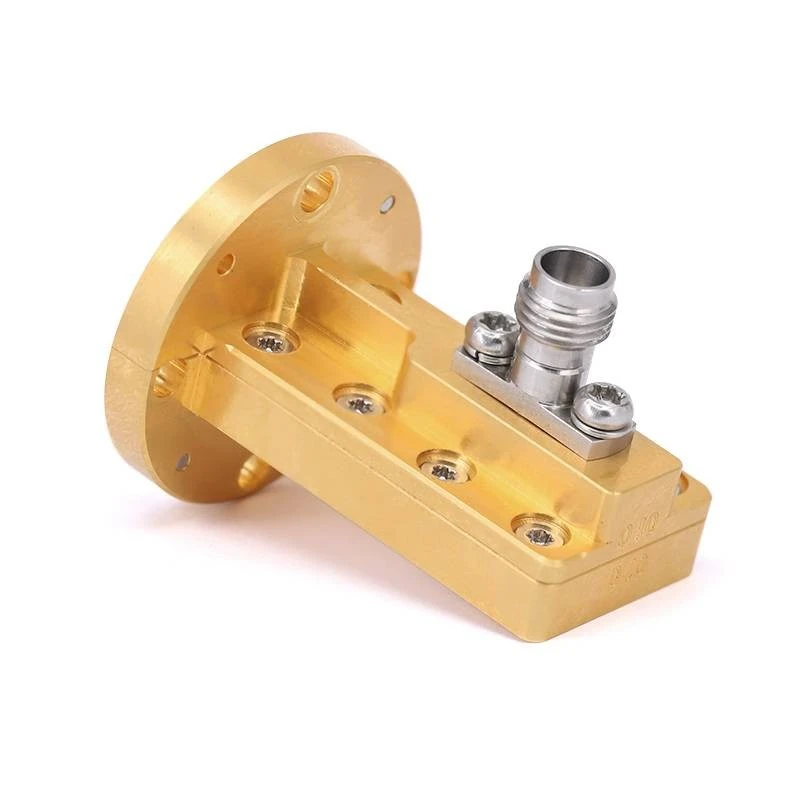

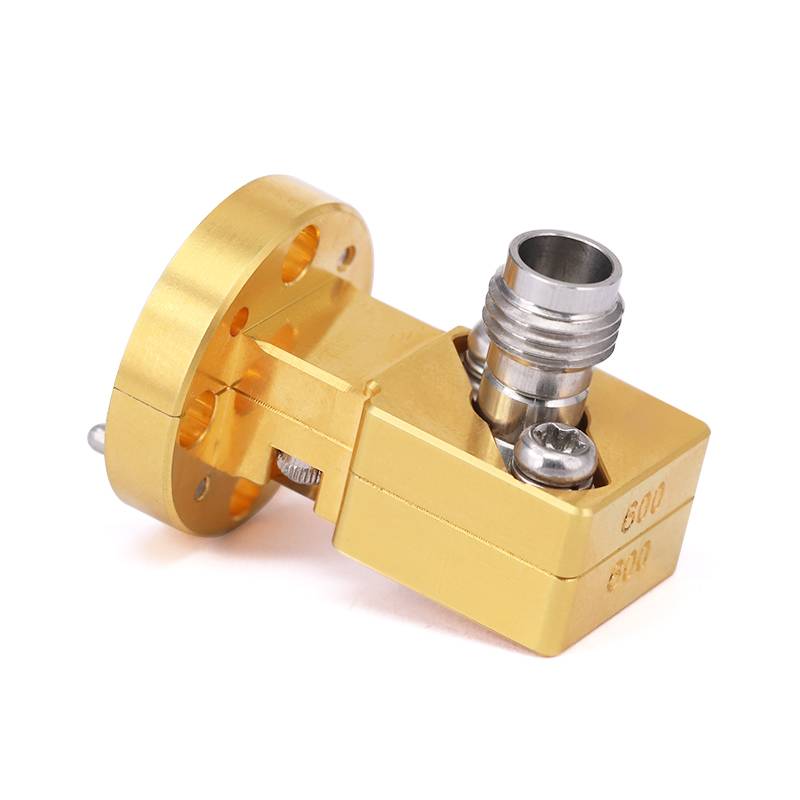

Waveguide To Coax Adapter

Your Professional Waveguide To Coax Adapter Supplier

Flexi RF Inc. was founded in 2023 in Santa Clara, California - at the heart of Silicon Valley, by a team of experienced RF engineers. We specialize in the design, manufacture, and supply of passive and active RF components. Our product line includes passive components such as antennas, connectors, adapters, cable assemblies, attenuators, and loads; and active components such as amplifiers, switches, and select custom modules.

Why Choose Us

OEM and ODM
We offer both OEM and ODM services with no minimum order quantity. Whether you are developing a next-generation system or require a mature RF module solution, we provide products and technical support that scale with your innovation.

Our Services
Flexi RF offers a one-year warranty on standard products, ensuring that our service remains reliable and efficient.

Real-Time Response
Our cross-border team, spanning China and the United States, can respond to customer needs around the clock, ensuring seamless and efficient service across time zones.

Professional Team
With decades of industry experience and professional R&D as well as manufacturing facilities, our team of experienced engineers possesses strong independent innovation capabilities, enabling us to provide customers with high-quality customized RF solutions.

Specification

Sku	Frequency	Connector Series	Waveguide Size	Flange Designation
WR112/SMA-UBR84-K-V	6.57 - 9.99GHz	SMA Female	WR-112	UBR84
Body Style	VSWR	Insertion Loss	Connector Material&Plating	Body Material&Plating
Right Angle	1.25	≤0.25	Brass Gold Plating	Aluminum Grey Paint

Waveguide To Coax Adapter Advantages

Conversion and adaptation function

It can convert and adapt different types of transmission lines to meet the connection requirements between different devices and systems.

Low loss

Waveguide to coax adapter s usually have low transmission losses, which can maintain high signal transmission efficiency.

Reliability

Due to its metal construction, the waveguide to coax adapter has good durability and anti-interference properties and can work stably in harsh environmental conditions.

The Basic Principle Of Waveguide To Coax Adapter

The working principle of the waveguide to coax adapter is based on the transmission and matching of electromagnetic waves between the waveguide and the coaxial cable. When a signal enters the adapter waveguide from the coaxial cable, it is first adapted through the conversion structure for propagation in the waveguide. Transformation structures often include specific geometries and dimensions to ensure signal matching and transmission efficiency.

Waveguide To Coax Adapter Applications

Telecommunications

Facilitating the integration of waveguide and coaxial systems in telecom infrastructure.

Satellite Communications

Ensuring seamless signal transition between ground station equipment.

Radar Systems

Enabling the connection of radar antennas to processing units via coaxial cables.

Research and Development

Providing flexible connection options for experimental setups in labs.

Aerospace and Defense

Assisting in the deployment of communication and navigation systems that rely on mixed transmission media.

Customization Services

To better meet the diverse needs of different industries and customers, we can tailor waveguide to coax adapter professional solutions to your specific application scenarios and special requirements. For further information or support, please feel free to contact us.

Order Process

Contact Customer Service

Submit Order

Obtain a Quote

Confirm Order

Arrange Payment

Track Order

Receive and Inspect Goods

Packaging and Shipping

Packaging	Plastic bags, paper boxes
Transportation methods	Road transport, rail transport, sea transport, air transport

FAQ

Q: What are the benefits of using a waveguide to coaxial adapter?

A: The benefits of using a waveguide to coax adapters are numerous. Firstly, it provides a reliable and efficient connection between waveguide and coaxial systems. This ensures minimal signal loss and maximum signal integrity, resulting in better overall performance.

Q: What is the use of waveguide to coax adapter?

A: Waveguide to coax adapters have a wide range of common uses across various industries. They are commonly used in microwave and radio frequency applications, such as satellite communication systems, radar systems, and wireless networks. These adapters enable seamless integration of different components within these systems, ensuring smooth and efficient transmission of signals.

Q: Is the waveguide to coax adapter compatible with different devices?

A: Compatibility is an important factor to consider when choosing a waveguide to coax adapterr. These adapters come in various sizes and types to accommodate different waveguide and coaxial sizes. It is crucial to select an adapter that matches the specifications of the devices you are connecting.

We're professional waveguide to coax adapter manufacturers and suppliers in USA, specialized in providing high quality customized service. We warmly welcome you to buy high-grade waveguide to coax adapter in stock here from our factory.
