Your Professional RF Cable Assemblies Supplier
Flexi RF Inc. was founded in 2023 in Santa Clara, California - at the heart of Silicon Valley, by a team of experienced RF engineers. We specialize in the design, manufacture, and supply of passive and active RF components. Our product line includes passive components such as antennas, connectors, adapters, cable assemblies, attenuators, and loads; and active components such as amplifiers, switches, and select custom modules.
Why Choose Us
OEM and ODM
We offer both OEM and ODM services with no minimum order quantity. Whether you are developing a next-generation system or require a mature RF module solution, we provide products and technical support that scale with your innovation.
Our Services
Flexi RF offers a one-year warranty on standard products, ensuring that our service remains reliable and efficient.
Real-Time Response
Our cross-border team, spanning China and the United States, can respond to customer needs around the clock, ensuring seamless and efficient service across time zones.
Professional Team
With decades of industry experience and professional R&D as well as manufacturing facilities, our team of experienced engineers possesses strong independent innovation capabilities, enabling us to provide customers with high-quality customized RF solutions.
Specification
|
Configuration |
|
|
Connector 1 Type |
1.85mm/2.4mm/2.92mm/SMA /G3PO/GPPO |
|
Connector 1 Impedance |
50 Ohms |
|
Connector 1 Polarity |
Standard |
|
Connector 2 Type |
1.85mm/2.4mm/2.92mm/SMA /G3PO/GPPO/ |
|
Connector 2 Impedance |
50 Ohms |
|
Connector 2 Polarity |
Standard |
|
Connector Mount Method |
None |
|
Connector Body Style |
Straight and Right Angle |
|
Materials Information |
|
|
Center Contact |
Brass Gold Plated, Beryllium Copper Gold Plated |
|
Outer Contact |
Brass Gold Plated, Beryllium Copper Gold Plated, Stainless Steel Passivated |
|
Body |
Brass Gold Plated, Beryllium Copper Gold, Stainless Steel Passivated |
|
Dielectric |
PEI/PTFE |
|
Environmental Data |
|
|
Temperature Range |
-40℃ to +165℃ |
|
2011/65/EU(RoHS) |
Compliant |
|
Cable Specifications |
|
|
Center Conductor |
Silver plated copperweld |
|
Dielectric |
Solid PTFE |
|
Jacket |
None Or FEP |
|
Capacitance(pF/m) |
95.1 |
|
Velocity of propagation(%) |
70 |
|
Shielding Effectiveness |
<-100dB @ 1GHz |
|
Power Handling |
10watt @ 18GHz at sea level,VSWR1.0 |
Low signal loss: RF cable assemblies are internally designed with materials and structures that effectively reduce signal loss and ensure stable signal transmission, thereby improving system performance.
Strong anti-interference ability: RF cable assemblies’ shielding layer can effectively isolate external electromagnetic interference signals and improve the reliability of signal transmission.
Easy to install: RF cable assemblies are simple to connect and quick to install without any soldering or fixing, thus reducing installation costs.
High reliability: RF cable assemblies have a highly stable impedance to ensure the stability of signal transmission, while its connection method can also improve the reliability of the connection.
Wide range of applications: RF cable assemblies are suitable for a wide range of applications, including wireless communications, radio and television, radar, aerospace, medical equipment, and other fields, and can meet the needs of different applications.
Types of RF Cable Assemblies
Based on RF Connector Types
BNC
Commonly used in video and audio applications, providing quick and secure connections.
SMA
Popular in high-frequency applications, widely used in wireless communication systems and test equipment.
N-type
Known for durability and strong RF performance, commonly used in high-power and low-loss applications.
TNC
Similar to N-type connectors but with a threaded coupling mechanism, often used in secure applications like military and aerospace systems.
MCX
Smaller in size, suitable for space-saving solutions in portable devices and miniaturized systems.
Based on Cable Types and Characteristics
Coaxial cables
Consisting of a central conductor surrounded by insulating layers, shields, and protective layers, providing excellent shielding for high-frequency and high-speed data transmission.
Microstrip cables
Featuring a conductor printed on a dielectric substrate, commonly used in microwave and high-frequency applications.
Twinaxial cables
With two central conductors separated by insulation and a shield, suitable for high-speed data transmission and networking.
Triaxial cables
Comprising an inner conductor surrounded by two layers of insulation and a shield, offering enhanced electrical performance for high-precision measurement systems.
Key Components of RF Cable Assemblies
Coaxial Cables: Used to transmit RF signals with minimal loss, available in flexible and hard-line configurations to suit different applications.
Connectors: Essential for establishing secure connections; options include SMA, N-Type, TNC, SMB, F-Type, UHF, 7/16 DIN, MMCX, BNC, MINI UHF, and custom connectors based on system requirements.
Adapters: Allow compatibility between different connector types and configurations, ensuring seamless integration with existing systems.
Shielding and Over-Molding: Protect against electromagnetic interference (EMI) and radio frequency interference (RFI) while enhancing durability.
Power and Data Transmission Components: Some kits include power and data cables/wire harnesses for integrated communication and power distribution.
RF Cable Assemblies Application Industry
Defense & Military
Secure communication systems for military vehicles, aircraft, and tactical operations.
01
Public Safety
Ensuring uninterrupted radio communication for first responders, law enforcement, and emergency services.
02
Transportation
RF connectivity solutions for rail, aviation, and automotive industries, supporting real-time communication and data networks.
03
Aerospace & IoT
High-frequency RF cable assemblies used in satellite communications, avionics, and emerging IoT applications.
04
Commercial Applications
Supporting industrial RF communication, broadcasting, and wireless network infrastructure.
05
Customization Services
To better meet the diverse needs of different industries and customers, we can tailor RF Cable Assemblies professional solutions to your specific application scenarios and special requirements. For further information or support, please feel free to contact us.
Order Process
Contact Customer Service
1
>>
Submit Order
2
>>
Obtain a Quote
3
>>
Confirm Order
4
>>
Arrange Payment
5
>>
Track Order
6
>>
Receive and Inspect Goods
7
Packaging and Shipping
|
Packaging |
Plastic bags, paper boxes |
|
Transportation methods |
Road transport, rail transport, sea transport, air transport |
FAQ
We're professional rf cable assemblies manufacturers and suppliers in USA, specialized in providing high quality customized service. We warmly welcome you to buy high-grade rf cable assemblies in stock here from our factory.

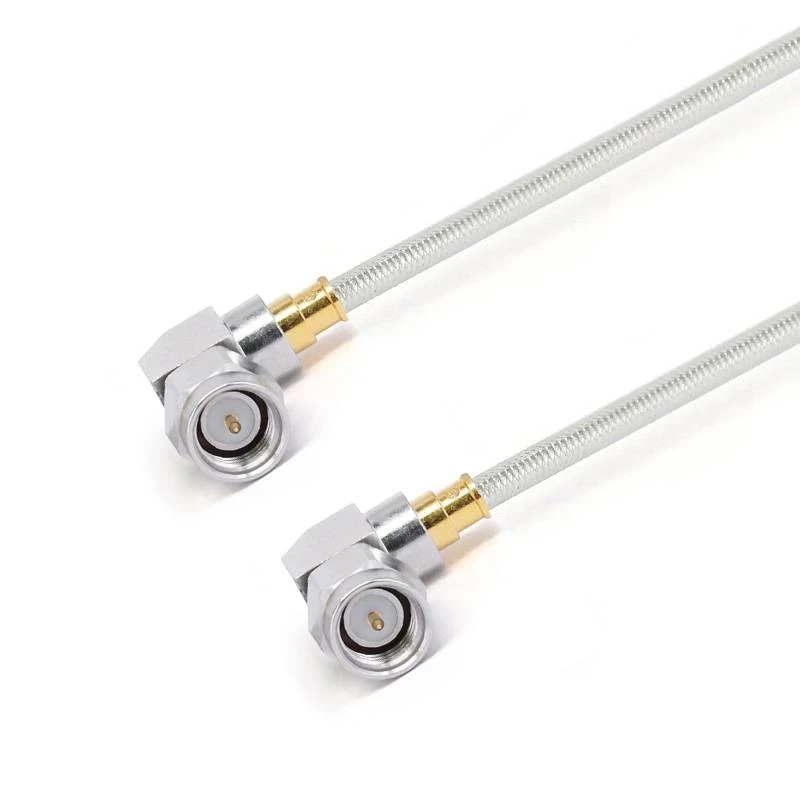

Hand Formable Cable Assemblies, General Purpose Test Cables, Semi Rigid Cable Assemblies
