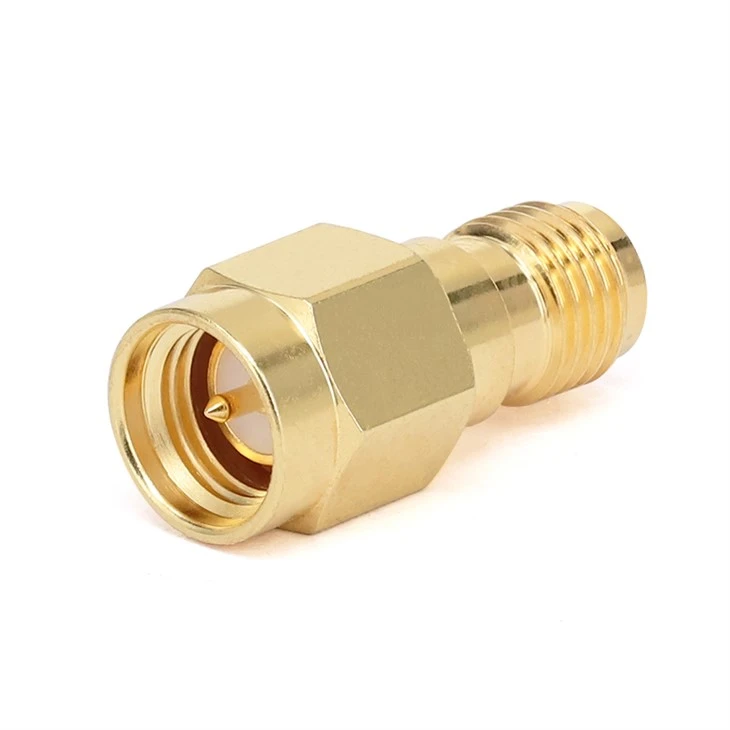

SMA Adapter
The SMA series coaxial RF adapters are the widest application range and the largest variety among all adapter series. There are approximately hundreds of optional types. Its maximum operating frequency can reach up to 26.5 GHz. Among them, they are designed and developed according to three different frequency bands of 6G, 18G and 26.5G for application products.
Description
Product introduction
The SMA series coaxial RF adapters are the widest application range and the largest variety among all adapter series. There are approximately hundreds of optional types. Its maximum operating frequency can reach up to 26.5 GHz. Among them, they are designed and developed according to three different frequency bands of 6G, 18G and 26.5G for application products.
Product Material
The outer conductor of the SMA connector's body is usually made of metal materials such as brass or stainless steel. It plays a crucial role in shielding and signal transmission. Its cylindrical structure surrounds the inner conductor and dielectric, providing a low-resistance path for the return current of the electromagnetic signal, thus ensuring the stability and integrity of the signal transmission.
Product Body Style
SMA connectors are available in various body forms, including straight type, Right Angle type, 4-Hole Flange Mount, Bulkhead Mount type, and airtight vacuum Bulkhead Mount type.
Procurement FAQ
Product Specification Data
|
Configuration |
|
|
Connector 1 Type |
SMA |
|
Connector 1 Impedance |
50 Ohms |
|
Connector 1 Polarity |
Standard |
|
Connector 2 Type |
SMA/GPPO/GPO/2.4mm/2.92mm/3.5mm/N/TNC/ BNC/SSMC/MMCX/IPEX/SSMA |
|
Connector 2 Impedance |
50 Ohms |
|
Connector 2 Polarity |
Standard |
|
Connector Mount Method |
None |
|
Adapter Body Style |
Straight /4 Hole Flange/ Bulkhead Mount/Right Angle/ |
|
Materials Information |
|
|
Center Contact |
CuBe Gold Plated |
|
Outer Contact |
Brass Gold Plated / Stainless Steel |
|
Body |
Brass Gold Plated / Stainless Steel |
|
Dielectric |
PEI/PTFE/GLASS |
|
Environmental Data |
|
|
Temperature Range |
-55℃ to +165℃ |
|
2011/65/EU(RoHS) |
Compliant |
SMA Adapter types
|
SMA RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|

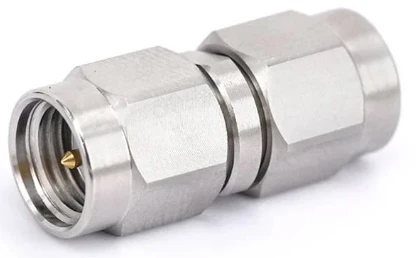

FR1-SMA-JJS |
|
|
DC-18GHz |
1.15 |
SMA Male to SMA Male |
|

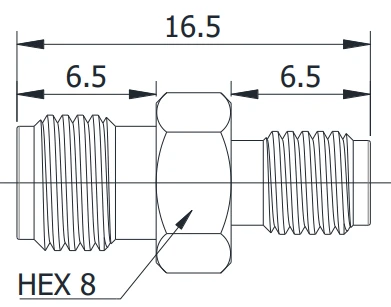

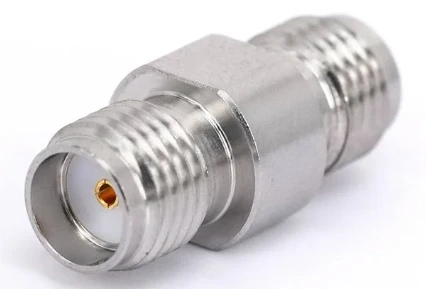

FR1-SMA-KKS |
|
|
DC-18GHz |
1.15 |
SMA Female to SMA Female |
|
FR1-SMA-JKS |
|
|
DC-18GHz |
1.15 |

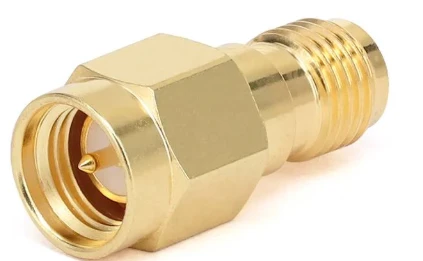

SMA Male to SMA Female |
|

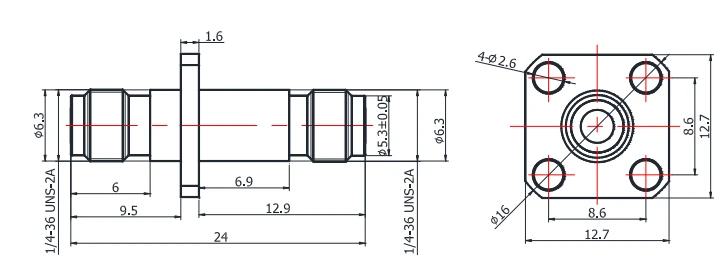

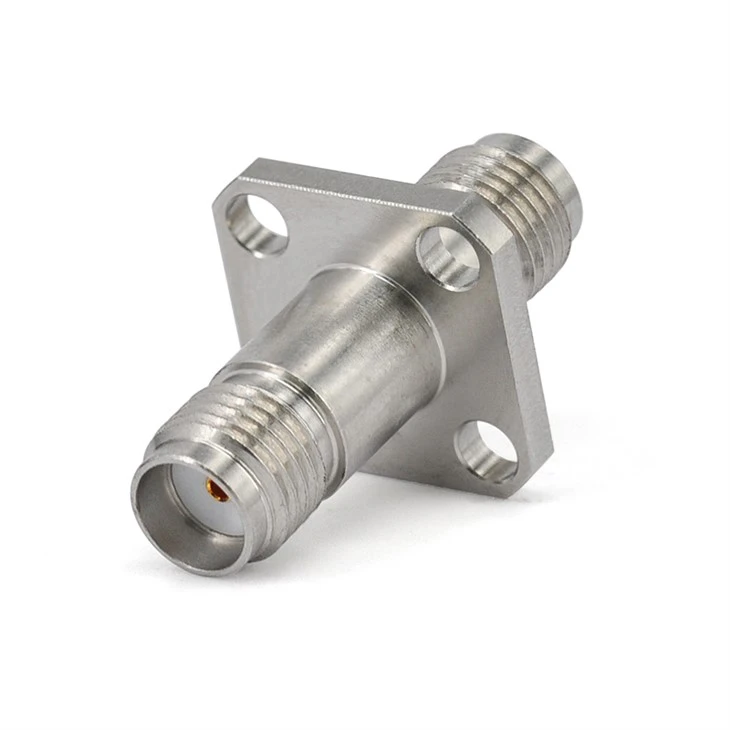

FR1-SMA-KFKG-1 |
|
|
DC-18GHz |
1.15 |

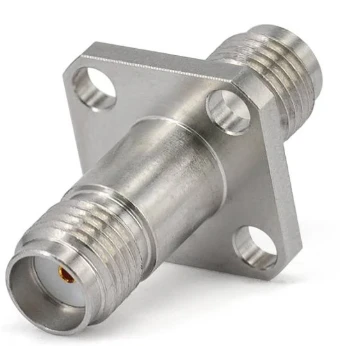

SMA Female to SMA Female With 4 Hole Flange |
|

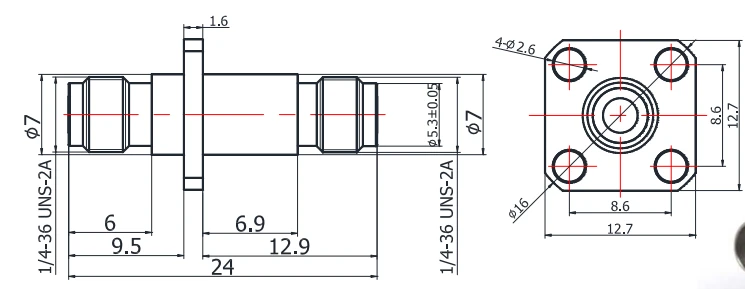

FR1-SMA-KFKG |
|
|
DC-26.5GHz |
1.15 |
SMA Female to SMA Female With 4 Hole Flange |
|
FR1-SMA-KYKG-1 |
|
|
DC-26.5GHz |
1.25 |

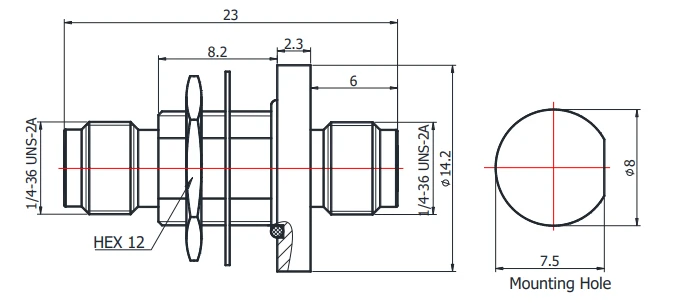

SMA Female to SMA Female With Bulkhead Mount |
|

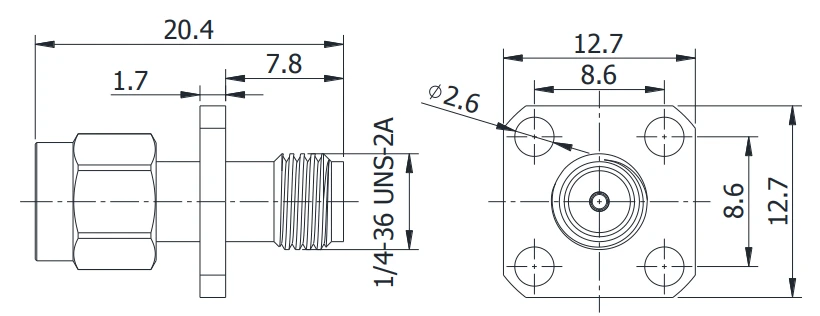

FR1-SMA-JFKG |
|
|
DC-18GHz |
1.20 |
SMA Male to SMA Female With 4 Hole Flange |
|
FR1-SMA-JWJS-18G |
|
|
DC-18GHz |
1.25 |
SMA Male to SMA Male With Right Angle |
|
FR1-SMA-KWKS-18G |
|
|
DC-18GHz |
1.25 |
SMA Female to SMA Female With Right Angle |
|
FR1-SMA-JWKS-18G |
|
|
DC-18GHz |
1.25 |
SMA Male to SMA Female With Right Angle |
|
FR1-SMA-JK |
|
|
DC-18GHz |
1.25 |
SMA Male to SMA Female |
|
FR1-SMA-KK-E |
|
|
DC-18GHz |
1.25 |
SMA Female to SMA Female |
|
FR1-SMA-KK1 |
|
|
DC-18GHz |
1.25 |
SMA Female to SMA Female |
|

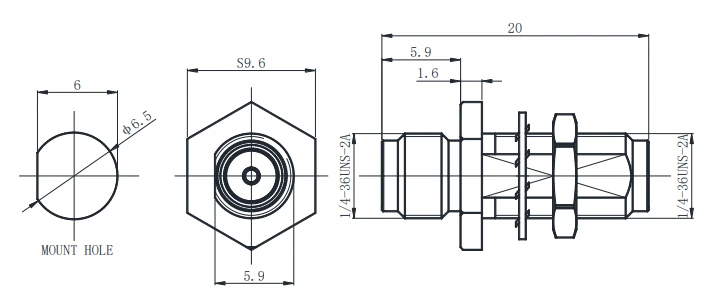

FR1-SMA-KYK1 |
|
|
DC-18GHz |
1.25 |
SMA Female to SMA Female With Bulkhead Mount |
|

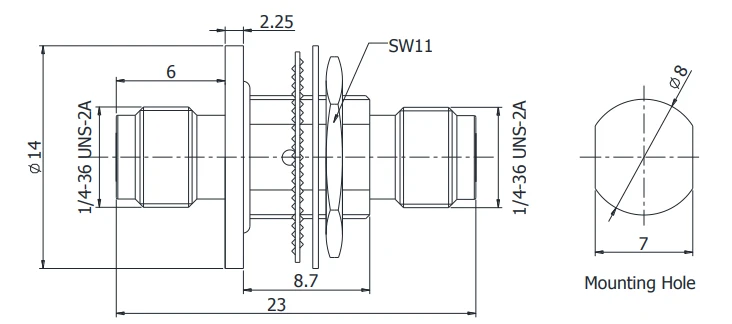

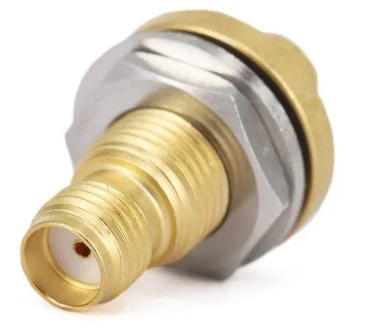

FR1-SMAM-KYK |
|
|
DC-18GHz |
1.35 |
SMA Female to SMA Female With Bulkhead Mount and Vacuum Tightness |
|

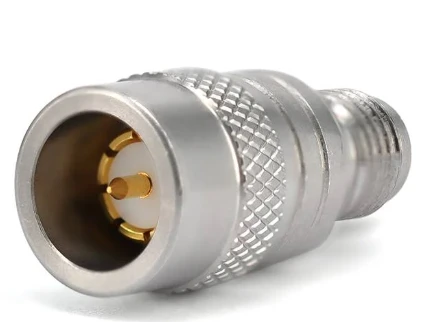

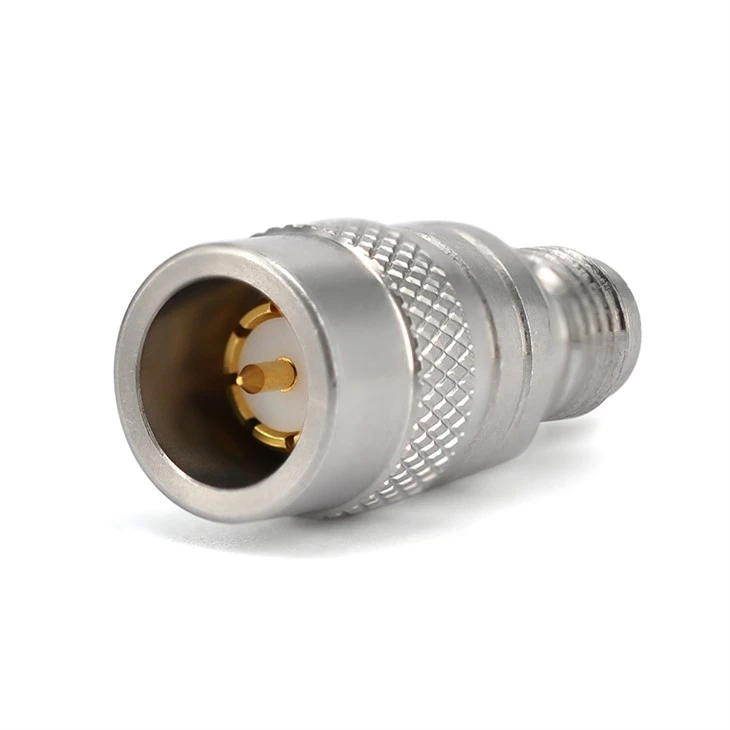

FR1-QSMA/SMA-JKS |
|
|
DC-18GHz |
1.25 |
Quick SMA Male to SMA Female |
|
SMA to 2.4mm RF Adapter |
|||||
|
Sku |
Drawing |
Fequency |
VSWR |
Description Type |
|
|

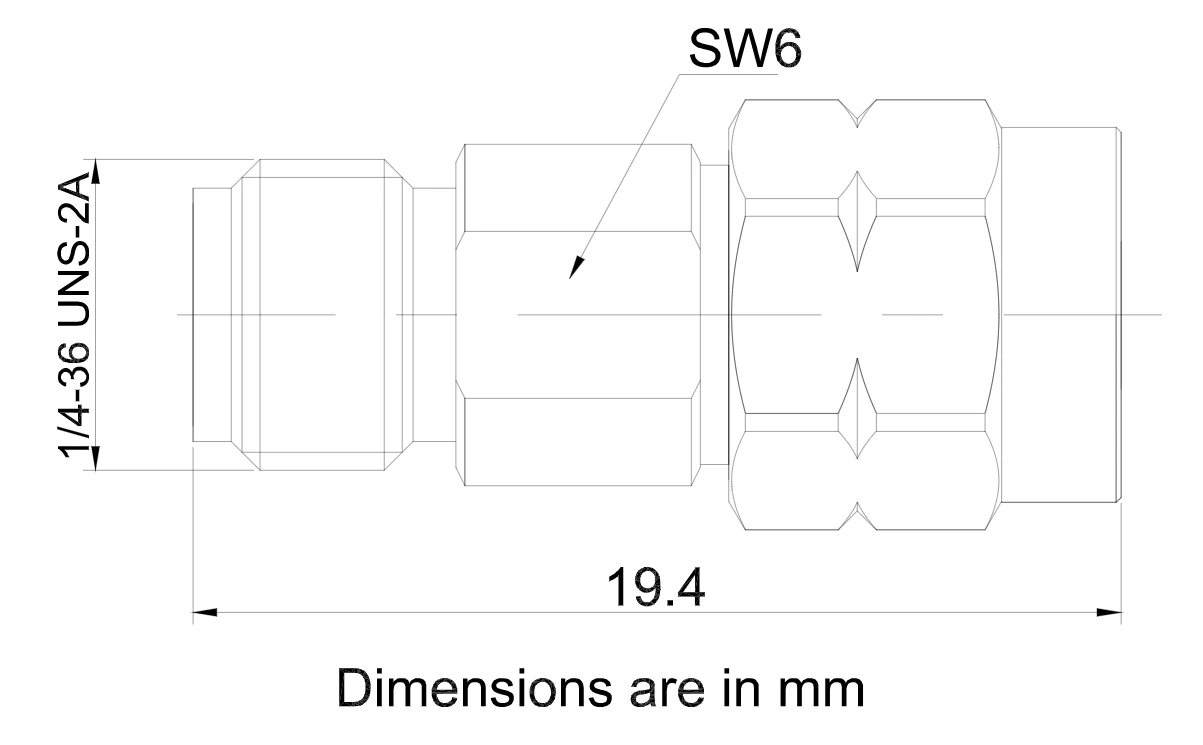

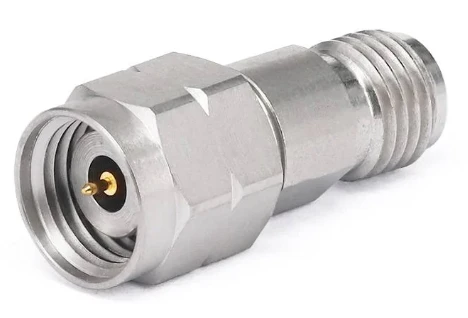

FR1-SMA/2.4-KJS |
|
|
DC-26.5GHz |
1.15 |
SMA Female to 2.4mm Male |
|
SMA to 2.92mm RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-SMA/2.92-JJS |
|
|
DC-18GHz |
1.15 |

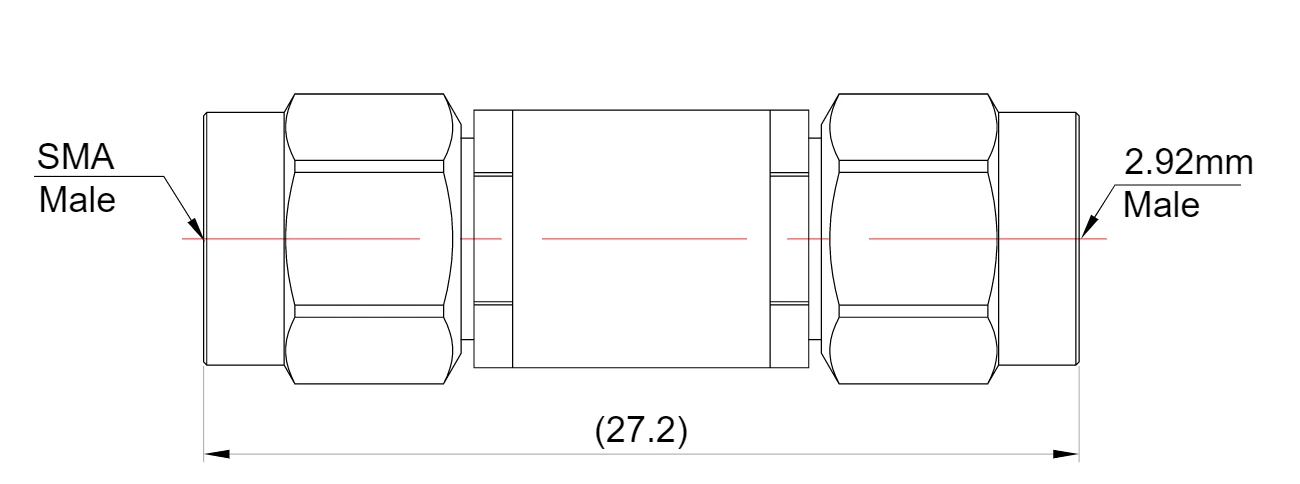

SMA Male to 2.92mm Male |
|
FR1-SMA/2.92-KKS |
|
|
DC-18GHz |
1.15 |

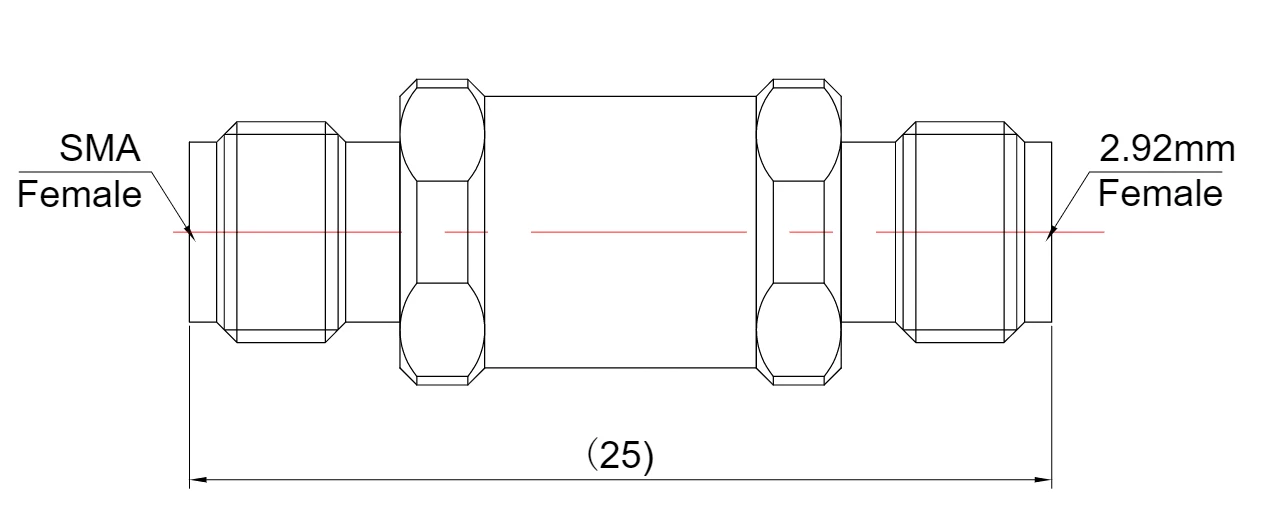

SMA Female to 2.92mm Female |
|

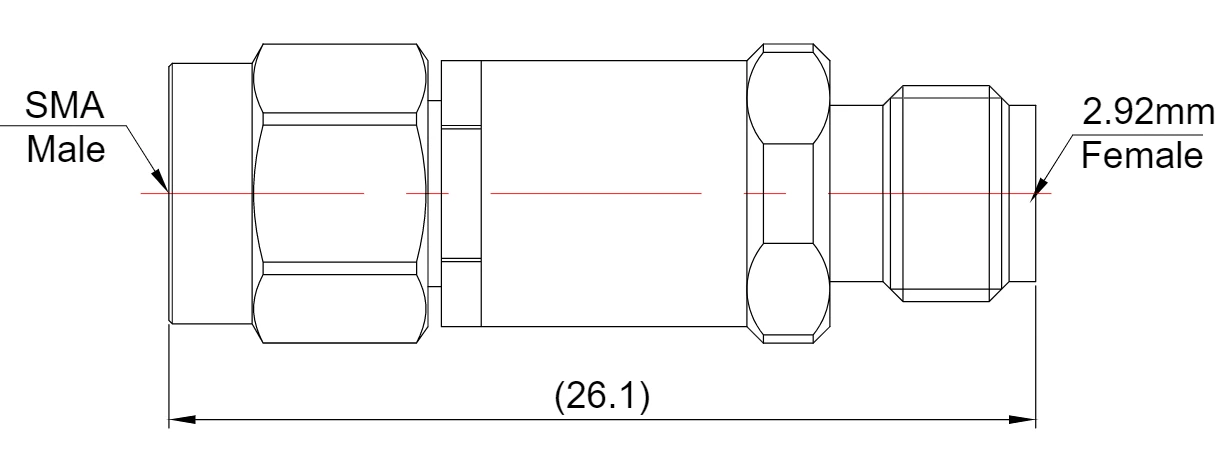

FR1-SMA/2.92-JKS |
|
|
DC-18GHz |
1.15 |
SMA Male to 2.92mm Female |
|

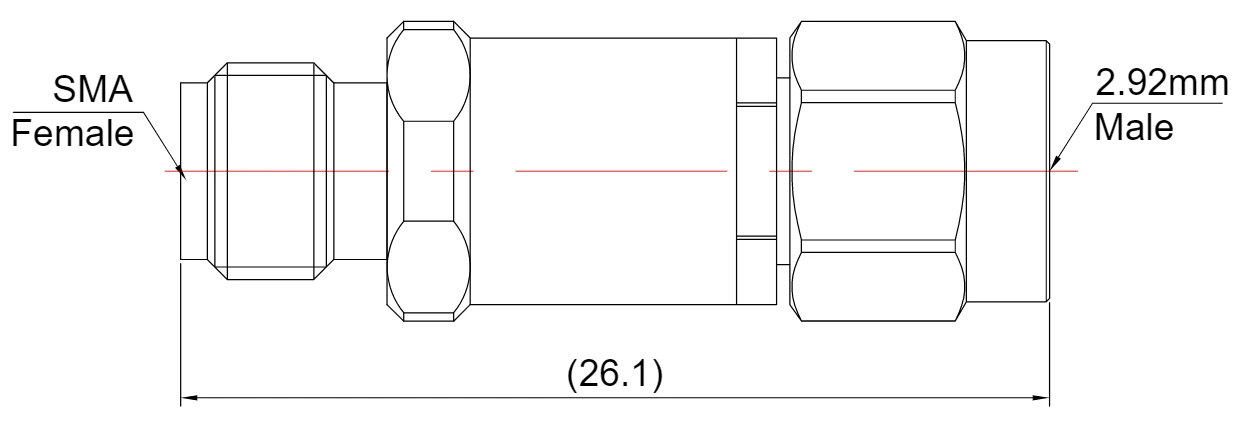

FR1-SMA/2.92-KJS |
|
|
DC-18GHz |
1.15 |
SMA Female to 2.92mm Male |
|
SMA to N RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|

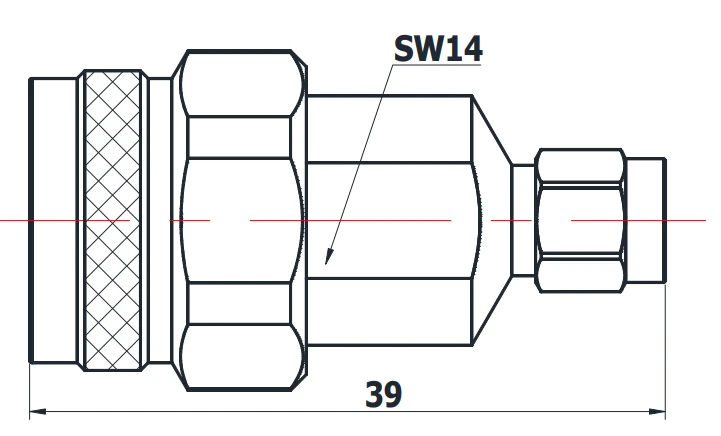

FR1-N/SMA-JJS |
|
|
DC-18GHz |
1.15 |
N Male to SMA Male |
|
FR1-N/SMA-KKS |
|
|
DC-18GHz |
1.15 |
N Female to SMA Female |
|
FR1-N/SMA-JKS |
|
|
DC-18GHz |
1.15 |
N Male to SMA Female |
|

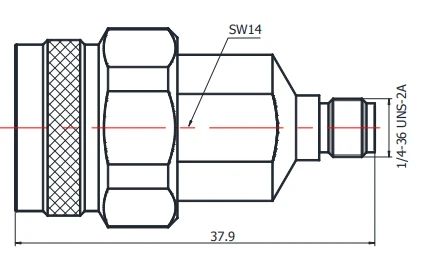

FR1-N/SMA-KJS |
|
|
DC-18GHz |
1.15 |
N Female to SMA Male |
|
FR1-N/SMA-KYKG |
|
|
DC-18GHz |
1.15 |

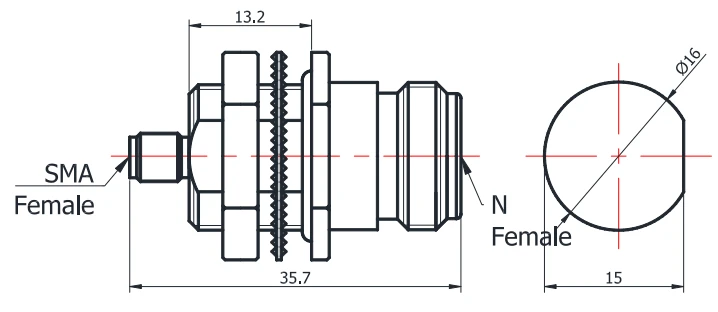

N Female to SMA Female With Bulkhead Mount |
|
FR1-N/SMA-KFKG |
|
|
DC-18GHz |
1.15 |

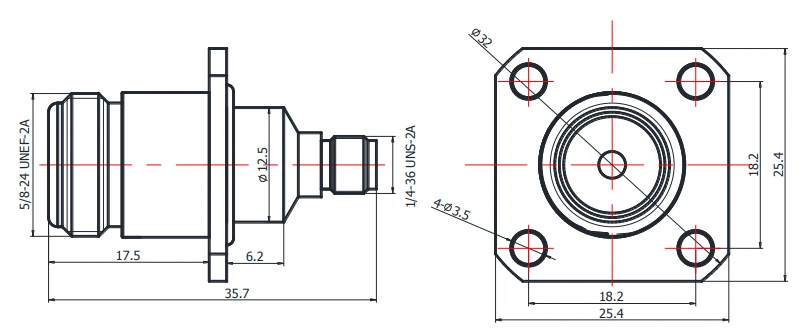

N Female to SMA Female With 4 Hole Flange |
|
SMA to TNC RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-TNC/SMA-JJS |
|
|
DC-18GHz |
1.25 |

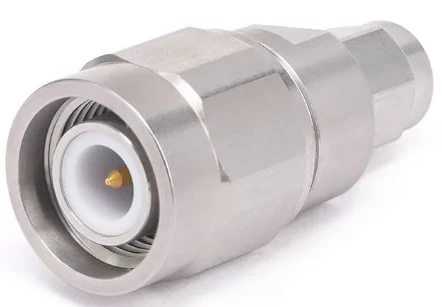

TNC Male to SMA Male |
|
FR1-TNC/SMA-KKS |
|
|
DC-18GHz |
1.25 |

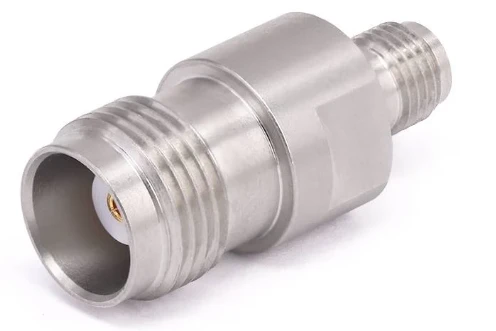

TNC Female to SMA Female |
|

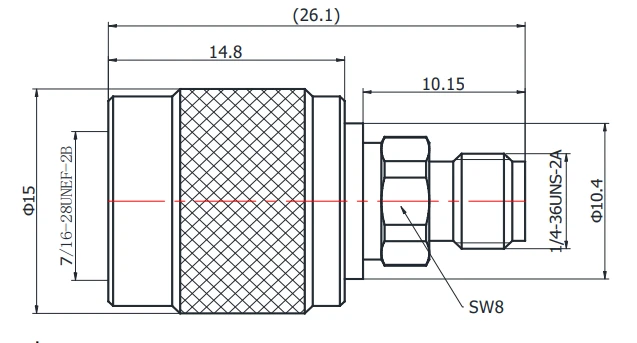

FR1-TNC/SMA-JKS |
|
|
DC-18GHz |
1.25 |
TNC Male to SMA Female |
|

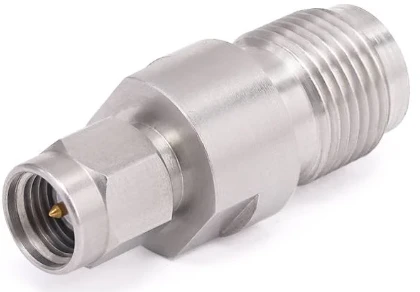

FR1-TNC/SMA-KJS |
|
|
DC-18GHz |
1.25 |
TNC Female to SMA Male |
|
FR1-TNC/SMA-JJ |
|
|
DC-3GHz |
1.25 |
TNC Male to SMA Male |
|
FR1-TNC/SMA-KK |
|
|
DC-3GHz |
1.25 |
TNC Female to SMA Female |
|
FR1-TNC/SMA-JK |
|
|
DC-3GHz |
1.25 |
TNC Male to SMA Female |
|
FR1-TNC/SMA-KJ |
|
|
DC-3GHz |
1.25 |
TNC Female to SMA Male |
|
FR1-TNC/SMA-KFK1 |
|
|
DC-4GHz |
1.25 |

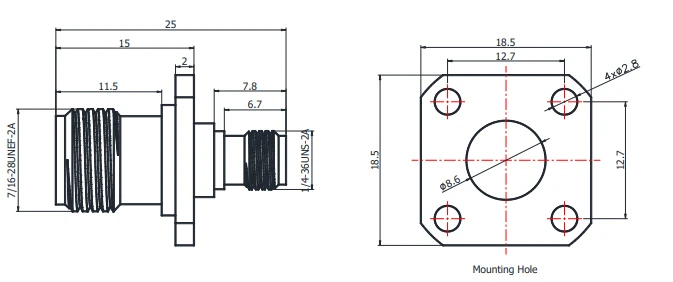

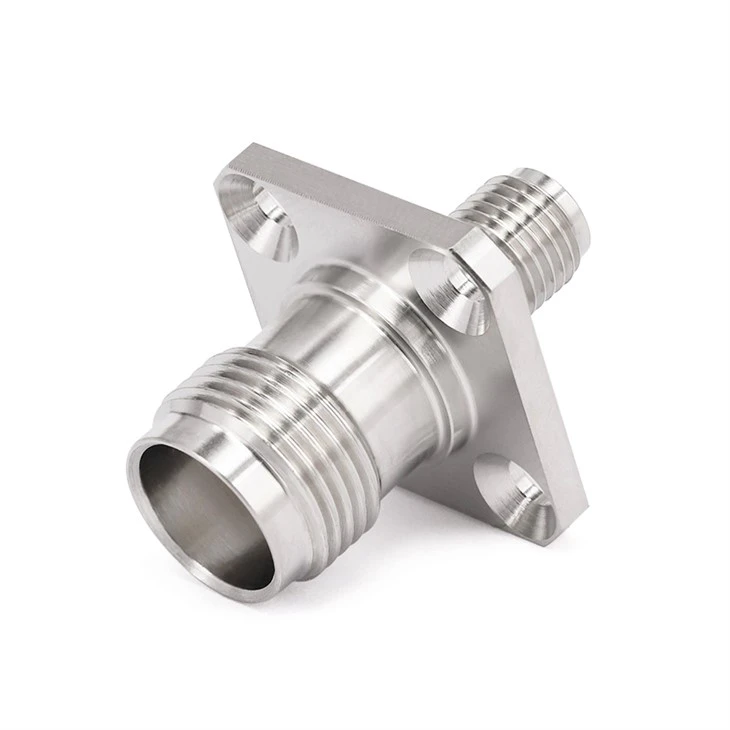

TNC Female to SMA Female With 4 Hole Flange |
|
SMA to BNC RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-BNC/SMA-JJS |
|
|
DC-18GHz |
1.15 |
BNC Male to SMA Male |
|
FR1-BNC/SMA-KKS |
|
|
DC-18GHz |
1.15 |
BNC Female to SMA Female |
|
FR1-BNC/SMA-JKS |
|
|
DC-18GHz |
1.15 |
BNC Male to SMA Female |
|
FR1-BNC/SMA-KJS |
|
|
DC-18GHz |
1.15 |
BNC Female to SMA Male |
|
SMA to GPPO(Mini-SMP) RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-SMA/GPPO-JJ |
|
|
DC-18GHz |
1.20 |
SMA Male to GPPO Male |
|
FR1-SMA/GPPO-KK |
|
|
DC-18GHz |
1.20 |
SMA Female to GPPO Female |
|
FR1-SMA/GPPO-JK |
|
|
DC-18GHz |
1.20 |
SMA Male to GPPO Female |
|
FR1-SMA/GPPO-KJ |
|
|
DC-18GHz |
1.20 |
SMA Female to GPPO Male |
|
SMA to GPO(SMP) RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-SMA/GPO-JJ |
|
|
DC-18GHz |
1.20 |
SMA Male to GPO Male |
|

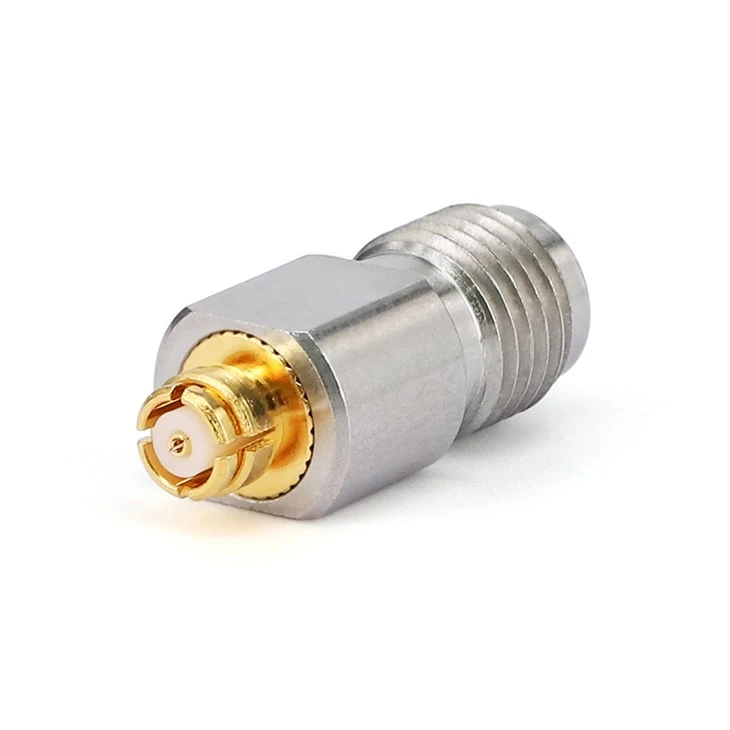

FR1-SMA/GPO-KK |
|
|
DC-18GHz |
1.20 |
SMA Female to GPO Female |
|
FR1-SMA/GPO-JK |
|
|
DC-18GHz |
1.20 |
SMA Male to GPO Female |
|

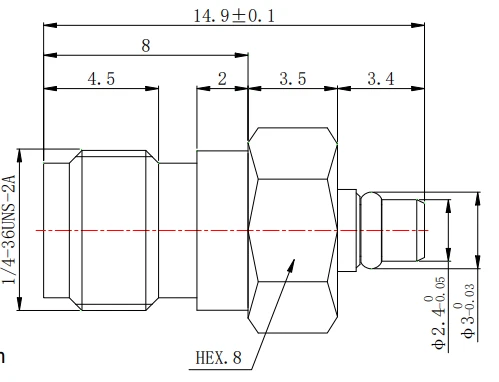

FR1-SMA/GPO-KJ |
|
|
DC-18GHz |
1.20 |
SMA Female to GPO Male |
|
SMA to SSMA RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-SMA/SSMA-JJ |
|
|
DC-27GHz |
1.25 |
SMA Male to SSMA Male |
|
FR1-SMA/SSMA-KK |
|
|
DC-6GHz |
1.25 |
SMA Female to SSMA Female |
|
FR1-SMA/SSMA-JK |
|
|
DC-18GHz |
1.25 |
SMA Male to SSMA Female |
|
FR1-SMA/SSMA-KJ |
|
|
DC-18GHz |
1.25 |
SMA Female to SSMA Male |
|
SMA to SSMC RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-SMA/SSMC-JJ |
|
|
DC-6GHz |
1.20 |
SMA Male to SSMC Male |
|

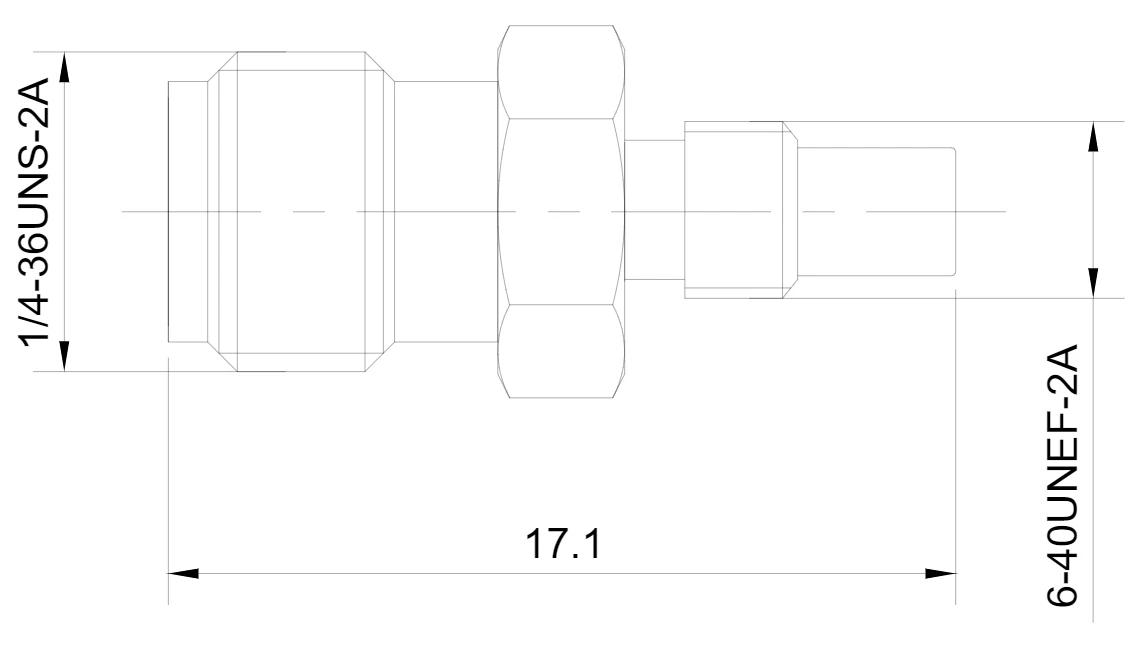

FR1-SMA/SSMC-KK |
|
|
DC-6GHz |
1.20 |
SMA Female to SSMC Female |
|

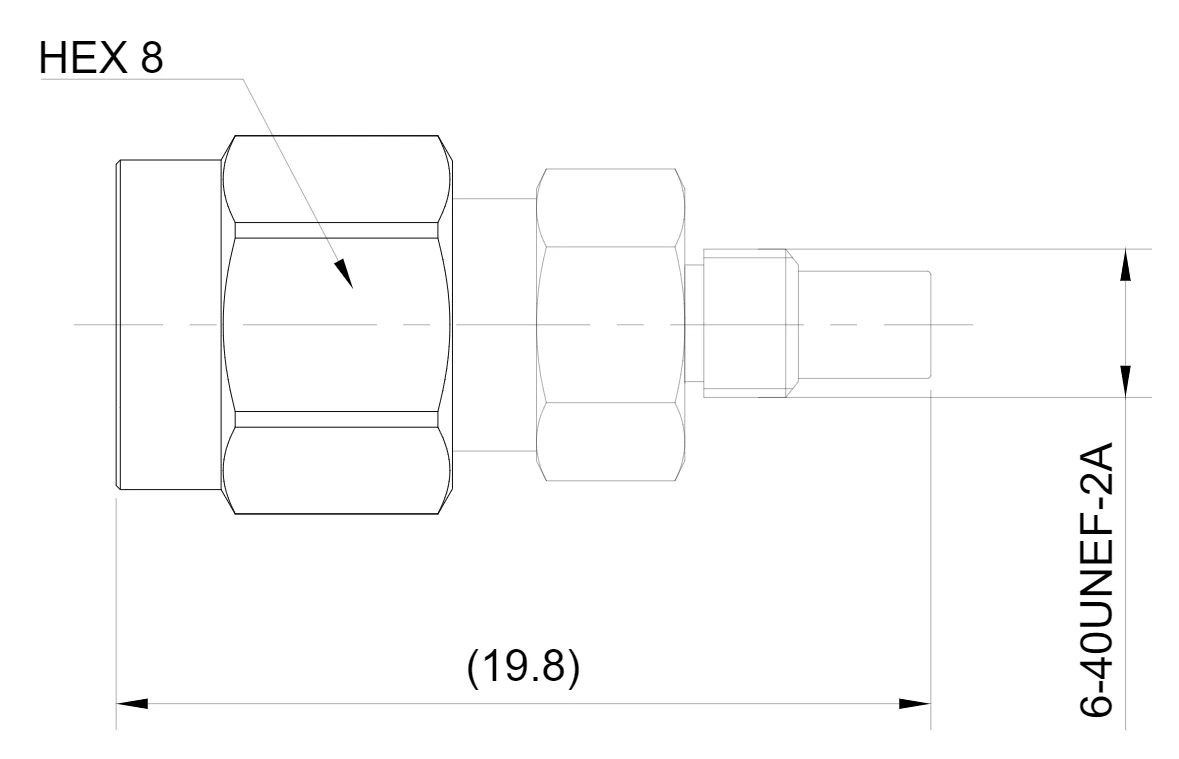

FR1-SMA/SSMC-JK |
|
|
DC-6GHz |
1.20 |
SMA Male to SSMC Female |
|
FR1-SMA/SSMC-KJ |
|
|
DC-6GHz |
1.20 |

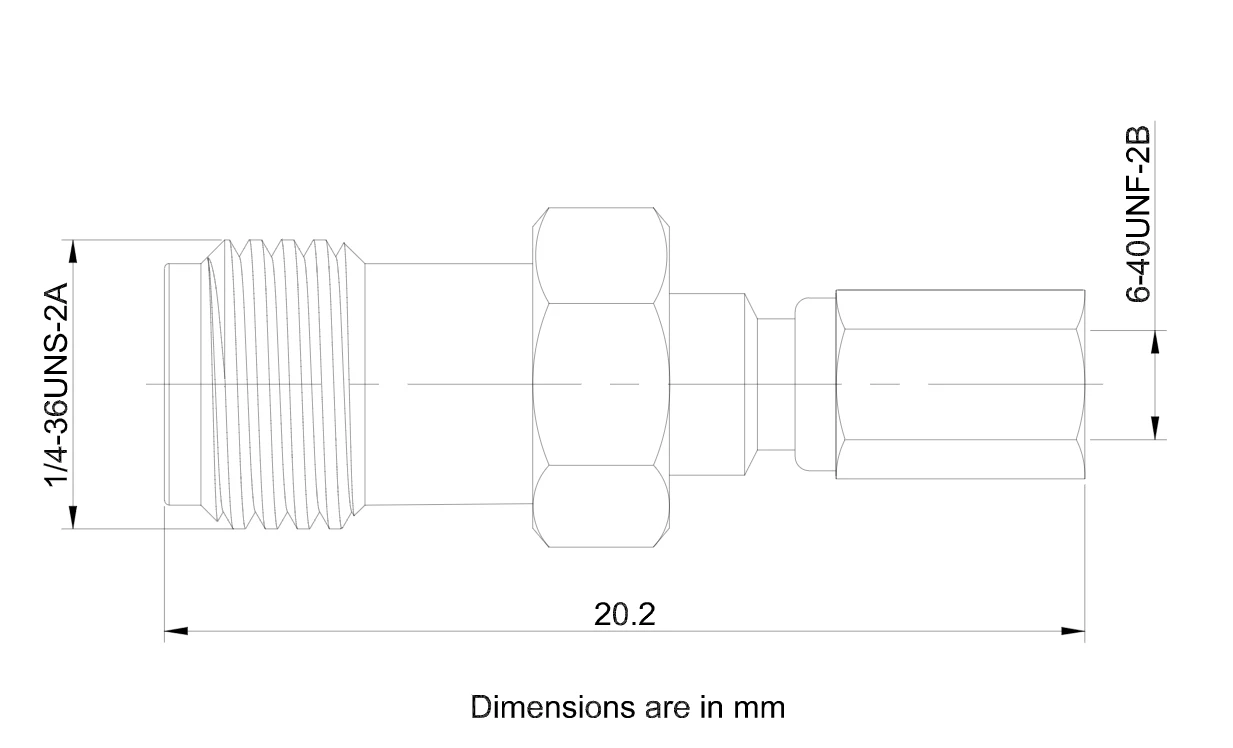

SMA Female to SSMC Male |
|
SMA to MCX RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-SMA/MMCX-JJ |
|
|
DC-6GHz |
1.20 |
SMA Male to MMCX Male |
|
FR1-SMA/MMCX-KK |
|
|
DC-6GHz |
1.20 |
SMA Female to MMCX Female |
|
FR1-SMA/MMCX-JK |
|
|
DC-6GHz |
1.20 |
SMA Male to MMCX Female |
|

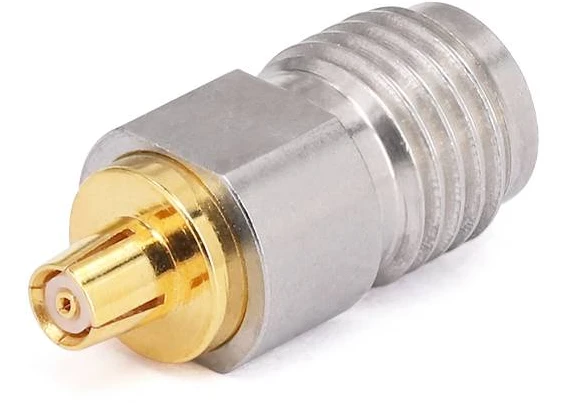

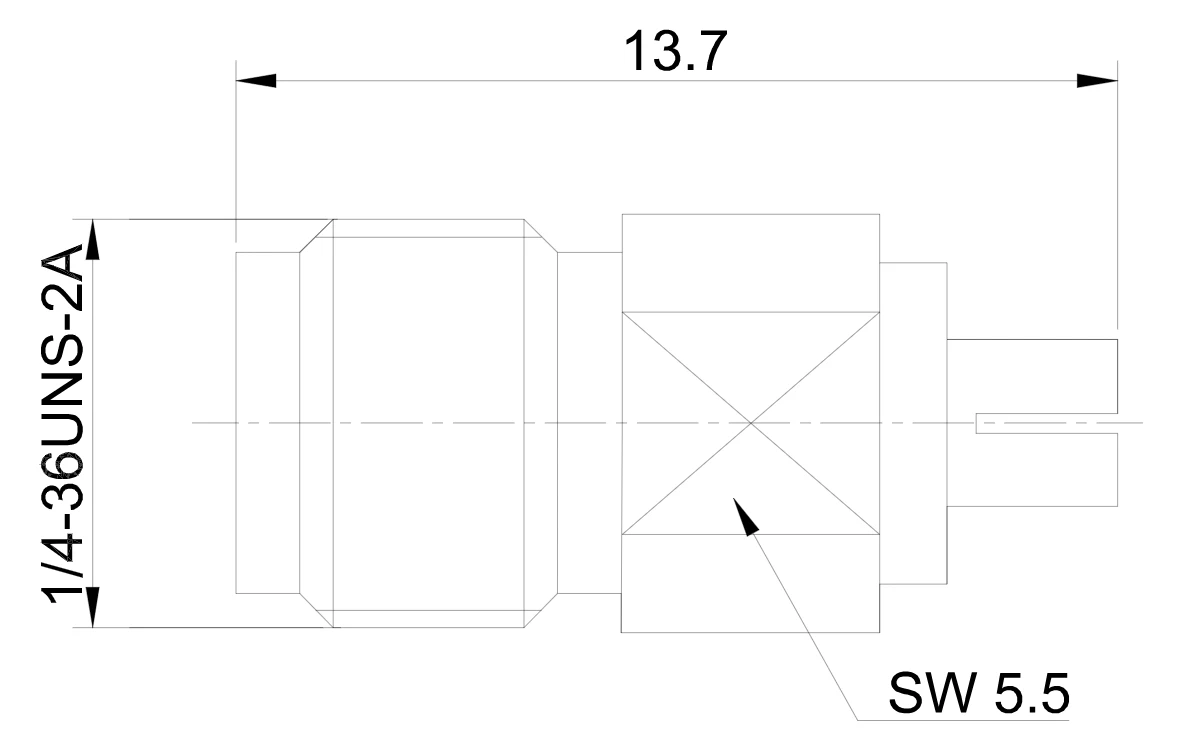

FR1-SMA/MMCX-KJ |
|
|
DC-6GHz |
1.20 |
SMA Female to MMCX Male |
|
SMA to IPEX RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|

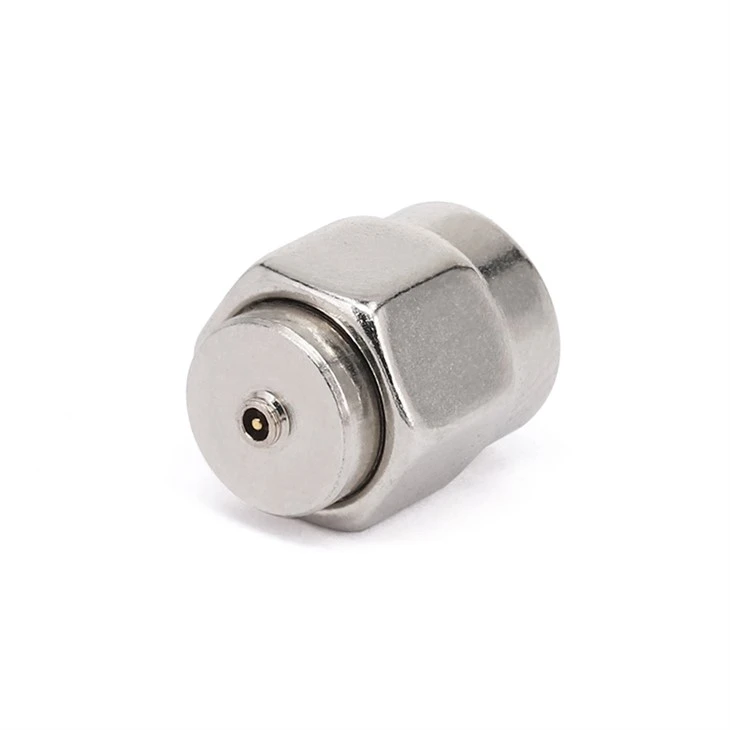

FR1-SMA/IPX1-JJ |
|
|
DC-6GHz |
1.35 |
SMA Male to IPX1 Male |
|
FR1-SMA/IPX1-KKS |
|
|
DC-6GHz |
1.20 |
SMA Male to IPX1 Female |
|
FR1-SMA/IPX4-JJ |
|
|
DC-6GHz |
1.35 |
SMA Male to IPX4 Male |
