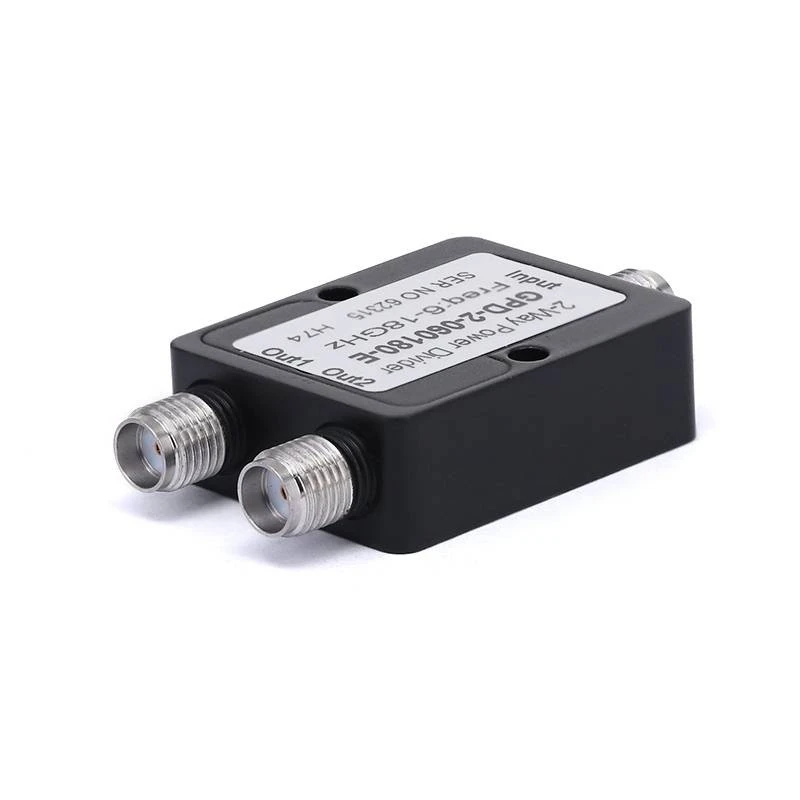

gpd-2-060180-e-1
gpd-2-180400-e-1
gpd-2t-011017-e-1

2-Way Power Dividers

2-Way Power Dividers are radio - frequency and microwave devices that can evenly distribute the input power or allocate it to two output ports according to a specific ratio. They play a crucial role in numerous fields such as communication, radar, and test and measurement.

Send Inquiry

Description

Product introduction

Product Structure Features

Way Power Dividers are mostly made of aluminum alloy, and some high - frequency products use brass. Through fine processing, it has excellent mechanical strength and stability. It can resist vibration and impact and adapt to harsh working environments. The surface treatment methods of the aluminum alloy shell are diverse, including black painting and oxidation treatment. These treatments not only enhance the anti - corrosion performance but also improve the heat dissipation capacity of the product, ensuring effective heat dissipation during high - power operation and maintaining stable performance.

According to different application frequencies and scenarios, a variety of connector types are equipped, such as SMA, N, TNC, 2.92mm, 2.4mm, 1.85mm, etc. These connectors have the characteristics of low insertion loss and high return loss, which can achieve reliable connection with other devices and ensure efficient signal transmission.

Product application

It is used for power distribution in radar transmitters, enabling multiple transmitting modules to work together. This enhances the detection range and accuracy of the radar. At the same time, it processes the echo signals in radar receivers

Procurement FAQ

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Product Type

SMA 2-Way Power Dividers

Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2-5M010-E	SMA Female	5MHz~1GHz	1.30	18
Phase Balance (°)	Power,Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±3°	1	±0.3	Aluminum Alloy	Black Paint


Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2-005060-E	SMA Female	500MHz~6GHz	1.40	18
Phase Balance (°)	Power, Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±2°	30	±0.2	Aluminum Alloy	Oxidation


Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2-011017-E	SMA Female	1.1GHz~1.7GHz	1.20	20
Phase Balance (°)	Power,Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±2°	30	±0.2	Aluminum Alloy	Oxidation


Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2-005080-E	SMA Female	0.5GHz~8GHz	1.40	18
Phase Balance (°)	Power, Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±3°	20	±0.2	Aluminum Alloy	Black Paint


Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2-020080-E	SMA Female	2GHz~8GHz	1.25	20
Phase Balance (°)	Power,Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±3°	30	±0.2	Aluminum Alloy	Black Paint


Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2-020080-E	SMA Female	2GHz~8GHz	1.25	20
Phase Balance (°)	Power, Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±3°	30	±0.2	Aluminum Alloy	Black Paint


Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)

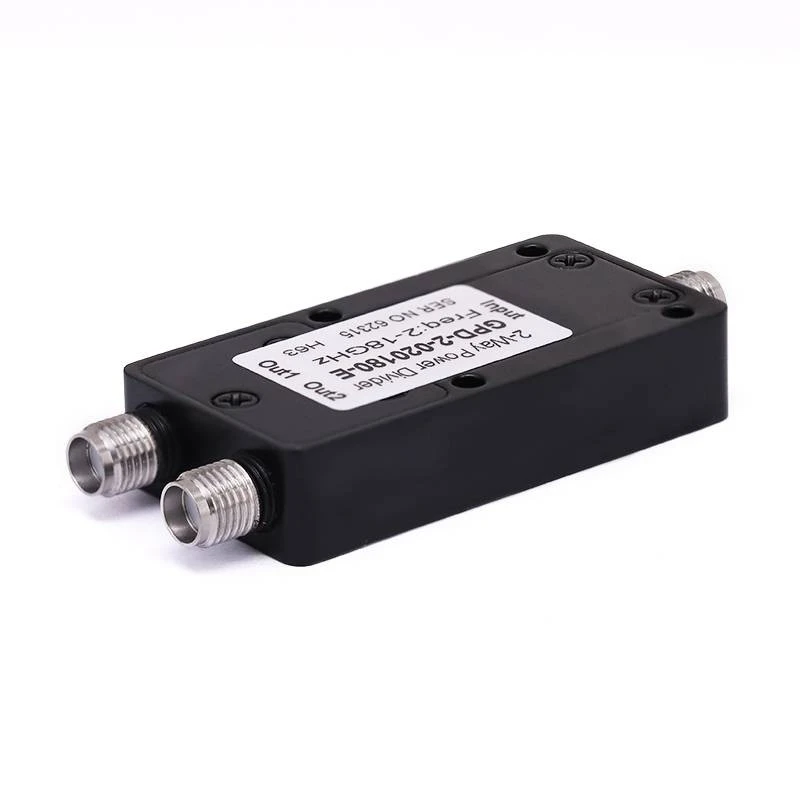

GPD-2-020180-E	SMA Female	2GHz~18GHz	1.35	18
Phase Balance (°)	Power,Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±4°	20	±0.3	Aluminum Alloy	Black Paint


Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2-0026E	SMA Female	DC~26.5GHz	1.50	10
Phase Balance (°)	Power,Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±5°	1	±0.5	Brass	Gold

N 2-Way Power Dividers

Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2N-011017-E	N Female	1.1GHz to 1.7GHz	1.20	20
Phase Balance (°)	Power,Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±2°	30	±0.2	Aluminum Alloy	Oxidation


Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2N-005060-E	N Female	5GHz to 6GHz	1.20	20
Phase Balance (°)	Power,Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±3°	30	±0.2	Aluminum Alloy	Oxidation

TNC 2-Way Power Dividers

Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2T-011017-E	TNC Female	1.1GHz to 1.7GHz	1.20	20
Phase Balance (°)	Power, Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±2°	30	±0.2	Aluminum Alloy	Oxidation

2.92mm 2-Way Power Dividers

Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2-040400-T	2.92mm Female	4GHz to 40GHz	1.60	18
Phase Balance (°)	Power, Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±4°	20	±0.2	Aluminum Alloy	Black Paint


Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)

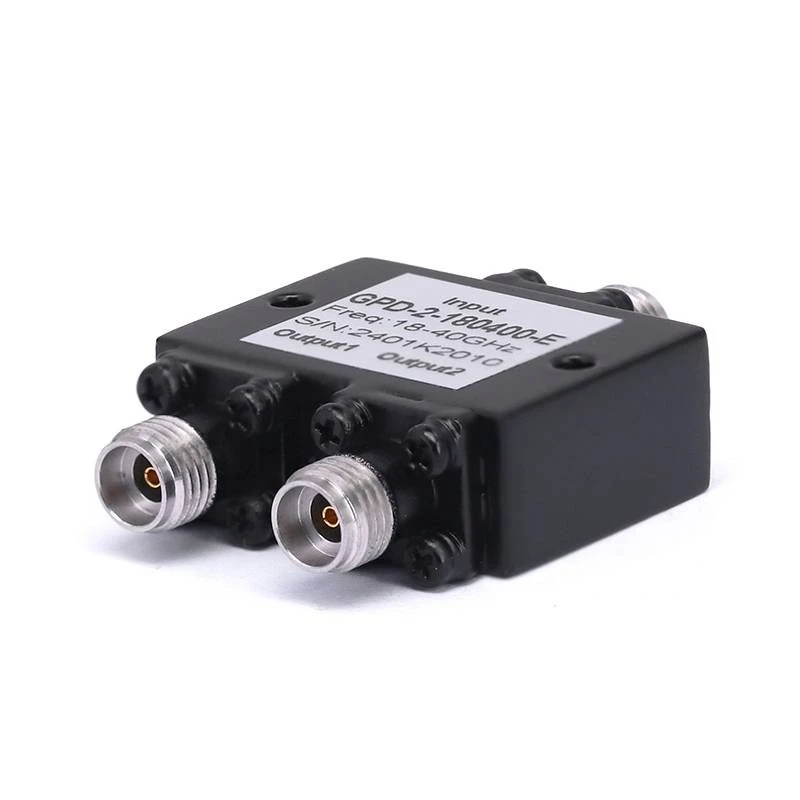

GPD-2-180400-E	2.92mm Female	18Hz to 40GHz	1.50	16
Phase Balance (°)	Power,Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±5°	20	±0.4	Aluminum Alloy	Black Paint


Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2-0040E	2.92mm Female	DC to 40GHz	1.50	10
Phase Balance (°)	Power,Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±7°	1	±0.7	Brass	Gold

2.4mm 2-Way Power Dividers

Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)
GPD-2-0050E	2.4mm Female	DC to 50GHz	1.60	10
Phase Balance (°)	Power, Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±7°	1	±0.7	Brass	Gold

1.85mm 2-Way Power Dividers

Sku	Connector Series	Frequency	VSWR Input	Isolation Min.(dB)

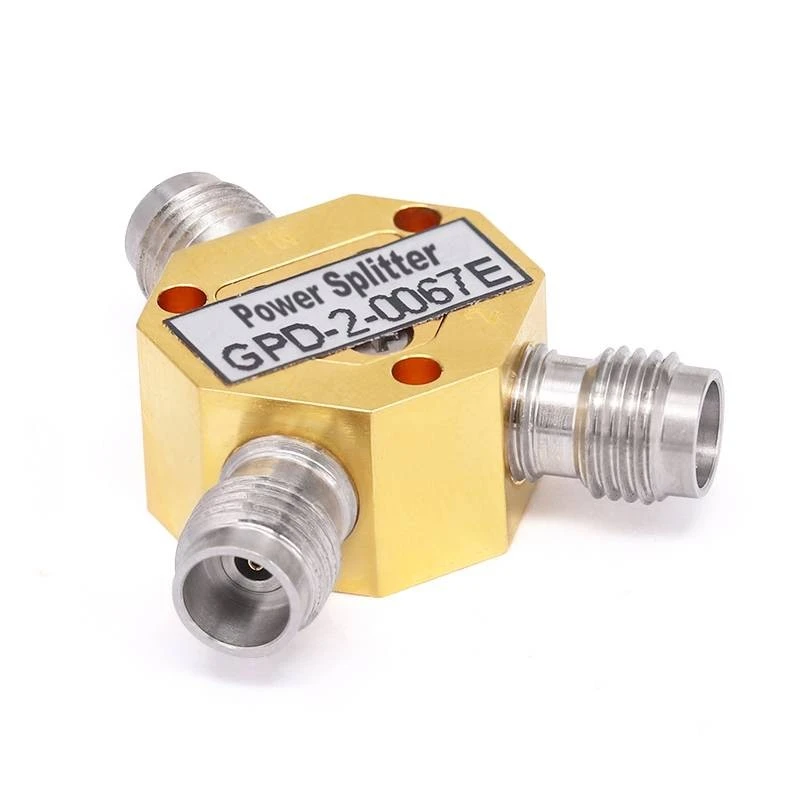

GPD-2-0067E	1.85mm Female	DC to 67GHz	1.80	10
Phase Balance (°)	Power, Max Input (Watts)	Amplitude Balance(dB)	Body Material	Body Plating
±8°	1	±0.8	Brass	Gold
