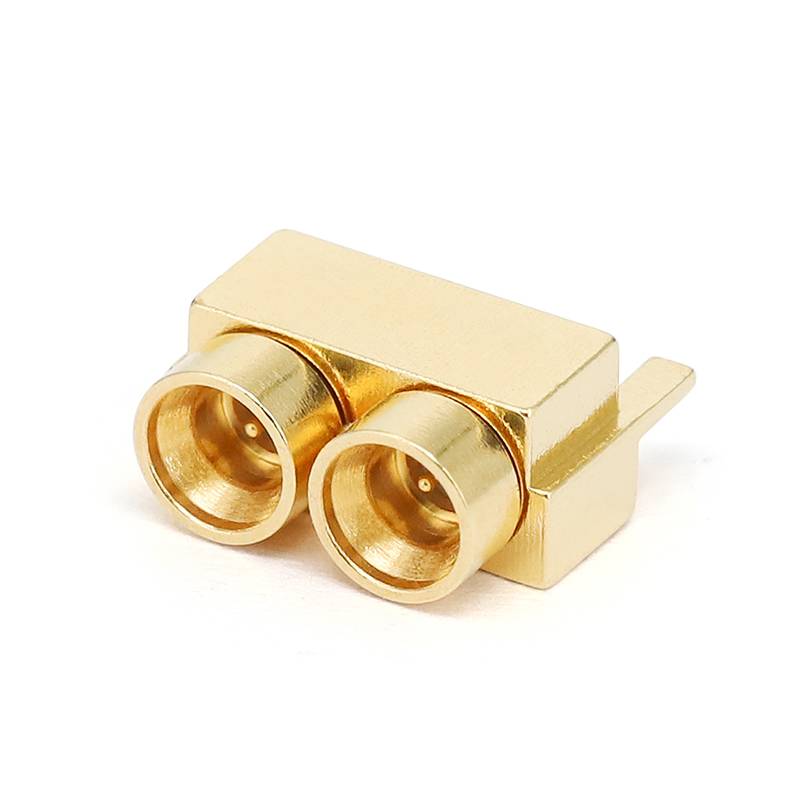

Multi-coax Connectors

Multi-Coax Connectors usually has multiple plug and jacks, with each pin and jack corresponding to a radio frequency (RF) signal channel. Through reasonable layout and design, it enables the simultaneous transmission of multiple signals. Integrating multiple signal channels into one connector can effectively reduce the number of connectors and the occupied space.

The design of separate signal channels can reduce the intermodulation interference between signals and improve the signal transmission quality. In communication devices, it can prevent interference between signals of different frequency bands, ensuring the stability and accuracy of communication.

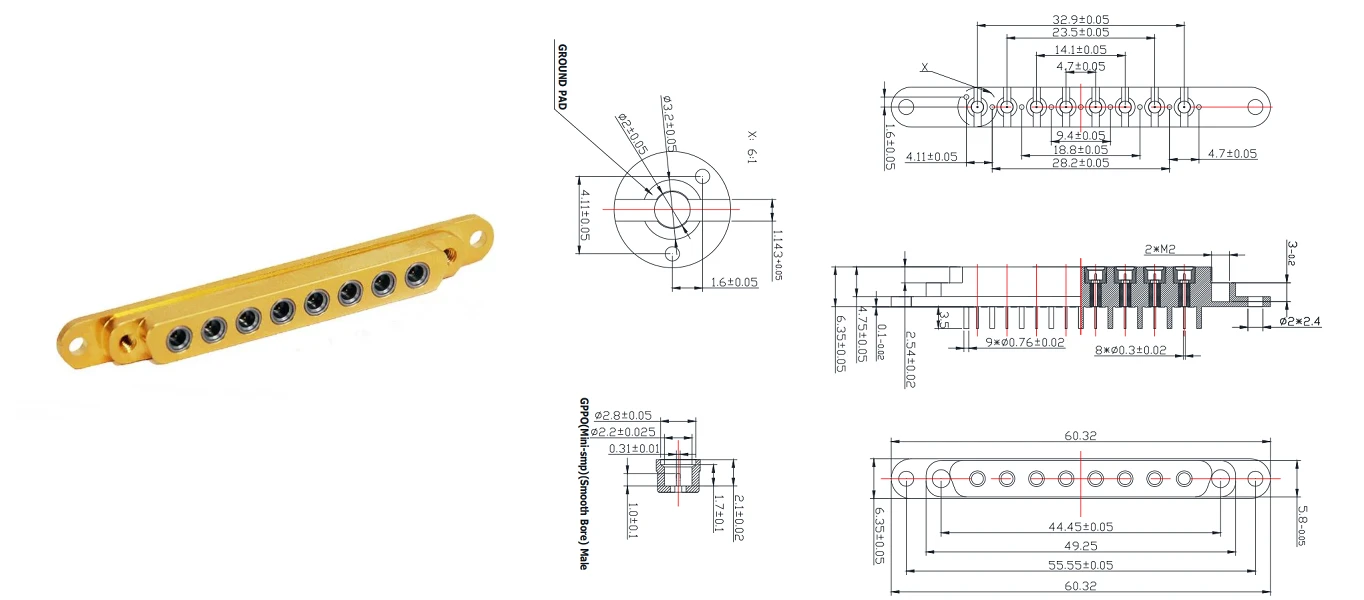

FlexiRF'S 8 Position Board Connector is a multicoax solution for high speed and density application. It is a excellent solution for bench-top and system testing. With GPPO (mini-SMP) ports, it can mate with other GPPO (mini-SMP) cable assembly and can be tested easily. It is a small form factor and has outstanding electrical characteristics . The frequency ranges from DC to 40GHz. This connector has a Brass body and ensures an excellent microwave performance with low insertion loss and VSWR .

For example, in Multi-Coax Connectors of types such as GPO and GPPO with 2,4,6,8,16 channels, the number of pins and their arrangement patterns vary according to different application requirements.

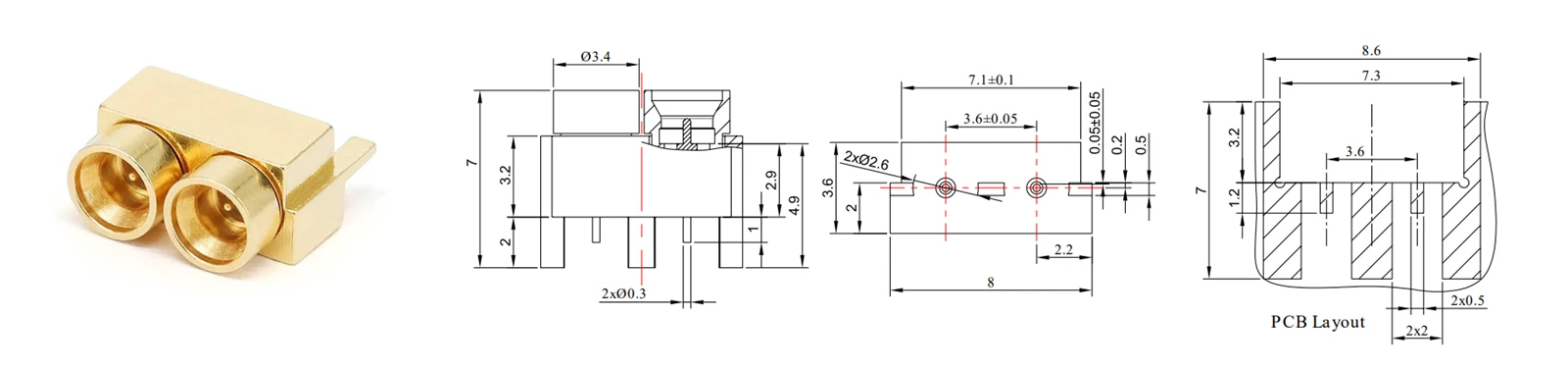

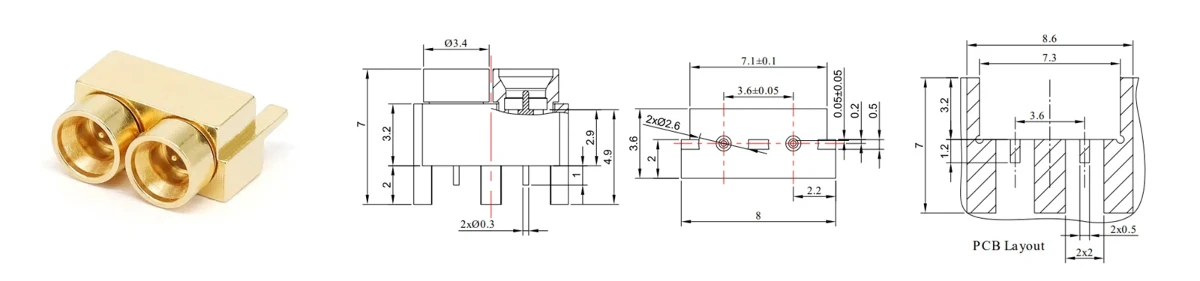

There are two types of connections between Multi-Coax Connectors and PCB boards: soldered and non - soldered. For non - soldered connections, they only need to be fixed with locating pins and screws. Precise design and processing technology can effectively ensure smooth connection of each channel. Multi - channel connectors are available in both vertical installation and 90° angle installation. Customers can choose according to their specific usage scenarios.

With the explosive growth of data traffic, the demand for high-speed and reliable connections in data centers is also increasing day by day. Multi-coaxial connectors can be used for high-speed signal transmission between devices such as servers and switches within data centers. They can provide connections with low loss and low crosstalk, meeting the strict requirements of data centers for signal integrity. For example, inside the racks of a data center, multi-coaxial connectors are used to connect the network interface cards of servers to the ports of switches, enabling high-speed data transmission and exchange.
