Terminal Connectors
This Terminal Connectors boasts outstanding peRFormance. It can efficiently transmit signals across the ultra - wide RF frequency band from DC~110GHz, safeguarding signal integrity to a great extent and significantly reducing signal attenuation and reflection. It features excellent vibration and shock resistance, enabling it to handle complex and harsh environments with ease.
Description
Product introduction
This Terminal Connectors boasts outstanding performance. It can efficiently transmit signals across the ultra - wide RF frequency band from DC~110GHz, safeguarding signal integrity to a great extent and significantly reducing signal attenuation and reflection. It features excellent vibration and shock resistance, enabling it to handle complex and harsh environments with ease. Moreover, it can withstand numerous insertions and removals, ensuring high - reliability connections.
It excels in maintenance convenience, allowing for straightforward replacement and easy disassembly and repair. With a commonly used matching impedance of 50 ohms, it has a low insertion loss, effectively minimizing signal energy loss. It offers a diverse range of port types, including SMA, 2.92mm, 2.4mm, GPO(SMP),GPPO(Mini-SMP) etc., enabling flexible adaptation to the requirements of various RF devices and systems.
Product Body Style
Terminal connectors primarily feature a straight through design. Nevertheless, a subset of these connectors come in a 90 degree angled configuration, offering flexibility to meet various installation requirements.

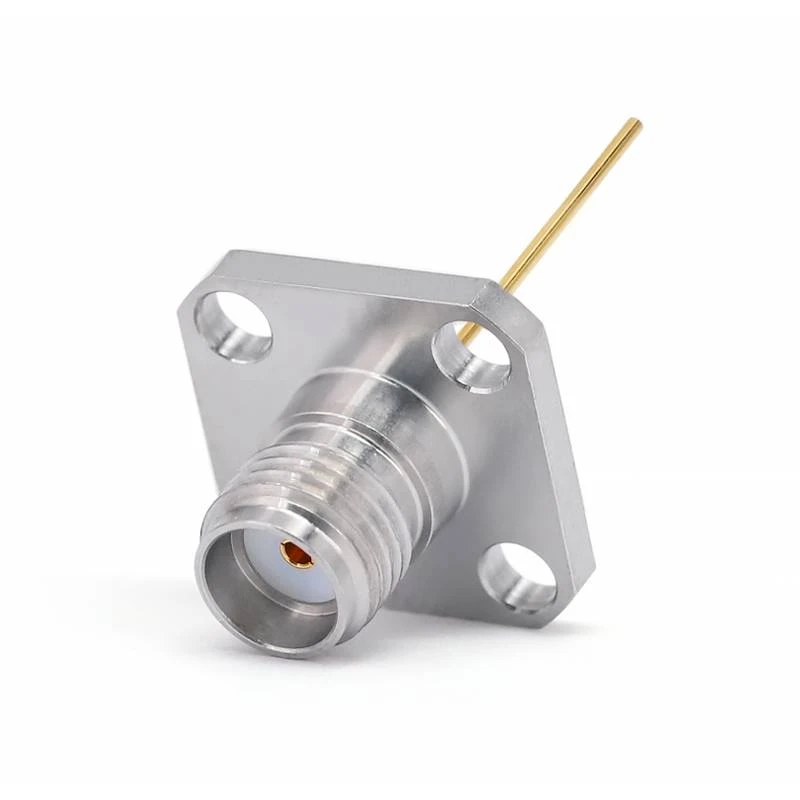

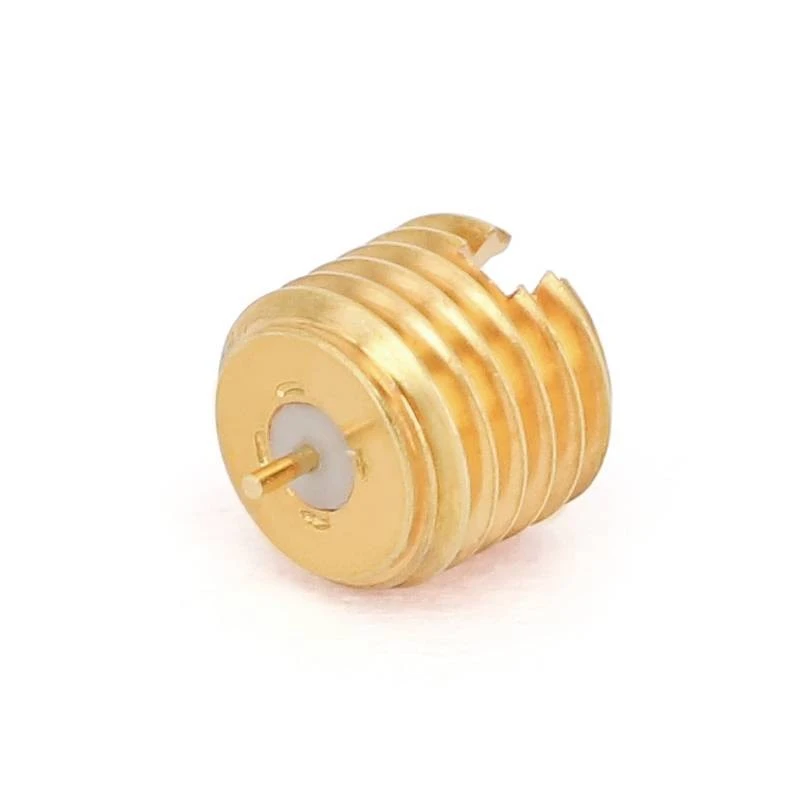

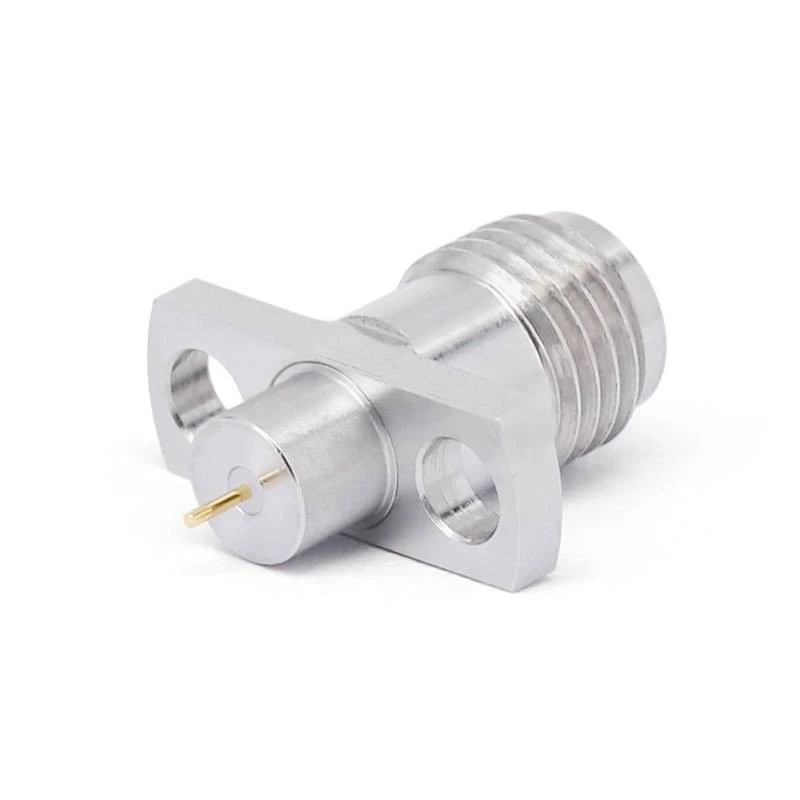

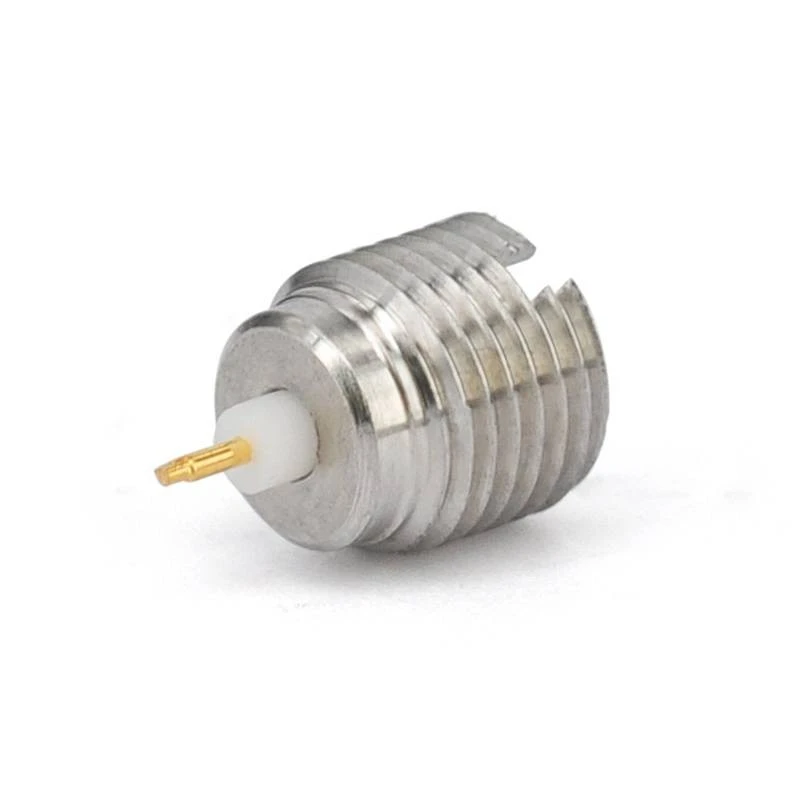

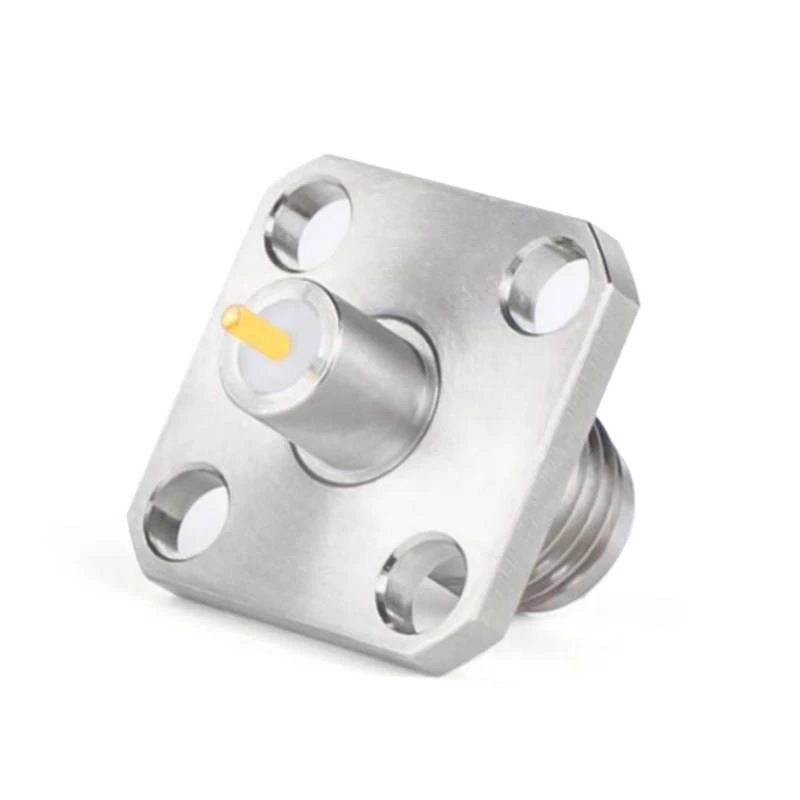

In terms of installation, a variety of options are available. The mounting flanges include both 4 - hole and 2 - hole configurations, enabling secure attachment in different setups. Additionally, terminal connectors with external - threaded interfaces provide reliable connections and easy installation.
Product Application
When it comes to interface with enclosures or cavities, terminal connectors support three distinct transition methods. The air - dielectric wall - penetration method ensures efficient signal transmission with minimal interference. The insulating - dielectric wall - penetration option offers enhanced electrical isolation, suitable for applications requiring strict insulation. The metal - dielectric wall - penetration method provides superior shielding and mechanical robustness, ideal for high - performance and rugged environments.
With their outstanding performance, these terminal connectors are widely used in the field of communication infrastructure and are indispensable key components of base stations, satellite communication equipment, and wireless local area network (WLAN) systems. In the transceiver systems of various devices, they can efficiently match with RF components such as antennas and various transceiver modules, ensuring the accurate input and output of RF signals and contributing to the stable and efficient operation of the entire communication link.
Procurement FAQ
Product Specification Data
|
Configuration |
|
|
Connector Type |
SMA/3.5mm/2.92mm/2.4mm/1.85mm/1.0mm/GPPO/GPO |
|
Connector Impedance |
50 Ohms |
|
Connector Polarity |
Standard |
|
Connector Mount Method |
Straight/Right Angle |
|
Attachment Method |
Terminal |
|
Materials Information |
|
|
Center Contact |
CuBe Gold Plated |
|
Outer Contact |
Brass Gold Plated& Stainless Steel |
|
Body |
Brass Gold Plated& Stainless Steel |
|
Dielectric |
PEI/PTFE |
|
Environmental Data |
|
|
Temperature Range |
-55℃ to +165℃ |
|
2011/65/EU(RoHS) |
Compliant |
Product Type
| SMA Terminal Connectors | |||||
 |
 |
||||
|
Sku |
Frequency |
Pin L |
Pin D |
VSWR |
Installation |
|

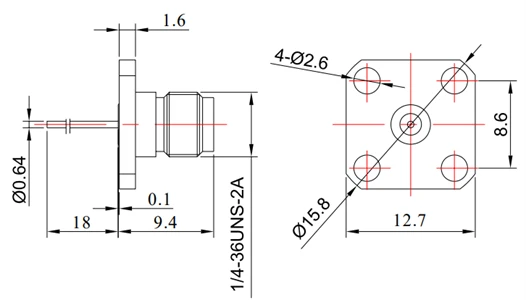

FR2-SMA-KFD0110 |
DC- 26.5GHz |
18mm |
0.64mm |
1.15 |
Screw locking |
 |
 |
|||||
|
Sku |
Frequency |
Pin L |
Pin D |
Contact D |
VSWR |
Installation |
|
FR2-SMA-KFD0101 |
DC- 26.5GHz |
2mm |
0.8mm |
4mm |
1.15 |
Screw locking |
 |
 |
|||||
|
Sku |
Frequency |
Pin L |
Pin D |
Dielectric D |
VSWR |
Installation |
|
FR2-SMA-KFD0405A |
DC- 26.5GHz |
1.3mm |
0.4mm |
3.2mm |
1.15 |
Screw locking |
| SMA Terminal Connectors | |||||
 |
 |
||||
|
Sku |
Frequency |
Pin L |
Pin D |
VSWR |
Installation |
|

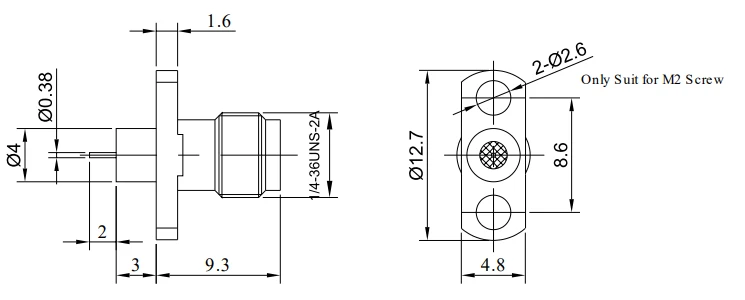

FR2-SMA-KFD0702 |
DC- 26.5GHz |
2mm |
0.38mm |
1.15 |
Screw locking |
|
2.92mm Terminal Connectors |
||||||
|
|
|
|||||
|
Sku |
Frequency |
Pin L |
Pin D |
Dielectric D |
VSWR |
Installation |
|

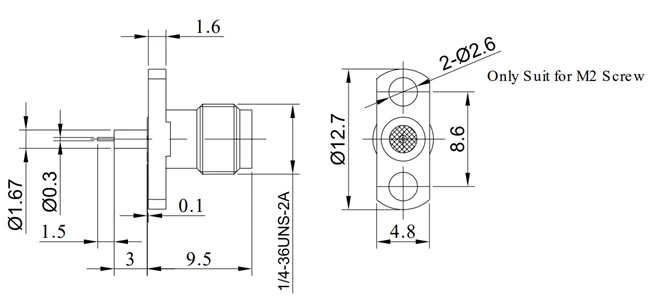

FR2-2.92-KFD0705 |
DC- 26.5GHz |
1.5mm |
0.30mm |
1.67mm |
1.15 |
Screw locking |
 |
 |
|||||
|
Sku |
Frequency |
Pin L |
Pin D |
Contact D |
VSWR |
Installation |
|
FR2-2.92-KFD0402 |
DC- 26.5GHz |
1.5mm |
0.3mm |
4mm |
1.15 |
Screw locking |
 |
 |
|||||
|
Sku |
Frequency |
Pin L |
Pin D |
Dielectric D |
VSWR |
Installation |
|
FR2-2.92-KFD0405 |
DC- 26.5GHz |
1.5mm |
0.3mm |
1.67mm |
1.15 |
Screw locking |
|
GPO(SMP)&GPPO(Mini-SMP) Terminal Connectors |
||||||
 |
 |
|||||
|
Sku |
Frequency |
Pin L |
Pin D |
Contact D |
VSWR |
Installation |
|
FR2-GPPO(M)-JD1-F |
DC- 65GHz |
1.8mm |
0.30mm |
2.18mm |
1.32@18GHz |
Soldering |
 |
 |
|||||
|
Sku |
Frequency |
Pin L |
Pin D |
Screw |
VSWR |
Installation |
|

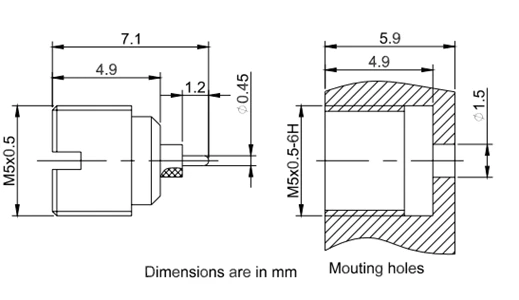

FR2-GPO-JYD12G |
DC- 26.5GHz |
1.2mm |
0.45mm |
M5*0.5 |
1.40 |
Screw Thread |
 |
 |
|||||
|
Sku |
Frequency |
Pin L |
Pin D |
Screw |
VSWR |
Installation |
|
FR2-GPPO-JYD2-F |
DC- 40GHz |
1mm |
0.3mm |
M4*0.5_6g |
1.22 |
Screw Thread |
|
GPO(SMP) Terminal Connectors |
||||||
 |
 |
|||||
|
Sku |
Frequency |
Pin L |
Pin D |
Screw |
VSWR |
Installation |
|
FR2-GPO-JYD26AG-L |
DC- 26.5GHz |
2mm |
0.45mm |
M5*0.5 |
1.40 |
Screw Thread |
 |
 |
|||||
|
Sku |
Frequency |
Pin L |
Pin D |
Screw |
VSWR |
Installation |
|
FR2-GPO-JYD26G-L |
DC- 40GHz |
2mm |
0.7mm |
M5*0.5 |
1.43 |
Screw Thread |
