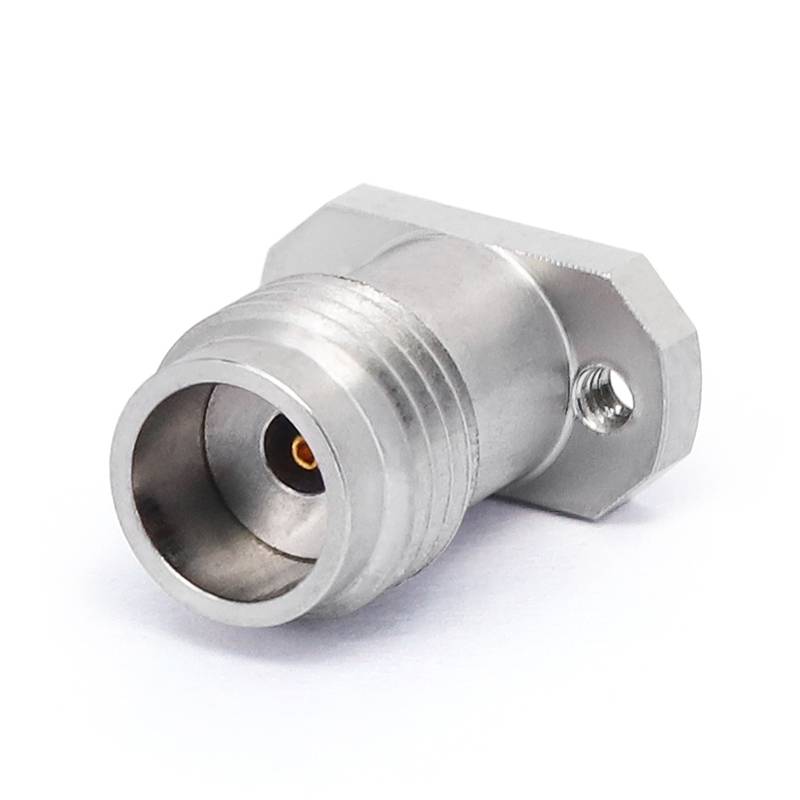

Field Replaceable Connectors



RF Field replaceable coaxial connectors are crucial components of RF systems. They are specifically designed for on-site installation and replacement. There is no need for soldering; they can be fixed with screws, which simplifies the maintenance process. Even in harsh conditions, these connectors can remarkably maintain signal integrity. In RF circuits, they enable the quick replacement of damaged components. Their reliable performance ensures the stable transmission of RF signals, with low signal loss and minimal interference. This design is easy to operate, reducing the complexity of installation.



Overall, RF field replaceable coaxial connectors enhance the flexibility and reliability of the system and reduce long-term maintenance costs. The connector port types include various options such as SMA, 2.92mm, 2.4mm, 1.85mm, 1.0mm, GPO (SMP), etc., and the frequency range covers from DC to 110GHz.

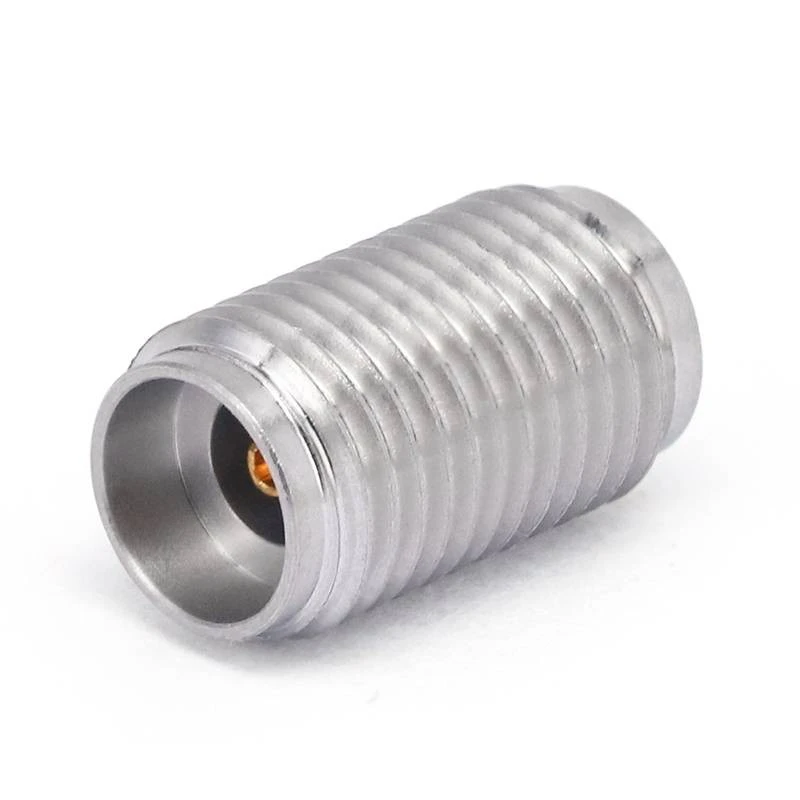

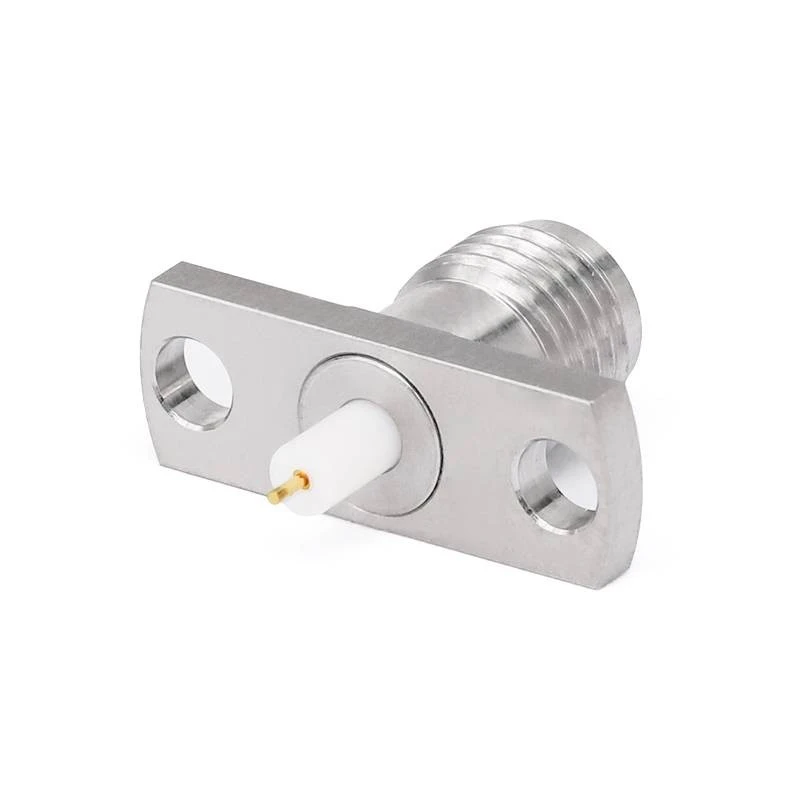

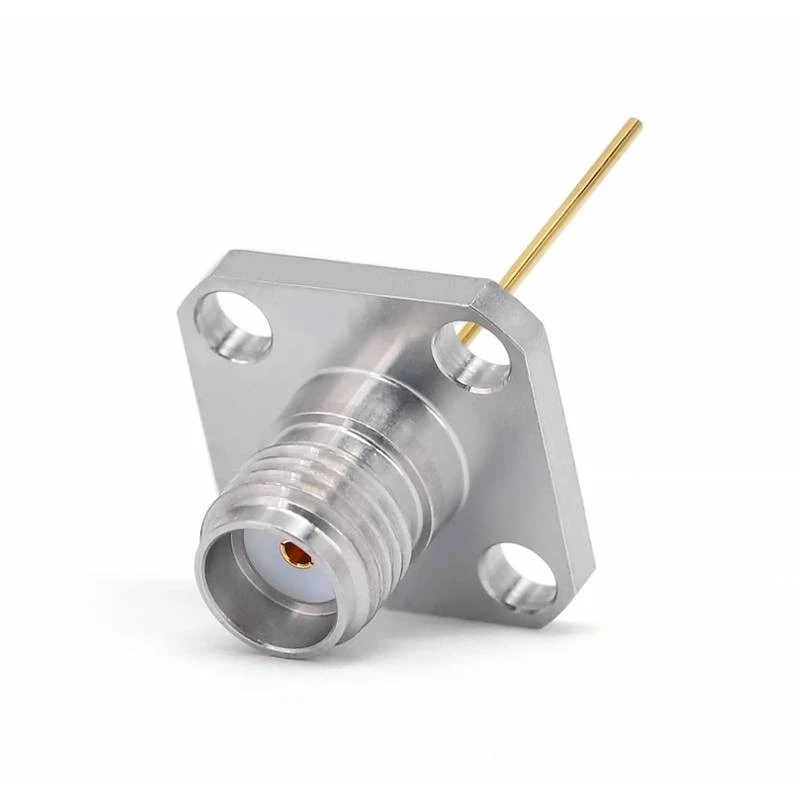

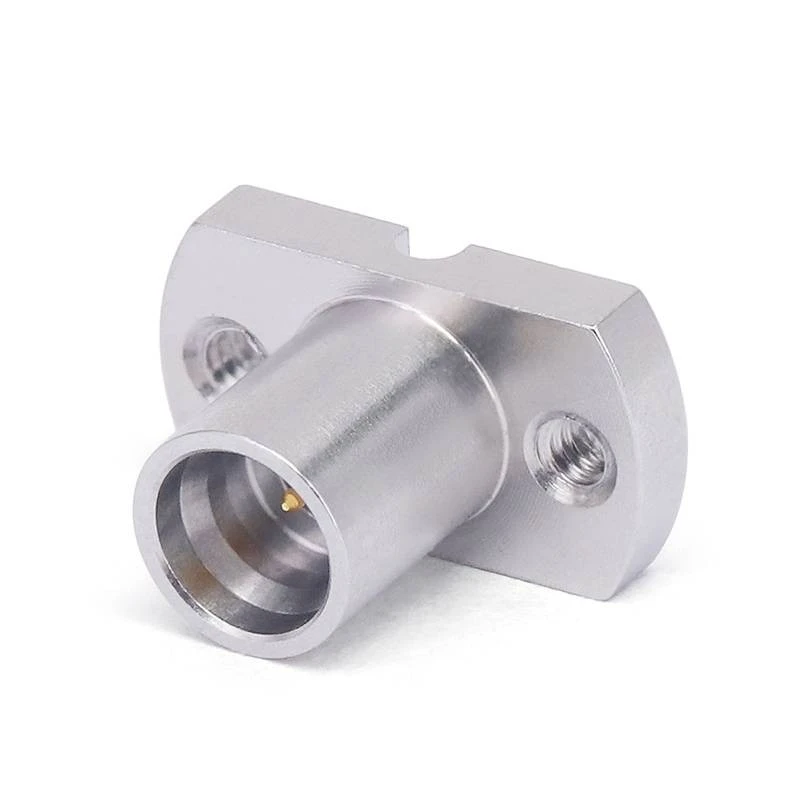

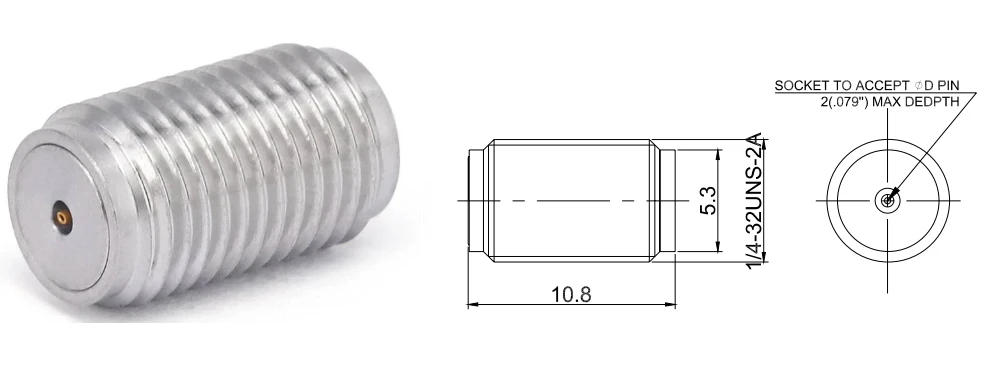

The Field replaceable coaxial connectors have four types of body forms, such as Straight, 4 Hole Flange, fully threaded embedded type, 2Hole Flange.This connectors has a Stainless Steel body and ensures an excellent microwave performance with low insertion loss and VSWR of 1.25. This connector is precisely manufactured to RF industries like military & space.





RF Field replaceable coaxial connectors are used to connect the RF circuits of antennas, RF modules, filters, navigation devices, radar systems, etc. They may face harsh weather conditions and complex electromagnetic environments. These connectors need to have good weather resistance and anti-interference capabilities to ensure the stable transmission of signals.









Configuration
Connector Type	SMA/2.92mm/2.4mm/1.85mm/GPO
Connector Impedance	50 Ohms
Connector Polarity	Standard

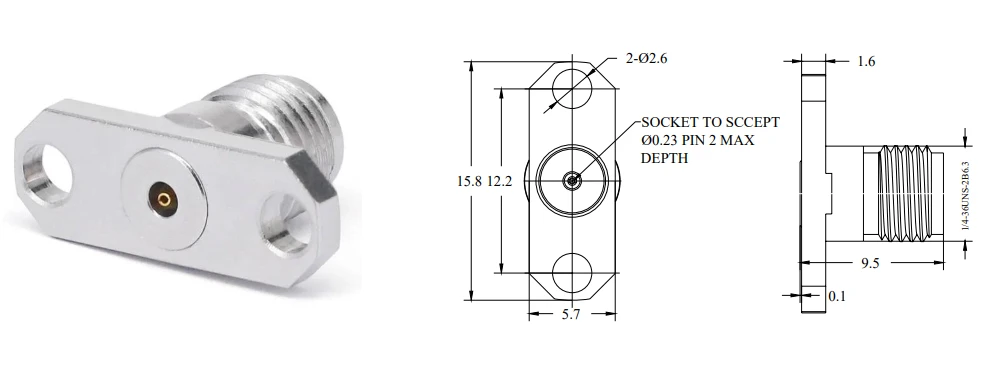

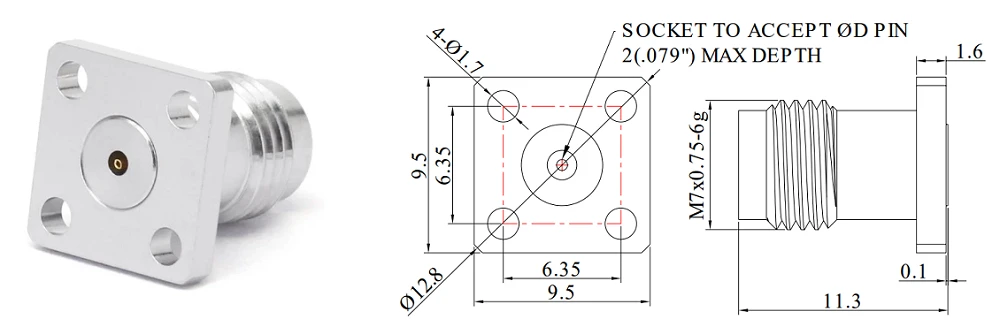

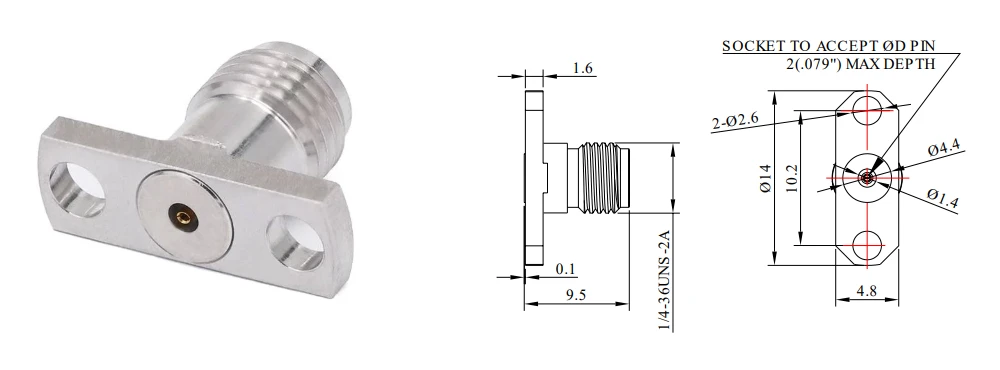

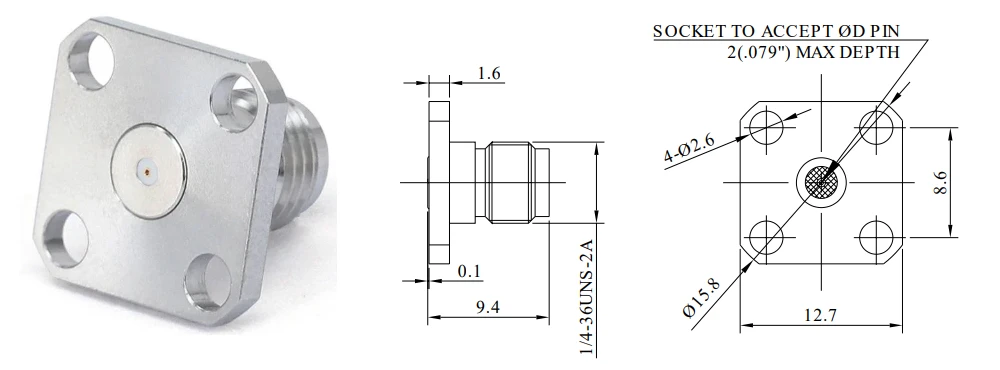

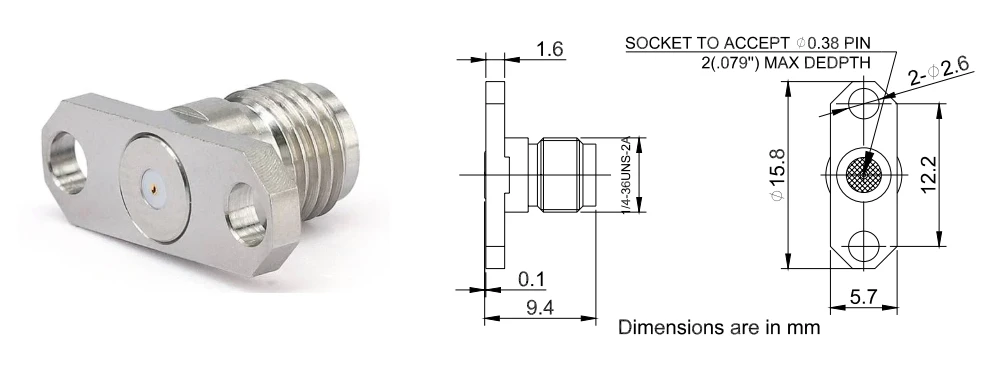

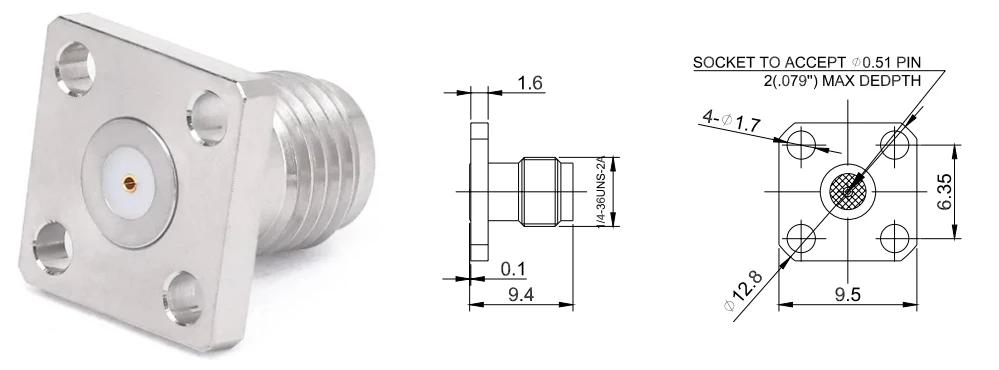

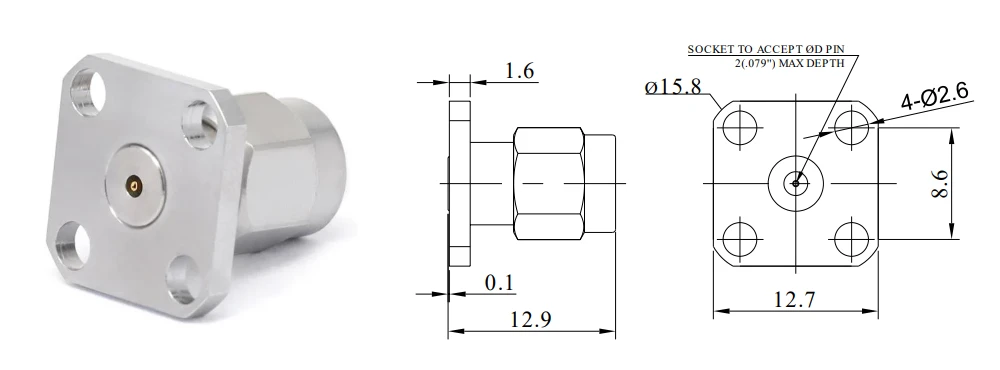

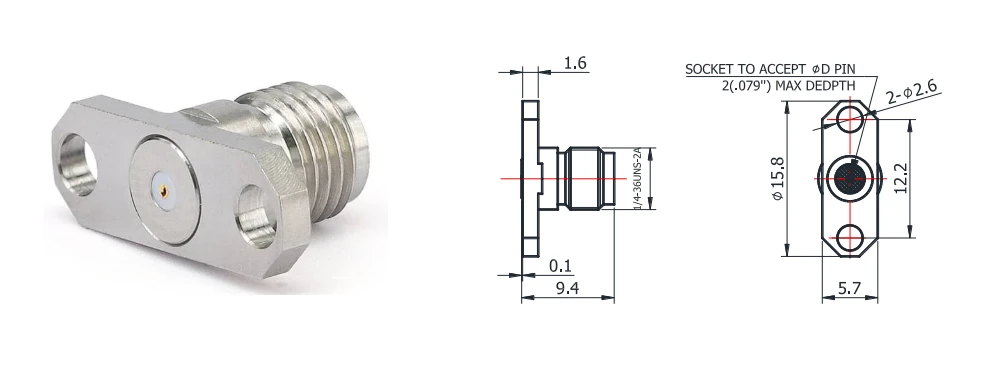

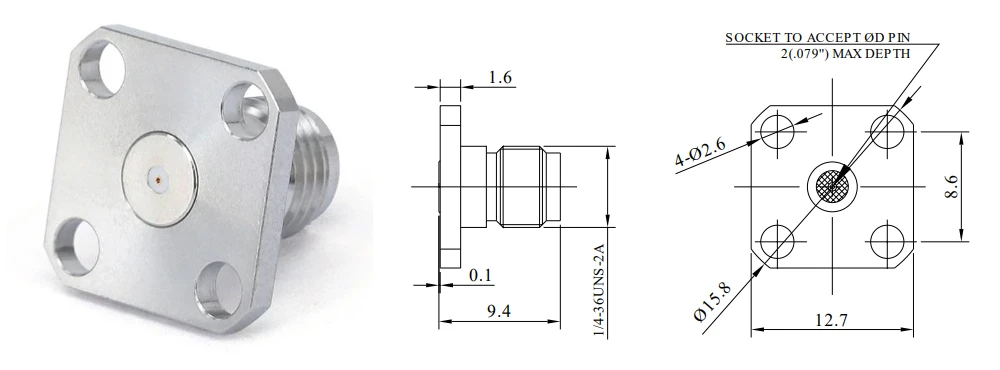

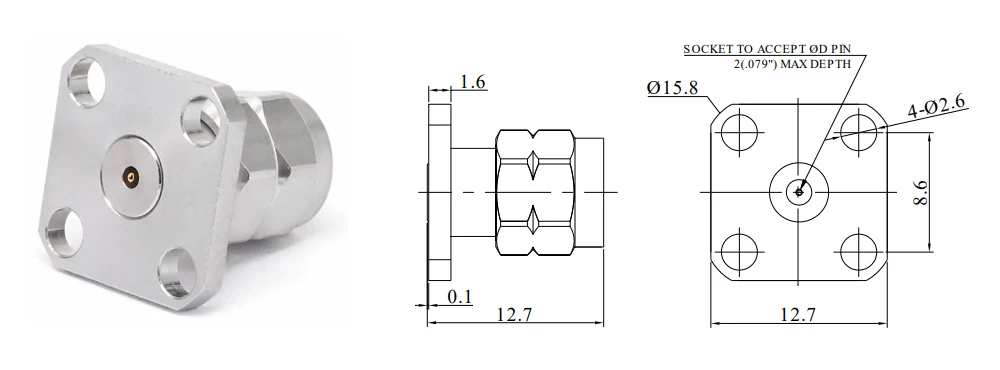

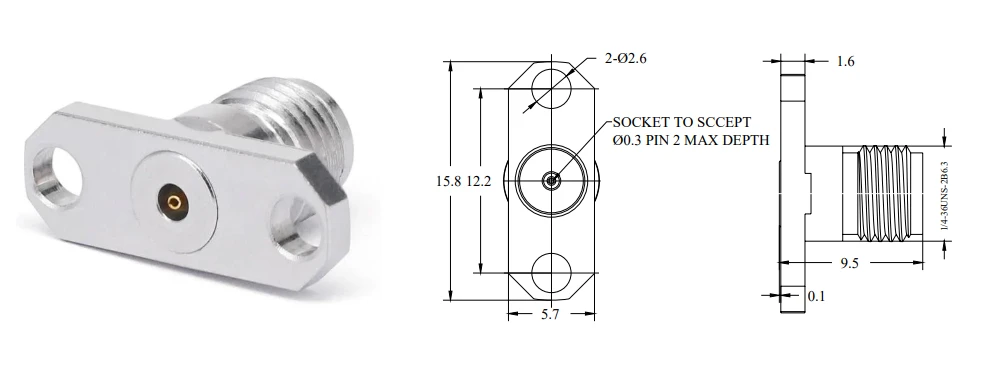

Connector Mount Method	Straight/2 Hole Flange/ 4 Hole Flange
Attachment Method	Contact
Materials Information
Center Contact	CuBe Gold Plated
Outer Contact	Stainless Steel
Body	Stainless Steel
Dielectric	PEI/PTFE
Environmental Data
Temperature Range	-55℃ to +165℃
2011/65/EU(RoHS)	Compliant

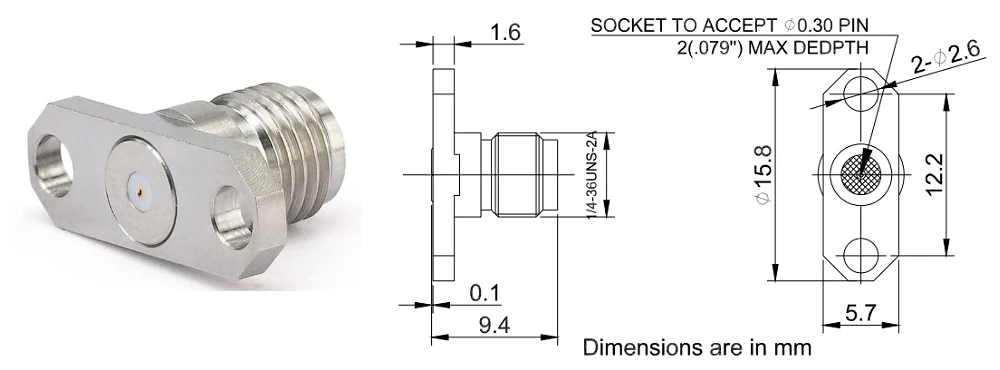

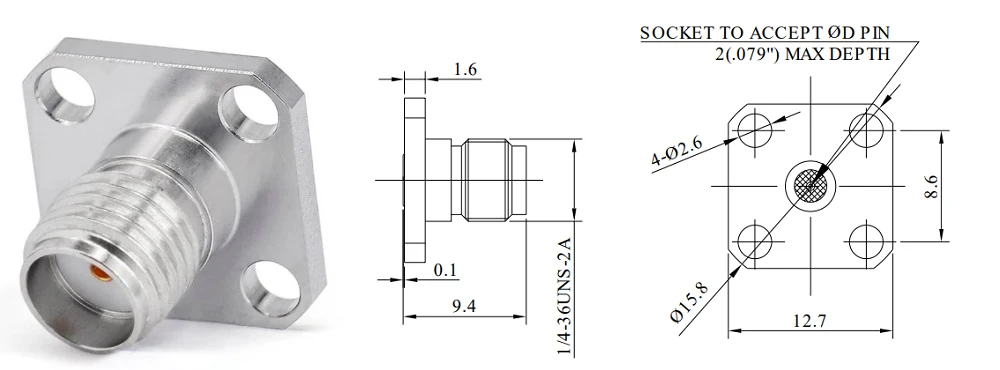

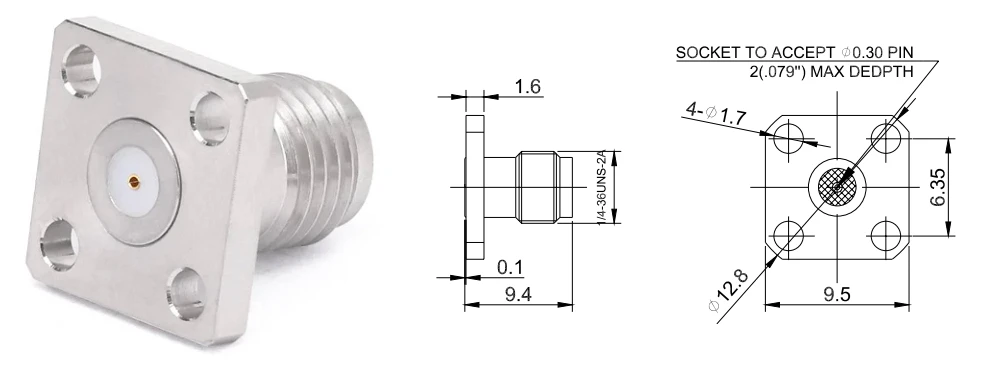

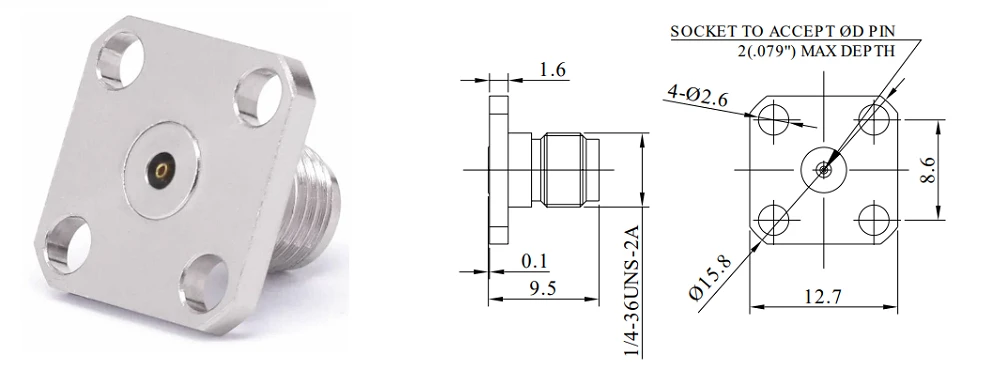

SMA Field Replaceable Connectors

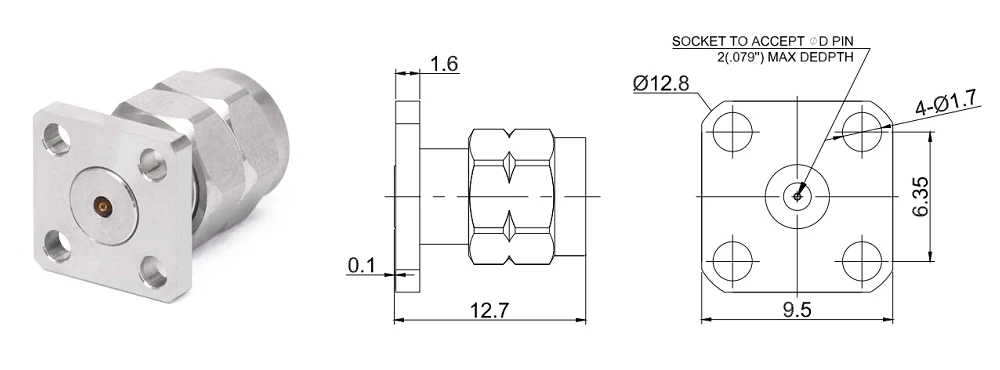

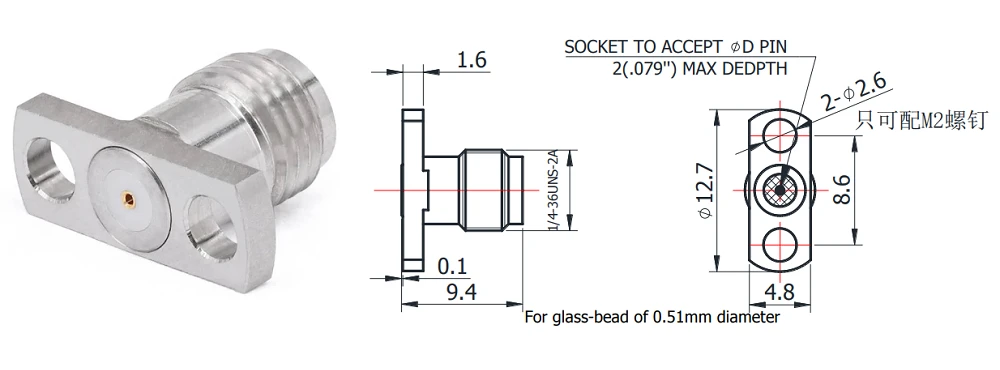

2.92mm Field Replaceable Connectors

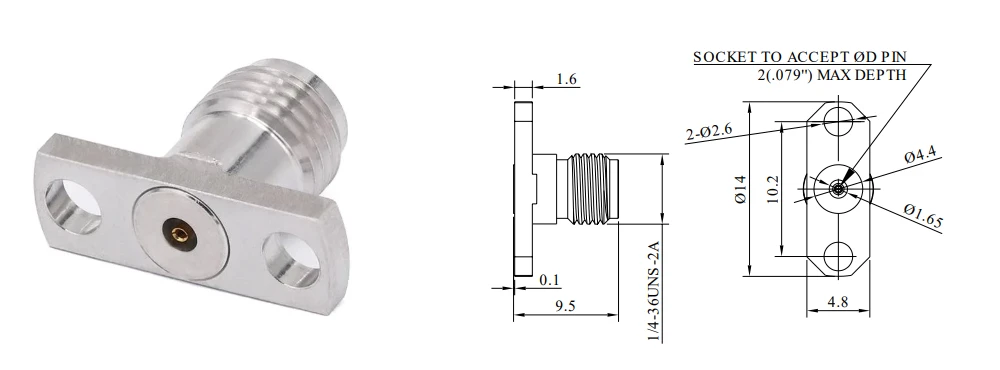

2.92mm Field Replaceable Connectors

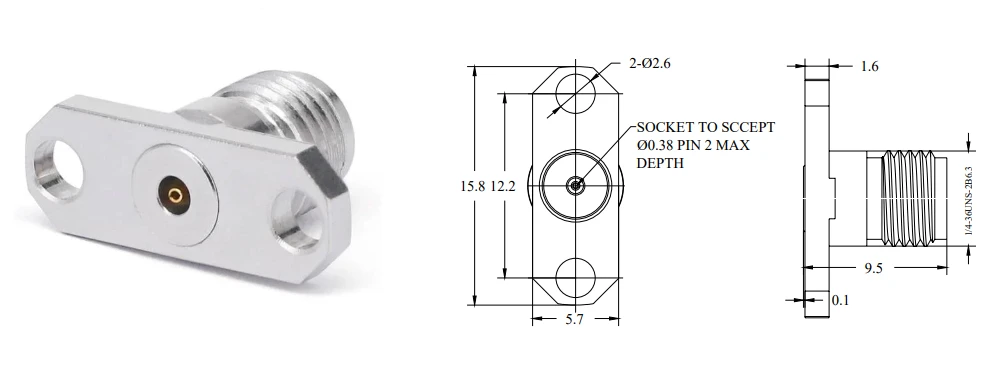

2.92mm Field Replaceable Connectors

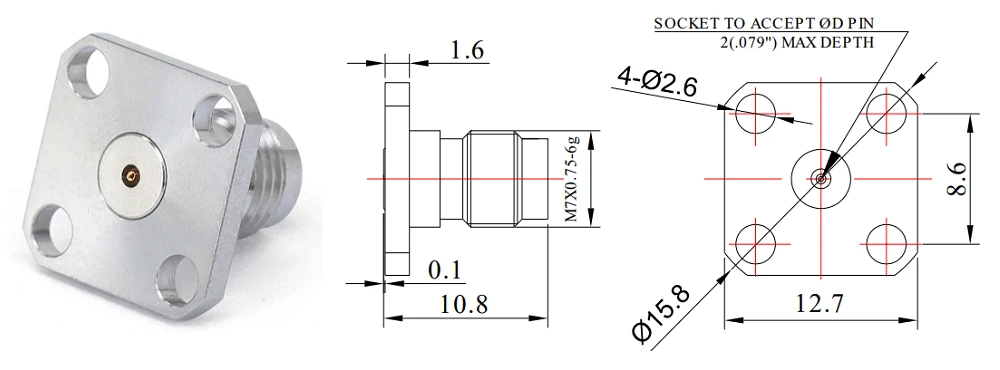

2.4mm Field Replaceable Connectors

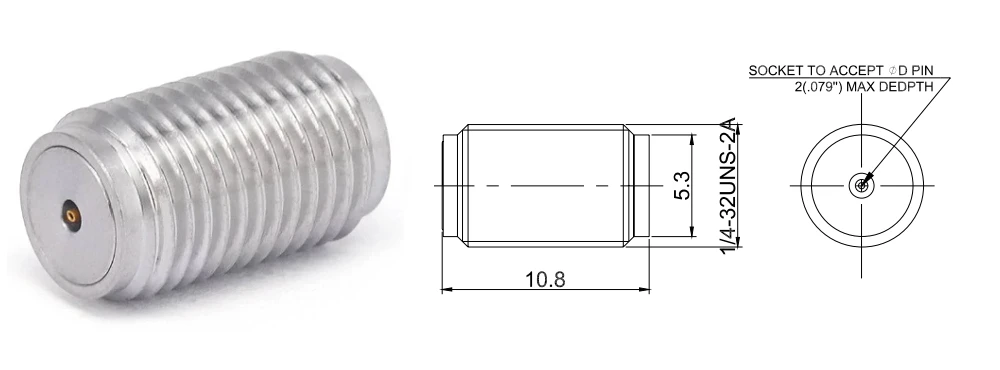

1.85mm Field Replaceable Connectors
