Coax Connectors
Coaxial connector is a high - peRFormance solution designed for various coaxial cable applications. Engineered with precision, it ensures reliable and stable signal transmission, making it an ideal choice for both commercial and industrial use. Such as ours SMA Coax Connector for .086''&.141''&.047'' Series Cables, coaxial connector that covers the frequency range from DC-26.5GHz.
Description
Product introduction
Coax connectors are high-performance solutions designed for various coaxial cable applications. Precision-engineered, they ensure reliable and stable signal transmission, making them ideal for both commercial and industrial use. For example, our SMA Coax Connectors for .086'' & .141'' & .047'' Series Cables cover a frequency range from DC to 26.5GHz. Available with brass or stainless steel bodies, these connectors deliver excellent microwave performance with low insertion loss and a VSWR of 1.25.
Product Body Style

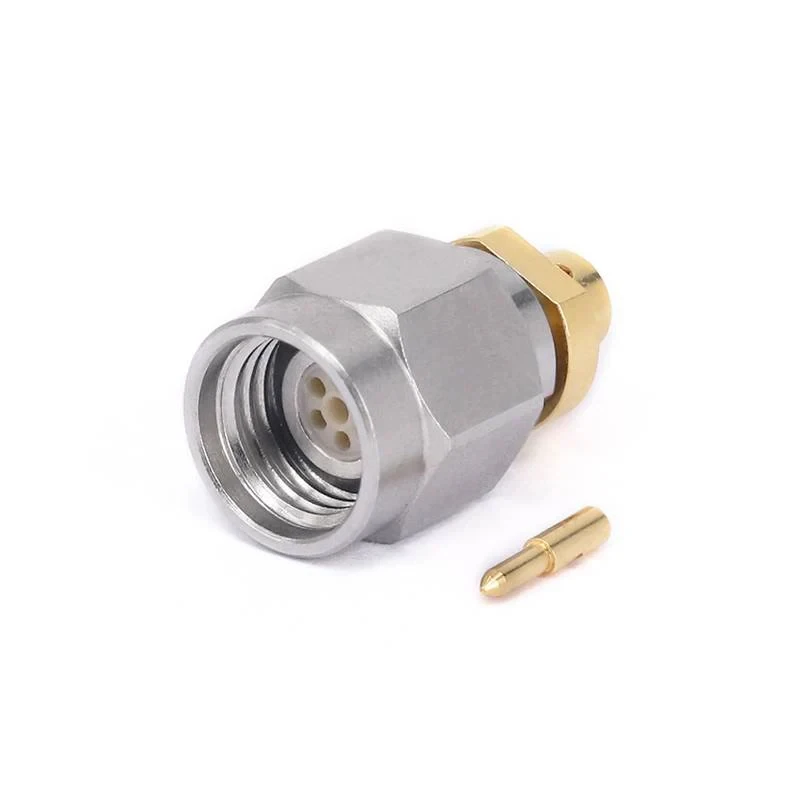

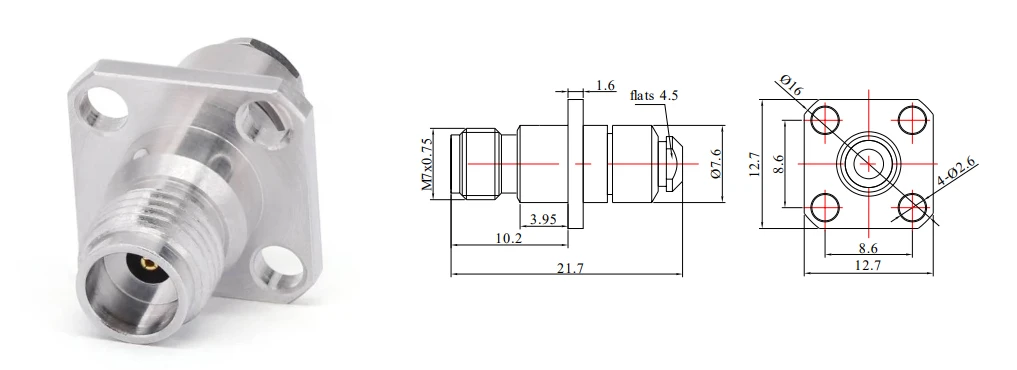

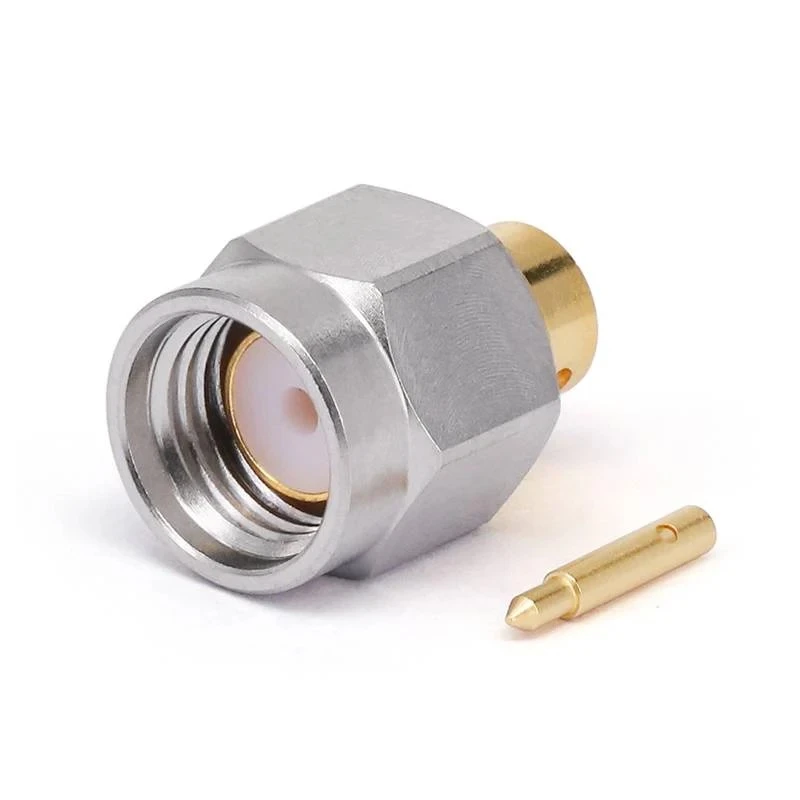

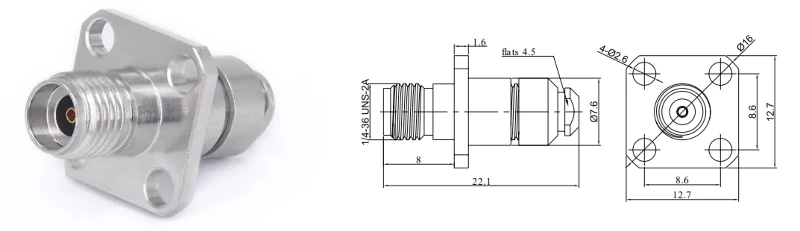

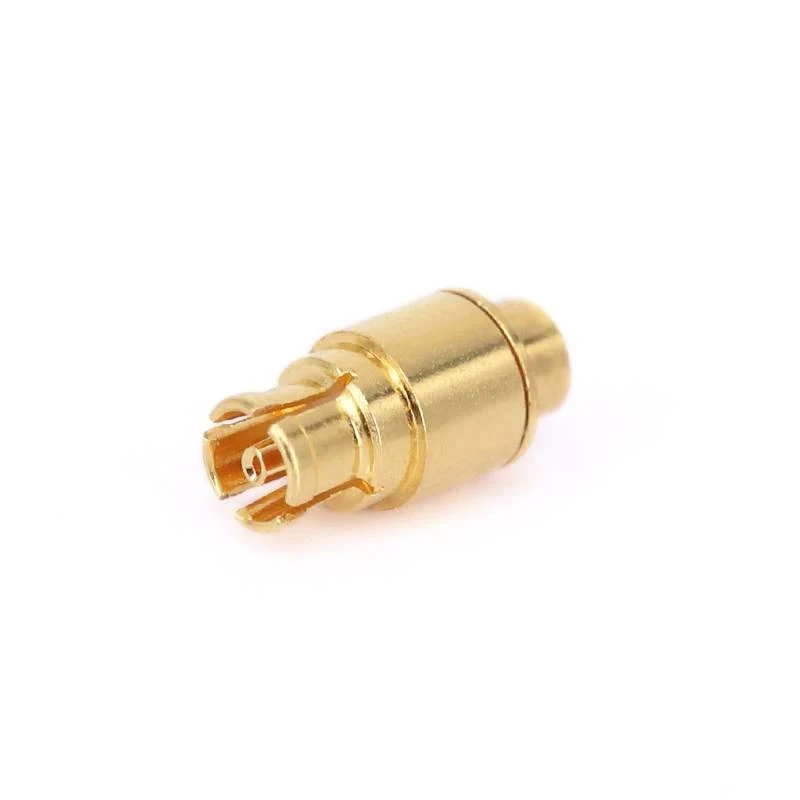

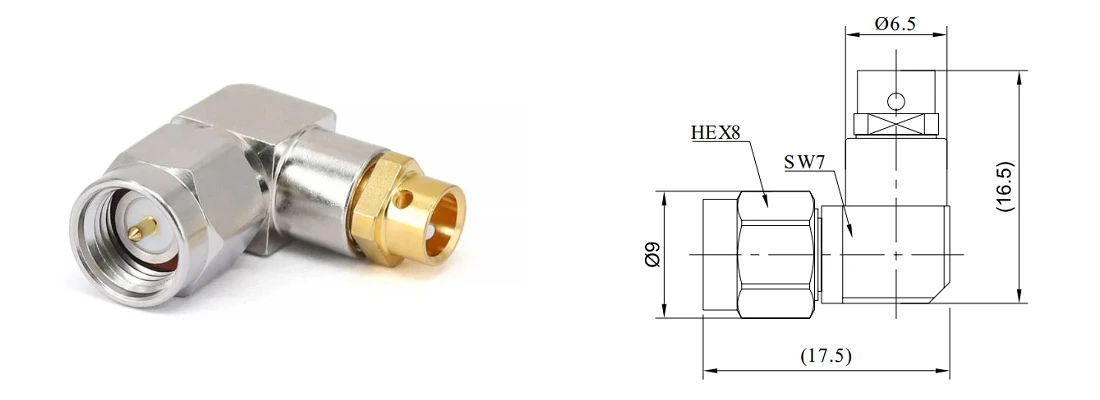

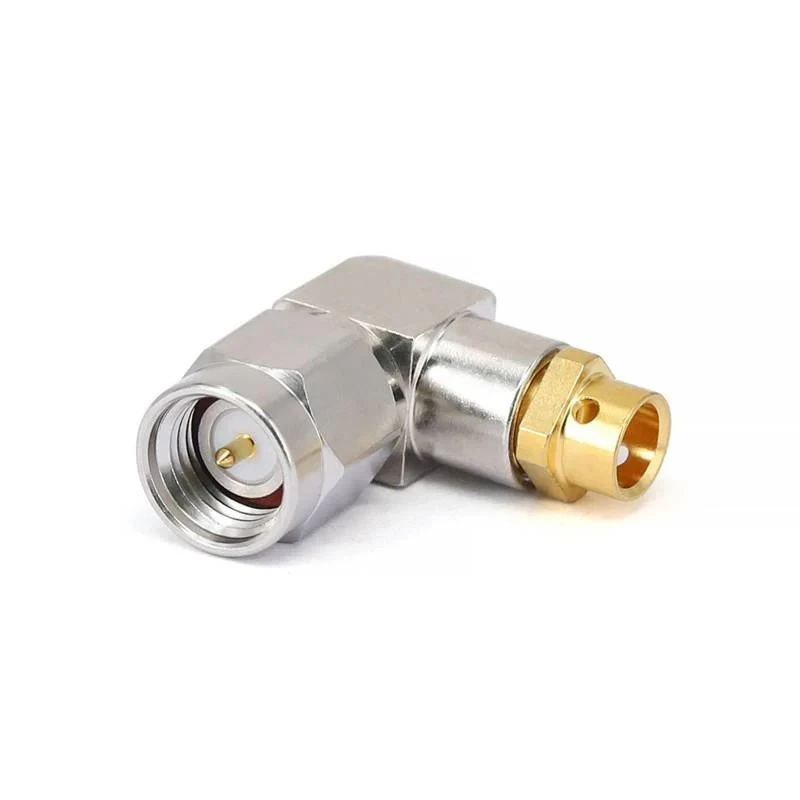

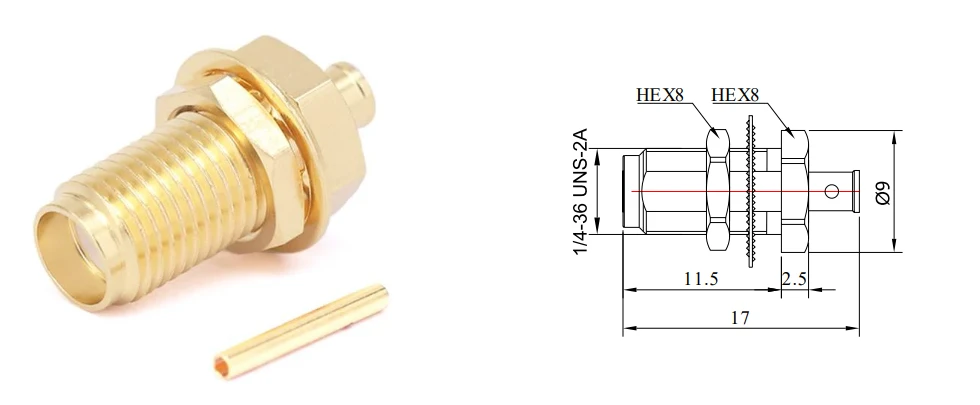

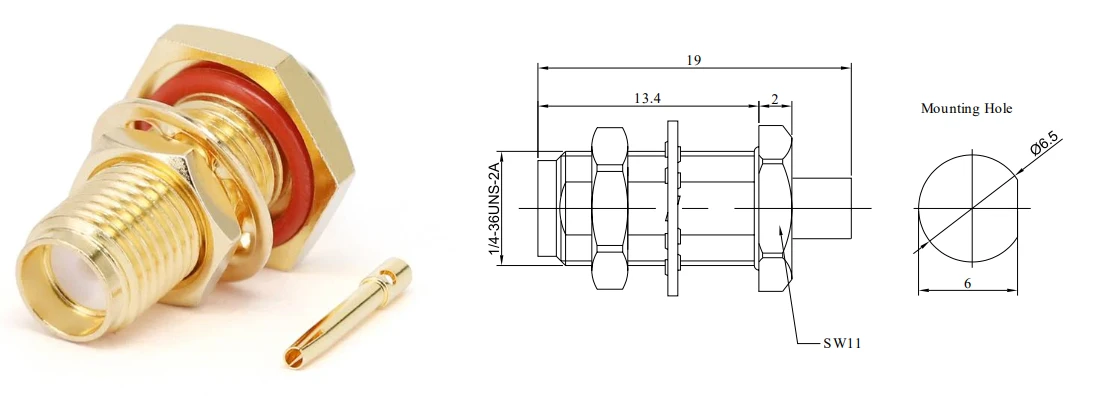

Coax connectors are offered in four body types: Straight, 4-Hole Flange, Right Angle, and Bulkhead Mount. Adapters with different structures can be selected based on specific application scenarios.
Product Application
This series of coaxial connectors, including SMA, 2.92mm, 2.4mm, 1.85mm, GPO (SMP), and GPPO (Mini-SMP), is compatible with many commonly used cable specifications: .086'' & .141'' & .047'' Series cables, as well as the 3506 and 3507 series low-loss phase-stable cables. The 3506 series cables maintain excellent performance across a frequency band from DC to 40GHz, and even up to 67GHz. Whether used in telecommunications, aerospace, or test & measurement equipment projects, these connectors seamlessly integrate with existing cable infrastructures.
Procurement FAQ
Product Specification Data
|
Configuration |
|
|
Connector Type |
SMA/2.92mm/2.4mm/1.85mm/GPO/GPPO |
|
Connector Impedance |
50 Ohms |
|
Connector Polarity |
Standard |
|
Connector Mount Method |
None |
|
Connector Body Style |
Straight/Right Angle/Bulkhead Mount/ 4 Hole Flange |
|
Materials Information |
|
|
Center Contact |
CuBe Gold Plated |
|
Outer Contact |
CuBe & Stainless Steel |
|
Body |
CuBe & Stainless Steel |
|
Dielectric |
PEI/PTFE |
|
Environmental Data |
|
|
Temperature Range |
-55℃ to +165℃ |
|
2011/65/EU(RoHS) |
Compliant |
Product Type
| SMA Coax Connectors | |||
 |
|||
|

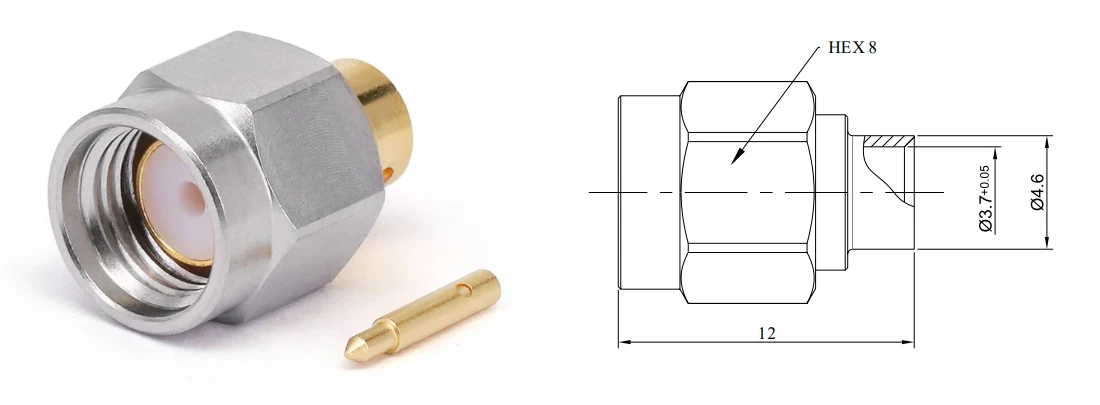

Sku |
Frequency |
Match cable |
Strip size |
|

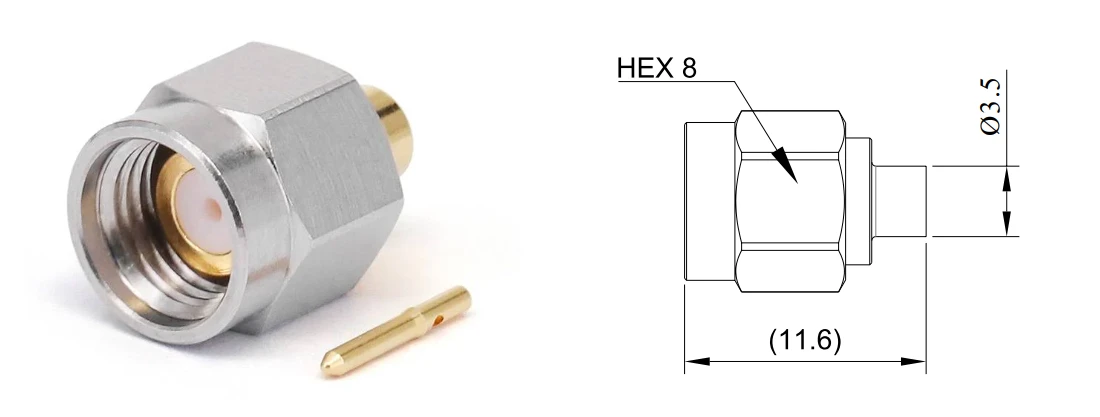

FR2-SMA-JB3S |
DC-18GHz |
.141'' Series |
|
 |
|||
|

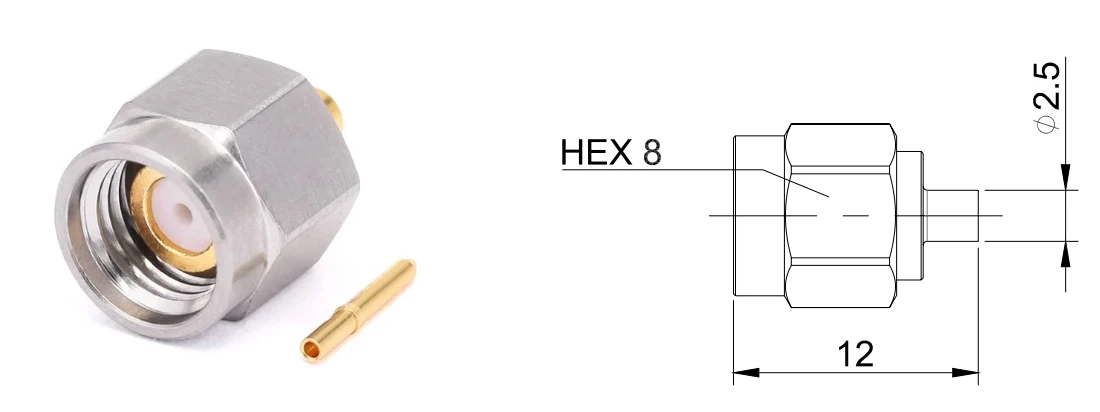

Sku |
Frequency |
Match cable |
Strip size |
|
FR2-SMA-JB2S |
DC-26.5GHz |
.086'' Series |
|
 |
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|
FR2-SMA-JB1S |
DC-16.5GHz |
.047'' Series |
|
 |
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|
FR2-SMA-JWB3-2 |
DC-18GHz |
.141'' Series |
|
|
|
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|

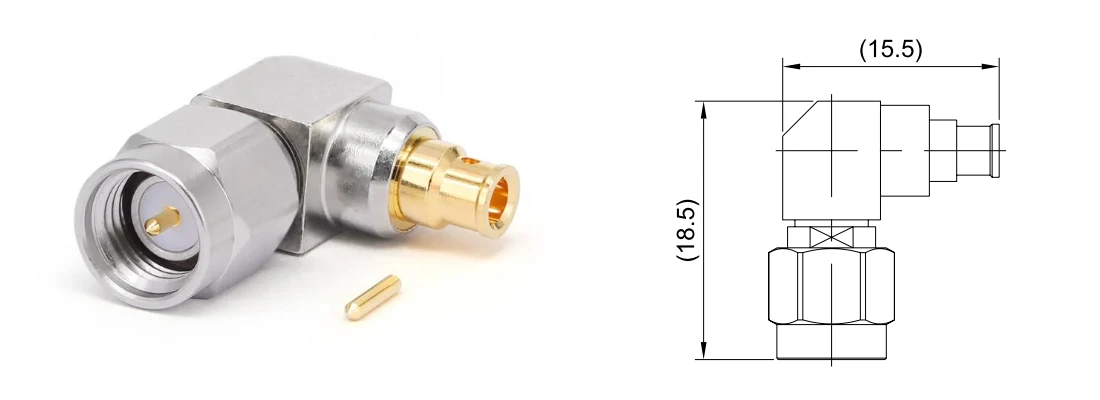

FR2-SMA-JWB1S |
DC-26.5GHz |
.047'' Series |
|
 |
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|
FR2-SMA-KYB3 |
DC-18GHz |
.141'' Series |
|
 |
|||
|

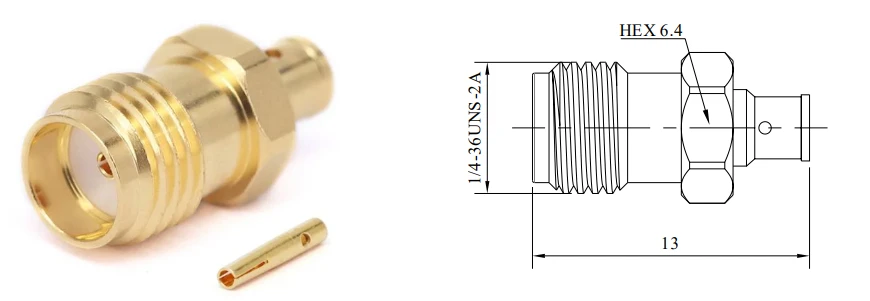

Sku |
Frequency |
Match cable |
Strip size |
|
FR2-SMA-KYB1S |
DC-26.5GHz |
.047'' Series |
|
 |
|||
|

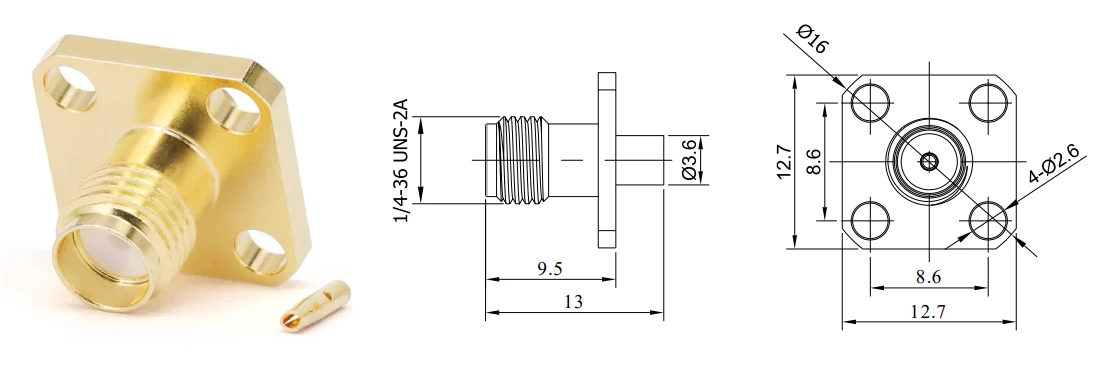

Sku |
Frequency |
Match cable |
Strip size |
|

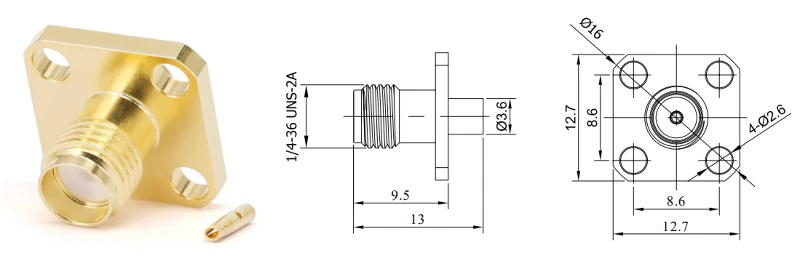

FR2-SMA-KFB3 |
DC-18GHz |
.141'' Series |
|
| SMA Coax Connectors | |||
 |
|||
|

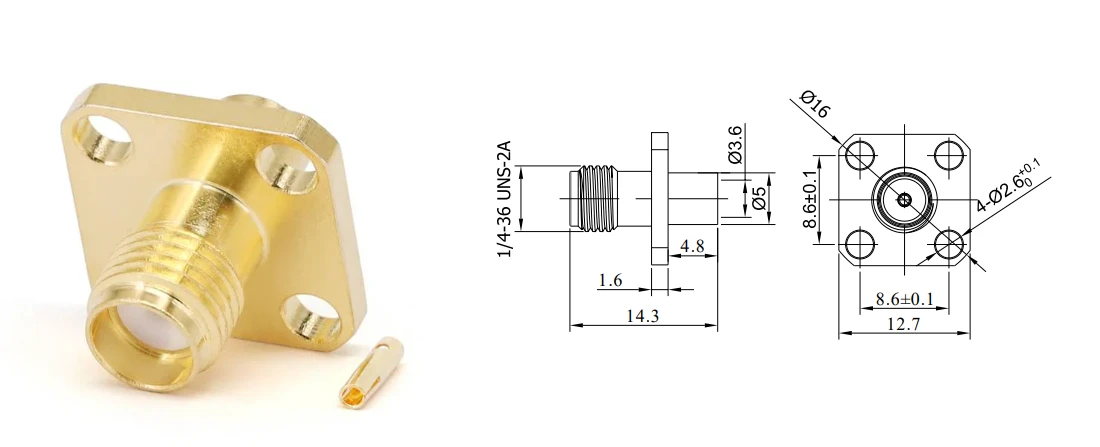

Sku |
Frequency |
Match cable |
Strip size |
|
FR2-SMA-KFB2 |
DC-18GHz |
.086'' Series |
|
 |
|||
|

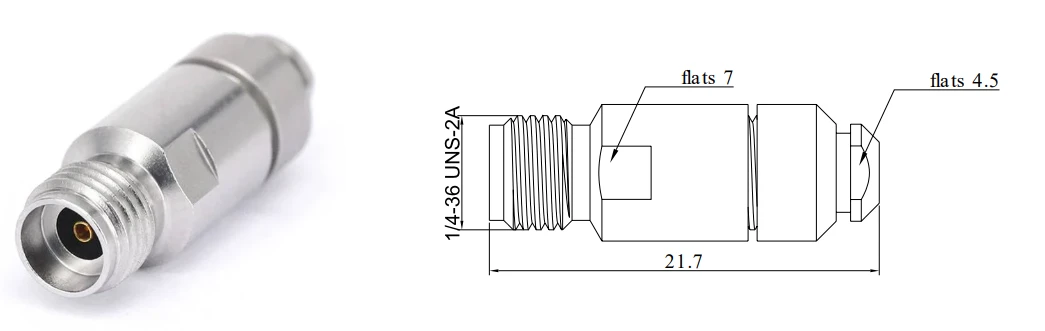

Sku |
Frequency |
Match cable |
Strip size |
|
FR2-SMA-KB3 |
DC-18GHz |
.141'' Series |
|
|
|
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|

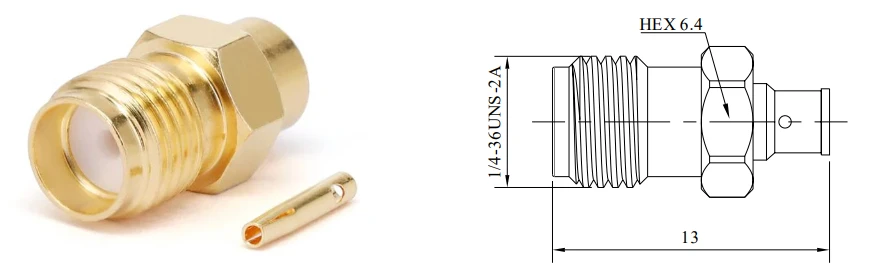

FR2-SMA-KB2 |
DC-18GHz |
.086'' Series |
|
| 2.92mm Coax Connectors | |||
|
|
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|
FR2-2.92-JB2-1 |
DC-40GHz |
.086'' Series |
|
|
|
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|

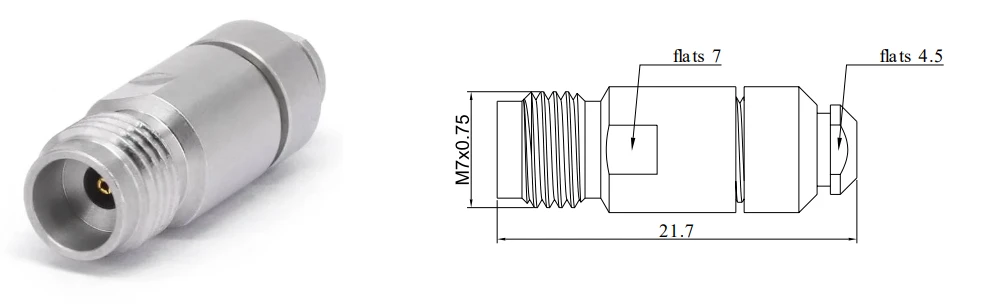

FR2-2.92-KB2 |
DC-40GHz |
.086'' Series |
|
|
|
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|

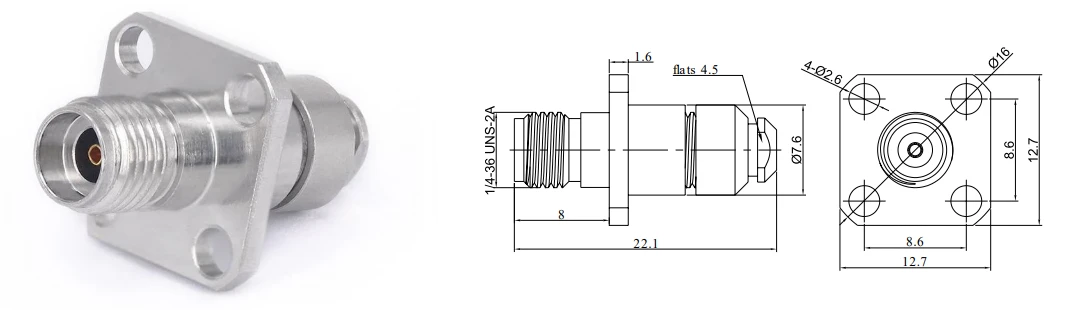

FR2-2.92-KFB2 |
DC-40GHz |
.086'' Series |
|
| 2.4mm Coax Connectors | |||
|
|
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|

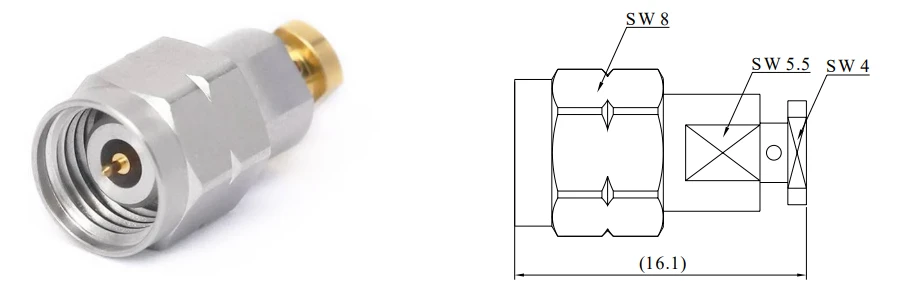

FR2-2.4-JB2-1 |
DC-50GHz |
.086'' Series |
|
|
|
|||
|

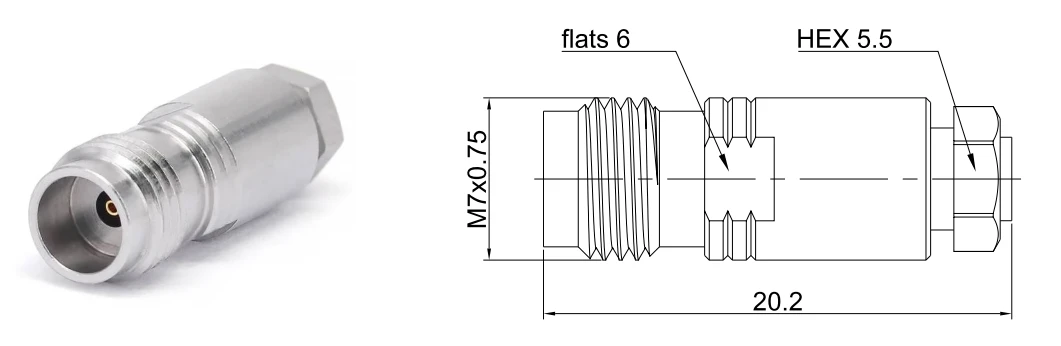

Sku |
Frequency |
Match cable |
Strip size |
|
FR2-2.4-KB2 |
DC-50GHz |
.086'' Series |
|
|
|
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|
FR2-2.4-KFB2 |
DC-50GHz |
.086'' Series |
|
| 1.85mm Coax Connectors | |||
 |
|||
|

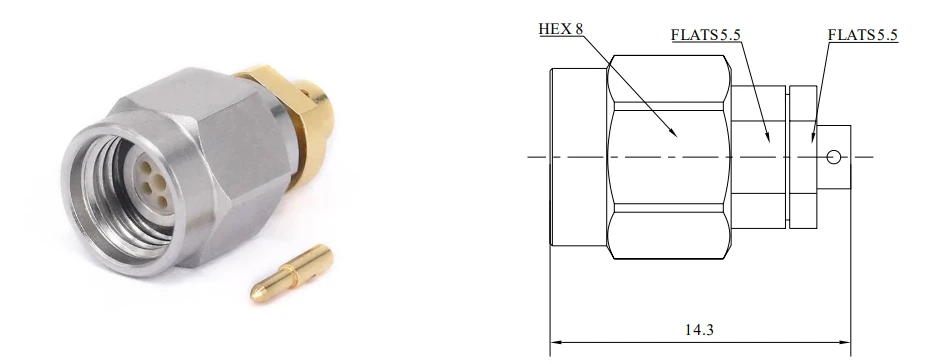

Sku |
Frequency |
Match cable |
Strip size |
|

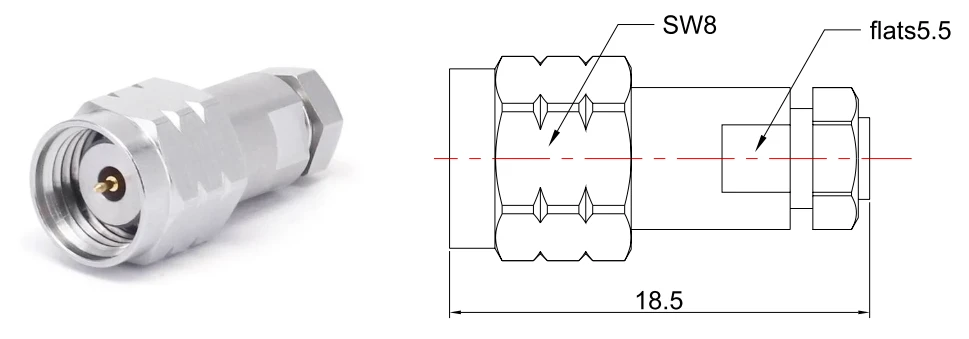

FR2-1.85-JB2S |
DC-67GHz |
.086'' Series |
|
 |
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|
FR2-1.85-KB2 |
DC-67GHz |
.086'' Series |
|
| GPO(SMP)Coax Connectors | |||
 |
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|

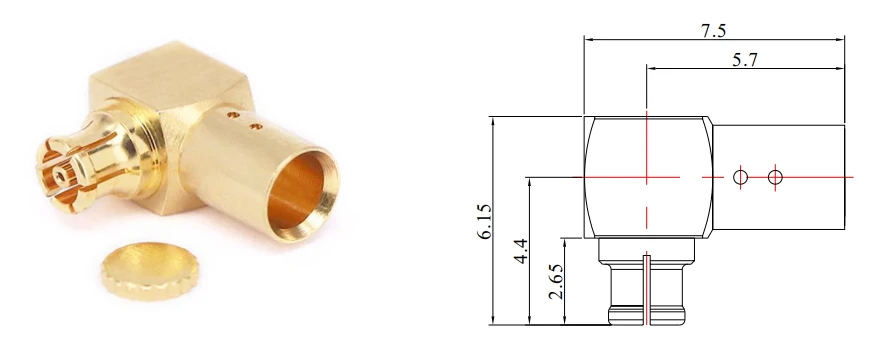

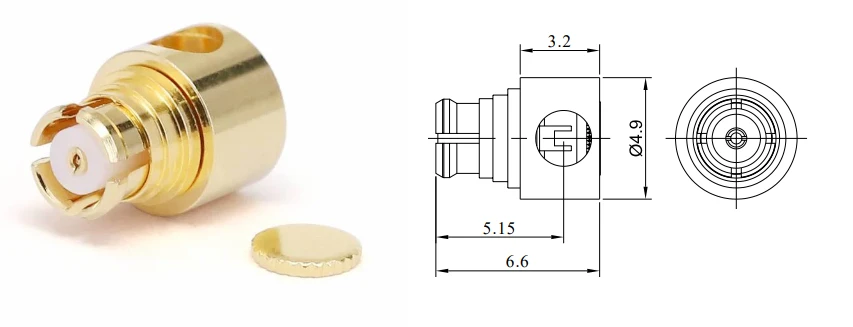

FR2-GPO-KWB2 |
DC-26.5GHz |
.086'' Series |
|
 |
|||
|

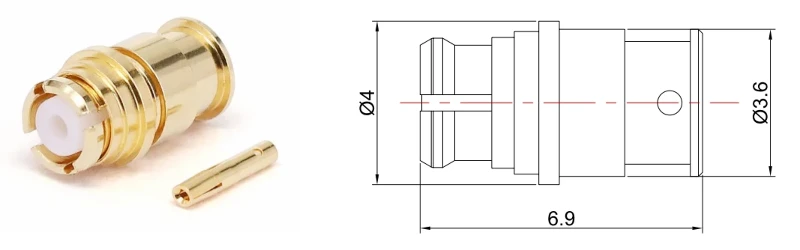

Sku |
Frequency |
Match cable |
Strip size |
|

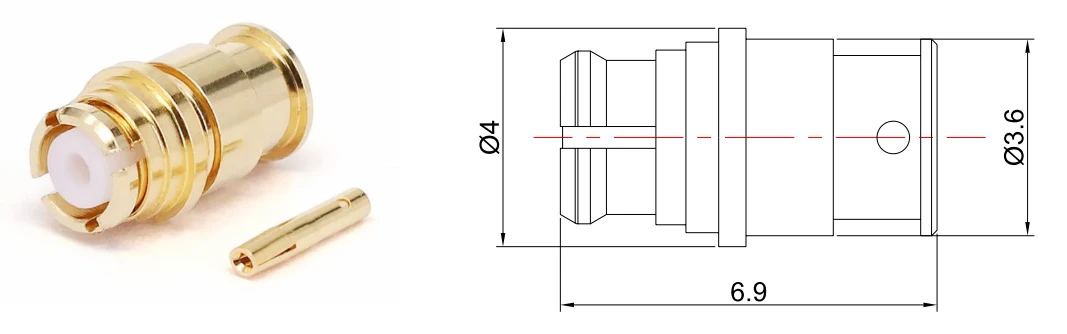

FR2-GPO-KB2 |
DC-40GHz |
.086'' Series |
|
 |
|||
|

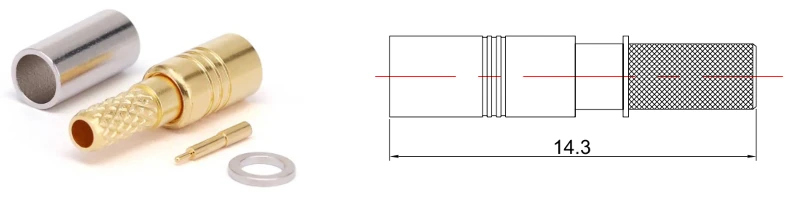

Sku |
Frequency |
Match cable |
Strip size |
|

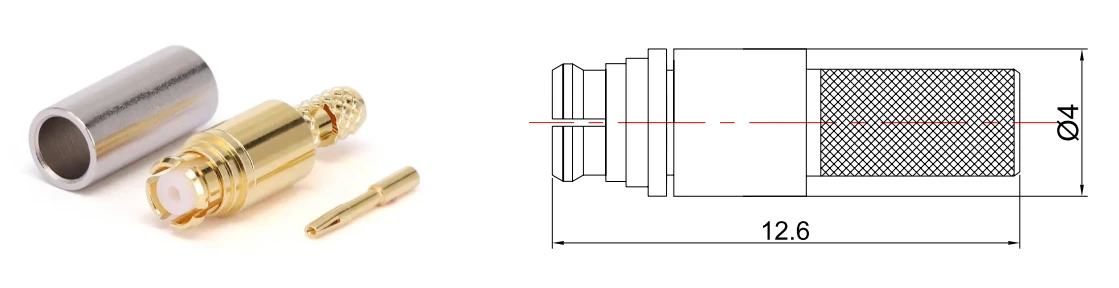

FR2-GPO-K3 |
DC-3GHz |
RG316, RG316D |
|
 |
|||
|

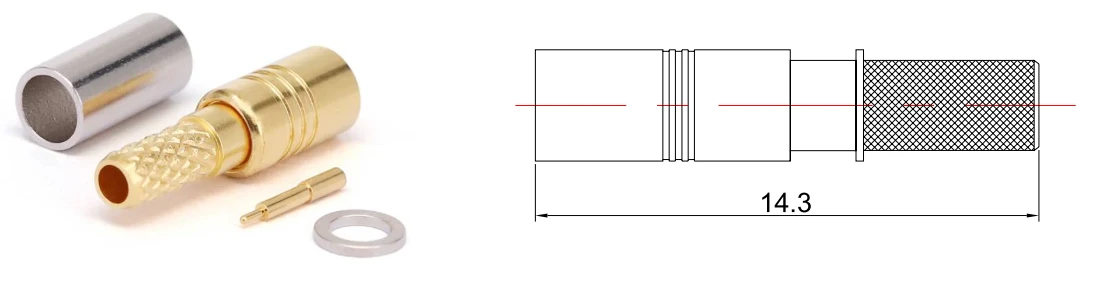

Sku |
Frequency |
Match cable |
Strip size |
|
FR2-GPO-J3 |
DC-3GHz |
RG316, RG316D |
|
| GPPO(Mini-SMP) Coax Connectors | |||
 |
|||
|

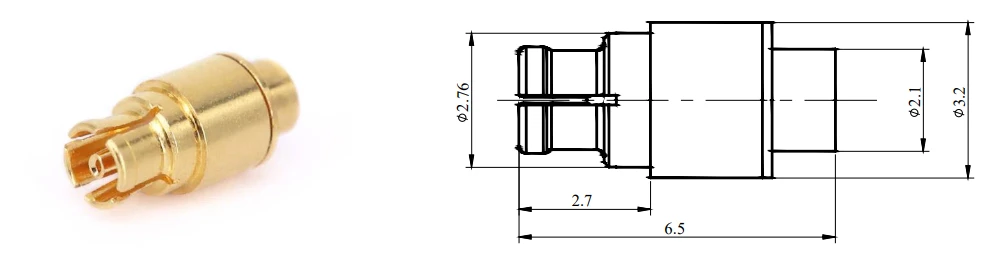

Sku |
Frequency |
Match cable |
Strip size |
|
FR1-GPPO-KB1 |
DC-65GHz |
.047'' Series |
|
 |
|||
|

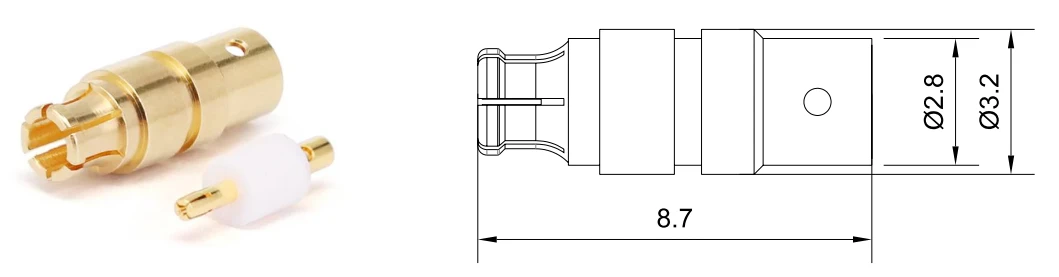

Sku |
Frequency |
Match cable |
Strip size |
|
FR2-GPPO-KB2-3 |
DC-65GHz |
.086'' Series |
|
 |
|||
|
Sku |
Frequency |
Match cable |
Strip size |
|
FR2-GPPO-KWB2 |
DC-50GHz |
.086'' Series |
|
