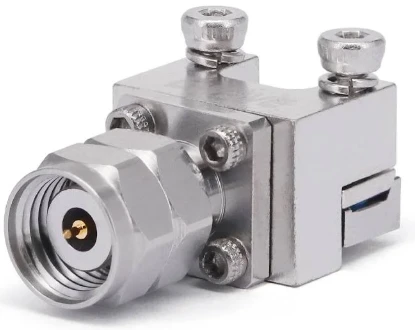

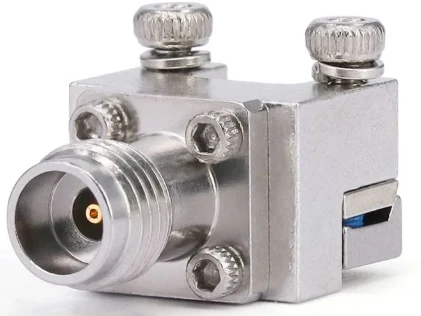

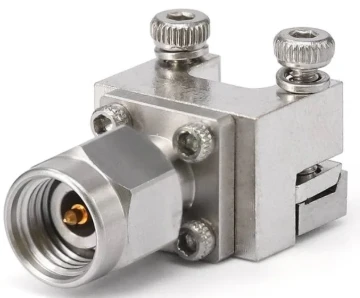

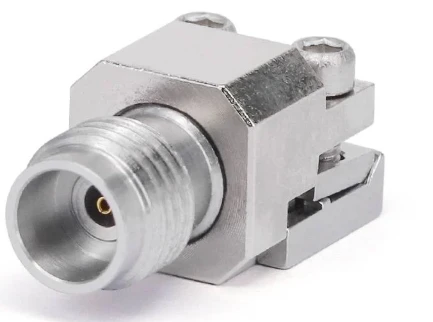

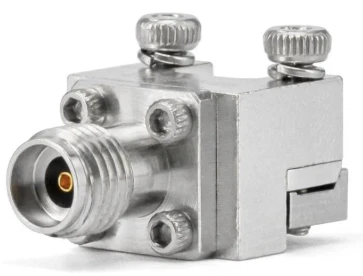

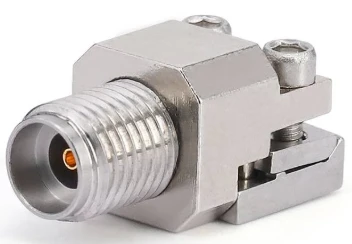

End Launch Connectors
FlexiRF’S End launch connectors, available in SMA , 2.92mm, 2.4mm, 1.85mm, and 1.0mm variants, are designed to meet the most demanding requirements in high - frequency applications.
These End launch connectors feature exceptional electrical peRFormance. With their precision - engineered design, they can support frequencies up to extremely high levels.
Description
Product introduction
FlexiRF's End Launch Connectors stand out as premium components engineered to meet the rigorous demands of high-frequency scenarios. Available in SMA, 2.92mm, 2.4mm, 1.85mm, and 1.0mm variants, these connectors deliver exceptional performance, making them indispensable in cutting-edge industries.
Outstanding Electrical Performance
Precision-engineered for excellence, these connectors support extremely high frequencies. The 2.92mm variant handles up to 40GHz, the 2.4mm reaches 50GHz, the 1.85mm excels at 65GHz, and the 1.0mm pushes the limit to 110GHz. With a standard impedance of 50 Ohms and impressive VSWR (Voltage Standing Wave Ratio) performance-1.25 for SMA connectors and 1.30 for 2.92mm/2.4mm connectors, 1.35 for 1.85mm connectors-they ensure minimal signal loss and reliable signal transmission. The low insertion loss further enhances their electrical efficiency, making them ideal for applications where signal integrity is paramount.
Robust Construction & Design
Crafted with high-quality materials, the connectors boast a durable Brass Tri-Metal Plated body, ensuring long-lasting performance even in harsh environments. The center contact is made of CuBe with Gold Plating for optimal conductivity, while the outer contact is constructed from Stainless Steel for added strength. The dielectric material options of PEEK/PTFE contribute to stable electrical performance across a wide temperature range of -55℃ to +165℃.

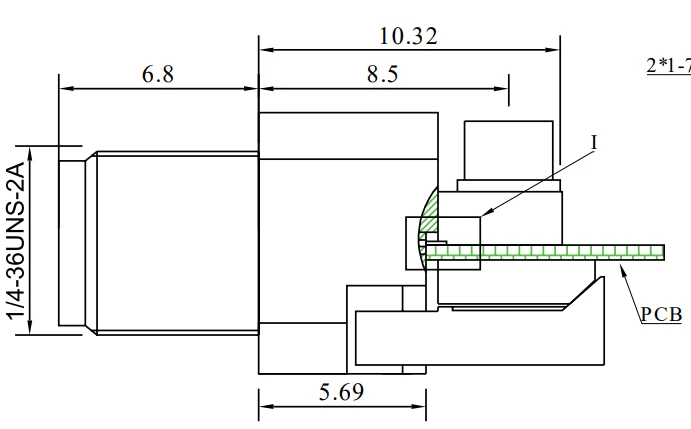

Designed as solderless end launch connectors for PCBs, they feature center pins with diameters of 0.23mm, 0.30mm, and 0.51mm to accommodate different application needs. Their compact and lightweight design, combined with a 2-hole flange mounting method (with standard mounting hole spacing of 9.5mm, and 5.84mm for specific models), makes them perfect for applications where space and weight are critical constraints, such as military and space RF industries.
Procurement FAQ
Product Specification Data
|
Configuration |
|
| Connector Type |
SMA/2.92mm/2.4mm/1.85mm |
|
Connector Impedance |
50 Ohms |
|
Connector Polarity |
Standard |
|
Connector Mount Method |
2 Hole Flange |
|
Connector 2 Interface Type |
0.30mm / 0.51mm Pin |
|
Attachment Method |
Contact |
|
Materials Information |
|
|
Center Contact |
CuBe Gold Plated |
|
Outer Contact |
Stainless Steel |
|
Body |
Brass Trimetal Plated |
|
Dielectric |
PEEK/PTFE |
|
Environmental Data |
|
|
Temperature Range |
-55℃ to +165℃ |
|
2011/65/EU(RoHS) |
Compliant |
Product Type
|
Connector Type |
Drawing |
Sku |
Pin Diameter |
Frequency |
VSWR |
Mounting Hole Spacing |
|
|

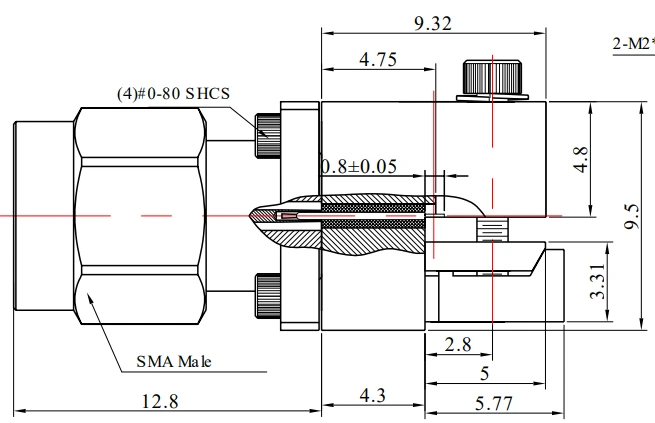

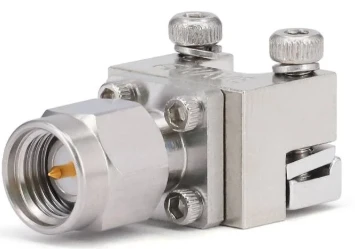

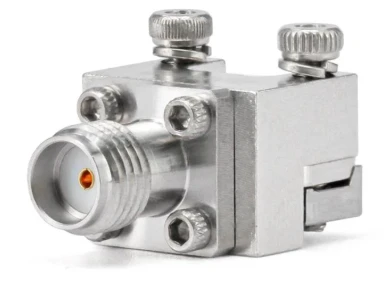

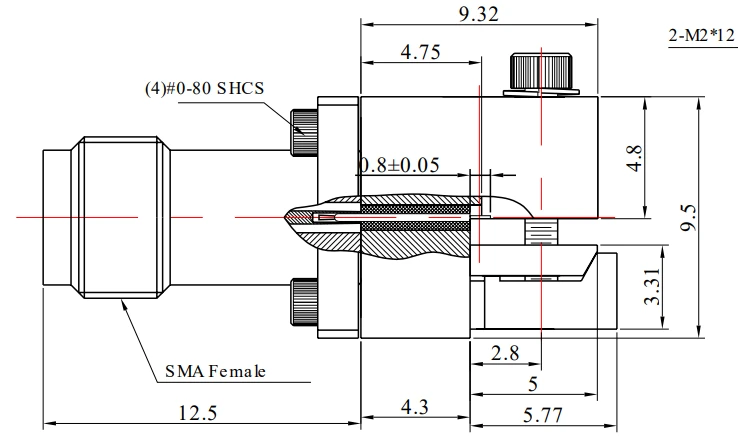

SMA |
|
|
FR2-SMA-KFD0830 |
0.30mm |
DC-26.5GHz |
1.25 |
9.5mm |
|
FR2-SMA-KFD0851 |
0.51mm |
DC-26.5GHz |
1.25 |
9.5mm |
|||
|
|
|
FR2-SMA-JFD0830 |
0.30mm |
DC-26.5GHz |
1.25 |
9.5mm |
|
|
FR2-SMA-JFD0851 |
0.51mm |
DC-26.5GHz |
1.25 |
9.5mm |
|||
|
Connector Type |
Drawing |
Sku |
Pin Diameter |
Frequency |
VSWR |
Mounting Hole Spacing |
|
|

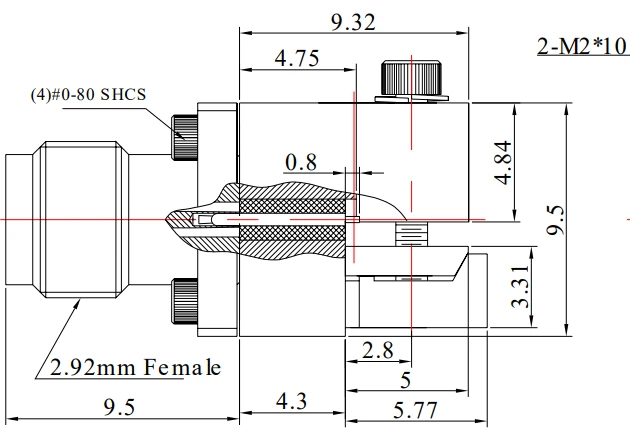

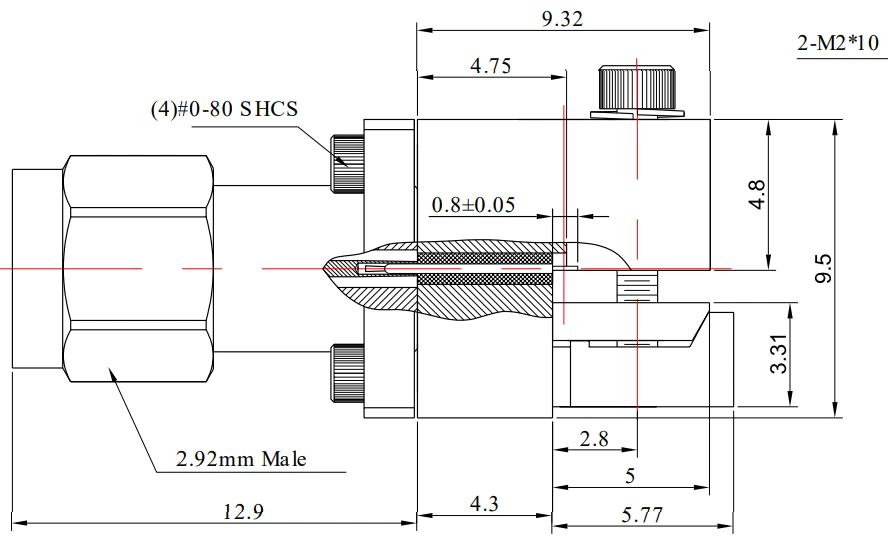

2.92mm |
|
|
FR2-2.92-KFD0830 |
0.30mm |
DC-40GHz |
1.30 |
9.5mm |
|
FR2-2.92-KFD0851 |
0.51mm |
DC-40GHz |
1.30 |
9.5mm |
|||
|
|
|
FR2-2.92-KFD0923 |
0.23mm |
DC-40GHz |
1.30 |
5.84mm |
|
|
|
|
FR2-2.92-JFD0830 |
0.30mm |
DC-40GHz |
1.30 |
9.5mm |
|
|
FR2-2.92-JFD0851 |
0.51mm |
DC-40GHz |
1.30 |
9.5mm |
|||
|
Connector Type |
Drawing |
Sku |
Pin Diameter |
Frequency |
VSWR |
Mounting Hole Spacing |
|
|

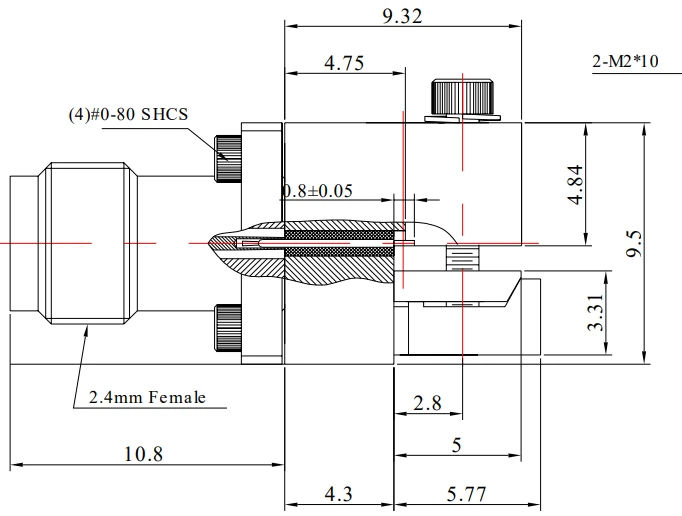

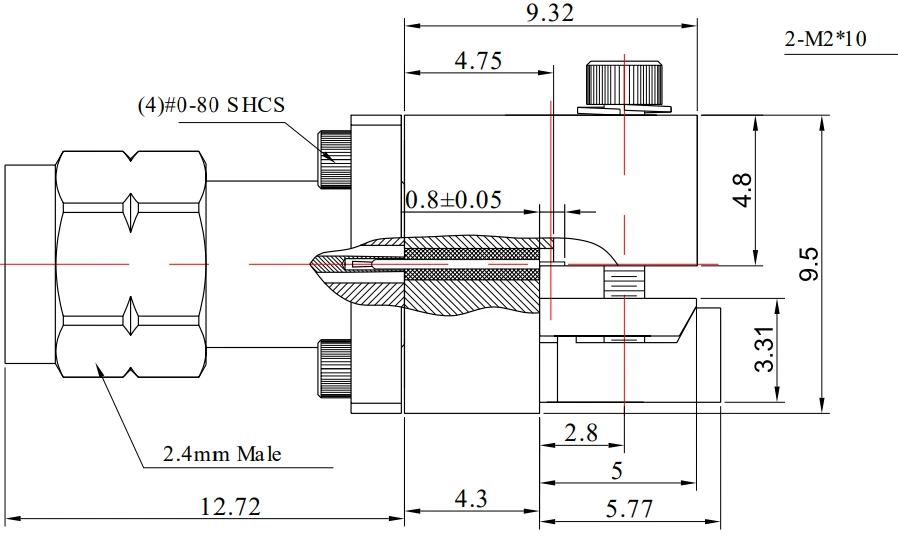

2.4mm |
|
|
FR2-2.4-KFD0830 |
0.30mm |
DC-50GHz |
1.30 |
9.5mm |
|
FR2-2.4-KFD0851 |
0.51mm |
DC-50GHz |
1.30 |
9.5mm |
|||
|
|
|
FR2-2.4-JFD0830 |
0.30mm |
DC-50GHz |
1.30 |
9.5mm |
|
|
FR2-2.4-JFD0851 |
0.51mm |
DC-50GHz |
1.30 |
9.5mm |
|||
|
Connector Type |
Drawing |
Sku |
Pin Diameter |
Frequency |
VSWR |
Mounting Hole Spacing |
|
|
1.85mm |
|
|
FR2-1.85-KFD0830 |
0.30mm |
DC-65GHz |
1.35 |
9.5mm |
|
FR2-1.85--KFD0851 |
0.51mm |
DC-65GHz |
1.35 |
9.5mm |
|||
|
|
|
FR2-1.85-KFD0923 |
0.23mm |
DC-65GHz |
1.35 |
5.84mm |
|
|
|
|
FR2-1.85--JFD0830 |
0.30mm |
DC-65GHz |
1.35 |
9.5mm |
|
|
FR2-1.85--JFD0851 |
0.51mm |
DC-65GHz |
1.35 |
9.5mm |
|||
