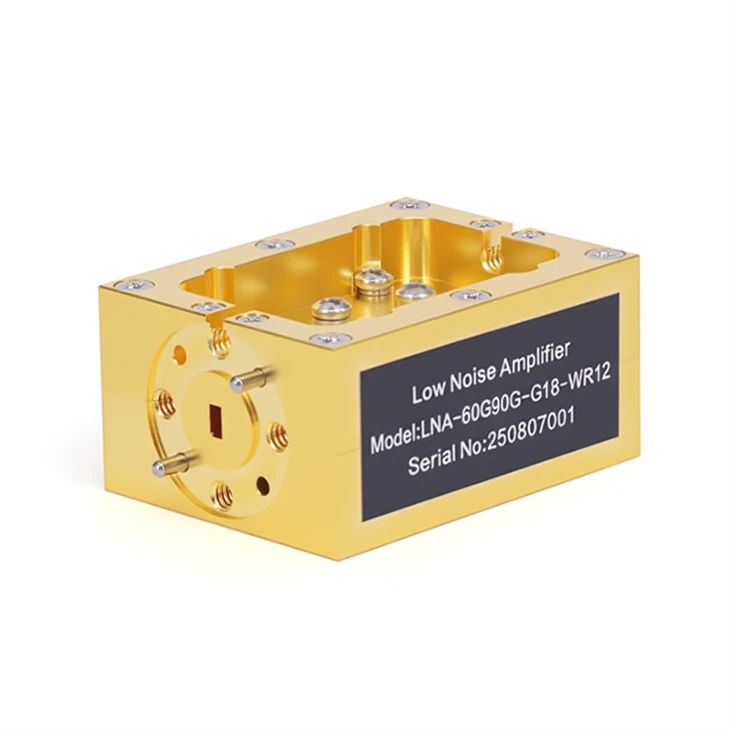

90GHz Low Noise Amplifiers

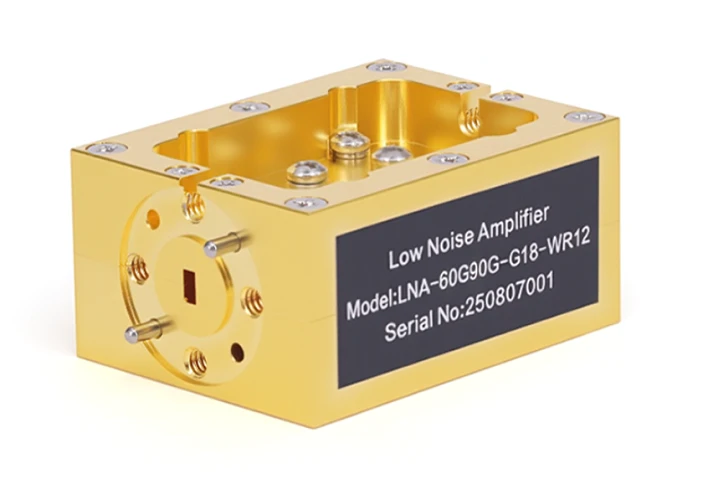

The LNA-60G90G-G18-WR12 launched by Flexi RF'S is a high-performance low noise amplifier (LNA) designed for the 60–90GHz frequency band. Tailored for scenarios like millimeter-wave communications, RF testing, and satellite reception, it effectively enhances the transmission quality of signal links with ultra-low noise and stable gain.

1. Frequency Range: Covers 60~90GHz millimeter-wave band
2. Gain: 18dB, effectively amplifies weak high-frequency signals
3. Low Noise Performance: Noise figure of only 5dB, reducing noise interference during signal amplification
4. Power Capacity: P-1dB (1dB compression point) reaches 8dBm, ensuring stable signal output capability
5. Impedance Matching: Maximum input/output VSWR (Voltage Standing Wave Ratio) of 3, ensuring efficient signal transmission
6. Power Supply Specifications: +6V operating voltage, 75mA operating current, low power consumption and compatible with common power supplies

• Connector Type: Uses WR12 (UG-387/U-M) millimeter-wave standard connector, compatible with same-spec RF links
• Operating Environment: Supports -20~50℃ wide temperature range, suitable for most indoor/outdoor equipment scenarios
• Material & Process: Brass body with gold plating, balancing structural stability and RF signal transmission performance

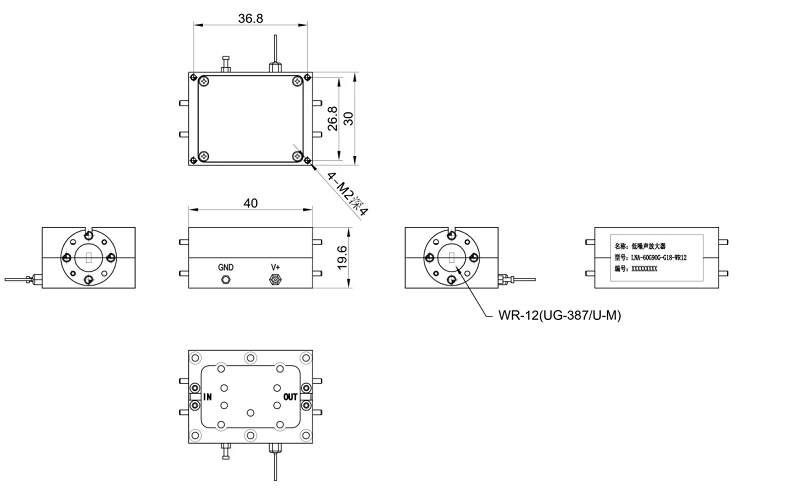

• Outline Dimensions: Processed according to drawing specifications (e.g., approx. 40×36.8×18.6mm in length/width/height), easy for device integration
