26.5GHz Waveguide To Coax Adapter

Flexi RF presents two WR-42 series 26.5G waveguide-to-coax adapters, delivering reliable signal transmission solutions for the 18-26.5GHz frequency band, ideal for high-frequency communications, test and measurement, and other professional applications.

Depending on the application scenarios, the adapters are classified into straight and right-angle types based on their structures, with their part numbers as follows:

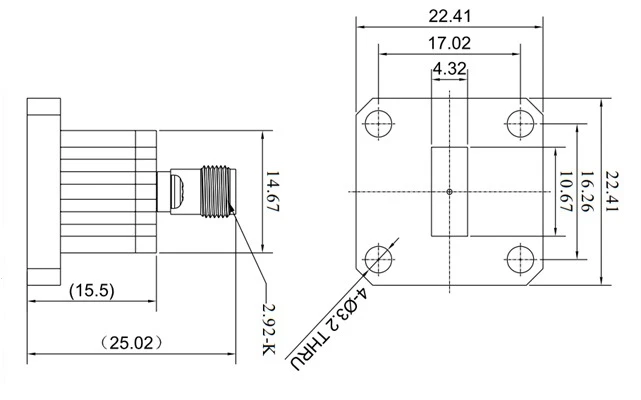

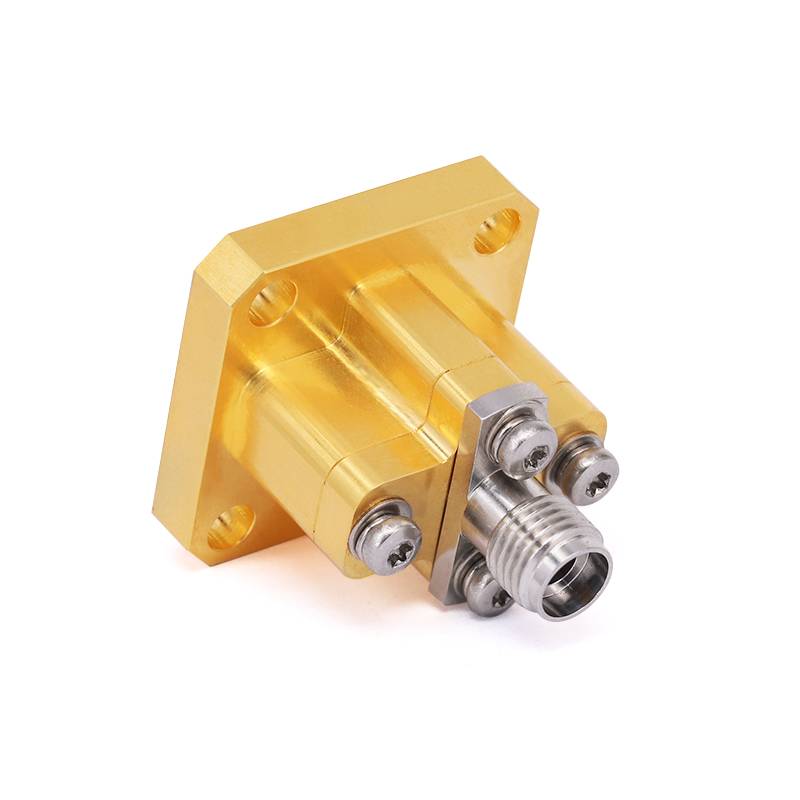

• Straight Type (Model: WR42/2.92-UBR220-K-T)

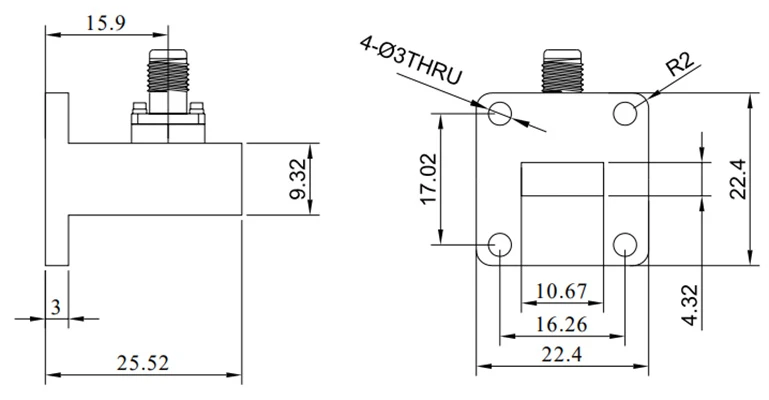

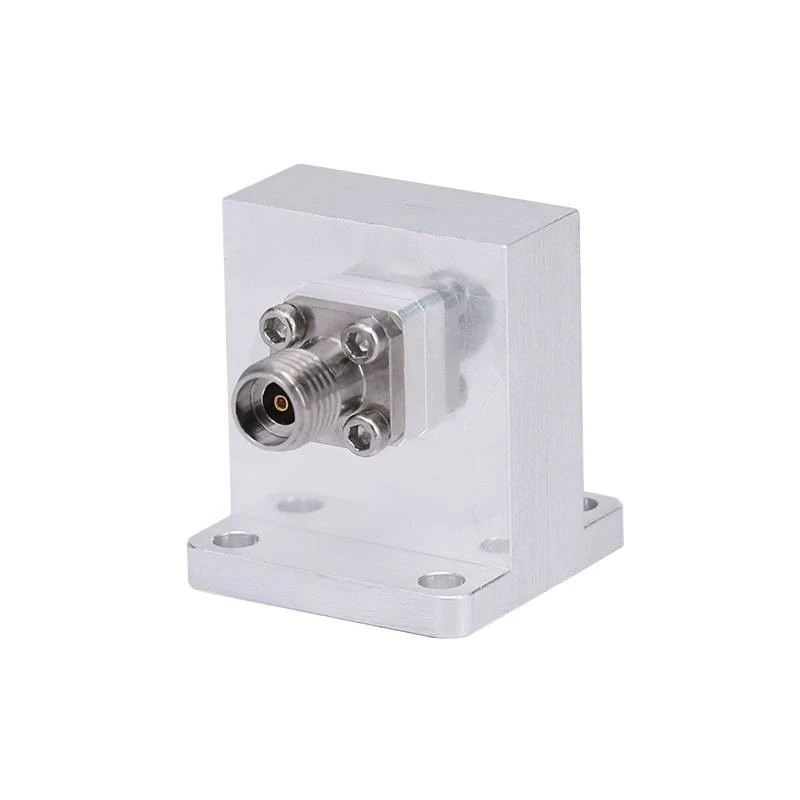

• Right Angle Type (Model: WR42/2.92-UBR220-K-V)
• Waveguide Size: WR-42
• Connector: 2.92mm Series, Standard Polarity, Female, 50Ω Impedance
• Flange: UBR220
• Electrical Performance: Insertion Loss ≤ 0.25dB; Frequency Range 18-26.5GHz
• Environmental: RoHS Compliant; Operating Temperature -55℃ to +125℃
• Material: Brass gold plating and Aluminum

1. Wide-Temperature Stable Operation: Both products have passed rigorous environmental testing, with an operating temperature range of -55℃ to +125℃. They can adapt to extreme high and low temperature working conditions, meeting the usage requirements of complex environments such as outdoor and industrial equipment.
2. Environmental Compliance: Strictly adhering to RoHS standards, the products are environmentally friendly, compliant with global environmental regulations, and suitable for various projects with high compliance requirements.
3. Brand Assurance: Manufactured by Flexi RF Inc., the brand boasts professional R&D capabilities and a comprehensive service system, providing technical support and after-sales guarantee for reliable product quality.
