Probe Calibration Kits: A Detailed Guide from Preparation to Maintenance

Probe calibration kits are critical tools in high-frequency electronic testing (such as RF, microwave, millimeter-wave, and terahertz applications). They eliminate systematic errors introduced by test probes, cables, and connectors. Proper use of these kits ensures accurate measurements of device-under-test (DUT) parameters, including impedance, S-parameters, and insertion loss. Below is a comprehensive guide covering everything from preparation to maintenance.

1. Understanding the Role of Probe Calibration Kits

Probe calibration kits consist of precision-engineered standards (e.g., short, open, load, thru, reflect, and transmission line standards) designed to characterize and correct errors in probe-based test systems. These errors include:



Reflection errors: Caused by impedance mismatches in probes, cables, or connectors.

Transmission errors: Attenuation or phase shifts in the signal path.

Contact-related errors: Poor electrical contact between probes and DUTs or calibration standards.



By measuring these known standards, test systems (e.g., vector network analyzers, VNAs) calculate an error model, which is then used to correct subsequent DUT measurements.

2. Laying the Foundation for Accurate Calibration

2.1 Controlling the Test Environment

Temperature and Humidity: Perform calibration in a stable environment (typically 23°C ± 2°C with 45–55% relative humidity). Temperature fluctuations cause material expansion or contraction, altering the electrical properties of probes and standards.

Cleanliness: Work in a dust-free area. Contaminants (dust, oils, flux residues) on probe tips or calibration standards degrade electrical contact quality and introduce measurement noise.

2.2 Inspecting Equipment

Probes: Check for physical damage (e.g., bent tips, worn contacts) or contamination. Clean tips gently using compressed air or lint-free wipes moistened with isopropyl alcohol.

Cables and Connectors: Inspect coaxial cables for kinks or damage; ensure connectors are clean and properly mated to prevent signal loss.

Calibration Kits: Verify that standards are undamaged (e.g., no scratches on load surfaces, no bent pins in thru standards).

2.3 Setting Up the System

Power on the VNA and test system at least 30 minutes before calibration to allow components to reach thermal stability.

Connect probes to the VNA via cables, ensuring tight (but not over-tightened) connections to prevent signal leakage.

3. Selecting the Appropriate Calibration Method

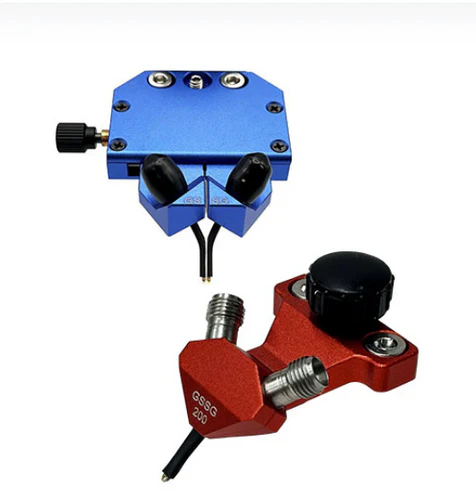

Probe calibration kits support multiple methods, chosen based on frequency range, probe type (e.g., GSG, SG), and DUT geometry:



Method	Key Standards	Frequency Range	Ideal Applications
SOLT	Short, Open, Load, Thru	DC–18 GHz	Coaxial probes, planar structures (PCBs)
TRL	Thru, Reflect, Line	10 GHz–110 GHz	High-frequency, non-coaxial structures (e.g., waveguides, microstrips)
LRM	Line, Reflect, Match	1 GHz–40 GHz	Balanced probes, asymmetric structures

4. Detailed Calibration Steps

4.1 Mounting Calibration Standards

Secure the calibration kit's substrate (e.g., alumina, quartz) to a stable workbench and align it with the probe positioner. Ensure the substrate is flat to avoid probe tip misalignment.

4.2 Positioning Probes Correctly

Use a microscope to align probe tips with the pads of calibration standards (e.g., short pads, open pads).

Apply light, uniform pressure to ensure good electrical contact without damaging standards or probes. Excessive pressure deforms pads, while insufficient pressure causes intermittent connections.

4.3 Executing Calibration via VNA

Launch the VNA's calibration software and select the chosen method (e.g., SOLT).

Follow prompts to measure each standard sequentially:

Short: A theoretically perfect short (0 Ω) to characterize reflection at the probe tip.

Open: A structure with infinite impedance (e.g., an air gap) to measure fringing fields.

Load: A 50 Ω load to calibrate for signal loss.

Thru: A direct connection between probe pairs to calibrate transmission paths.

The VNA calculates error terms (e.g., reflection tracking, transmission tracking, isolation) and stores them for real-time correction.

5. Common Mistakes to Avoid

Neglecting environmental factors: Calibrating in poorly ventilated or high-temperature environments causes thermal drift.

Dirty standards or probes: Contaminants act as parasitic resistors/capacitors, distorting results.

Excessive probe pressure: Damages probe tips and standard pads, leading to permanent errors.

Conclusion

Proper use of probe calibration kits is fundamental to reliable electronic testing. By following strict preparation protocols, selecting appropriate methods, executing precise calibration steps, and maintaining standards, engineers ensure measurements accurately reflect DUT characteristics-critical for designing high-performance RF, microwave, and millimeter-wave devices.
