RF Switches Types

RF Switches, namely radio frequency switches, are a crucial category of components in the field of electronic circuits, mainly used to control the flow direction of radio frequency (RF) signals in the circuit. Their core function lies in the ability to switch between different signal paths. They can select specific signals from multiple input signals, direct the signals to different target positions, and even regulate the power level of the signals. Flexirf is a direct manufacturer of RF Switches, ensuring both the price and quality as well as the delivery time. It offers a rich variety of product specifications, providing numerous options for selection.

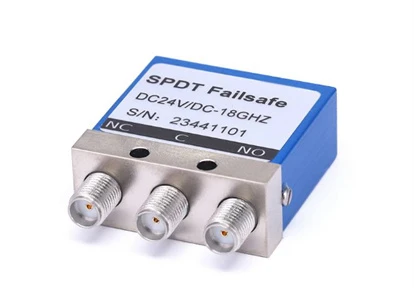

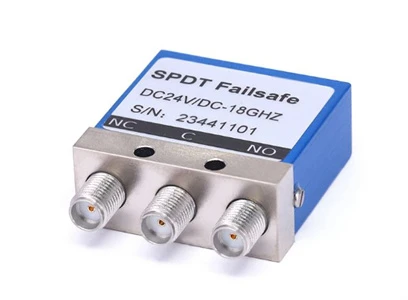

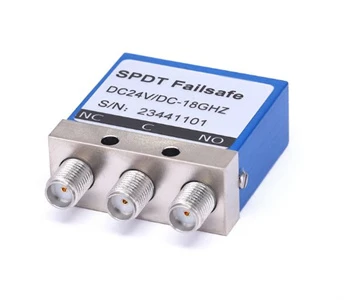

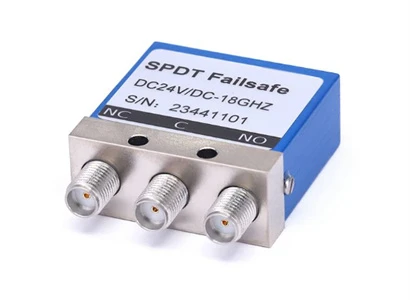

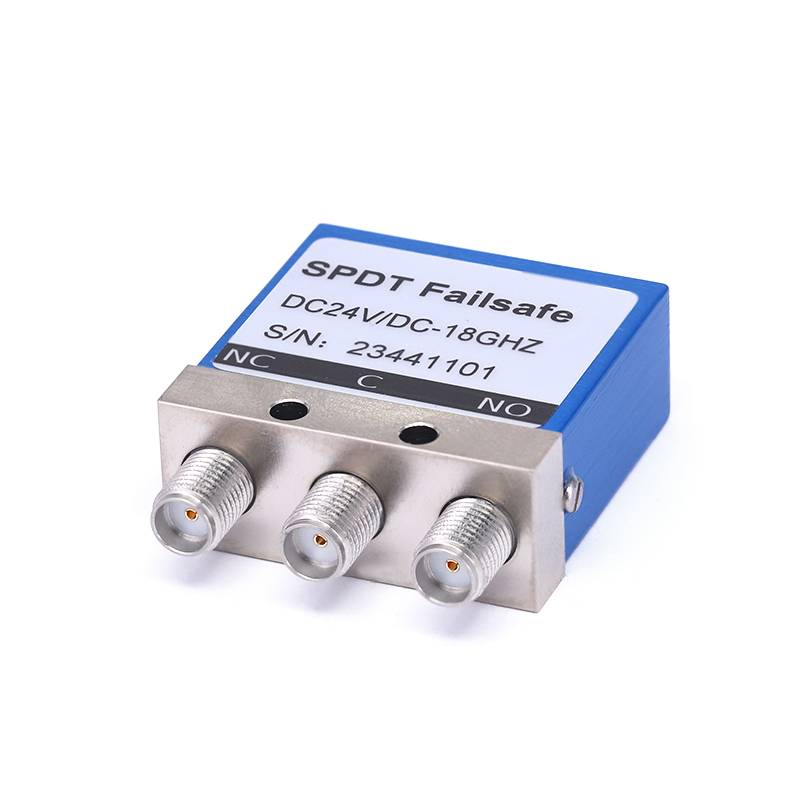

1. Single Pole, Double Throw (SPDT): It has one input port and two output ports, and is capable of switching the input signal to one of the two different output paths. It's like a fork in the road, allowing you to choose to direct the signal either to the left or to the right. For example, in some simple communication devices, it is used to switch between the transmitting and receiving paths of the signal.
2. Single Pole, Three Throw (SP3T): With one input port corresponding to three output ports, it can switch the input signal to one of the three different output paths. It can be applied to more complex signal selection scenarios, such as selecting the signal output of different frequency bands in multi-band communication devices.
3. Single Pole, Four Throw (SP4T) and switches with even more throws: By the same token, as the number of throws increases, the number of switchable output paths grows, satisfying more intricate signal routing needs. For instance, it might be employed in the signal distribution systems of large communication base stations. Such as SP8T, SP16T and so on.

• Satellite TV receivers: Utilize RF switches to switch the reception of different satellite signals, enabling the selection of multiple channels and ensuring the stable reception of signals.
• Testing and measurement equipment: In radio frequency and microwave testing systems, RF switches are used to route signals between the instruments and the devices under test (DUT).
• Aerospace field: In systems such as aircraft communication, navigation, and satellite signal processing, RF switches are employed to control the routing and switching of signals due to their high reliability and stable performance in complex electromagnetic environments.
