60GHz Low Noise Amplifiers

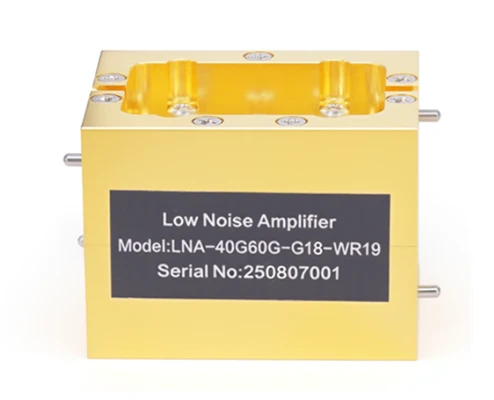

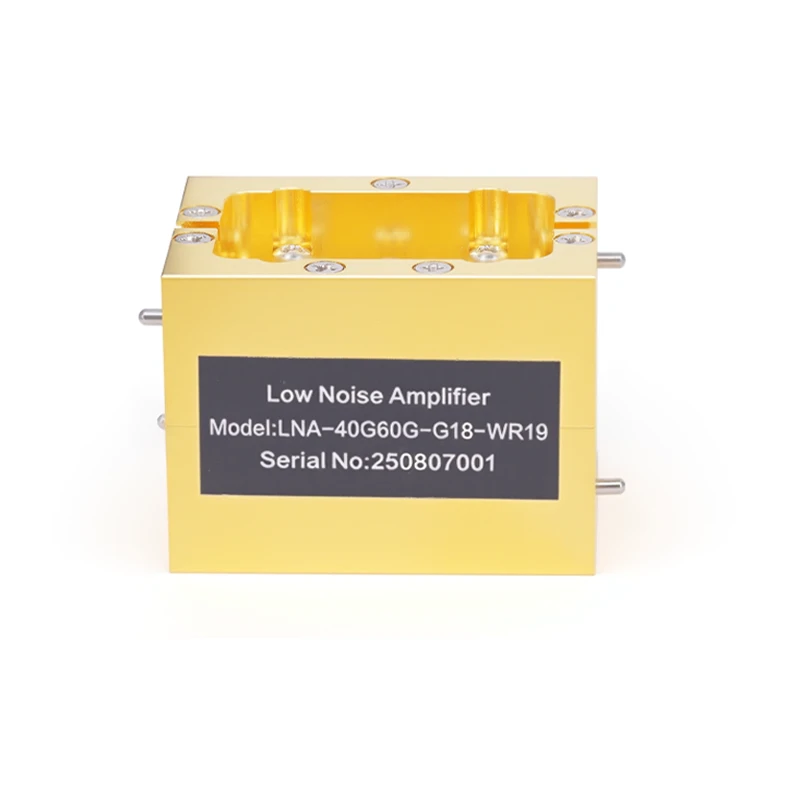

Flexi RF'S WR19 Low Noise Amplifier (LNA), Sku LNA-40G60G-G18-WR19, is a high-performance RF amplification device designed for the 40–60GHz frequency band. Tailored for scenarios like microwave communications, radar, and test & measurement, it combines low noise, high gain, and stable performance

1. Frequency Band & Gain: Covers the 40–60GHz millimeter-wave band, delivering a stable 18dB gain to meet signal amplification needs;
2. Low Noise Characteristic: Features a noise figure as low as 4dB, effectively reducing noise interference during signal transmission and ensuring signal purity;
3. RF Specifications: Input/output VSWR ≤ 3, and P-1dB output power up to 8dBm, balancing matching performance and output capability.
4. Interface Configuration: Adopts WR19 waveguide interfaces (both input and output are WR19, 50Ω impedance), compatible with waveguide transmission links in millimeter-wave systems;
5. Mechanical & Material: Constructed with brass body and gold-plated surface, offering both durability and RF performance; operating temperature range of -20~50℃, suitable for most indoor/outdoor environments;
6. Power Supply Parameters: Operates at +6V voltage with 96mA current, featuring low power consumption and compatibility with conventional power solution

Flexi RF not only provides high-performance products but also safeguards customers with "fast delivery + professional technology + 24/7 service":

• Delivery Efficiency: Supports Same Day Shipping to shorten project waiting cycles, especially suitable for urgent testing or system maintenance needs.
• Technical Support: Experienced RF Engineers provide online technical consultation covering the entire process of product selection, circuit matching, and troubleshooting, helping customers quickly solve application problems.
• Customer Service: Offers 7*24 Hours customer service to respond to order inquiries, logistics tracking, and after-sales issues at any time, ensuring service continuity.
