3.5mm RF Loads
The 3.5mm series RF loads terminations launched by Flexi RF, with their excellent electrical performance, robust mechanical structure, and wide environmental adaptability, are ideal choices for fields such as communications, test and measurement, and aerospace.
Description
Product introduction
The 3.5mm series RF loads terminations launched by Flexi RF, with their excellent electrical performance, robust mechanical structure, and wide environmental adaptability, are ideal choices for fields such as communications, test and measurement, and aerospace.
This 3.5mm series RF loads include two core products: the 3.5mm Male RF Load Termination (Part Number: FR3-3.5-J-03) and the 3.5mm Female RF Load Termination (Part Number: FR3-3.5-K-03). The two products are consistent in core performance and only differ in connector gender to complement each other, meeting connection needs in different scenarios. Both are priced at $24.90.
Excellent Performance and Structure
|
Parameter Category |
3.5mm Male (FR3-3.5-J-03) |
3.5mm Female (FR3-3.5-K-03) |
Remarks |
|
Product Identification |

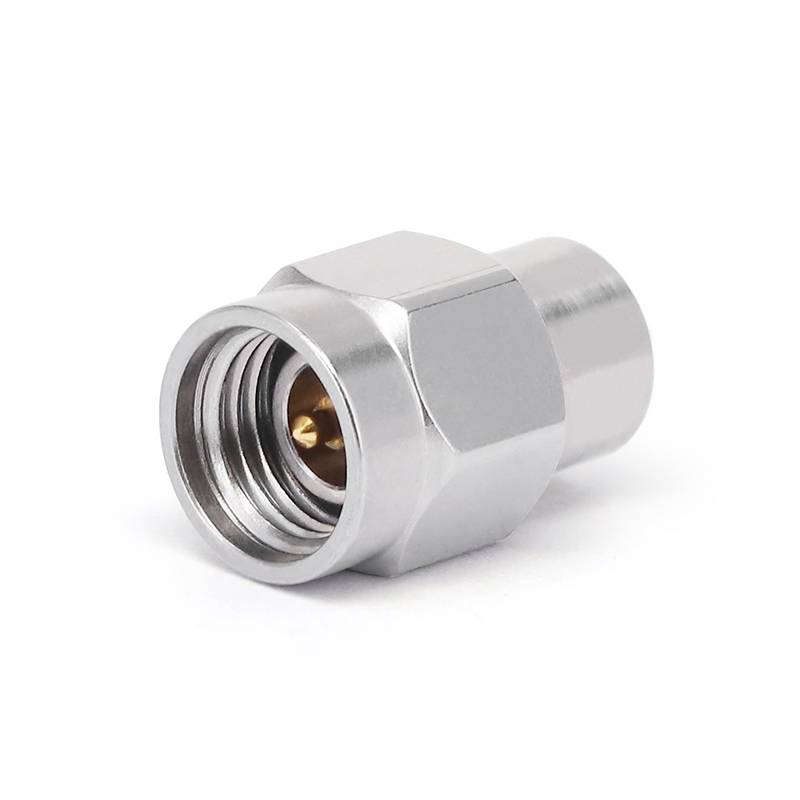

Part Number: FR3-3.5-J-03 Type: Male RF Load Termination |

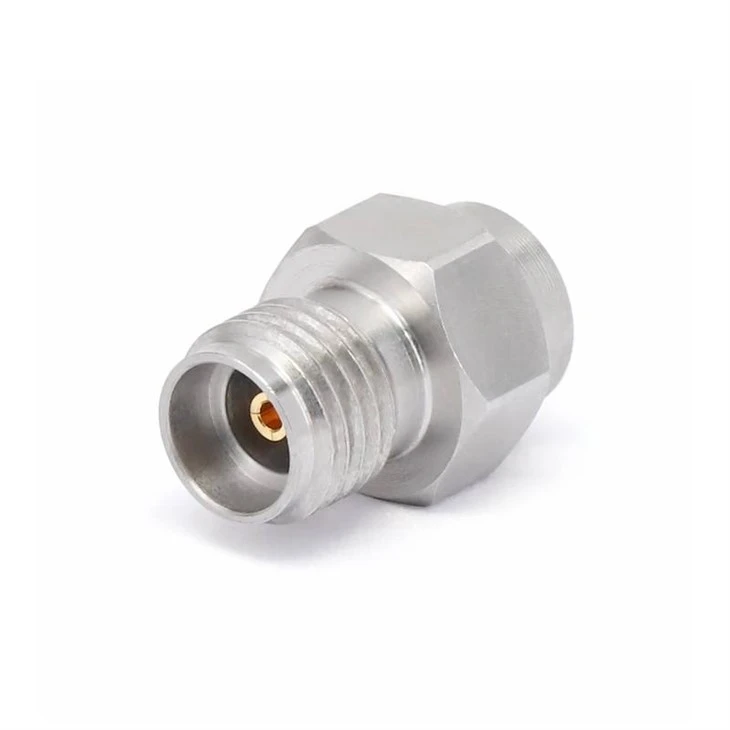

Part Number: FR3-3.5-K-03 Type: Female RF Load Termination |
Both support a maximum input power of 1W and a frequency range of DC-26.5GHz |
|
Connector Configuration |
Connector Series: 3.5mm Polarity: Standard Gender: Male Impedance: 50Ω |
Connector Series: 3.5mm Polarity: Standard Gender: Female Impedance: 50Ω |
The standard 50Ω impedance is compatible with mainstream RF systems, reducing signal reflection |
|
Electrical Specifications |
Frequency Range: DC-26.5GHz VSWR / Return Loss: 1.15 Max Input Power: 1W |
Frequency Range: DC-26.5GHz VSWR / Return Loss: 1.15 Max Input Power: 1W |
The low VSWR of 1.15 ensures efficient signal transmission and reduces power loss |
|
Mechanical Data |
Min. Mating Cycles: ≥500 Weight: 2.7g Body Material: Stainless Steel Body Plating: Passivated Dimensions (mm): SW8, 5.90, 12.7 |
Min. Mating Cycles: ≥500 Weight: 2.7g Body Material: Stainless Steel Body Plating: Passivated Dimensions (mm): HEX7.9, 5.90, 12.2 |
The passivated stainless steel material enhances corrosion resistance, and the lightweight design of 2.7g is suitable for compact spaces |
|
Environmental Specifications |
Operating Temperature: -55℃ to +125℃ RoHS Compliant: Yes MIL/STD: N/A Cryogenic: No Non-Magnetic: No |
Operating Temperature: -55℃ to +125℃ RoHS Compliant: Yes MIL/STD: N/A Cryogenic: No Non-Magnetic: No |
The wide temperature range of -55℃ to +125℃ covers multiple scenarios such as industrial and outdoor use, and RoHS compliance meets environmental requirements |
Brand and Service Support
Both products are designed and manufactured by Flexi RF Inc. (Santa Clara, California, USA). The brand has professional R&D capabilities for RF components and can provide customers with technical support and after-sales service. For further inquiries about product details, bulk purchases, or obtaining test reports, you can contact us through the following methods:
Telephone: (650)880-9199
Email: sales@flexirf.com
Official Website: www.flexirf.com
With "high performance, high reliability, and high adaptability" as the core, Flexi RF 3.5mm series RF load terminations provide stable solutions for signal control of RF systems and are the preferred components for various precision RF applications.
Product Type
|
3.5mm Loads |
||||
|
|
|
|||
|
Sku |
Connector Series |
Frequency |
VSWR |
Impedance (Ohm) |
|
FR3-3.5-J-03 |
3.5mm Male |
DC~26.5GHz |
1.15 |
50 |
|
Power, Max Input (Watts) |
Body Material |
Body Plating |
Pin Material |
Pin Plating |
|
1 |
Stainless Steel |
Passivated |
Brass |
Gold |
|
|
|
|||
|
Sku |
Connector Series |
Frequency |
VSWR |
Impedance (Ohm) |
|
FR3-3.5-K-03 |
3.5mm Female |
DC~26.5GHz |
1.15 |
50 |
|
Power, Max Input (Watts) |
Body Material |
Body Plating |
Pin Material |
Pin Plating |
|
1 |
Stainless Steel |
Passivated |
Beryllium copper |
Gold |
