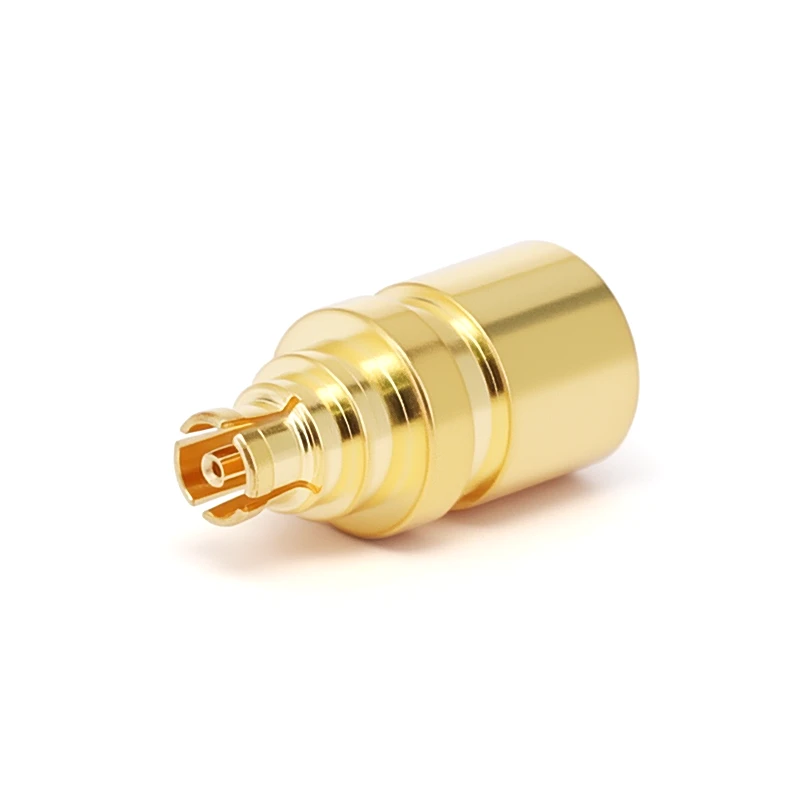

GPPO RF Loads

Flexi RF GPPO load boasts excellent frequency coverage, supporting a wide frequency range from DC to 40GHz, making it suitable for numerous high-frequency RF application scenarios. In terms of Voltage Standing Wave Ratio (VSWR), it performs exceptionally well. Some models feature a VSWR as low as 1.20 at 18GHz and only 1.40 at 40GHz, effectively ensuring efficient and stable signal transmission while reducing losses caused by signal reflection. Additionally, it has a standard impedance of 50 ohms, which conforms to the conventional impedance requirements of RF systems, guaranteeing the matching performance of signal transmission.

To meet different power requirements, GPPO loads offer flexible options. There are models with a maximum input power of 0.5 watts, suitable for low-power application scenarios; and models with a maximum input power of 1 watt, capable of handling working environments with slightly higher power, providing suitable power handling solutions for various RF system

The main body of the product is made of beryllium copper, which has high strength, high elasticity, and excellent electrical and thermal conductivity, laying a solid foundation for the mechanical and electrical performance of the load. Moreover, both the main body and pins adopt gold plating technology. The gold plating layer not only enhances electrical conductivity and reduces contact resistance but also effectively improves corrosion resistance and wear resistance, prolonging the service life of the product and ensuring long-term stable working conditions.
