2.4mm Adapter
The operating frequency range of the 2.4mm adapter is generally from DC to 50GHz. When the 2.4mm adapter is combined with ports such as 2.92mm, 3.5mm, SMP (GPO) and Mini-SMP (GPPO) to form an adapter, its frequency range can usually cover from 33GHz to 50GHz. For example, the 2.4mm to 2.92mm adapter combines the partial characteristics of the two types of connectors, enabling effective signal transmission and conversion within this frequency band.
Description
Product Introduction
The operating frequency range of the 2.4mm adapter is generally from DC to 50GHz. When the 2.4mm adapter is combined with ports such as 2.92mm, 3.5mm, SMP (GPO) and Mini-SMP (GPPO) to form an adapter, its frequency range can usually cover from 33GHz to 50GHz. For example, the 2.4mm to 2.92mm adapter combines the partial characteristics of the two types of connectors, enabling effective signal transmission and conversion within this frequency band.
Applications of 1.85mm RF connectors in various fields
5G Communication: The 5G network requires higher transmission speeds and larger bandwidths. The wide frequency band characteristic of the 2.4mm RF connector enables it to meet the requirements of various high-frequency communication and testing applications. It is widely used in fields such as 5G communication, millimeter-wave radar, and satellite communication.
Procurement FAQ
Product Specification Data
|
Configuration |
|
|
Connector 1 Type |
2.4mm |
|
Connector 1 Impedance |
50 Ohms |
|
Connector 1 Polarity |
Standard |
|
Connector 2 Type |
1.85mm/2.4mm/GPPO/GPO/2.92mm/3.5mm |
|
Connector 2 Impedance |
50 Ohms |
|
Connector 2 Polarity |
Standard |
|
Connector Mount Method |
None |
|
Adapter Body Style |
Straight/Right Angle/Bulkhead Mount/ 4 Hole Flange |
|
Materials Information |
|
|
Center Contact |
CuBe Gold Plated |
|
Outer Contact |
CuBe & Stainless Steel |
|
Body |
Stainless Steel |
|
Dielectric |
PEI |
|
Environmental Data |
|
|
Temperature Range |
-55℃ to +165℃ |
|
2011/65/EU(RoHS) |
Compliant |
Product Type
|
2.4mm RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-2.4-JJS |
|
|
DC-50GHz |
1.15 |
2.4mm Male to 2.4mm Male |
|
FR1-2.4-JKS |
|
|
DC-50GHz |
1.20 |
2.4mm Male to 2.4mm Female |
|
FR1-2.4-KKS |
|
|
DC-50GHz |
1.15 |
2.4mm Female to 2.4mm Female |
|

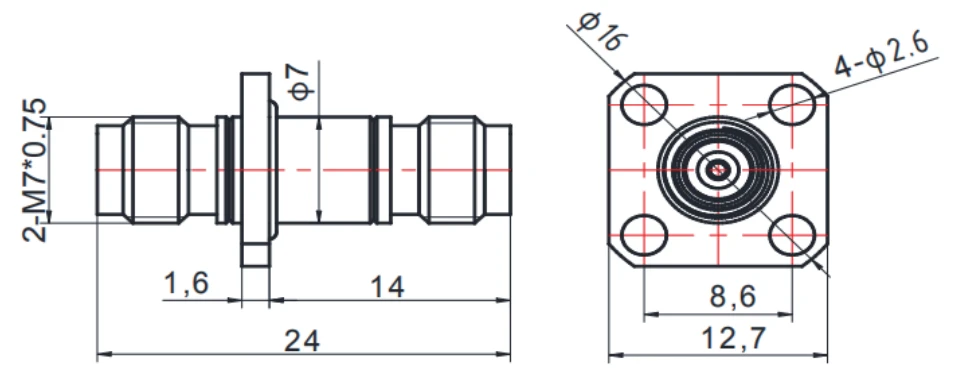

FR1-2.4-KFKG |
|
|
DC-50GHz |
1.25 |
2.4mm Female to 2.4mm Female with 4 Hole Flange |
|

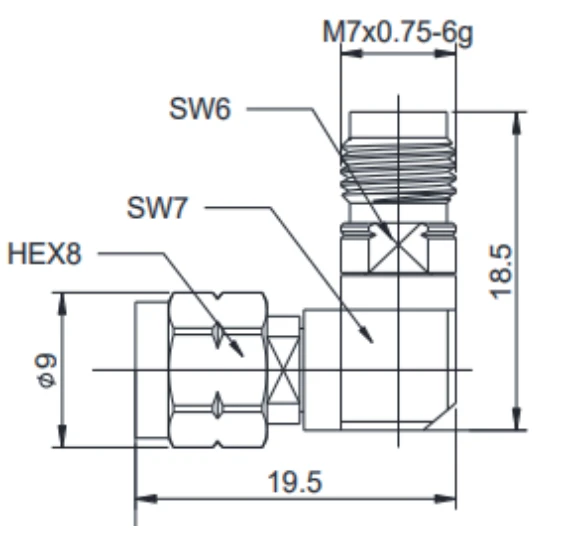

FR1-2.4-JWKS |
|
|
DC-50GHz |
1.25 |
2.4mm Male to 2.4mm Female with Right Angle |
|

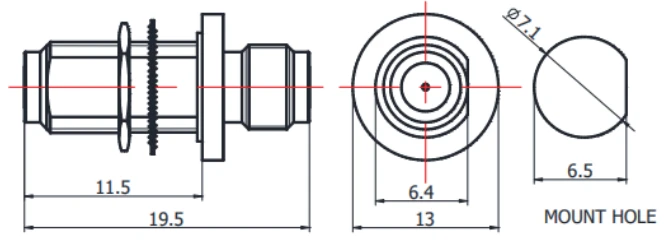

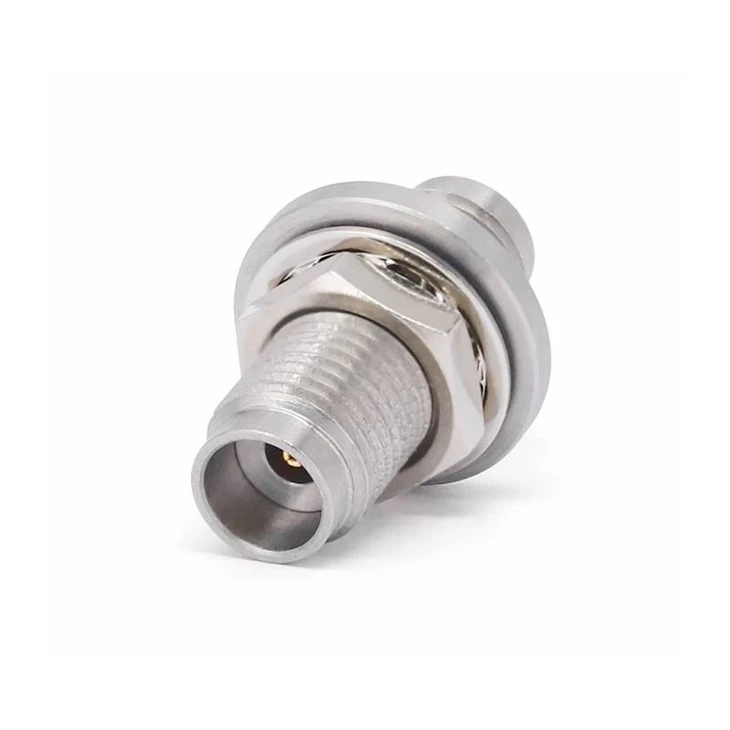

FR1-2.4-KYKG |
|
|
DC-50GHz |
1.25 |
2.4mm Female to 2.4mm Female with Bulkhead Mount |
|

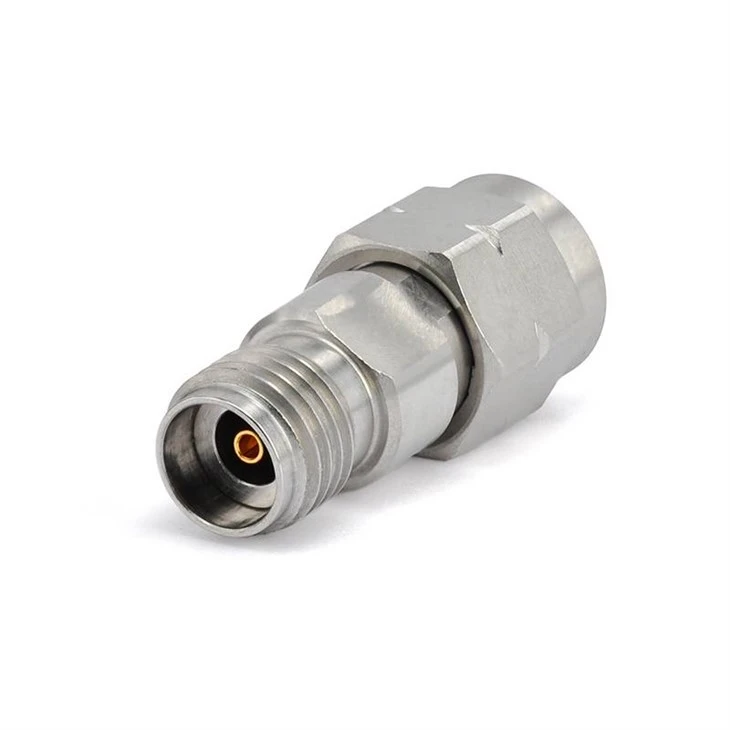

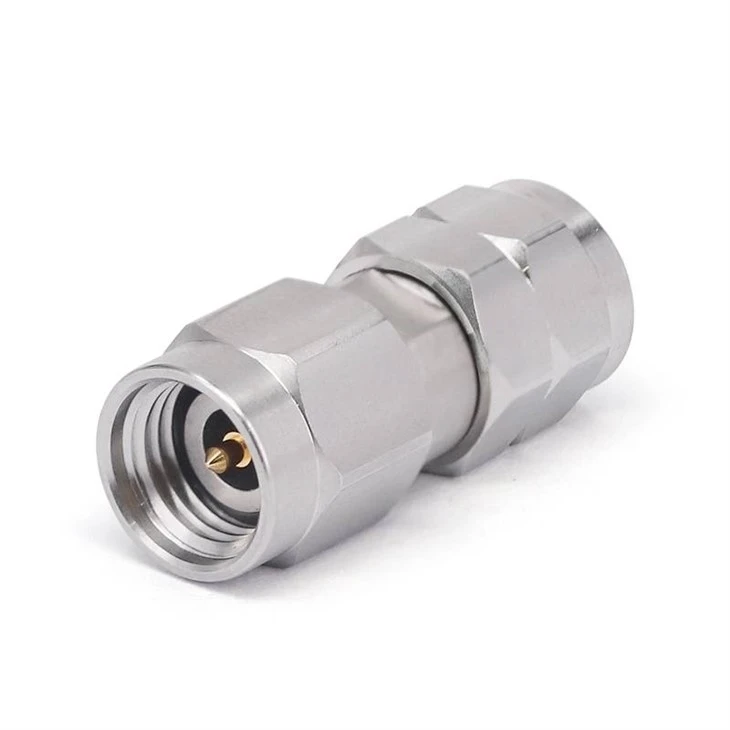

2.92mm to 2.4mm RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-2.92/2.4-JJS |
|
|
DC-40GHz |
1.15 |
2.92mm Male to 2.4mm Male |
|
FR1-2.92/2.4-KKS |
|
|
DC-40GHz |
1.15 |
2.92mm Female to 2.4mm Female |
|
FR1-2.92/2.4-JKS |
|
|
DC-40GHz |
1.15 |
2.92mm Male to 2.4mm Female |
|
FR1-2.92/2.4-KJS |
|
|
DC-40GHz |
1.15 |
2.92mm Female to 2.4mm Male |
|
FR1-2.92/2.4-JWJS |
|
|
DC-40GHz |
1.15 |
2.92mm Male to 2.4mm Male With Right Angel |
|

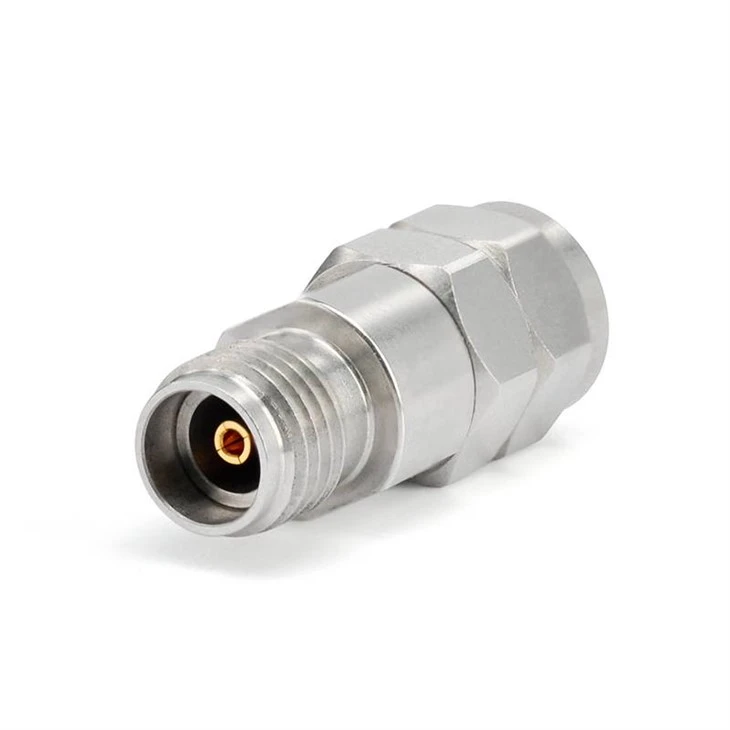

3.5mm to 2.4mm RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-3.5/2.4-JJS |
|
|
DC-33GHz |
1.15 |
3.5mm Male to 2.4mm Male |
|
FR1-3.5/2.4-KKS |
|
|
DC-33GHz |
1.15 |
3.5mm Female to 2.4mm Female |
|
FR1-3.5/2.4-JKS |
|
|
DC-33GHz |
1.15 |
3.5mm Male to 2.4mm Female |
|
FR1-3.5/2.4-KJS |
|
|
DC-33GHz |
1.15 |
3.5mm Female to 2.4mm Male |
|
1.85mm to 2.4mm RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-2.4/1.85-JJS |
|
|
DC-50GHz |
1.25 |
2.4mm Male to 1.85mm Male |
|
FR1-2.4/1.85-KKS |
|
|
DC-50GHz |
1.25 |
2.4mm Female to 1.85mm Female |
|
FR1-2.4/1.85-JKS |
|
|
DC-50GHz |
1.25 |
2.4mm Male to 1.85mm Female |
|
FR1-2.4/1.85-KJS |
|
|
DC-50GHz |
1.25 |
2.4mm Female to 1.85mm Male |
|

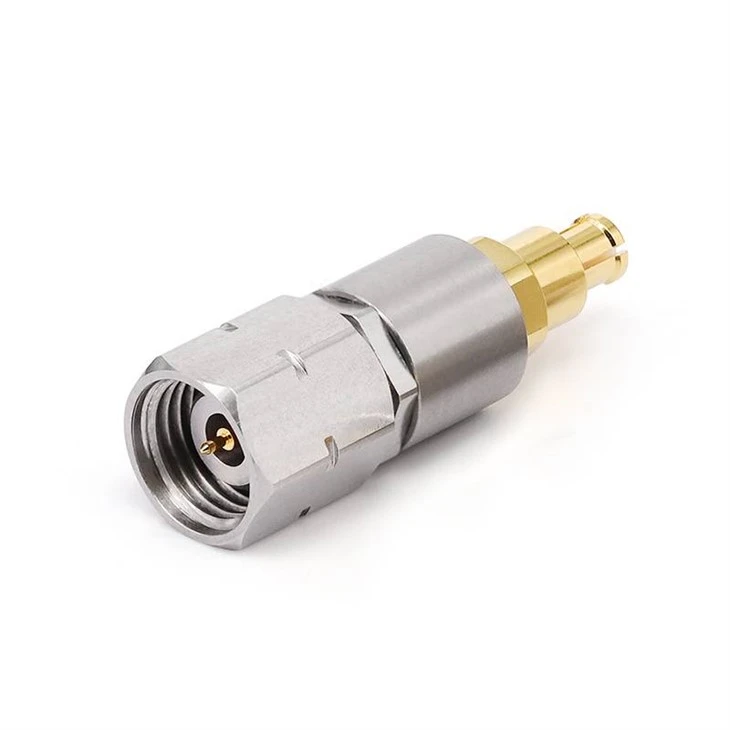

2.4mm to GPO (SMP) RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-2.4/GPO-JJ |
|
|
DC-40GHz |
1.25 |
2.4mm Male to GPO (SMP) Male |
|
FR1-2.4/GPO-KK |
|
|
DC-40GHz |
1.25 |
2.4mm Female to GPO (SMP) Female |
|
FR1-2.4/GPO-JK |
|
|
DC-40GHz |
1.25 |
2.4mm Male to GPO (SMP) Female |
|
FR1-2.4/GPO-KJ |
|
|
DC-40GHz |
1.25 |
2.4mm Female to GPO (SMP) Male |
|
2.4mm to GPPO (Mini SMP) RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-2.4/GPPO-JJ |
|
|
DC-40GHz |
1.25 |
2.4mm Male to GPPO (Mini-SMP) Male |
|
FR1-2.4/GPPO-KK |
|
|
DC-40GHz |
1.25 |
2.4mm Female to GPPO (Mini-SMP) Female |
|
FR1-2.4/GPPO-JK |
|
|
DC-40GHz |
1.25 |
2.4mm Male to GPPO (Mini-SMP) Female |
|
FR1-2.4/GPPO-KJ |
|
|
DC-40GHz |
1.25 |
2.4mm Female to GPPO (Mini-SMP) Male |
