Application Scenarios Of WR15/1.85-UG-K-V

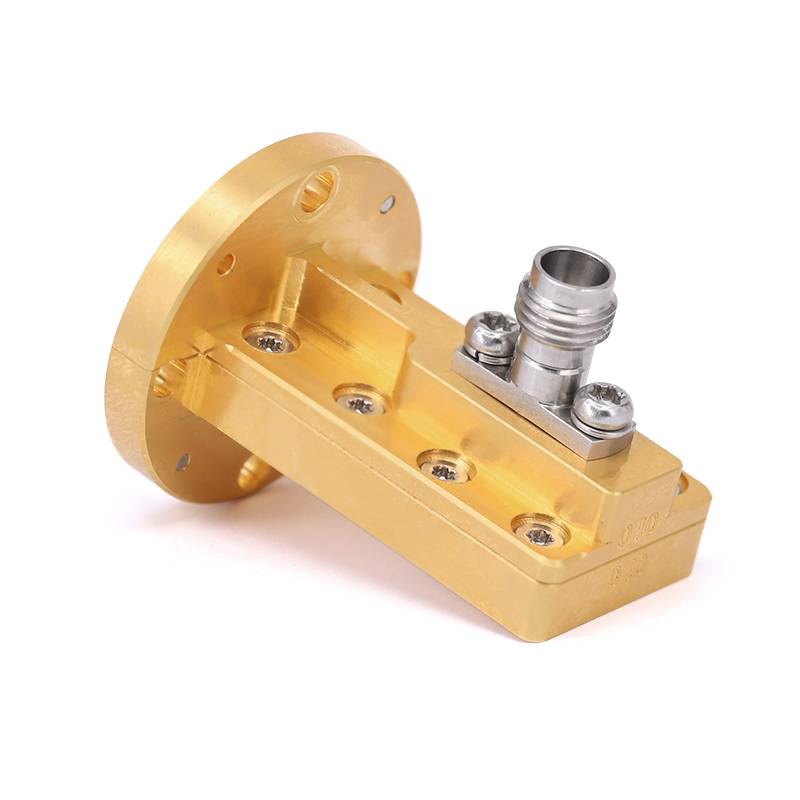

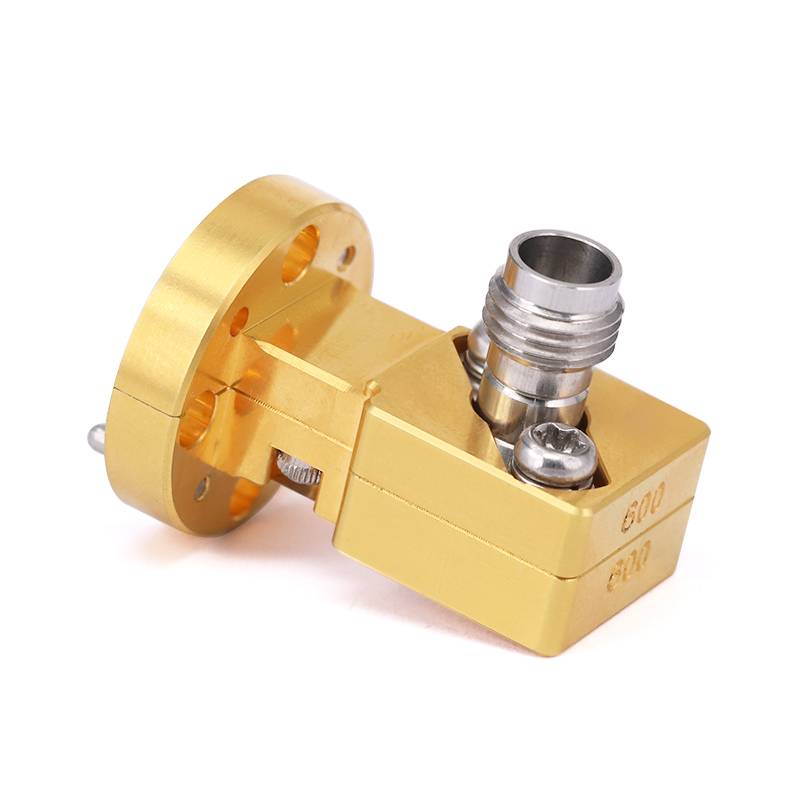

      WR15/1.85-UG-K-V is a high-performance right-angle waveguide to coax adapter, meticulously crafted by Flexi RF Inc, excelling in numerous radio frequency, microwave, and millimeter-wave application fields.



I. Key Product Parameters

Frequency Range: The operating frequency covers 50-65GHz, which is in the millimeter-wave range, capable of meeting application scenarios with stringent requirements for high-frequency signal processing.



Electrical Performance

VSWR / Return Loss: The value is 1.8, greatly ensuring the integrity of signal transmission, reducing the waste and loss of signal energy, and improving the quality and efficiency of signal transmission.

Insertion Loss: ≤0.8. The extremely low insertion loss ensures that the attenuation of the signal intensity is controlled within a very small range when passing through the adapter, ensuring that the signal can be transmitted to subsequent equipment at a relatively high power level, maintaining the overall signal strength and stability of the system.



Physical Specifications

Body Style: Adopting a right-angle design, this unique structure can flexibly adapt to the equipment connection needs of different spatial layouts, realizing the convenient connection between the waveguide and the coaxial cable in a limited space, and providing more design possibilities for system integration.

Flange Designation: UG-385/U. This type of flange is widely used , facilitating quick and stable connection with other equipment with corresponding flange interfaces.

Waveguide Size: WR-15, corresponding to a specific waveguide specification. Its precise size design ensures effective transmission and mode control of signals in the waveguide, and works together with the adapted connector to achieve the best signal conversion effect.

Connector Series: 1.85mm, which is a connector series commonly used in high-frequency applications, known for its high-precision manufacturing process and excellent electrical performance.

Connector Impedance: 50 ohms, matching the impedance of common radio frequency and microwave systems, which is conducive to the seamless transmission of signals between different components, reducing signal reflection and loss caused by impedance mismatch.

Body Material: Brass is selected. Brass has excellent electrical conductivity and thermal conductivity, which can effectively reduce resistance loss during signal transmission. At the same time, it has good mechanical processing performance and corrosion resistance, ensuring that the product can work stably for a long time in complex environments.



Environmental Adaptability

RoHS Compliant: The product complies with the RoHS standard, indicating that it strictly controls the use of hazardous substances in the production process, meets environmental protection requirements, is not only beneficial to environmental protection, but also allows users to be more at ease during use.

Operating Temperature Range: It can work normally in extreme temperature environments from -55ºC to +125ºC, showing strong environmental adaptability. Whether in cold outdoor environments or high-temperature industrial production sites, it can operate stably, ensuring that signal transmission is not disturbed by temperature changes.



II. Application Fields

Military and Aerospace:

    In military and aerospace equipment such as military communications, radar detection, and satellite communications, extremely high requirements are placed on the stability, accuracy of signal transmission, as well as the reliability and environmental adaptability of equipment. WR15/1.85-UG-K-V, with its excellent high-frequency signal transmission performance, wide temperature operating range, and good material properties, can be used to connect various radar antennas with radio frequency front-end equipment, waveguides and coaxial transmission lines of satellite communication ground stations,

Testing and Measurement:

    In the research and development and testing laboratories of radio frequency and microwave products in scientific research institutions and electronic equipment manufacturing enterprises, accurate and reliable testing equipment is needed to evaluate the performance indicators of products. WR15/1.85-UG-K-V can be used as a key connection component in the test system, connecting test instruments such as signal sources, spectrum analyzers, and network analyzers with the waveguide ports or coaxial ports of the device under test, ensuring the accurate transmission of test signals and the reliability of measurement results.
