Calibration Kits

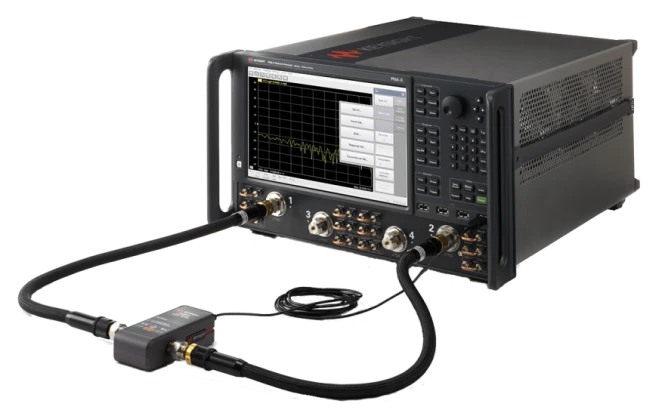

Calibration kits are critical tools for RF test and measurement, ensuring accurate measurements of Vector Network Analyzers (VNAs) and other RF instruments at the device's test plane. They establish a reference plane from the interconnection point of the Device Under Test (DUT), enabling VNAs to automatically perform complex de-embedding without extra data processing.
Description
Product introduction
Calibration kits are critical tools for RF test and measurement, ensuring accurate measurements of Vector Network Analyzers (VNAs) and other RF instruments at the device's test plane. They establish a reference plane from the interconnection point of the Device Under Test (DUT), enabling VNAs to automatically perform complex de-embedding without extra data processing.
These Calibration kits adopt VNA Short-Open-Load-Through (SOLT) calibration standards, featuring coaxial interconnections with precision adapters. Each kit is equipped with two short circuits, two open circuits, two loads (matching the system's transmission line characteristic impedance) and one through connection.
For VNA calibration kits, common coaxial interconnections are equipped with a set of precision adapters. Typically, a VNA calibration kit is selected to match the VNA's test ports, or to match commonly used coaxial connectors based on the Device Under Test (DUT) or the equipment available in the test laboratory.
Procurement FAQ
Recommended calibration kit models by FlexiRF
|
FlexiRF Sku |
Product Description |
Frequency |
Product Showcase |
|

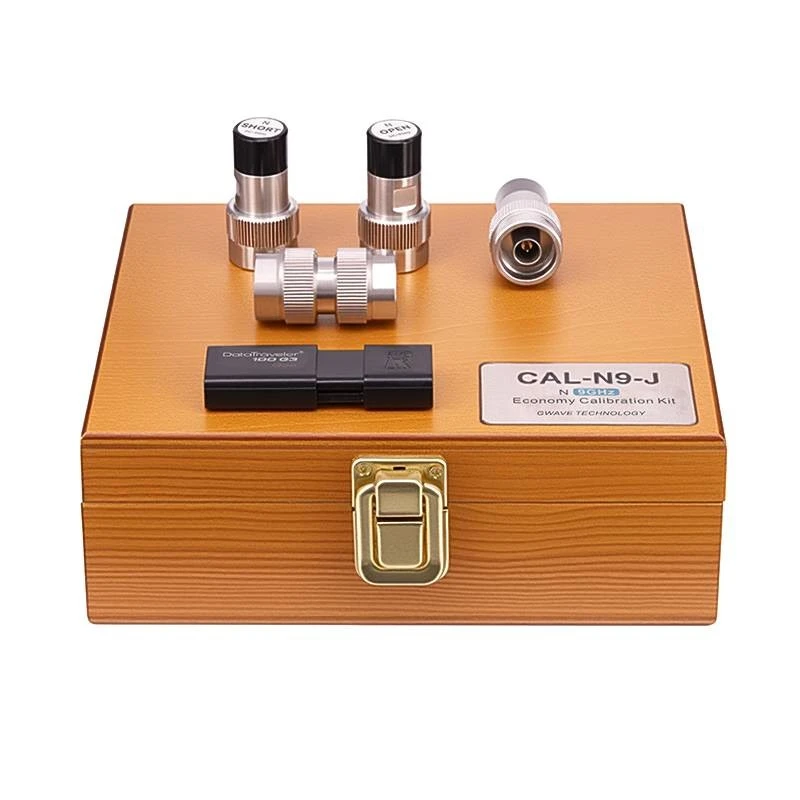

CAL-N9-J |
N Male Calibration Kit Open Short Load Adapter |
DC-9GHz |
|
|

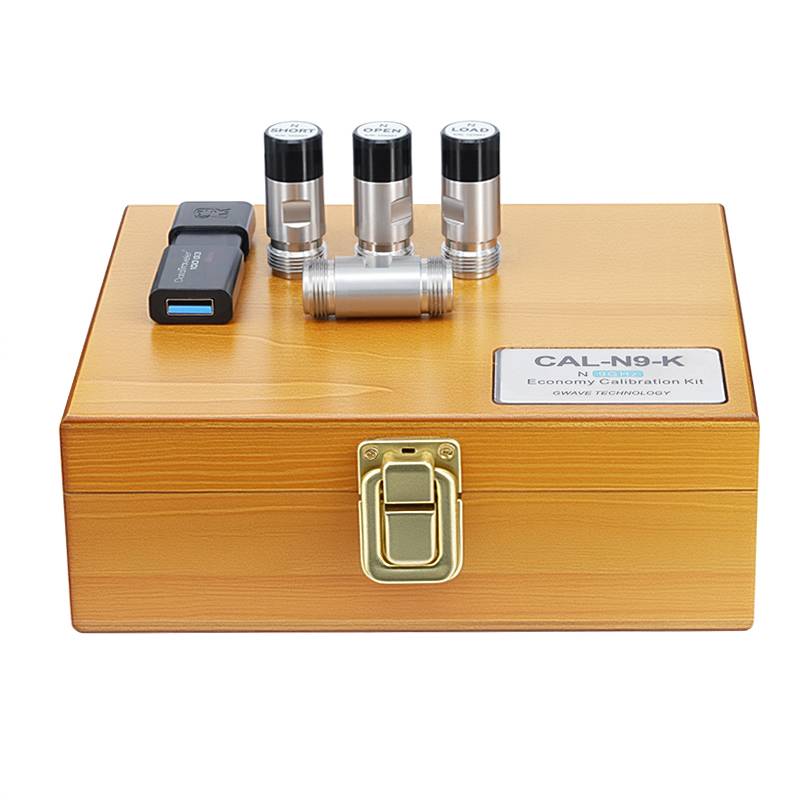

CAL-N9-K |
N Female Calibration Kit Open Short Load Adapter |
DC-9GHz |
 |
|

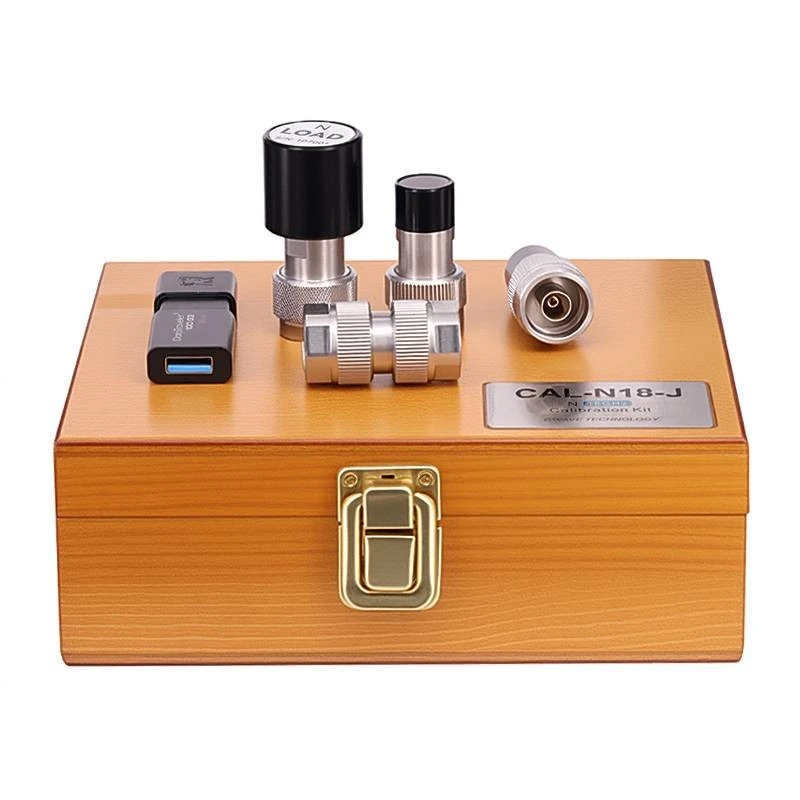

CAL-N18-J |
N Male Calibration Kit Open Short Load Adapter |
DC-18GHz |
|
|
CAL-N18-k |
N Female Calibration Kit Open Short Load Adapter |
DC-18GHz |
 |
|
CAL-3.5-J-9G |
3.5mm Male Calibration Kit Open Short Load Adapter |
DC-9GHz |
|
|
CAL-3.5-K-9G |
3.5mm Female Calibration Kit Open Short Load Adapter |
DC-9GHz |
|
|
CAL-3.5-J-26.5G |
3.5mm Male Calibration Kit Open Short Load Adapter |
DC-26.5GHz |
|
|
CAL-3.5-K-26.5G |
3.5mm Female Calibration Kit Open Short Load Adapter |
DC-26.5GHz |
 |
|

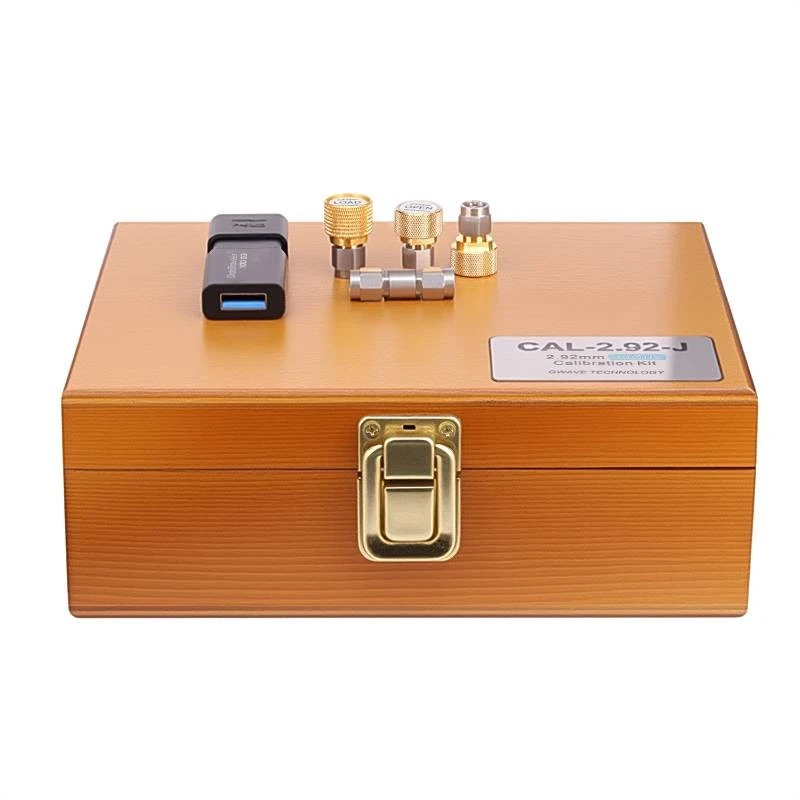

CAL-2.92-J |
2.92mm Male Calibration Kit Open Short Load Adapter |
DC-40GHz |
|
|
CAL-2.92-K |
2.92mm Female Calibration Kit Open Short Load Adapter |
DC-40GHz |
|
|
CAL-2.4-J |
2.4mm Male Calibration Kit Open Short Load Adapter |
DC-50GHz |
 |
|
CAL-2.4-K |
2.4mm Female Calibration Kit Open Short Load Adapter |
DC-50GHz |
 |
