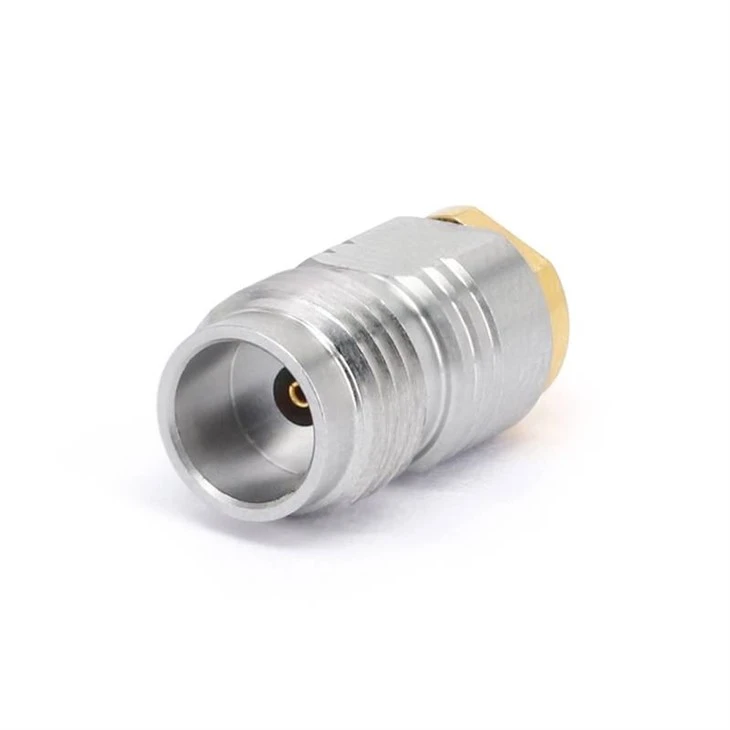

1.85mm to G3PO SMPS Precise Adaptor 67GHz 2
1.85mm to G3PO SMPS Precise Adaptor 67GHz 3

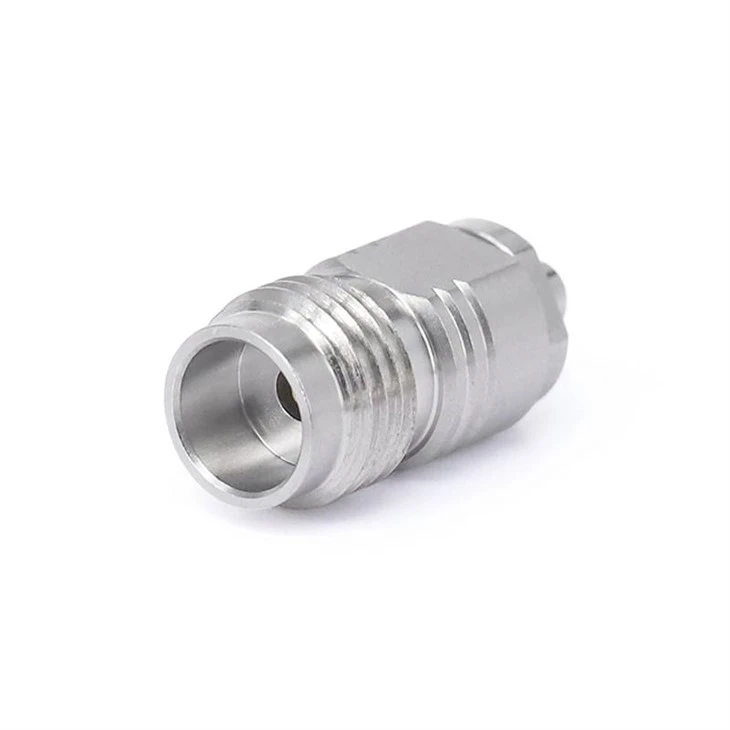

1.85mm to G3PO SMPS Precise Adaptor 67GHz 4
1.85mm to GPPO Mini-SMP Precise Adaptor 67GHz 1
1.85mm to GPPO Mini-SMP Precise Adaptor 67GHz 2
1.85mm to GPPO Mini-SMP Precise Adaptor 67GHz 3

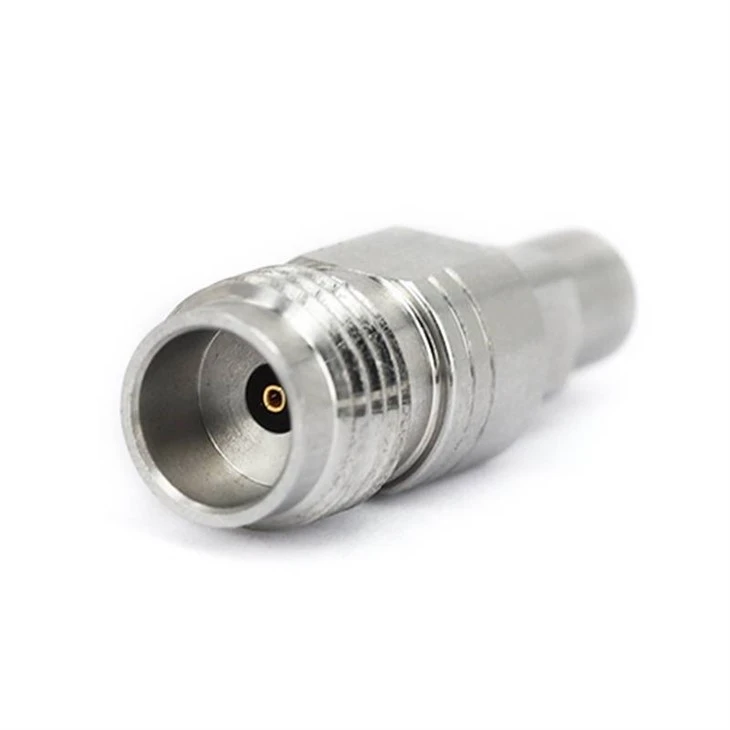

1.85mm to GPPO Mini-SMP Precise Adaptor 67GHz 4
2.92mm to 1.85mm Precise Adaptor 1
2.92mm to 1.85mm Precise Adaptor 2
2.92mm to 1.85mm Precise Adaptor 3
2.92mm to 1.85mm Precise Adaptor 4
1.85mm Adapter
The 1.85mm precision adapter can support a maximum frequency of 67GHz. The 1.85mm port size can be matched with G3PO, GPPO, 2.4mm, 2.92mm formsing various types of adapters.We can arbitrarily match suitable adapters according to different application scenarios.
Description
Product introduction
The 1.85mm precision adapter can support a maximum frequency of 67GHz. The 1.85mm port size can be matched with G3PO, GPPO, 2.4mm, 2.92mm formsing various types of adapters.We can arbitrarily match suitable adapters according to different application scenarios.
The frequency range of the 1.85mm adapter series is from 40GHz to 67GHz, and the matching frequencies vary for different ports. Their materials are all selected as stainless steel and brass with gold plating, which endows them with high stability and long service life.
Product Body Style
There are also multiple options for the body structure forms of the 1.85mm precision adapters, including straight type, Right Angle, Bulkhead Mount and 4-hole flange type, which can be applied in different scenarios.
Procurement FAQ
Product Specification Data
|
Configuration |
|
|
Connector 1 Type |
1.85mm |
|
Connector 1 Impedance |
50Ohms |
|
Connector 1 Polarity |
Standard |
|
Connector 2 Type |
1.85mm/G3PO/GPPO/2.4mm/2.92mm |
|
Connector 2 Impedance |
50 Ohms |
|
Connector 2 Polarity |
Standard |
|
Connector Mount Method |
None |
|
Adapter Body Style |
Straight/Right Angle/Bulkhead Mount/ 4 Hole Flange |
|
Materials Information |
|
|
Center Contact |
CuBe Gold Plated |
|
Outer Contact |
CuBe & Stainless Steel |
|
Body |
Stainless Steel |
|
Dielectric |
PEI |
|
Environmental Data |
|
|
Temperature Range |
-55℃ to +165℃ |
|
2011/65/EU (RoHS) |
Compliant |
Product Type
|
1.85mm RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-1.85-JJS |
|
|
DC-67GHz |
1.25 |
1.85mm Male to 1.85mm Male |
|
FR1-1.85-KKS |
|
|
DC-67GHz |
1.25 |
1.85mm Female to 1.85mm Female |
|
FR1-1.85-JKS |
|
|
DC-67GHz |
1.25 |
1.85mm Male to 1.85mm Female |
|

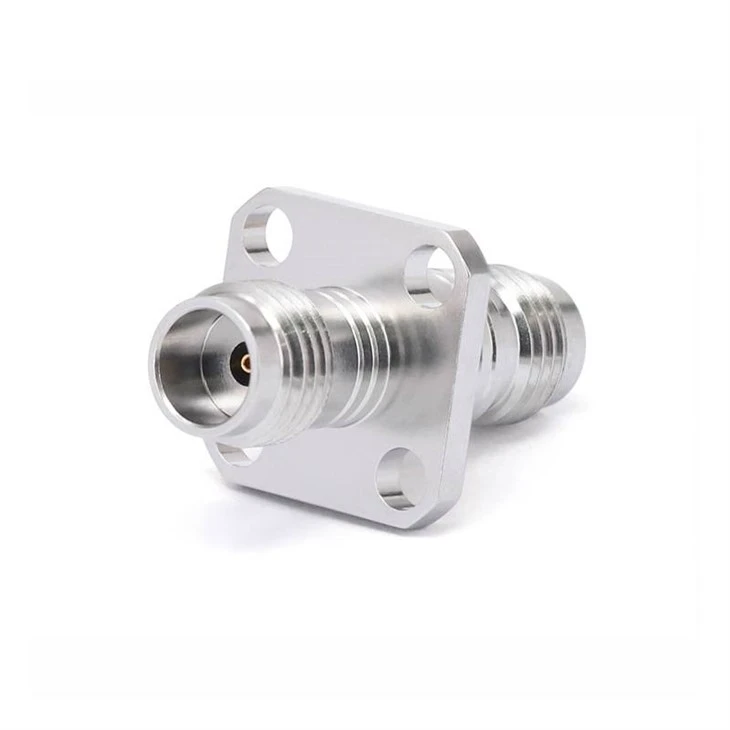

FR1-1.85-KFKG |
|
|
DC-67GHz |
1.25 |
1.85mm Female to 1.85mm Female with 4 Hole Flange |
|
FR1-1.85-JWKS |
|
|
DC-67GHz |
1.25 |
1.85mm Male to 1.85mm Female with Right Angle |
|

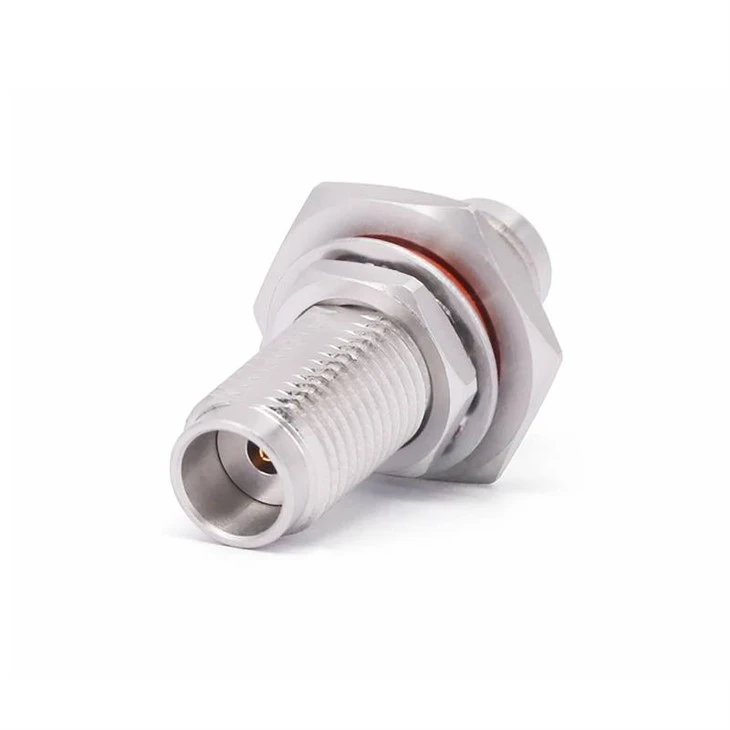

FR1-1.85-KYKS |
|
|
DC-67GHz |
1.25 |
1.85mm Female to 1.85mm Female with Bulkhead Mount |
|
1.85mm to G3PO RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-1.85/G3PO-JJ |
|
|
DC-67GHz |
1.35 |
1.85mm Male to G3PO(SMPS) Male |
|
FR1-1.85/G3PO-KK |
|
|
DC-67GHz |
1.35 |
1.85mm Female to G3PO(SMPS) Female |
|
FR1-1.85/G3PO-JK |
|
|
DC-67GHz |
1.35 |
1.85mm Male to G3PO(SMPS) Female |
|
FR1-1.85/G3PO-KJ |
 |
|
DC-67GHz |
1.35 |
1.85mm Female to G3PO(SMPS) Male |
|

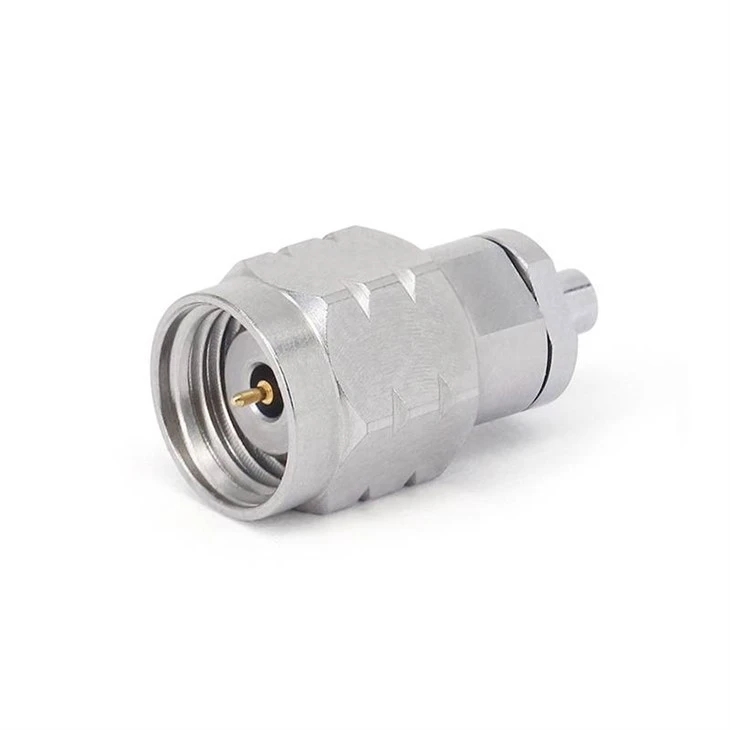

1.85mm to GPPO RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-1.85/GPPO-JJ |
|
|
DC-67GHz |
1.30 |
1.85mm Male to GPPO(Mini-SMP) Male |
|
FR1-1.85/GPPO-KK |
|
|
DC-67GHz |
1.30 |
1.85mm Female to GPPO(Mini-SMP) Female |
|
FR1-1.85/GPPO-JK |
|
|
DC-67GHz |
1.30 |
1.85mm Male to GPPO(Mini-SMP) Female |
|
FR1-1.85/GPPO-KJ |
|
|
DC-67GHz |
1.30 |
1.85mm Female to GPPO(Mini-SMP) Male |
|

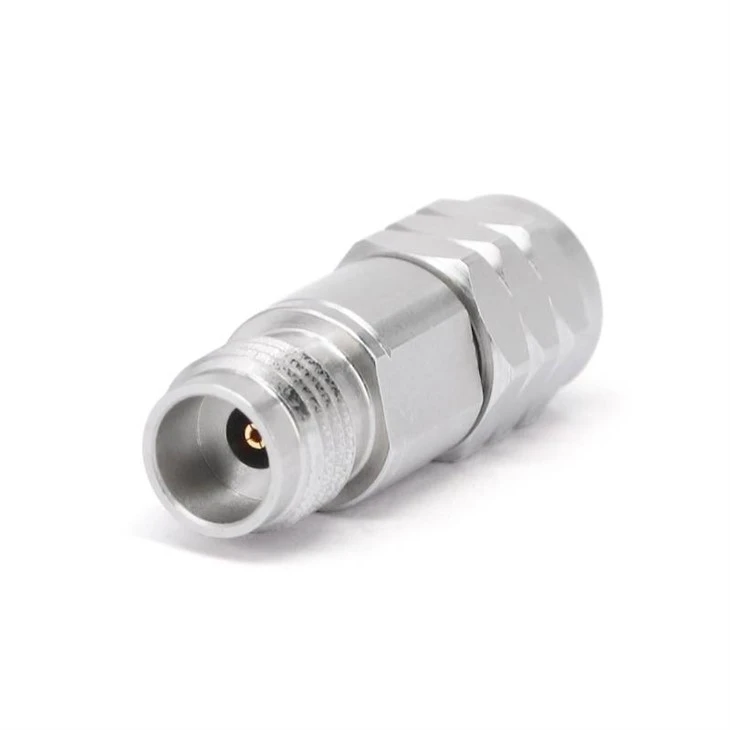

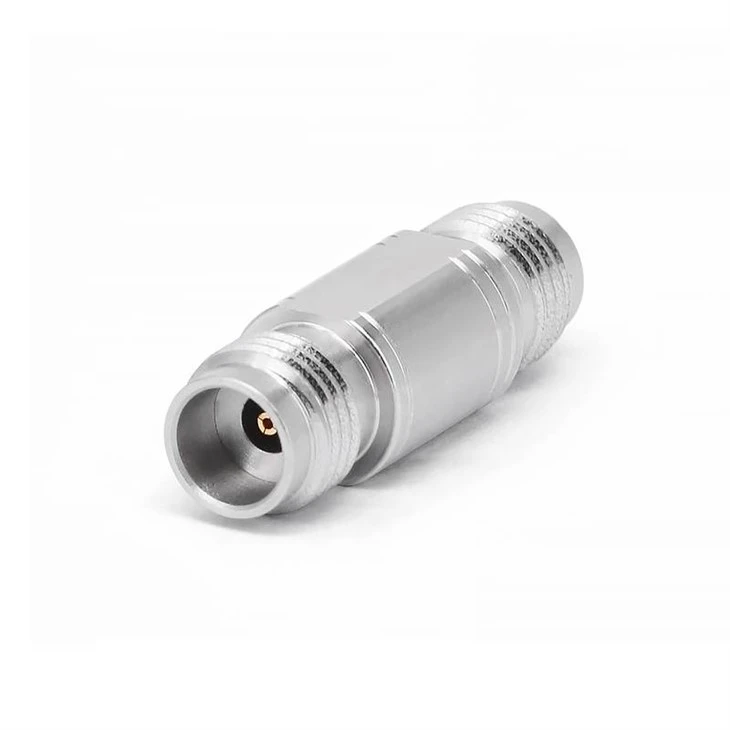

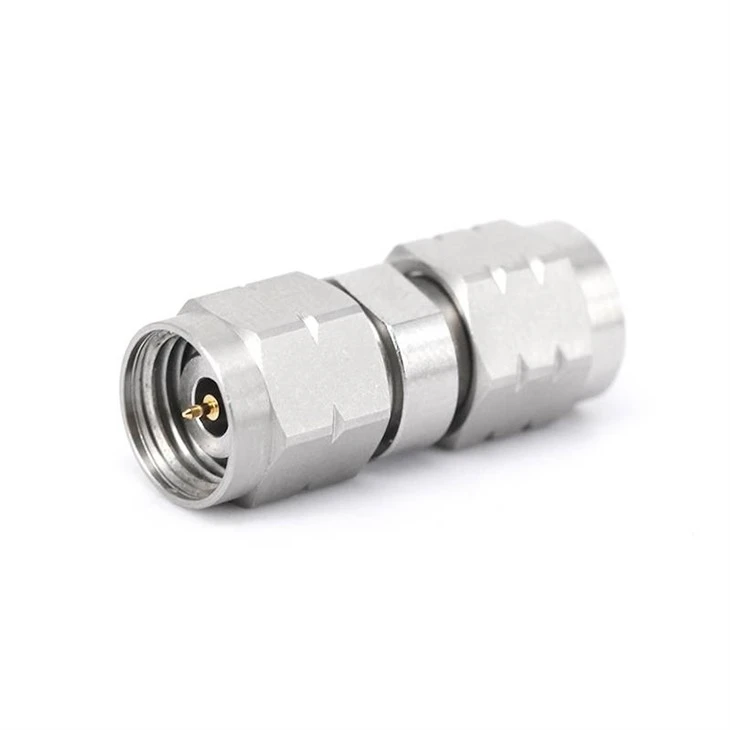

1.85mm to 2.4mm RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-2.4/1.85-JJS |
|
|
DC-50GHz |
1.25 |
2.4mm Male to 1.85mm Male |
|
FR1-2.4/1.85-KKS |
|
|
DC-50GHz |
1.25 |
2.4mm Female to 1.85mm Female |
|
FR1-2.4/1.85-JKS |
|
|
DC-50GHz |
1.25 |
2.4mm Male to 1.85mm Female |
|
FR1-2.4/1.85-KJS |
|
|
DC-50GHz |
1.25 |
2.4mm Female to 1.85mm Male |
|

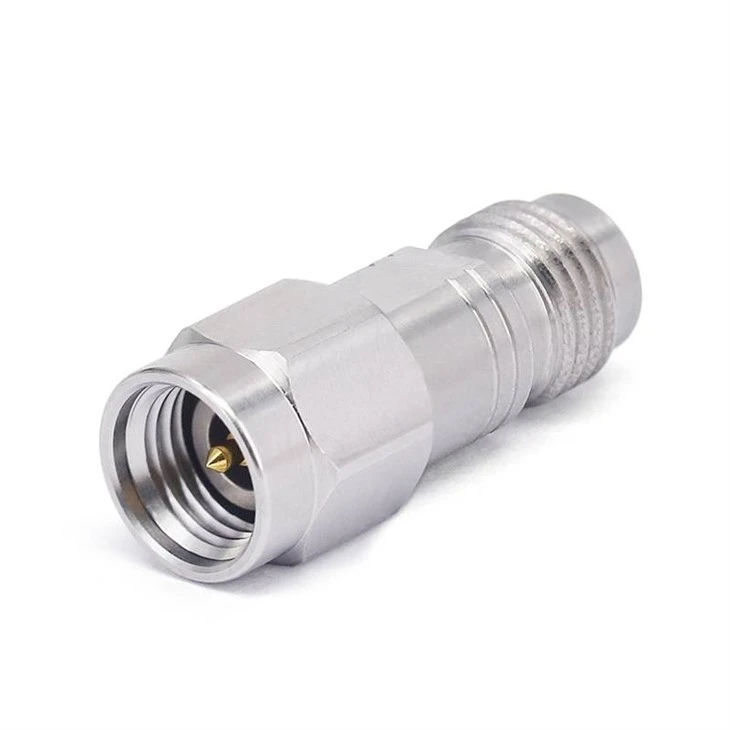

1.85mm to 2.92mm RF Adapter |
|||||
|
Sku |
Drawing |
Frequency |
VSWR |
Description Type |
|
|
FR1-2.92/1.85-JJS |
|
|
DC-40GHz |
1.20 |
2.92mm Male to 1.85mm Male |
|
FR1-2.92/1.85-KKS |
|
|
DC-40GHz |
1.20 |
2.92mm Female to 1.85mm Female |
|
FR1-2.92/1.85-JKS |
|
|
DC-40GHz |
1.20 |
2.92mm Male to 1.85mm Female |
|
FR1-2.92/1.85-KJS |
|
|
DC-40GHz |
1.20 |
2.92mm Female to 1.85mm Male |
