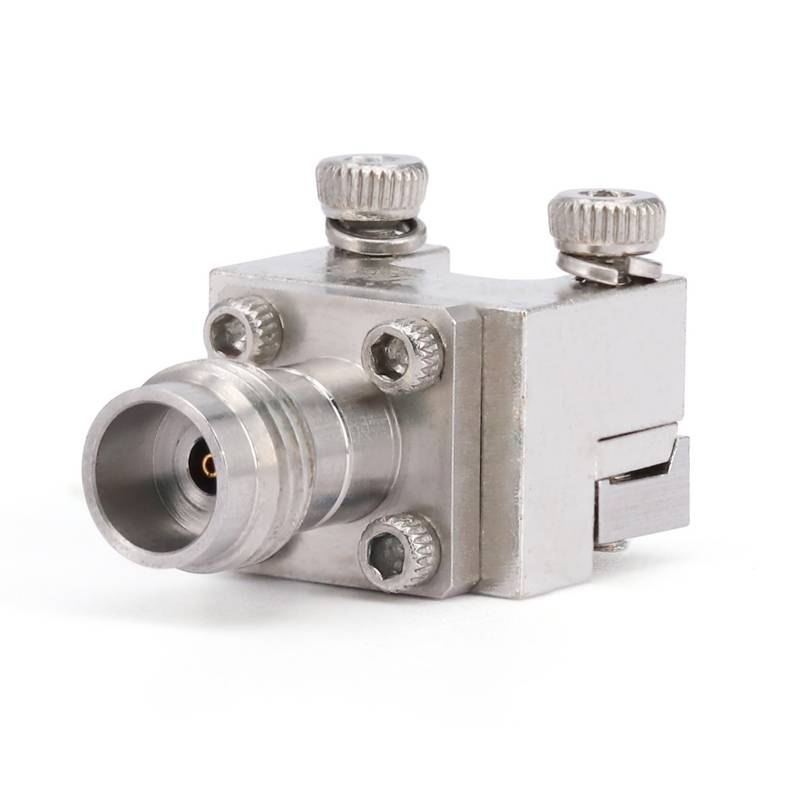

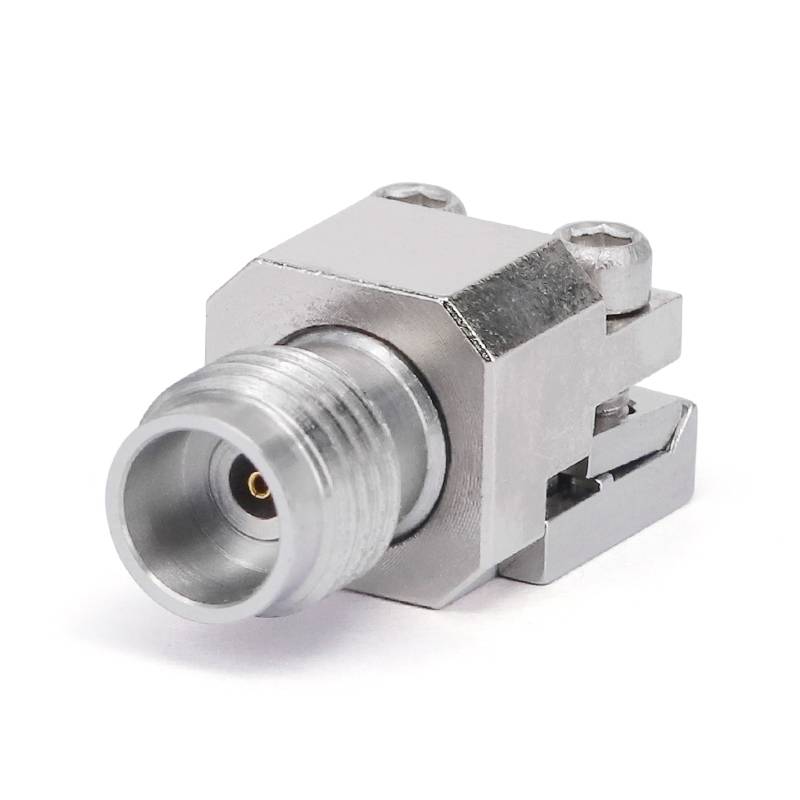

Solderless RF Connectors (End Launch Connector)
Leave a message
In the field of radio frequency (RF) signal transmission, the performance and installation efficiency of connectors directly affect the stability and deployment cost of the entire system. As a core component of solderless RF connections, End Launch Connectors have become an ideal choice in fields such as 5G communications, microwave testing, and aerospace, thanks to their solder-free convenience, excellent signal transmission performance, and wide range of scenario adaptability. This article will combine the product series of the Flexirf platform to conduct an in-depth analysis of the technical characteristics, core advantages, and application value of solderless end-launch connectors.
1. No soldering required, enabling efficient installation
Traditional RF connectors rely on soldering for fixation, which is not only time-consuming but also may damage the PCB board or surrounding components due to high temperatures. The solderless design achieves stable connection with the PCB through mechanical structures (such as edge clips, screw fixation), eliminating the need for professional soldering equipment during installation. This significantly shortens the assembly time, making it particularly suitable for mass production scenarios. For example, Flexirf's SMA solderless series can complete the establishment of signal paths simply by matching the edge with the PCB board.
2.Adapting to diverse scenarios with strong compatibility
3.Stable performance with extremely low loss
When selecting a model, emphasis should be placed on the frequency range, PCB thickness, microstrip line width, and installation method (edge mount or bulkhead mount).
Solderless end-launch connectors have broken the predicament that "convenient installation and high performance cannot coexist" through technological innovation. Their diverse product matrix and stable transmission performance are reshaping the efficiency standards of RF connections. Whether it is mass-produced civilian equipment or high-end fields pursuing ultimate performance, such connectors will become key components to improve system reliability and deployment efficiency.
