Power dividers and splitters
Leave a message
Power dividers and power splitters are related in function and application and are often used interchangeably. Strictly speaking, however, there are subtle differences, mainly in terms of design goals, functional focus, and application scenarios. The specific differences are as follows:
1. Core Functions and Design Goals
Power Divider
Its core lies in "bidirectionality". It can not only split one input power into multiple outputs (distribution mode) but also combine multiple input powers into one output (combining mode), so it is also called a "power divider-combiner".
The design emphasizes port matching, low loss, and high isolation to ensure efficient operation during both forward distribution and reverse combining, reducing signal reflection and interference between ports.

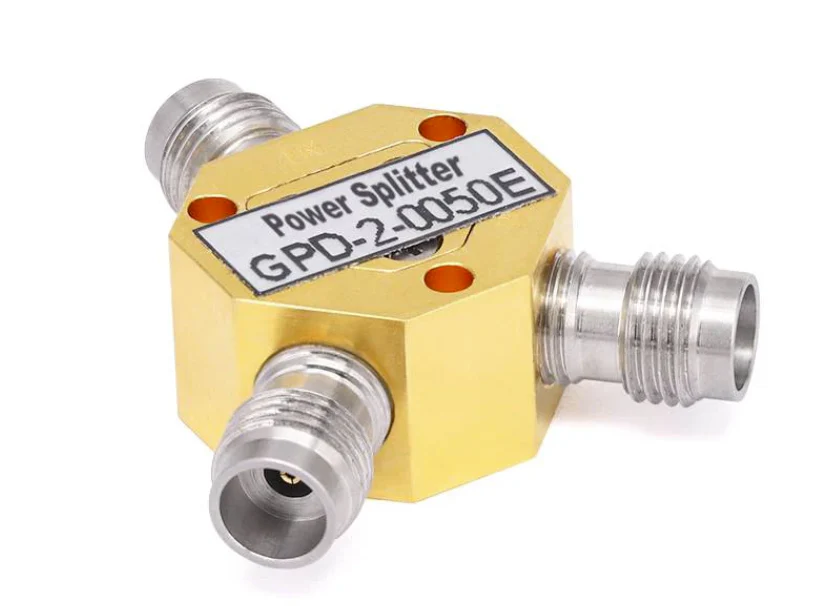

Power Splitter
Its core is "unidirectionality", focusing only on splitting one input power into multiple outputs without considering the reverse combining function.
The design places more emphasis on simple power distribution ratios, with lower requirements for reverse isolation and matching, and the structure may be simpler (such as using only a resistor network or a simple transmission line).
2. Differences in Technical Indicators
| Indicator | Power Divider | Power Splitter |
|---|---|---|
| Isolation | High (usually ＞20dB) to avoid interference between ports | Low (may not be strictly required) |
| Bidirectionality | Supports bidirectional operation (distribution/combining) | Only supports unidirectional distribution |
| Voltage Standing Wave Ratio (VSWR) | Low (usually ＜1.2) to ensure good bidirectional matching | Higher (only basic matching of the input port is required) |
| Insertion Loss | Low (mainly distribution loss, such as 3dB for two-way splitting) | May be higher (including additional losses such as resistor voltage division loss) |
3. Typical Structures and Application Scenarios
Power Divider
Typical structures: Wilkinson power dividers, branchline bridges, etc., which rely on transmission lines or coupling structures to achieve high-precision distribution.
Application scenarios: Systems requiring bidirectional operation, such as radar transmitting/receiving modules (needing both to distribute transmitting signals and combine receiving signals), antenna arrays (signal distribution and combining), radio frequency power combiners, etc.
Power Splitter
Typical structures: Resistor networks, simple T-type transmission lines, etc., with a simpler structure.
Application scenarios: Scenarios requiring only unidirectional distribution, such as distributing cable TV signals to multiple user terminals, multi-channel parallel output of signal sources in radio frequency testing, signal shunting of low-power devices, etc.
